2ACCJN0445G NR/ LTE/WCDMA/GSM Mobile Phone

PLEASE CONSIDER THE ENVIRONMENT BEFORE PRINTING SAVE PAPER SAVE TREES QUICK START GUIDE tcl.com/mx User manual English - CJB66R201AAA Printed in China T790B 1 Your Mobile Keys and connectors Fingerprint sensor Multiple rear cameras LED flash NFC sensor area ① Customize convenient shortcut 3.5mm headset connector Volume up/down Power key USB Type-C connector Front camera 6.53” Microphone Smart Key ① 2 Getting started ① Your new phone is partially charged. Charge the battery by using the USB-C cable and charger provided. ② Use the provided SIM pin to open the SIM tray. Place the Nano SIM card and/or microSD TM card into the tray, then slide the SIM tray into the slot. Note: microSD TM cards are sold separately. Only use Nano SIM cards with your phone. ① ② Caution: Do not insert the SIM pin into the microphone on top of the phone. 3 Home screen You can bring all of the items that you use most frequently (applications, shortcuts, folders) to your Home screen for quick access. Tapping Home always takes you back to the main Home screen. ① ② ① Swipe down from the Status bar to view the Notification panel and access all pending notifications. Swipe down again to view Quick Access settings options. ② Tap to access the complete Settings menu. 4 Calls Making a call From the Phone app, use the keypad to enter the phone number, or keyboard to enter the contact name. Then tap to place the call. Answering a call When you receive a call: • Tap ANSWER, or swipe up the icon to answer; • Tap DECLINE, or swipe down the icon to reject; • Tap to reject the call by sending a preset message. 5 Contacts Use Contacts to view your saved contacts or create a new contact. Synchronize your contacts from your email account(s) and other applications to your phone. ① Tap to search for a contact. ② Tap to select multiple contacts for bulk editing, such as adding a label to the contact. ③ Tap to view all the contacts saved on your device. ④ Tap on the contact name or icon to open the contact card, where you can edit their information, call them, and more. Touch and hold to share or delete the selected contact(s). ⑤ Tap to create a new contact. ① ② ③ ④ ⑤ 6 Messages You can create, edit, send, and receive SMS and MMS. A SMS will be converted to MMS automatically when media files (image, video, audio, slides, etc.) are attached, when a subject is added to the message, or an email address is used for a recipient. ① ② ③ ④ ⑤ ⑥ ① Tap to send the SMS or MMS message. ② Touch and hold to switch language. ③ Insert a picture from gallery or shoot one directly. ④ Insert a GIF, sticker, location, voice memo, or other file. ⑤ Tap to input a comma. Touch and hold to access keyboard settings, input an emoticon, and enter left or right hand input mode. ⑥ Tap to access the symbols and numbers keyboards. 7 Gmail Use Gmail to create, send, and receive emails directly on your phone. The Gmail app will allow you to add several email accounts. ① ② ③ ④ ① Tap to view the email accounts on your device. ② Tap to access email folders, settings, and more. ③ Swipe right or left to archive the email. ④ Tap to create an email. 8 General Information • Visit the TCL website at https://www.tcl.com/mx for tutorials and answers to frequently asked questions, and to download the User Manual. • To get support for your phone, visit the TCL website (www.tcl.com/mx), or dial the number listed below: Argentina: 08001220682 Chile: 800000147 Colombia: 18009520823 Ecuador: 800000635 Mexico: 8008909908 Peru: 080000698 The Dominican Republic: 8887600164 Uruguay: 405296624 Venezuela: 08001005368 • Update your phone's software Go to Settings > System > System updates to check software updates. • Back up your personal data Go to Settings > System > Backup > Back up to Google Drive and turn it on. • Reset your phone Go to Settings > System > Reset > Factory data reset > Reset phone > Erase everything. • Removing your Google Account Go to Settings > Accounts > tap on the account > Remove Account. PIENSE EN EL MEDIO AMBIENTE ANTES DE IMPRIMIR AHORRE PAPEL SALVE ÁRBOLES INSTRUCTIVO DE USO tcl.com/mx User manual Español--CJB66R201AAA Impreso en China Por favor, lea este instructivo de uso antes de utilizar el dispositivo. T790B 1 Su celular Teclas y conectores Sensor de huella digital Múltiples cámaras traseras Flash LED Área del sensor NFC ① Personalizar accesos directos convenientes Conector del auricular de 3,5mm Botón de subir/bajar el volumen Botón de encendido Conector USB tipo C Smart Key ① Cámara frontal 6,53” Micrófono 2 Puesta en marcha ① Su nuevo teléfono está parcialmente cargado. Cargue la batería con el cable USB-C y el cargador suministrados. ② Utilice el pin de la SIM proporcionado para abrir la bandeja. Coloque la tarjeta SIM nano o la tarjeta micro SD TM en la bandeja y, a continuación, deslícela hacia la ranura. Importante: las tarjetas microSD TM se venden por separado. Utilice sólo tarjetas SIM nano con el teléfono. ① ② ¡ATENCIÓN! No ingrese el pin de la SIM en el micrófono en la parte superior del teléfono. Micrófono 3 Pantalla de inicio Puede mover los elementos que usa con más frecuencia (aplicaciones, atajos, carpetas) a la pantalla de inicio para acceder más rápidamente a ellos. Tocar Inicio siempre lo regresa a la pantalla de inicio. ① ② ① Deslice hacia abajo desde la barra de estado para ver el panel de notificaciones y acceder a todas las notificaciones pendientes. Vuelva a deslizar hacia abajo para ver las opciones de ajustes de acceso rápido. ② Toque para acceder al menú completo de Ajustes. 4 Llamadas Realizar una llamada Desde la aplicación Teléfono , use el teclado para ingresar el número de teléfono o el nombre del contacto. A continuación, toque para realizar la llamada. Responder una llamada Cuando reciba una llamada: • Toque RESPONDER o deslice hacia arriba el icono para contestar; • Toque RECHAZAR o deslice hacia abajo el icono para rechazar la llamada; • Toque para rechazar la llamada y enviar un mensaje preestablecido. 5 Contactos Con Co…

Text truncated - open the document above for the full version.

Safety and Precautions CQF66R201AAA T790B 1 Printed in China This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the Radio waves section. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 10 mm from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use. www.sar-tick.com TCL 10 5G has been awarded Hi-Res Audio certification. Hi-Res Audio gives you an audio quality that exceeds that of a CD and is close to that of the studio recording. Notice: High-Resolution Audio requires a compatible headset, you may need to purchase Hi-Res Audio certified headset. 2 Safety and use ������������������������� We recommend that you read this chapter carefully before using your phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. TRAFFIC SAFETY: Given that studies show that using a phone while driving a vehicle constitutes a real risk, even when the hands-free kit is used (car kit, headset...), drivers are requested to refrain from using their phone when the vehicle is not parked. Check the laws and regulations on the use of wireless phones and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas. CONDITIONS OF USE: • You are advised to switch off the phone from time to time to optimize its performance; • Remember to abide by local authority rules of mobile phone use on aircrafts; • If your phone is a unibody device, where the back cover and battery are not removable, disassembling the phone will void your warranty. Disassembling the phone can cause bodily injury if the battery is punctured; • Always handle your phone with care and keep it in a clean and dust-free place; • Do not allow your phone to be exposed to adverse weather or environmental conditions, such as moisture, humidity, rain, infiltration of liquids, dust, sea air, etc. The manufacturer’s recommended operating temperature range is 0°C (32°F) to 55°C (131°F). At over 55°C (131°F), the legibility of the phone’s display may be temporarily impaired; • Do not open, dismantle, or attempt to repair your phone yourself; • Do not drop, throw, or bend your phone; • Use only batteries, battery chargers, and accessories which are recommended by TCL Communication Ltd. and its affiliates and are compatible with your phone model. TCL Communication Ltd. and its affiliates disclaim any liability for damage caused by the use of other chargers or batteries; • Your phone should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products; • Remember to make backup copies or keep a written record of all important information stored on your phone; • Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout. If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult your doctor before playing video games on your phone or enabling a flashing-lights feature on your phone; 3 • Parents should monitor their children’s use of video games or other features that incorporate flashing lights on the phones. All persons should discontinue use and consult a doctor if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, orientation, or movements. PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your phone regarding taking photographs and recording sounds with your phone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an invasion of privacy. It is the user's sole responsibility to ensure that prior authorization has been obtained, if necessary, in order to record private or confidential conversations or take a photograph of another person; the manufacturer, the seller or vendor of your phone (including the carrier) disclaim any liability which may result from improper use of the phone. BATTERY: Observe the following precautions: • Do not attempt to open the back cover; • Do not attempt to eject, replace, or open the battery; • Do not puncture the back cover of your phone; • Do not burn or dispose of your phone in household rubbish or store it at temperature above 60°C (140°F); Phone and battery as a unibody device must be disposed of in accordance with locally applicable environmental regulations. This symbol on your phone, the battery, and the accessories means that these products must be taken to collection points at the end of their life: • Municipal waste disposal centers with specific bins for these types of equipment; • Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. In European Union countries: These collection points are accessible free of charge. All products with this sign must be brought to these collection points. In non-European Union jurisdictions: Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection poi…

Text truncated - open the document above for the full version.

ABC MAMUFACTURER COMPANY No. 999, Zhong Shan St.,Huai Rou, BeiJing Web Site: www.abc.com Tel: 886-010-6666666 Email: admin@ abc.com Fax: 886-010-6666668 V1.0 Attestation Letter Date: Nov 5, 2020 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ACCJN044 We, TCL Communication Ltd., declare that the device does not support channel 12 ~ 13 in 2.4 GHz band and any non-US channels in all the operational mode(s) for the following product. Product: T790B Model: T790B FCC ID: 2ACCJN044 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! Sincerely, __________________ Name: Gong Zhizhou Position: Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com Date 2020-10-26 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CTTL-Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2020-10-26 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: 2ACCJN044 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

TCL Communication Ltd. 5F, C building, No. 232, Liang Jing Road, ZhangJiang High-Tech Park, Pudong Shanghai, P.R. China. 201203 Tel: +86 21 6146 0666 Fax: +86 21 6146 0602 http://tclcom.tcl.com 2020-10-26 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: 2ACCJN044 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: - External Photos - Internal Photos - Test Setup Photos - User manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 days extension periods they will notify ACB with a new request letter at least 7 days prior to the short-term confidentiality expiration date – [Note: up to a maximum of 3 extensions only are allowed], or b) Immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Yours Sincerely, Zhizhou GONG Product Certification Manager TCL Communication Ltd.

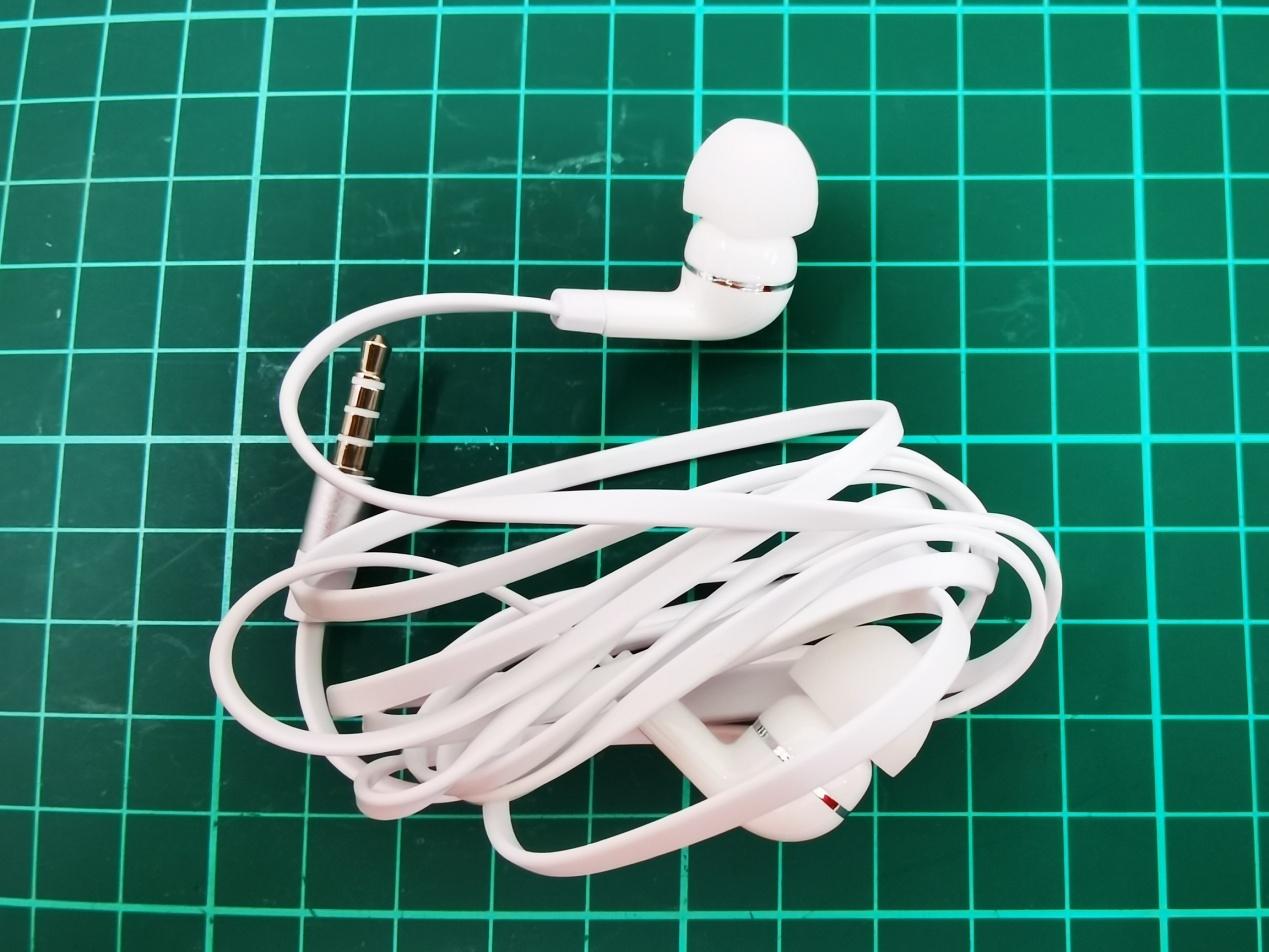

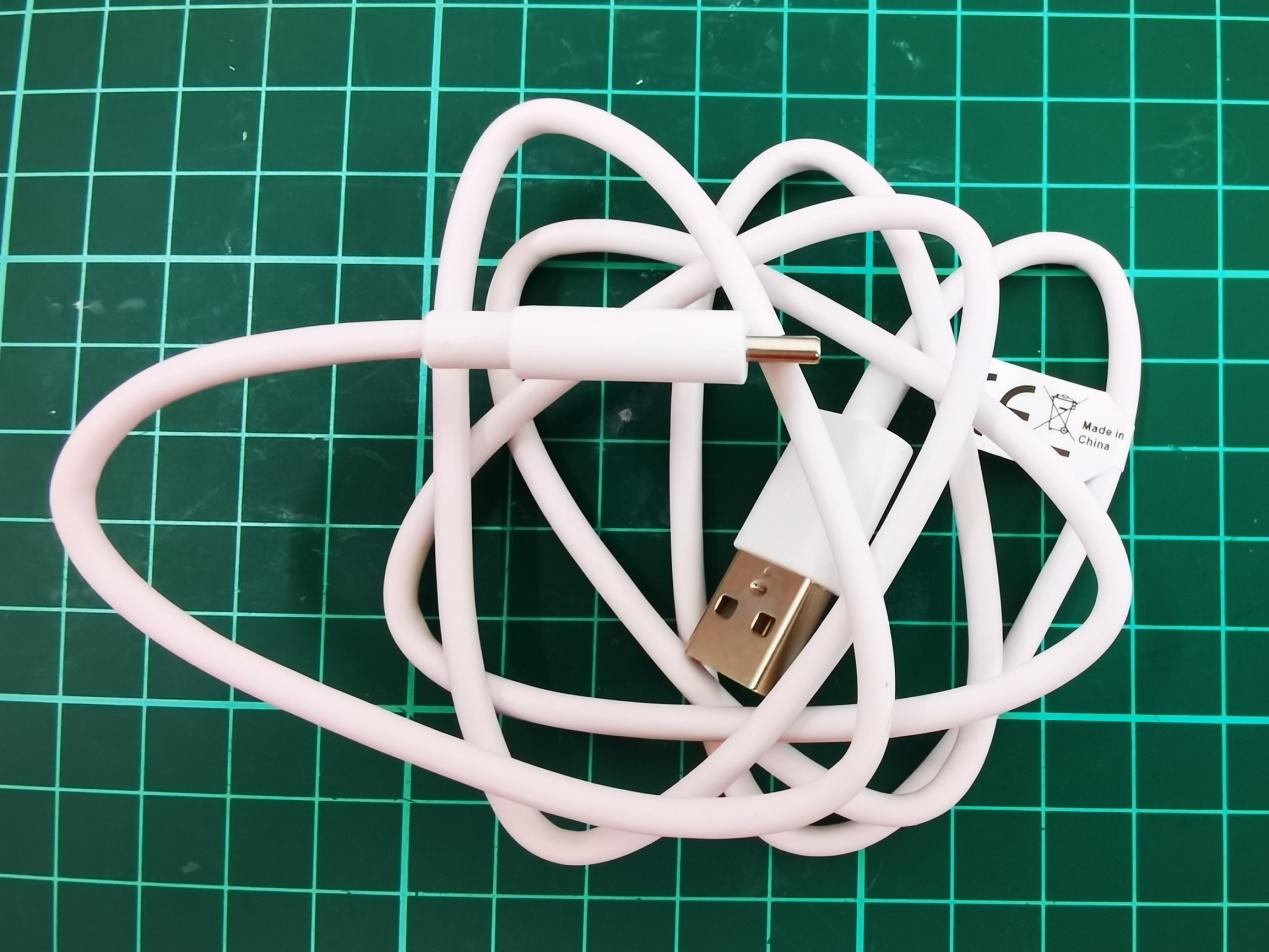

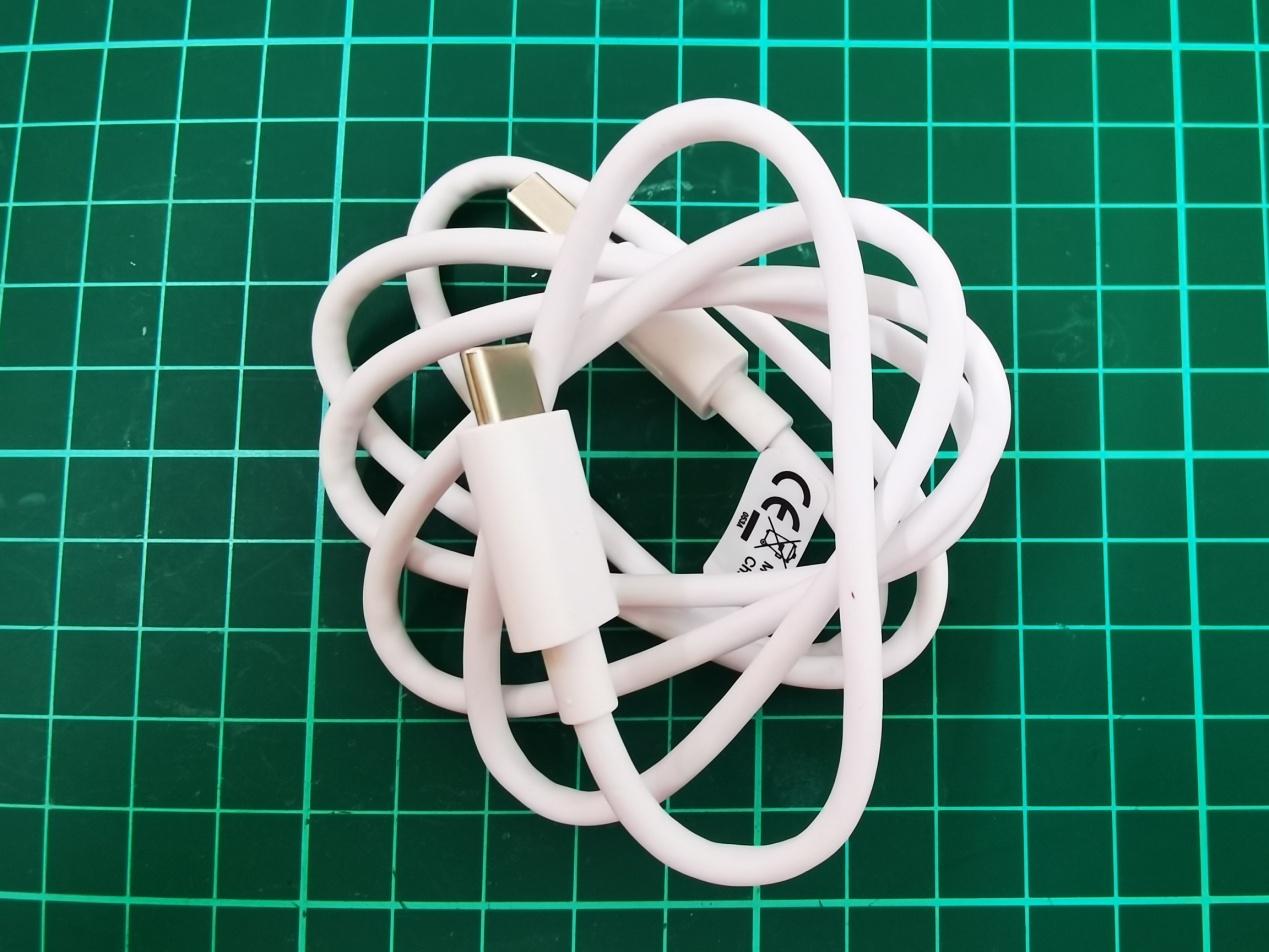

T790B TLp043E7 TLp043E7 QC13US QC13US-label CDA0000139C1 CDA0000139C2 WH35

T790B IMEI design T790B Packaging Design T790B Label location

T790B

No.I20Z61601-SEM01 ©Copyright. All rights reserved by CTTL. Page 1 of 296 SAR TEST REPORT No. I20Z61601-SEM01 For TCL Communication Ltd. 5G NR/ LTE/WCDMA/GSM Mobile Phone Model name: T790B With Hardware Version: PIO Software Version: v2.0.1A.I.R FCC ID: 2ACCJN044 Issued Date: 2020-11-4 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S.Government. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 51, Xueyuan Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I20Z61601-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 296 REPORT HISTORY Report Number Revision Issue Date Description I20Z61601-SEM01 Rev.0 2020-10-21 Initial creation of test report I20Z61601-SEM01 Rev.1 2020-11-4 Updated section4.1 added 5G NR frequency Updated section5.2 and added TCB workshop guidance Updated page28, page72. Updated section9 add the CA/ENDC/WIFI MIMO measurement procedures No.I20Z61601-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 296 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS ................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 17 8.1 SYSTEM SETUP ............................................................................................................................................. 17 8.2 SYSTEM VERIFICATION ................................................................................................................................. 18 9 MEASUREMENT PROCEDURES ............................................................................................ 19 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 19 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 21 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 22 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 23 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 25 9.6 CA/EN-DC/WIFI MIMO MEASUREMENT PROCEDURES FOR SAR ............................................................. 25 9.7 POWER DRIFT .............................................................…

Text truncated - open the document above for the full version.

No.I20Z61601-SEM01 ©Copyright. All rights reserved by CTTL. Page 86 of 296 13 Evaluation of Simultaneous Table 13.1: The sum of SAR values for Main antenna + WiFi-2.4G SISO+ WiFi-5G SISO Position Main antenna WiFi-2.4G SISO+ WiFi-5G SISO Sum Highest SAR value for Head Right head, Cheek (LTE Band2) 1.24 0.12 1.36 Highest SAR value for Body Rear 10mm (LTE Band2) 1.18 0.37 1.55 Table 13.2: The sum of SAR values for Main antenna + WiFi-5G MIMO Position Main antenna WiFi-5G MIMO Sum Highest SAR value for Head Right head, Cheek (LTE Band2) 1.24 0.08 1.32 Highest SAR value for Body Rear 10mm (LTE Band2) 1.18 0.22 1.40 Table 13.3: The sum of SAR values for Main antenna + WiFi-2.4G MIMO Position Main antenna WiFi-2.4G MIMO Sum Highest SAR value for Head Right head, Cheek (LTE Band2) 1.24 0.09 1.33 Highest SAR value for Body Rear 10mm (LTE Band2) 1.18 0.38 1.56 Table 13.4: The sum of SAR values for Main antenna + WiFi-2.4G SISO Position Main antenna WiFi-2.4G SISO Sum Highest SAR value for Head Right head, Cheek (LTE Band2) 1.24 0.05 1.29 Highest SAR value for Body Rear 10mm (LTE Band2) 1.18 0.17 1.35 Table 13.5: The sum of SAR values for Main antenna + WiFi-5G SISO Position Main antenna WiFi-5G SISO Sum Highest SAR value for Head Right head, Cheek (LTE Band2) 1.24 0.07 1.31 Highest SAR value for Body Rear 10mm (LTE Band2) 1.18 0.20 1.38 No.I20Z61601-SEM01 ©Copyright. All rights reserved by CTTL. Page 87 of 296 Table 13.6: The sum of SAR values for Main antenna + BT Position Main antenna BT Sum Highest SAR value for Head Right head, Cheek (LTE Band2) 1.24 <0.01 1.24 Highest SAR value for Body Rear 10mm (LTE Band2) 1.18 <0.01 1.18 [1] – The SAR of BT is too low to get it, so the “<0.01” is used to indicate the head SAR of BT. Conclusion: According to the above tables, the sum of reported SAR values is<1.6W/kg. So the simultaneous transmission SAR with volume scans is not required. Table 13.7 CA:B5+B7 head SAR Results Table 13.8 CA:B5+B7 body SAR Results Table 13.9 CA: B5+B66 head SAR Results CA:B5+B7 Test PositionTest sideTest setup Calculated SAR 1g (W/kg) Test setup Calculated SAR 1g (W/kg) Calculated SAR 1g (W/kg) CheekLeft1RB-High0.41RB-Mid0.150.55 TiltLeft1RB-High0.421RB-Mid0.050.48 CheekRight1RB-High0.491RB-Mid0.521.01 TiltRight1RB-High0.541RB-Mid0.170.71 CheekLeft25RB-Mid0.3950RB-High0.120.51 TiltLeft25RB-Mid0.4150RB-High0.050.46 CheekRight25RB-Mid0.4950RB-High0.270.76 TiltRight25RB-Mid0.5450RB-High0.130.67 B7Head SARB5 CA:B5+B7 Test setupTest setup Calculated SAR 1g (W/kg) Test setup Calculated SAR 1g (W/kg) Calculated SAR 1g (W/kg) Front 10mm1RB-High Front 10mm 0.33 1RB-High Front 10mm 0.06 0.39 Rear 10mm1RB-High Rear 10mm0.461RB Rear 10mm0.410.87 Left Edge 10mm1RB-High Left Edge 10mm0.351RB-High Left Edge 10mm0.180.53 Right Edge 10mm1RB-High Right Edge 10mm0.051RB-High Right Edge 10mm0.000.05 Top Edge 10mm1RB-High Top Edge 10mm0.491RB-High Top Edge 10mm0.050.54 Front 10mm25RB-Middle Front 10mm0.2650RB-High Front 10mm0.040.29 Rear 10mm25RB-Middle Rear 10mm0.3650RB-High Rear 10mm0.320.68 Left Edge 10mm25RB-Middle Left Edge 10mm0.2750RB-High Left Edge 10mm0.160.43 Right Edge 10mm25RB-Middle Right Edge 10mm 0.00 50RB-High Right Edge 10mm 0.000.00 Top Edge 10mm25RB-Middle Top Edge 10mm 0.37 50RB-High Top Edge 10mm 0.050.42 B5B7 Body SAR CA:B5+B66 Test PositionTest sideTest setupCalculated SAR 1g (W/kg)Test setup Calculated SAR 1g (W/kg) Calculated SAR 1g (W/kg) CheekLeft1RB-High0.41RB-High0.280.68 TiltLeft1RB-High0.421RB-High0.170.59 CheekRight1RB-High0.491RB-High0.541.03 TiltRight1RB-High0.541RB-High0.180.72 CheekLeft25RB-Mid0.3950RB-Mid0.180.58 TiltLeft25RB-Mid0.4150RB-Mid0.150.57 CheekRight25RB-Mid0.4950RB-Mid0.460.95 TiltRight25RB-Mid0.5450RB-Mid0.150.69 Head SARB5B66 No.I20Z61601-SEM01 ©Copyright. All rights reserved by CTTL. Page 88 of 296 Table 13.10 CA:B5+B66 head SAR Results Table 13.11 ENDC:66A+n7 head SAR Results Table 13.12 ENDC:66A+n7 body SAR Results Body SARCA:B5+B66 Test setupTest setup Calculated SAR 1g (W/kg) Test setup Calculated SAR 1g (W/kg) Calculated SAR 1g (W/kg) Front 10mm1RB-High Front 10mm0.331RB-Low Front 10mm0.200.53 Rear 10mm1RB-High Rear 10mm0.461RB-Low Rear 10mm0.530.98 Left 10mm1RB-High Left 10mm0.351RB-Low Left Edge 10mm0.600.95 Right 10mm1RB-High Right 10mm0.051RB-Low Right Edge 10mm0.000.05 Top 10mm1RB-High Top 10mm0.491RB-Low Top Edge 10mm0.120.61 Front 10mm25RB-Mid Front 10mm0.2650RB-High Front 10mm0.210.47 Rear 10mm25RB-Mid Rear 10mm0.3650RB-High Rear 10mm0.530.89 Left 10mm25RB-Mid Left 10mm0.2750RB-High Left 10mm0.620.89 Right 10mm25RB-Mid Right 10mm 0 50RB-High Right 10mm 0.000.00 Top 10mm25RB-Middle Top 10mm 0.37 50RB-High Top 10mm 0.140.50 B5B66 N7 66A+N7 Test Position Test sideCalculated SAR 1g (W/kg)Test setup Calculated SAR 1g (W/kg) Calculated SAR 1g (W/kg) CheekLeft0.101RB-High0.280.38 TiltLeft0.051RB-High0.170.22 CheekRight0.051RB-High0.540.59 TiltRight0.051RB-High0.180.23 CheekLeft0.1050RB-Mid0.180.28 TiltLeft0.0550RB-Mid0.150.20 CheekRight0.0550RB-Mid0.460.51 TiltRight0.0550RB-Mid0.150.20 Head SARB66 Body SARN7ENDC:N7+B66 Test setupCalculated SAR 1g (W/kg)Test setupCalculated SAR 1g (W/kg)Calculated SAR 1g (W/kg) Front 10mm0.261RB-Low Front 10mm0.200.46 Rear 10mm0.201RB-Low Rear 10mm0.530.73 Left 10mm0.081RB-Low Left Edge 10mm0.600.68 Right 10mm0.031RB-Low Right Edge 10mm0.000.03 Bottom 10mm0.131RB-Low Bottom Edge 10mm0.000.13 Top 10mm0.001RB-Low Top Edge 10mm0.120.12 Front 10mm0.2650RB-High Front 10mm0.210.47 Rear 10mm0.2050RB-High Rear 10mm0.530.73 Left 10mm0.0850RB-High Left 10mm0.620.70 Right 10mm 0.03 50RB-High Right 10mm 0.000.03 Bottom 10mm0.1350RB-High Bottom Edge 10mm0.000.13 Top 10mm 0.00 50RB-High Top 10mm 0.140.14 B66 No.I20Z61601-SEM01 ©Copyright. All rights reserved by CTTL. Page 89 of 296 Table 13.13 ENDC:5A+n7 Head SAR Results Table 13.14 ENDC:5A+n7 Body SAR Results Table 13.15: CA and ENDC Results LTE LTE Position Reported SAR 1g(W/kg) CA LTE Band B5 LTE Band B7 Head 1.01 Body 0.87 LTE Band B5 LTE Band B66 Head 1.03 Body 0.98 …

Text truncated - open the document above for the full version.

No.I20Z61601-SEM01 ©Copyright. All rights reserved by CTTL. Page 163 of 296 5G_CH149 Left Cheek Date: 10/19/2020 Electronics: DAE4 Sn777 Medium: head 5745 MHz Medium parameters used: f = 5745MHz; σ =5.235mho/m; εr = 35.88; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: LTE2500-FDD7 5745 MHz Duty Cycle: 1:1 Probe: EX3DV4 – SN3617 ConvF(5.10,5.10,5.10) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.304 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.002 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.932 W/kg SAR(1 g) = 0.132 W/kg; SAR(10 g) = 0.039 W/kg Maximum value of SAR (measured) =0.638W/kg Fig A.31 No.I20Z61601-SEM01 ©Copyright. All rights reserved by CTTL. Page 164 of 296 5G_CH40 Rear Date: 10/17/2020 Electronics: DAE4 Sn777 Medium: Head 5200MHz Medium parameters used: f = 5200; σ =4.667 mho/m; εr = 35.77; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C, Liquid Temperature: 22.3 o C Communication System: WLAN2450 2437 Duty Cycle: 1:1 Probe: EX3DV4 – SN3617 ConvF(5.49,5.49,5.49) Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.962 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.322 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 1.57 W/kg SAR(1 g) = 0.305 W/kg; SAR(10 g) = 0.083 W/kg Maximum value of SAR (measured) = 0.933 W/kg Fig A.…
