OBJETO INALÁMBRICO Y BUSCADOR CLAVE MANUAL DEL PROPIETARI SFA200 POR FAVOR LEA Y OBSERVE CUIDADOSAMENTE ESTE MANUAL DE INSTRUCCIONES CUIDADOSAMENTE ANTES DE UTILIZAR LA UNIDAD Y RETÉNGALO PARA FUTURA REFERENCIA. WIRELESS OBJECT AND KEY FINDER USER MANUAL SFA200 PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE. E-1 COMPLIANCE WITH FCC REGULATIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION Follow the advice below for safe operations • This product is intended solely for non-commercial & non-industrial use. Do not use for any other purpose. • Do not immerse in water/liquid. • Do not press the Function Buttons with a ball point pen or any other pointed object. • Do not expose the product to direct sunlight for extended periods. • To avoid damage to internal circuitry, do not expose the product to excessive humidity or dust. • Do not drop the product or subject it to a strong impact. • Do not twist or bend. ON CONDENSATION • When left in a heated room where it is warm and damp, water droplets or condensation may form inside the unit. • When there is condensation inside the unit, the unit may not function normally. • Let it stands for 1 to 2 hours before turning the power on, or gradually heat the room up and dry the unit before use. E-2 PRODUCT FEATURES • 1 x Transmitter • 4 x Receivers • Operates on 433 Mhz The SFA200 will help you find up to 4 items within 145 feet of the transmitter (open area). LOCATION OF CONTROLS Transmitter Receiver 1 TRANSMITTER LED INDICATOR 4 COLOR CODED MARKING 2 COLOR CODED BUTTONS 5 ON/OFF SWITCH 3 RECEIVER LED INDICATOR GETTING STARTED Power Supply : • Transmitter : Powered using 1 x DC 3V CR1632 lithium button cell battery (included). • Receiver : Each receiver is powered by 2 x DC 6V CR2032 lithium button cell batteries (included). E-3 • Remove the battery insulator tabs by pulling them out of the battery compartments on the transmitter and receivers before first use. Note : Remove and reinstall the batteries if there is no response after pulling out the insulation tab. WARNING DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. BATTERY WARNING 1. Be sure that the batteries are installed correctly. Wrong polarity may damage the unit 2. Use only the size and type of batteries specified. 3. Do not mix old and new batteries. 4. If the unit is not to be used for an extended period of time, remove the batteries. Old or leaking batteries can cause damage to the unit and may void the warranty. 5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions) 6. Do not dispose of batteries in fire, batteries may leak or explode. PAIRING THE TRANSMITTER WITH THE RECEIVERS 1. The transmitter will automatically turn ON when you remove the battery insulator tab from the battery compartment on the transmitter. 2. Remove the battery insulator tabs from the receivers. 3. Slide the receiver ON/OFF SWITCH (#5) to the ON position. 4. The LED INDICATOR (#3) on the receiver will flash and a beeping sound will start. The receiver is now ready for pairing with the transmitter. 5. Press the COLOR CODED BUTTON (#2) on the transmitter that matches the COLOR CODED MARKING (#4) on the receiver that is beeping. 6. The beep sound will stop and the transmitter is now paired with that receiver. 7. Repeat steps 3 to 6 to pair the other 3 receivers. Note : • Make sure the transmitter and receiver are close to each other when pairing. • If the pairing fails, the beep sound will continue and will not stop. E-4 • If the pairing fails, turn off the receiver (slide the RECEIVER ON/OFF SWITCH (#5 ) to the OFF position to reset the receiver. Repeat steps 3 to 6 to try again. • The LED INDICATOR (#3) on the receiver will continue to flash when it is turned on. HOW TO FIND THE LOST OBJECT Attach one of the SFA200 receivers to an object like a set of keys, or something else that easily gets misplaced. Press the COLOR CODED BUTTON (#2) on the transmitter. The LED (#1) on the transmitter will t…

Text truncated - open the document above for the full version.

Best Channel Enterprises Ltd. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 21.05.2014 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Wen Position General Manager Company Name Most Technology Service Co., Ltd. Address No.5, 2 nd Langshan Road, North District, Hi-Tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel / Fax 86-755-86170306/86-755-86170310 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name KEYFINDER Model Name SFA200 TX Brand Name Yours sincerely, Signatory Name Ken Sun Position Director Company Name Best Channel Enterprises Ltd Address Units 18-20, Block A, 16/F., Hi-tech Ind.Centre, 5-21 Pak Tin Par St., Tsuen Wan, Hong Kong Tel / Fax 00852-2413-2680 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Best Channel Enterprises Ltd. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Best Channel Enterprises Ltd. FCC ID: 2ACCO-SFA200TX FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Ken Sun Position Director Company Name Best Channel Enterprises Ltd Address Units 18-20, Block A, 16/F., Hi-tech Ind.Centre, 5-21 Pak Tin Par St., Tsuen Wan, Hong Kong Tel / Fax 00852-2413-2680 E-Mail [email protected]

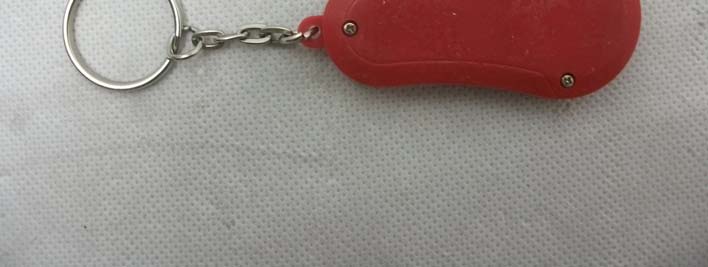

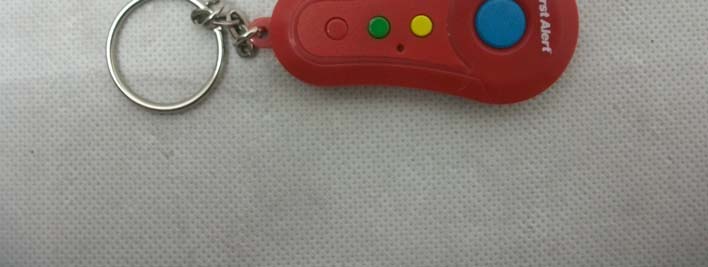

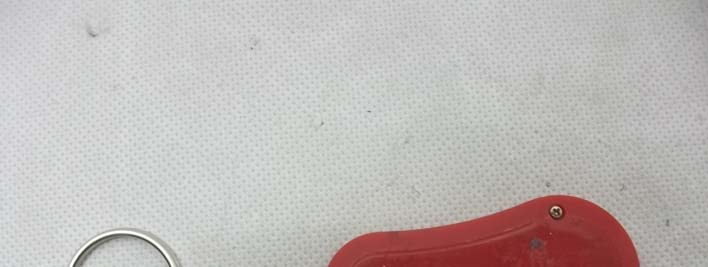

Model No.: SFA200 TX Page 1 of 4 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: SFA200 TX Page 2 of 4 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: SFA200 TX Page 3 of 4 UP VIEW OF SAMPLE DOWN VIEW OF SAMPLE Model No.: SFA200 TX Page 4 of 4 PHOTO OF THE ENTIRE SAMPLE-1

Model No.: SFA200 TX Page 1 of 2 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 Model No.: SFA200 TX Page 2 of 2 INTERNAL PHOTO OF SAMPLE –3

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : Best Channel Enterprises Ltd. Address : Units 18-20, Block A, 16/F., Hi-tech Ind.Centre, 5-21 Pak Tin Par St., Tsuen Wan, Hong Kong Product Name : KEYFINDER Model Name : SFA200 TX Brand Name : FCC ID : 2ACCO-SFA200TX Report No. : MTE/SAL/F14050472 Date of Issue : May 15, 2014 Issued by :Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 21 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: 2ACCO-SFA200TX Report No.: MTE/SAL/F14050472 Page 2 of 21 TABLE OF CONTENTS 1．VERIFICATION OF CONFORMITY ........................................................................................ 3 2. GENERAL INFORMATION....................................................................................................... 4 2.1 Product Information ................................................................................................................ 4 2.2 Objective ................................................................................................................................ 5 2.3 Test Standards and Results .................................................................................................... 5 2.4 Environmental Conditions....................................................................................................... 5 3. TEST METHODOLOGY ........................................................................................................... 6 3.1 TEST FACILITY...................................................................................................................... 6 3.2 GENERAL TEST PROCEDURES .......................................................................................... 6 4 SETUP OF EQUIPMENT UNDER TEST .................................................................................. 8 4.1 SETUP CONFIGURATION OF EUT....................................................................................... 8 4.2 SUPPORT EQUIPMENT ........................................................................................................ 8 4.3 TEST EQUIPMENT LIST........................................................................................................9 5. 47 CFR Part 15 C Requirements............................................................................................ 10 5.1 Radiated Emission ............................................................................................................... 10 5.1.1 Definition ........................................................................................................................... 10 5.1.2 Test Configuration...............................................................................................................11 5.1.3 Test Description ................................................................................................................. 12 5.1.4 Test Result......................................................................................................................... 12 5.2 20dB Bandwidth ................................................................................................................... 16 5.2.1 Requirement...................................................................................................................... 16 5.2.2 Test Description ................................................................................................................. 16 5.2.3 Test Result .....................................................................................................................16 5.3 Transmission Cease Time ....................................................................................................17 5.3.1 Requirement...................................................................................................................... 17 5.3.2 Test Description ................................................................................................................. 17 5.3.3 Test Result......................................................................................................................... 17 5.4 Antenna Requirement........................................................................................................... 19 5.4.1 Definition ........................................................................................................................... 19 5.4.2 Evaluation Criteria ............................................................................................................. 19 5.4.3 Evaluation Results............................................................................................................. 19 APPENDIX 1 .............................................................................................................................. 20 PHOTOGRAPHS OF TEST SETUP........................................................................................... 20 FCC ID: 2ACCO-SFA200TX Report No.: MTE/SAL/F14050472 Page 3 of 21 1．VERIFICATION OF CONFORMITY Equipment Under Test: KEYFINDER Brand Name: Model Number: SFA200 TX FCC ID： 2ACCO-SFA200TX Best Channel Enterprises Ltd. Applicant: Units 18-20, Block A, 16/F., Hi-tech Ind.Centre, 5-21 Pak Tin Par St., Tsuen Wan, Hong Kong Best Channel Enterprises Ltd. Manufacturer: Units 18-20, Block A, 16/F., Hi-tech Ind.Centre, 5-21 Pak Tin Par St., Tsuen Wan, Hong Kong Technical Standards: 47 CFR Part 15 Subp…
