2ACD4HD-5N-RXHiDow Wireless Tens/EMS System

1 FDA CLEARED for OVER THE COUNTER SALES (OTC) – NO PRESCRIPTION REQUIRED HiDow Wireless Tens/EMS Systems WIRELESS DEVICE INSTRUCTION MANUAL 2 INTRODUCTION TO TENS EXPLANATION OF PAIN Pain is a warning system and the body’s method of telling us that something is wrong. Pain is important; without it abnormal conditions may go undetected, causing damage or injury to vital parts of our bodies. Even though pain is a necessary warning signal of trauma or malfunction in the body, nature may have gone too far in its design. Aside from its value in diagnosis, long-lasting persistent pain serves no useful purpose. Pain does not begin until coded message travels to the brain where it is decoded, analyzed, and then reacted to. The pain message travels from the injured area along the small nerves leading to the spinal cord. Here the message is switched to different nerves that travel up the spinal cord to the brain. The pain message is then interpreted, referred back and the pain is felt. EXPLANATION OF TENS Transcutaneous Electrical Nerve Stimulation is a non-invasive, drug-free method of controlling pain. TENS uses tiny electrical impulses sent through the skin to nerves to modify your pain perception. TENS does not cure any physiological problem; it only helps control the pain. TENS does not work for everyone; however, in most patients it is effective in reducing or eliminating the pain, allowing for a return to normal activity. HOW TENS WORKS There is nothing “magic” about Transcutaneous Electrical Nerve Stimulation (TENS). TENS is intended to be used to relieve pain. The TENS unit sends comfortable impulses through the skin that stimulate the nerve (or nerves) in the treatment area. In many cases, this stimulation will greatly reduce or eliminate the pain sensation the patient feels. Pain relief varies by individual patient, mode selected for therapy, and the type of pain. In many patients, the reduction or elimination of pain lasts longer than the actual period of stimulation (sometimes as much as three to four times longer). In others, pain is only modified while stimulation actually occurs. You may discuss this with your physician or therapist. EXPLANATION OF EMS Electrical Muscle Stimulation is an internationally accepted and proven way of treating muscular injuries. It works by sending electronic pulses to the muscle needing treatment; this causes the muscle to exercise passively to promote healing. It is a product derived from the square waveform, originally invented by John Faraday in 1831. Through the square wave pattern it is able to work directly on muscle motor neurons. EMS has low frequency and this in conjunction with the square wave pattern allows direct work on muscle groupings. This is being widely used in hospitals and sports clinics for the treatment of muscular injuries and for the re-education of paralyzed muscles, to prevent atrophy in affected muscles and improving muscle tone and blood circulation. HOW EMS WORKS EMS is intended to be used to increase blood circulation, loosen tight and knotted muscles, stimulate muscle growth and also reduces stiffness in muscle joints. The EMS units send comfortable impulses through the skin that stimulate the nerves in the treatment area. When the muscle receives this signal it contracts as if the brain has sent the signal itself. As the signal strength increases, the muscle flexes as in physical exercise. Then when the pulse ceases, the muscle relaxes and the cycle starts over again, in a cycle of Stimulation, Contraction and Relaxation. 3 THE WIRELESS TENS/EMS - GENERAL DESCRIPTION The HiDow WIRELESS TENS/EMS System is a battery operated WIRELESS pulse generator that sends electrical impulses from a REMOTE control to RECEIVERS (round) with ELECTRODES attached to them that are placed on the body to stimulate the nerves causing pain. When this happens, the nerves “FEEL” gentle electrical sensations instead of the pain. The System is provided with 1 REMOTE and 2 RECEIVERS called CHANNEL 1 and CHANNEL 2 with each having DUAL outputs, independent of one other. THE WIRELESS REMOTE controls the ON/OFF of the system, the INTENSITY and the MODE functions of each RECEIVER. Each RECEIVER with the electrodes attached to it adheres easily and firmly to the skin. Press buttons are very easy to use and the liquid crystal display LCD shows the exact modes and values of the TENS or EMS functions being used. See the pictures in this Manual that show the different COMPONENTS and CONTROLS of the HiDow System and how to operate it properly to get the best PAIN RELIEF. Because the HiDow system is WIRELESS - Needing No Lead Wires - you must use only HiDow SNAP PIN Electrodes. Lead wire electrodes will not work with this WIRELESS system. 4 QUICK START GUIDE to USE your HiDow WIRELESS TENS/EMS System 1. Charge up both the RECEIVERS and the REMOTE with the AC power cord 2. TURN the RECEIVERS “On” and the REMOTE “ON” and see the lights on both lit 3. Snap ELECTRODES onto the RECEIVERS and place them in the pain area 4. CHOOSE RECEIVER - CHANNEL 1 or 2 by adjusting “C” on the REMOTE and seeing 1 or 2 in the LCD display 5. SET MODE of RECEIVER to MODE1, MODE2, MODE3, or MODE4 by adjusting “M” on REMOTE and seeing 1,2,3,4, in the LCD display 6. ADJUST INTENSITY of RECEIVER + or - until the sensation is felt as comfortable 5 INSTRUCTIONS FOR USE PAIN RELIEF MADE SIMPLE - THE REMOTE CONTROL The REMOTE CONTROL is the sleek looking handset. It has an LCD display, INTENSITY UP and DOWN + and - , chooses RECEIVER CHANNELS 1 and Channels 2 and a MODE button to control the MODE FUNCTIONS of the RECEIVERS. ON/OFF – IS THE BUTTON ON the SIDE of the REMOTE, to turn it “On” and “OFF”. If the LCD is blank the unit is “OFF” or the REMOTE and RECEIVERS needs to be recharged. INTENSITY When you turn the unit “ON” the INTENSITY is down to its LOWEST POINT and returns there when you turn the unit “OFF”. OUTPUT INTENSITY is on the REMOTE just below the LCD Screen figured as + - Thes…

Text truncated - open the document above for the full version.

DATE : May 14, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACD4HD-5N-RX Product Name: HiDow Wireless Tens/EMC System Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this May 14, 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: David Du Signature Printed Title: R&D Manager On behalf of : Hi-Dow Electron Technology (Hefei) Co., Ltd. Telephone: 0551-62227909

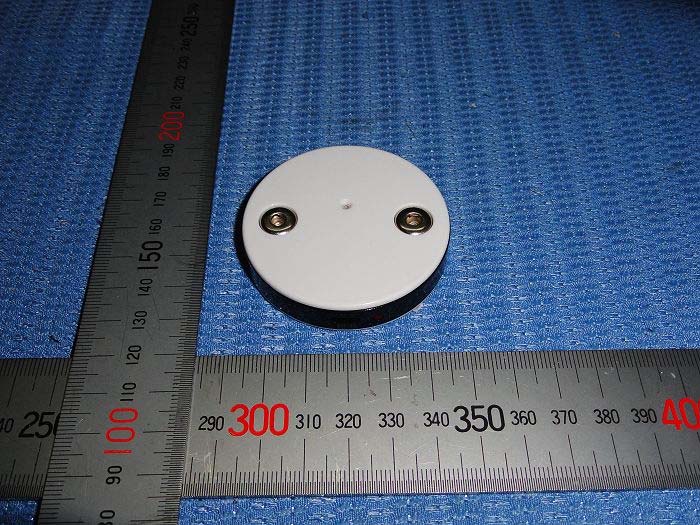

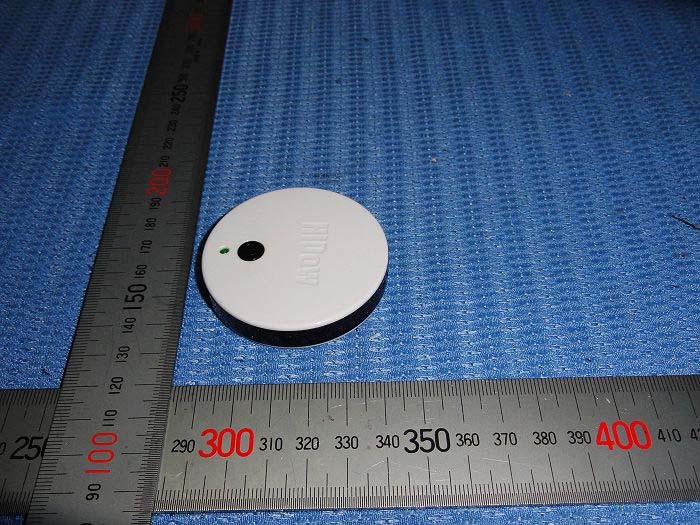

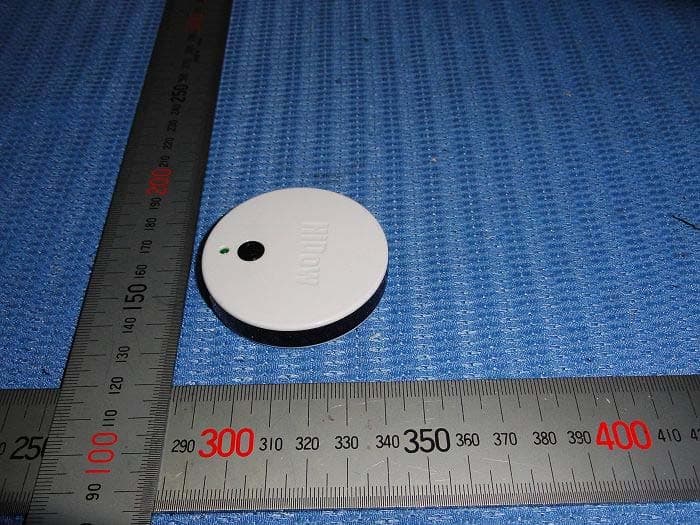

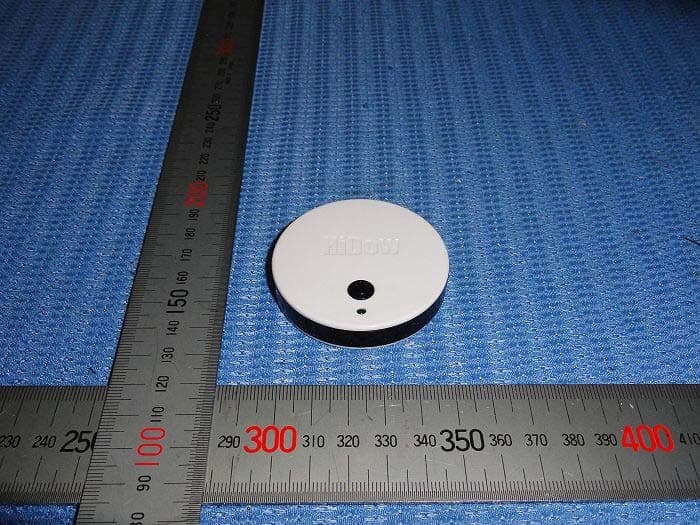

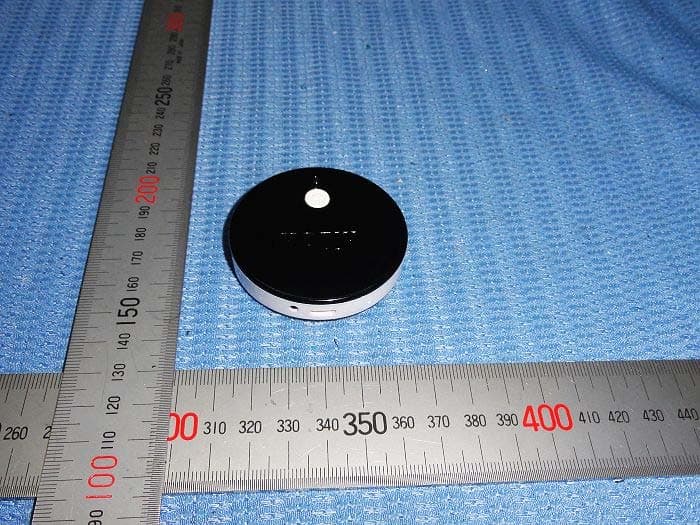

Outside View Outside View Additional model:

FCC ID: 2ACD4HD-5N-RX

Interior View Interior View Interior View

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances İ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] g[Ĝf(GHz)]İ 3.0 for 1-g SAR and İ 7.5 for 10-g extremity SAR, where ǂ f(GHz) is the RF channel transmit frequency in GHz ǂ Power and distance are rounded to the nearest mW and mm before calculation ǂ The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 91.68dBuV/m @3m Ant gain =2dBi ;so Ant numeric gain= 1.585 So pt={ [10 (91.68 /20) /10 6 x3] 2 /30x1.585 }x1000 mW =0.7 mW So (0.7 mW/5mm)x Ĝ2.478GHz = 0.22 <3 Then SAR evaluation is not required  0.28 mW (0.28 mW/5mm)x Ĝ2.478GHz = 0.1 <3

ISO/IEC17025 Accredited Lab. Report No: FCC1405065 File reference No: 2014-05-14 Applicant: Hi-Dow Electron Technology (Hefei) Co., Ltd. Product: HiDow Wireless Tens/EMC System Model No: HD-5N-RX Brand Name: HiDow Test Standards: FCC Part 15 Subpart C, Paragraph 15.249 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.249 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: May 14, 2014 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD East 5/Block 4, Anhua Industrial Zone, No.8,Tairan Rd. CheGongMiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1405065 Page 2 of 36 Date: 2014-05-14 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-02. Report No: 1405065 Page 3 of 36 Date: 2014-05-14 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.................................…

Text truncated - open the document above for the full version.

Conducted test View-- Radiated emission test view
