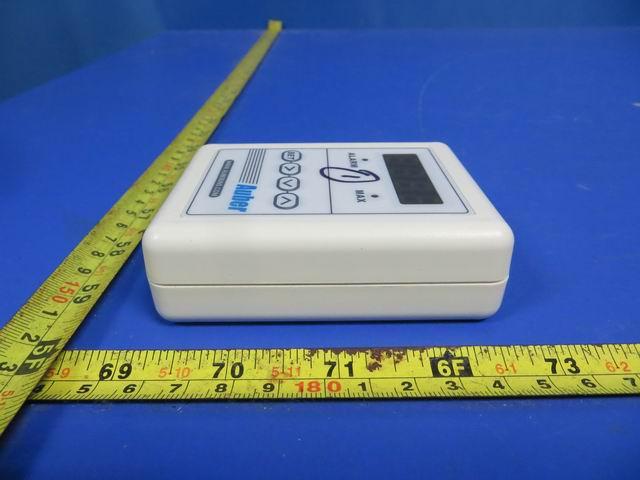

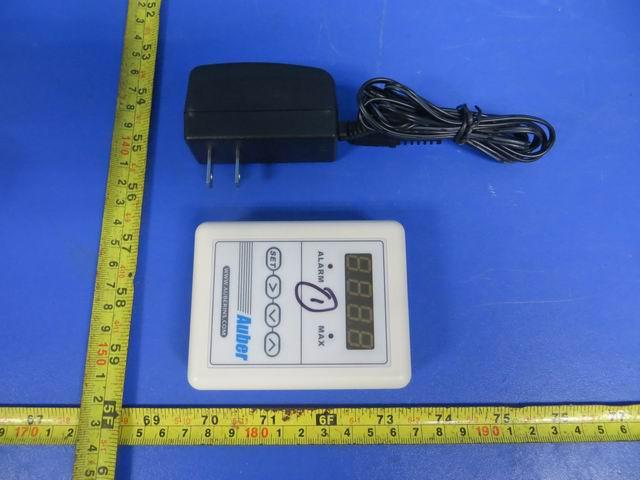

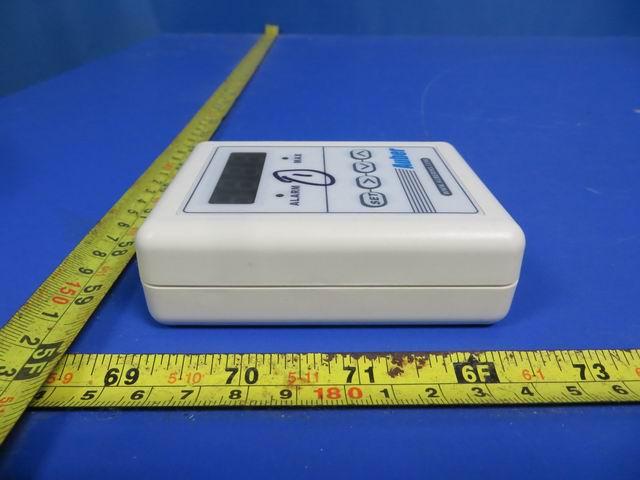

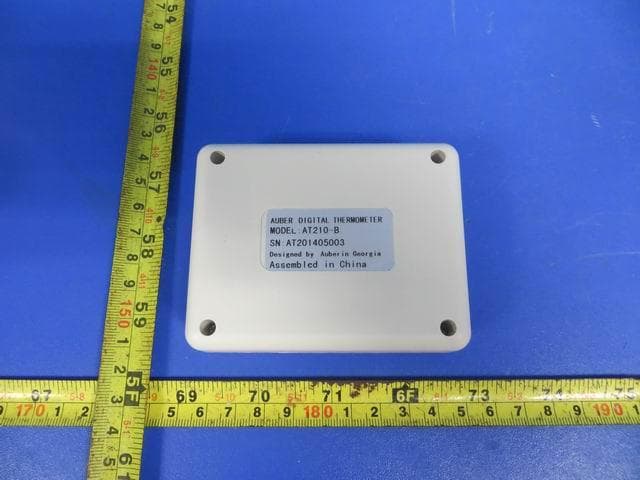

AUBER INSTRUMENTSWWW.AUBERINS.COM 2013.11 P1/2 Instruction Manual AT210 Wireless Digital Thermometer 3. Front Panel 1. Features The AT210 wireless digital thermometer can be used for remote temperature monitoring. It consists of two units: AT210-A (slave unit) and AT210-B (master unit). The slave unit connects to the temperature sensor and displays measured value. It also sends the measured temperature reading to the master unit and allow remote monitoring and remote parameter setting through wireless connections. The master unit can communicate with up to 10 slave units. The AT210 thermometer have two alarm settings for a built-in buzzer. One can be used for high limit alarm and the other can be used for low fuel (limit) alarm. This thermometer can also store the highest temperature reading with a time stamp during the temperature monitoring process. The slave unit has a 12VDC 2.5mm power output that is synchronized with the build-in alarm buzzer, which can be used to drive an external buzzer or other devices. Both units are powered by 12VDC through an 2.1mm AC adapter for continuous operation. It can also be powered by a car battery directly. The connectors on the meter are shown in Figure 2. Connecting the 12V DC power adapter to the connector 1 from wall outlet. Connecting the external buzzer to connector 2. The polarity for this socket is center pin positive (+), outer collar negative (−). Connect the K thermocouple to terminal 3. Please note that thermocouple connector also has polarity. The wide blade should go to the wide slot. 1. Digital display window. 2. Alarm indicator: blinking when alarm is triggered. 3. Peak value indicator: stay solid on when peak value is displayed; blinking when the time stamp of the peak value is displayed. 4. Set key: enter code; confirm input value. 5. Shift key: shift digit; mute the alarm buzzer. 6. Down key: change digit value; move to the previous parameter; display peak temperature and the time when peak temperature is reached/ reset peak values. 7. Up key: change digit value / move to next parameter / change brightness. Key Function Descriptions: 1. Temporarily mute the alarm. When the temperature reaches the alarm temperature, the alarm indicator will flash and meter will start beeping. Press Shift key once can temporarily mute the alarm. Alarm will be triggered again if the alarm set temperature is reached again. Please see Section 6 for detailed explanation alarm settings. 2.Check the peak value.Press Down key once to show peak temperature, and the MAX LED will light up; press Down key again to show the time stamp, i.e., the time when peak temperature is reached (count from the start of the timer, unit is seconds), and the MAX LED will flash. If the temperature continues rising, a new peak temperature and its time will be written to the memory to replace the previous peak value. Please see Section 9 for details. 3. Dimmer the display brightness.Press Up key to toggle the display brightness between the dimmed display and the normal bright display. The brightness of the dimmed display is determined by the parameter “brit” described in the later section of the manual (see Section 7). Version 1.0 (January, 2014) ENDENDExit AL2AL2Alarm2 off temperature-1999 ~ 9999250 AH2AH2Alarm2 on temperature-1999 ~ 9999250 AL1AL1Alarm1 off temperature-1999 ~ 9999479 AH1AH1Alarm1 on temperature-1999 ~ 9999480 SymbolNameDescriptionSetting RangeInitialNote Table 1. Alarm parameters. 4. Connectors on the meter Figure 2. Bottom view of AT210-A (left, slave unit) and AT210-B (right, master unit). ①Power Input - 12VDC power supply input (2.1 mm O.D.). ②Power Output - 12VDC output (2.5 mm O.D.). ③Probe Input - temperature probe input. The meter has two programmable alarms that can be set to turn on the buzzer at specified temperatures. The alarm1 is controlled by parameters AH1 and AL1; the alarm2 is controlled by AH2 and AL2. These parameters can be accessed by code 0001 (see Table 1). 6. Alarm setting (code 0001) During the normal temperature monitoring mode, you can mute the alarm, check the peak value, and change display brightness with the keys on the front panel (Figure 3). 5. Key functions during temperature monitoring 2. Specifications ◆ Power input: 12VDC (2.1mm OD connector) ◆ AC adaptor: 100-240V, 50/60Hz input. 12 VDC, 1 Amp output. ◆ Power consumption: <0.5W ◆ Sampling rate: 2 samples/second ◆ Accuracy: 0.2% full scale ◆ Thermometer reading range: -320-2300°F (-200~1300°C). ◆ Power output (on slave unit): 12VDC (2.5mm OD connector), 1 Amp, synchronized with the internal buzzer. ◆ LED display: 0.39'’, red ◆Internal buzzer: two alarms (high limit or low limit alarm). ◆ Dimension: 2.8x3.5x1.2" (70x90x30mm) Figure 1. Front panel of AT210-A and B. 1 2 4 5 3 7 6 Figure 3. Operating keys on AT210-A and B. 3. Switch display between bright and dimmed. 1. Temporarily mute the alarm 2. Check peak value AUBER INSTRUMENTSWWW.AUBERINS.COM 2013.11 P2/2 AH1 and AH2 are called alarm on temperature, i.e. the temperatures at which the Alarm1 and Alarm2 will turn on; AL1 and AL2 are called alarm off temperature, i.e. the temperatures at which the Alarm1 and Alarm2 will turn off. When AH1>AL1(or AH2>AL2), the alarms is set as a high limit alarm. When AH1<AL1(or AH2<AL2), the alarm is set as a low limit alarm. For a high limit alarm, the alarm buzzer should be on once the temperature rise above AH, and it should be off only when the temperature drops below AL. In contrast, for a low limit alarm, the alarm buzzer should be on when the temperature drops below AH, and it should be off only when the temperature rise above AL. For example, when the temperature unit is set to F (Fahrenheit), AH1=900, and AL1=800, the buzzer will go off once the measured temperature is higher than 900°F; the buzzer will stop when the temperature drops below 800°F. In another case, when AH2=180, AL2=185, the alarm2 is set as a low limit alarm. If the temperature drops below 180°F, the buzzer will go o…
