2ACDAMX-100Bluetooth Speaker

User Manual Smart SUPER-MINI Bluetooth Speaker with Remote Shutter Thank you for choosing our smart SUPER-MINI Bluetooth speaker with remote shutter. Sincerely hope you will enjoy your music, phone call and camera remote shutter freely. A. Speaker E. LED indicator B. Hole for cord F. Button C. Micro USB socket G. Hole for Reset button D. DLED indicator H. Hole for MIC Charging the battery: 1. Insert the charging cable into the DC 5V socket on the unit. Connect the USB plug into USB power terminal. The LED indicator will turn red. 2. Once the charging is completed, the red LED indicator will turn off. Bluetooth pairing for music and phone call. 1.Turn the speaker on by press the round button for 2 seconds, the speaker will sound “Prepared... enter to Bluetooth” 2.Turn on your device and activate the Bluetooth function. 3.Search for Bluetooth pairing name ‘ 2658’and click to pair. If prompted for a password, type “0000”, The speaker will sound “Bluetooth connected”. Note: Once your device has paired with the speaker, it will connect automatically in future when the speaker is on and your device Bluetooth is activated. How to switch into camera remote shutter. 1. Before switch into camera remote shutter mode, please open the camera on cell phone. 2. Make sure the speaker is connected with cell phone, switch to Remote Shutter mode by press the round button for 2 times quickly, the speaker will sound “Ka”to take pictures. Accessories included 1pc USB charging cable Troubleshooting: Specification: Power rating: 2W Transmitting Frequency: 2.4G Hz Bluetooth range: 10m SNR: ＞80 Power supply: 5VDC Dimensions: φ30x30mm Symptoms Causes Solutions Can not switch the speaker on Battery empty Charge the battery during working no sound suddenly Battery out of charge Charge the battery Buttons can not work or Strange sound occurred suddenly Product need to be reset Press the RESET button by using a small stick Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must not be collocated or operating in conjunction with any other antenna or transmitter.

US Digital Media 1929 West Lone Cactus Drive Phoenix, Arizona 85027, USA Declaration of Authorization We Name: US Digital Media Address: 1929 West Lone Cactus Drive Phoenix, Arizona 85027, USA Declare that: Name Representative of agent: Agent Company name: Address: City: Country Wu Jian MRT Technology (Suzhou) Co., Ltd D8 Building, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, Suzhou China is authorized to apply for Certification of the following product(s): Product description: Bluetooth Speaker FCC 10: 2ACDAMX-1 00 Model: MX-1 00 Brand: N/A on our behalf. ~~-:?-- -~:::-:~~~-=----~ Signature: Arthur Pignotti, Trademark and Licensing Director Date: 2015-04-27 --------------

US Digital Media 1929 West Lone Cactus Drive Phoenix, Arizona 85027, USA Date: April27, 2015 Federal Communications Commission Authorization and Evaluation Division FCC 10: 2ACDAMX-1 00 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, US Digital Media -~~---~-: _____ _ Signature: Arthur Pignotti, Trademark and Licensing Director

US Digital Media 1929 West Lone Cactus Drive Phoenix, Arizona 85027, USA Date: April 27, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ACDAMX-100 USB function explanation Part 15B testing is not necessary for this device because the USB port is for charge only, no data transmission function. End users are not able to connect to PC for data transmission via USB port. Due to above reasons, this device didn't perform Part 15B testing, and FCC logo shouldn't be on the label. Your understanding will be highly appreciated. Sincerely, US Digital Media .--..-:~---~ .. -······· .•.. · ~~~~---- Signature: Arthur Pignotti, Trademark and Licensing Director --.....__ ::::::::;:> u~-----

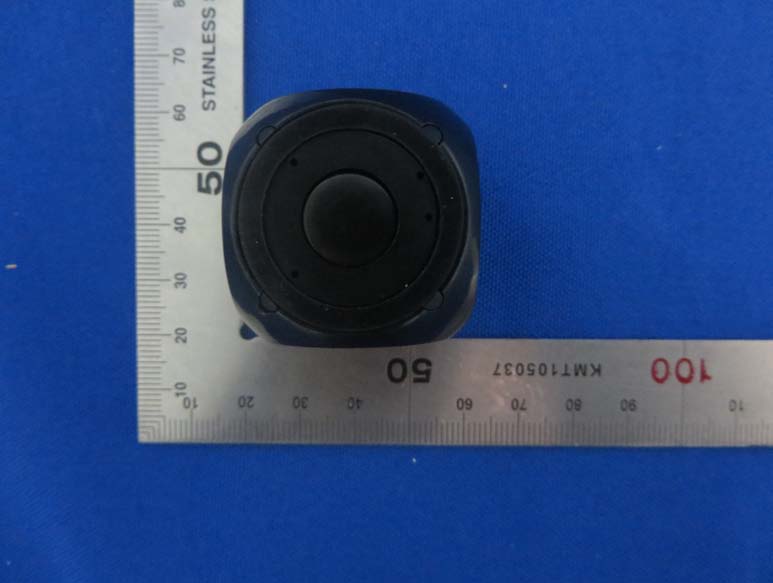

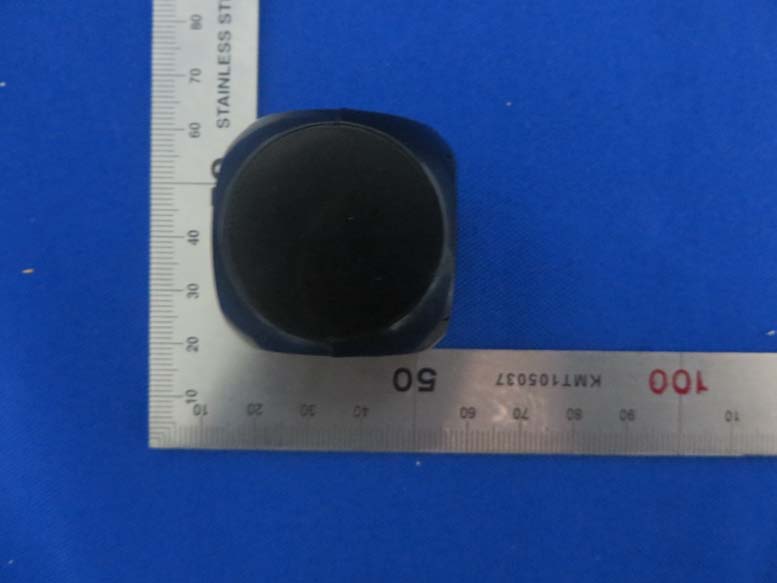

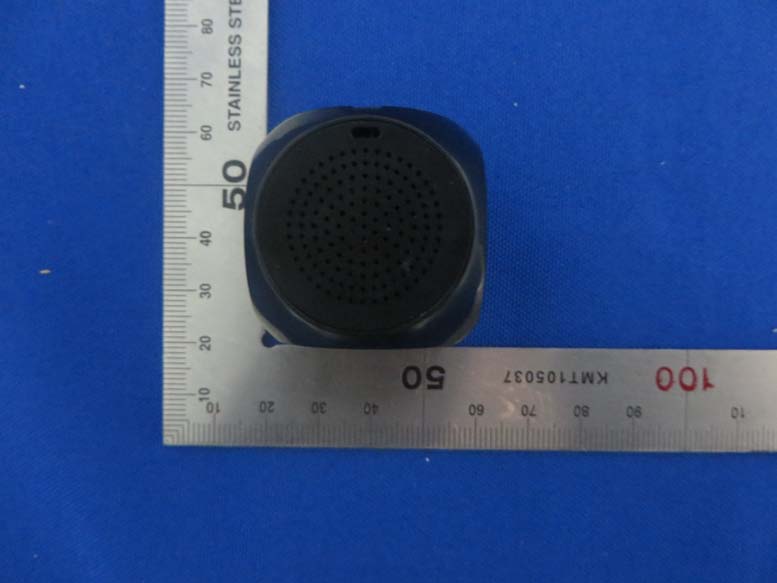

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo

Label Label Location FCC ID: 2ACDAMX-100

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1504RSU02002 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 04-28-2015 Web: www.mrt-cert.com FCC ID: 2ACDAMX-100 Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: 2ACDAMX-100 APPLICANT: US DIGITAL MEDIA Application Type: Certification Product: Bluetooth Speaker Model No.: MX-100 FCC Classification: FCC Part 15 Spread Spectrum Transmitter(DSS) Test Date: Apr. 22 ~ 28, 2015 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1504RSU02002 FCC ID: 2ACDAMX-100 Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1504RSU02002 Rev. 01 Initial report 04-28-2015 Report No.: 1504RSU02002 FCC ID: 2ACDAMX-100 Page Number: 3 of 5 1. RF Exposure Evaluation 1.1. Limits SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The equation and threshold in Note 1 must be applied to determine SAR test exclusion. MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation Report No.: 1504RSU02002 FCC ID: 2ACDAMX-100 Page Number: 4 of 5 distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison  3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°C and 78% RH. Report No.: 1504RSU02002 FCC ID: 2ACDAMX-100 Page Number: 5 of 5 1.3. Test Result of RF Exposure Evaluation Product Bluetooth Speaker Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0.5dBi for 2.4GHz in logarithm scale. Output Power into Antenna: Test Mode Frequency Band (MHz) Maximum output power to antenna (mW) SAR Test Exclusion Threshold (mW) BT 2402~2480 2.30 10 Per FCC KDB 447498 D01v05r02, the SAR exclusion threshold for distances < 50mm is defined by the following equation: Based on the maximum conducted power of WLAN and the antenna to use separation distance, WLAN SAR was not required; [(2.30mW/5)* √2.402] = 0.71 < 3.0. Note: When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1504RSU02001 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 04-28-2015 Web: www.mrt-cert.com FCC ID: 2ACDAMX-100 Page Number: 1 of 72 FCC ID: 2ACDAMX-100 APPLICANT: US DIGITAL MEDIA Application Type: Certification Product: Bluetooth Speaker Model No.: MX-100 FCC Classification: FCC Part 15 Spread Spectrum Transmitter(DSS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009, DA 00-705 Test Date: Apr. 22 ~ 28, 2015 MEASUREMENT REPORT FCC PART 15.247 BT v2.1 + EDR Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and DA 00-705. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 2 of 72 Revision History Report No. Version Description Issue Date 1504RSU02001 Rev. 01 Initial report 04-28-2015 Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 3 of 72 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Working Frequencies .................................................................................................... 9 2.3. Pseudorandom Frequency Hopping Sequence ........................................................... 10 2.4. Device Capabilities ..................................................................................................... 10 2.5. Test Configuration ...................................................................................................... 10 2.6. Test Software ............................................................................................................. 10 2.7. EMI Suppression Device(s)/Modifications ................................................................... 10 2.8. Labeling Requirements ................................................................................................ 11 3. DESCRIPTION OF TEST ...................................................................................................... 12 3.1. Evaluation Procedure ................................................................................................. 12 3.2. AC Line Conducted Emissions ................................................................................... 12 3.3. Radiated Emissions .................................................................................................... 13 4. ANTENNA REQUIREMENTS ................................................................................................ 14 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 15 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ...................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 20dB Bandwidth Measurement ................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Te s t Procedure used ............................................................................................... 18 7.2.3. Te s t Setting ............................................................................................................. 18 7.2.4. Te s t Setup ............................................................................................................... 19 7.2.5. Te s t Result .............................................................................................................. 20 7.3. Output Power Measurement ....................................................................................... 23 7.3.1. Te s t Limit ................................................................................................................ 23 7.3.2. Te s t Procedure Used .............................................................................................. 23 7.3.3. Te s t Setting ............................................................................................................. 23 7.3.4. Te s t Setup ............................................................................................................... 24 7.3.5. Te s t Result .............................................................................................................. 25 Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 4 of 72 7.4. Carrier Frequency Separation Measurement .............................................................. 28 7.4.1. Te s t Limit ................................................................................................................ 28 7.4.2. Te s t Procedure Used ................................................................…

Text truncated - open the document above for the full version.

Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 36 of 72 7.6. Time of Occupancy Measurement 7.6.1. Test Limit The maximum permissible time of occupancy is 400ms within a period of 400ms multiplied by the number of hopping channels employed. 7.6.2. Test Procedure Used ANSI C63.10-2009 - Section 7.7.4 7.6.3. Test Settitng 1. Span = zero span, centered on a hopping channel. 2. RBW = 1MHz 3. VBW ≥ RBW 4. Sweep time = as necessary to capture the entire dwell time per hopping channel 5. Detector = Peak 6. Trace mode = max hold If possible, use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (data rate, modulation format, etc.), repeat this test for each variation. An oscilloscope may be used instead of a spectrum analyzer. The EUT shall show compliance with the appropriate regulatory limit for the number of hopping channels. A plot of the data shall be included in the test report. Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 37 of 72 7.6.4. Test Setup Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 38 of 72 7.6.5. Test Result Test Mode Channel No. Frequency (MHz) Time of Occupancy (ms) Limit (ms) Result 3DH1 39 2441 137.6 < 400 Pass 3DH3 39 2441 262.4 < 400 Pass 3DH5 39 2441 305.8 < 400 Pass 3DH1 Time of Occupancy Channel 39(2441MHz) Channel 39(2441MHz) Note: Te st Time Period: 0.4*79=31.6sec, Hopping Times Within 1sec: 40/50msec=800 hops/sec. The Maximum Occupancy Time within 31.6sec: [(0.430ms*800)/79]*31.6 =137.6 msec. 3DH3 Time of Occupancy Channel 39(2441MHz) Channel 39(2441MHz) Note: Test Time Period: 0.4*79=31.6sec, Hopping Times Within 1sec: 20/50msec=400hops/sec. The Maximum Occupancy Time within 31.6sec: [(1.640ms*400)/79]*31.6 =262.40 msec. Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 39 of 72 3DH5 Time of Occupancy Channel 39(2441MHz) Channel 39(2441MHz) Note: Test Time Period: 0.4*79=31.6sec, Hopping Times Within 1sec: 13/50msec=260 hops/sec. The Maximum Occupancy Time within 31.6sec: [(2.940ms*260)/79]*31.6 =305.76 msec. Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 40 of 72 7.7. Band-edge Compliance Measurement 7.7.1. Test Limit The maximum permissible emission level is 20dBc. Any emissions were lying outside of the emission bandwidth and in authorized band edges to a field strength limit specified in Section 15.209 of the Title 47 CFR. 7.7.2. Test Procedure Used ANSI C63.10-2009 - Section 7.7.9 7.7.3. Test Setting 1. Span = wide enough to capture the peak level of the emission operating on the channel closest to the band edge, as well as any modulation products which fall outside of the authorized band of operation. 2. RBW ≥ 1% of spectrum analyzer display span 3. VBW ≥ RBW 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Allow the trace to stabilize. Set the marker on the emission at the band edge, or on the highest modulation product outside of the band, if this level is greater than that at the band edge. Enable the marker-delta function, than use the marker-to-peak function to move the marker to the peak of the in-band emission. Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 41 of 72 7.7.4. Test Setup Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 42 of 72 7.7.5. Test Result Test Mode Channel No. Frequency (MHz) Limit Result DH5 00 2402 20dBc Pass DH5 78 2480 20dBc Pass 2DH5 00 2402 20dBc Pass 2DH5 78 2480 20dBc Pass 3DH5 00 2402 20dBc Pass 3DH5 78 2480 20dBc Pass DH5 Band-edge Compliance Channel 00 (2402MHz) Channel 78 (2480MHz) 2DH5 Band-edge Compliance Channel 00 (2402MHz) Channel 78 (2480MHz) Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 43 of 72 3DH5 Band-edge Compliance Channel 00 (2402MHz) Channel 78 (2480MHz) DH5 Operation Frequency Range of 20dB Bandwidth within Hopping Mode Channel 00 (2402MHz) Channel 78 (2480MHz) 2DH5 Operation Frequency Range of 20dB Bandwidth within Hopping Mode Channel 00 (2402MHz) Channel 78 (2480MHz) Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 44 of 72 3DH5 Operation Frequency Range of 20dB Bandwidth within Hopping Mode Channel 00 (2402MHz) Channel 78 (2480MHz) Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 45 of 72 7.8. Conducted Spurious Emissions Measurement 7.8.1. Test Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. 7.8.2. Test Procedure Used ANSI C63.10-2009 - Section 7.7.10 7.8.3. Test Setting 1. Span = wide enough to capture the peak level of the in-band emission and all spurious emissions (e.g., harmonics) from the lowest frequency generated in the EUT up through the 10 th harmonic. Typically, several plots are required to cover this entire span. 2. RBW = 100 KHz 3. VBW ≥ RBW 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize Set the marker on the peak of any spurious emission recorded. The level displayed must comply with the limit specified in this section. Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 46 of 72 7.8.4. Test Setup Report No.: 1504RSU02001 FCC ID: 2ACDAMX-100 Page Number: 47 of 72 7.8.5. Test Result Test Mode Channel No. Frequency (MHz) Limit (MHz) Result DH5 00 2402 20dBc Pass DH5 39 2441 20dBc…

Text truncated - open the document above for the full version.

1 of 4 FCC Part15C Test Setup Photo Description: Front View of the Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Back View of the Conducted Emission Test Setup for 0.15kHz ~ 30MHz Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 40GHz
