2ACDM-SNT20BTemperature Sensor with bluetooth

PARKER HANNIFIN CORPORATION QUICK COUPLING DIVISION 8145 LEWIS ROAD MINNEAPOLIS, MN 55427 Parker Sensor Operation and Specification Operation: Press button once, sensor powers on into broadcast Mode. • Green/Red light blinks. • Sensor advertises for 2 minutes looking for a connection before sensor powers off automatically . After sensor is connected with App, sensor will then blink solid green light every 5 seconds. • Sensor starts transmission data to App after connection. Sensor can be shut down by holding the sensor button for 3 seconds • Sensor will flash red LED two time upon successful shutdown and power off. • Sensor will flash green two times and return to the current state if the button is not held for a long enough period of time. When sensor disconnects with iOS device unexpectedly under below events, sensor will go into broadcast mode for 2 minutes looking to reconnect. • Turn off the Bluetooth radio for iOS device • Force shut down app • Take sensors out of range of iOS device • Shut off iOS device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Authority to Act as Agent Date: Jul-08-2014 To Whom It May Concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Hellen Wang in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all matters relating to all processes required in FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___12 months_____ By: (Signature 1 ) ___ Shawn Ellis _ (Print name) Title: ___Engineering Supervisor___ On behalf of: ___Parker Hannifin Corporation__ (Company Name) Telephone: __763-525-4258______

Request for Confidentiality Date: Jul-08-2014 Subject: Confidentiality Request for: ____ FCC ID: 2ACDM-SNT20B ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Parker Hannifin Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___ (specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _Shawn Ellis / Engineering Supervisor _ (Signature/Title 3 ) (Print name)

Model Confirmation Letter We, Parker Hannifin Corporation certify the product: Temperature sensor products And item No.: all models below Part Number Description 953499 Temperature 953500 Temperature SNT-0-B-CL-KB Temperature Their electrical circuit design, layout, components used and internal wiring are identical, Only the color, model number, logo are different. Agency Agreement Expiration Date: 12 months By: Shawn Ellis (Signature 1 ) (Print name) Title: Engineering Supervisor On behalf of: Parker Hannifin Corporation Telephone: 763-525-4258

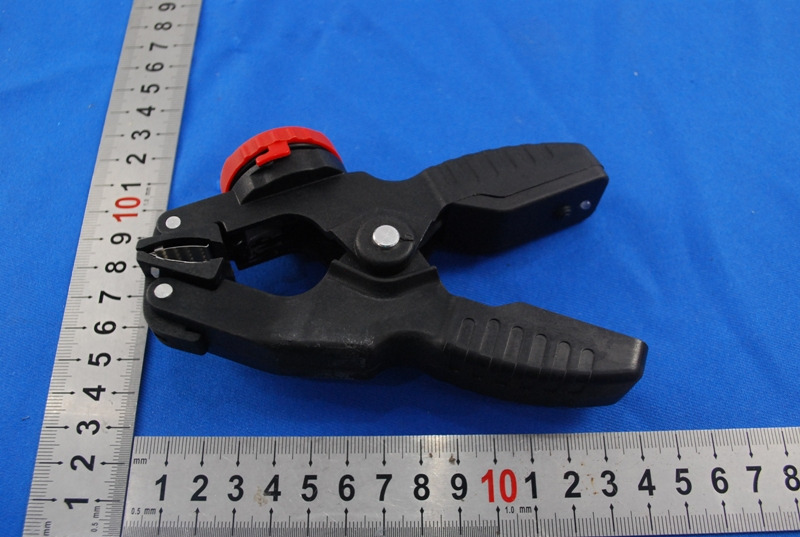

1 Photographs - EUT Constructional Details Test model No.: 953500
