2ACDZ-WM1Embedded Wi-Fi Module

USER MANUAL_V1 The device is a fully self‐contained small form‐factor, single stream, 802.11 b/g/n wifi module, which provides a wireless interface to any equipment with a Serial/GPIO/I2C/ADC interface for data transfer. It supports AP and STA wireless networking and support WIFI Direct mode. It integrates MAC, baseband processor, RF transceiver with power amplifier in hardware and all wifi protocol and configuration functionality and networking stack, in embedded firmware to make a fully self‐contained 802.11 b/g/n wifi solution for a variety of applications. Device Features Single stream WIFI @2.4G with support for WEP security mode as well as WPA/WPA2 Fully self‐contained serial‐to‐wireless functionality Support IEEE802.11 b/g/n wireless standards Support UART/PWM/ADC/I2C/GPIO data communication interface Support work as STA/AP/AP+STA/WIFI direct mode Support smart configuration Support TLS/SSL and mDNS Protocal Support PCB/External antenna option Small size: 40.9mm*22.6mm*2.7mm Device paremeters Class Item Parameters Wireless Wireless standard 802.11 b/g/n Frequency range 2.412GHz~2.484GHz Transmit Power 802.11b:17dBm 802.11g:15dBm 802.11n:15dBm Receiver Sensitivity 802.11b<‐78dBm 802.11g<‐68dBm 802.11n<66dBm PCB antenna gain 1.5dB Hardware Operating voltage 3.1~3.6V Operating current Max(tx):~210mA OPERATING temp 0~70°C size 40.9mm*22.6mm*2.7mm VIL ≤0.3VCC VIH ≥0.7VCC ESD(Human Body Model) 2kv@25°C ESD(Charged Device Model) 500v@25°C software Network type STA/AP/STA+AP/WIFI Direct Security mechanisms WEP/WPA/WAP2 Encryption WEP64/WEP128/TKIP/AES Reserved resource Network protocol IPv4,TCP/UDP/FTP/HTTP,HTTPS,TLS,mDNS Hardware (Unit: mm) Pin assignment GND GND VDD 3.3V RX2 GPIO79; GPT1_CH1; UART2_RX TX2 GPIO78; GPT1_CH0; UART2_TX P1 GPIO6; ADC0_IN1; GPT3_CH0 P2 GPIO7; ADC0_IN0; GPT3_CH1 P3 GPIO8; ADC1_IN0; GPT1_CH2; I2C1_SDA P4 GPIO9; ADC1_IN1; GPT1_CH3; I2C1_SCL P5 GPIO17; GPT0_CH5 GND GND TDO JTAG TDO TCK JTAG TCK TMS JTAG TMS TDI JTAG TDI TRST_N JTAG TRST_N VDD 3.3V GND GND P6 GPIO27; BOOT P7 GPIO28; GPT3_CH3 P8 GPIO29; GPT3_CH4 P9 GPIO30; GPT3_CH5 P10 GPIO44; I2C0_SDA P11 GPIO45; I2C0_SCL RX0 UART0_RX; GPIO75 TX0 UART0_TX; GPIO74 GND GND P12 GPIO63; SPI_CLK P13 GPIO64; SPI_CS P14 GPIO65; SPI_RX P15 GPIO66; SPI_TX GPIO Each GPIO can be configured by software as an input or output Programmable control for GPIO interrupt, 4mA current sink/source capability for 3.3v I/O supply RTC(Real time clock) The RTC is an independent 32‐bit hardware timer, providing a continuously running counter that can be supplied to a customer clock‐calendar and timer interrupt. GPT(General purpose timer) A 32‐bit counter with programmable clock divider and pre‐scalar Input capture for external inputs Edge‐aligned and Center‐aligned PWM ADC The ADC module has a programmable resolution from 10 to 16 bits. Flexible gain buffer setting of 2x, 1x, 0.5x Highest throughput rate with 10‐bit resolution is 250ksample/s UART UART0 for debug; UART2 used to communicate with other device. I2C Three speeds: standard mode(100kb/s), fast mode(400kb/s), high‐speed mode(3.4Mb/s) Clock synchronization Master or slave I2C operation, multi‐master, multi‐slave operation, and arbitration support JTAG Just for firmware burning Antenna When customer selects the on‐board chip antenna, the antenna must away from metal or high components at least 15mm, and do not put any components or copper under the antenna, it also can not be shielded by any meal enclosure. As the simulation result show, the pcb antenna has 1.5dB gain and its S11<‐14dB between 2.4GHz~2.5GHz The device also supports external antenna. The parameters required are as followed: Frequency range 2.4G~2.5G Impedance 50Ohm VSWR <2 Return loss <‐10dB Connector type IPEX Warning 1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

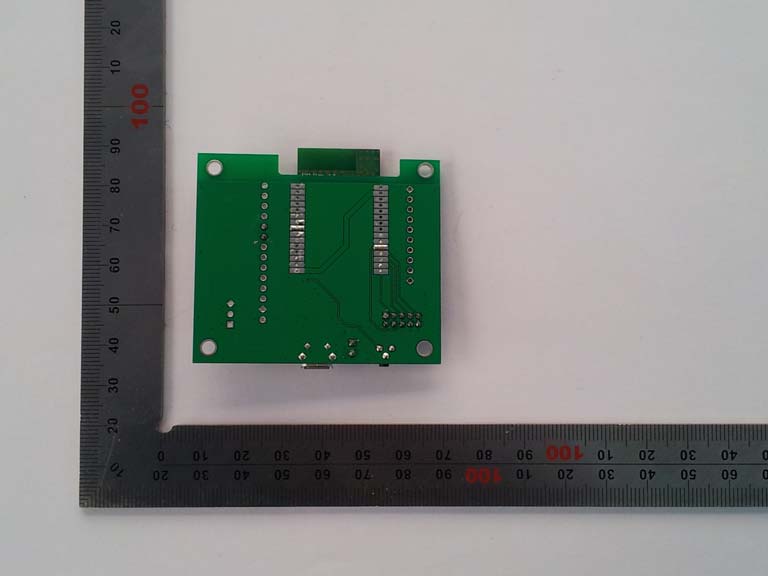

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –Top View EUT –Bottom View

Label and Location

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.247 TEST REPORT For Hangzhou Gubei Electronics Technology Co., Ltd Room106, No.1 Building, No.611 Jianghong Road Binjiang, Hangzhou, Zhejiang, China FCC ID: 2ACDZ-WM1 Report Type: Original Report Product Type: Embedded Wi-Fi Module Test En gineer: Matt Yao Re port Number: RKS141126001-00A Re port Date: 2014-11-26 Reviewed B y: Jesse huang EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) Chenghu Lake Road,Kunshan Development Zone No.248,Kunshan, Jiangsu, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKS141126001-00A FCC Part 15.247 Page 2 of 55 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC§15.247 (i), §1.1310& §2.1091 –MAXIMUM PERMISSIBLE ............................................................................... 9 EXPOSURE (MPE) ........................................................................................................................................................ 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 12 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 MEASUREMENT UNCERTA…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions Below 1GHz Above 1GHz RF Conducted test Setup Photo
