2ACE5-FBMAGSPKWireless Magnetic Speaker

Thank you for purchasing the MagTunes Magnetic Wireless Speaker. Place your music on any magnetic surface. For best results, read this manual before using your device. Closer Look Charging Using the Speaker USER’S MANUAL FOR ITEM: FBMAGSPK 1. Insert one end of the included charging cable’s into the charging port on your wireless speaker. 2. Insert the other end of the charging cable into a suitable USB charging adapter. 3. The indicator light will turn red while charging. When fully charged, the indicator light will turn OFF. 2-3 SEC PRESS & HOLD connected Magnet Speaker 1. Press and hold the power button for 2-3 seconds to turn the speaker On and Off. While ON the Indicator light will flash blue to show it has entered pairing mode. 2. Go to the Bluetooth settings menu on your phone. Make sure that Bluetooth is turned on. Connect to the device listed as “Magnet Speaker” 3. Once paired, the indicator will remain blue and shine steadily. Note that the light may flash slowly when music is playing. BATTERY WARNING: CAUTION Charging Port Back View Front View NOTE Power Button/ Indicator Light On the bottom of the speaker is a built-in Magnetic plate. You can attatch the speaker to flat magnetic surfaces. (red) charging (off) charging complete (blue flashing) pairing mode 2-3 SEC PRESS & HOLD (blue) paired MagTunes Magnetic Wireless Speaker -The device is equipped with an integrated lithium ion battery. The battery cannot be replaced. Do not attempt to remove the battery from the device. -Do not dispose of in fire or expose to excessive heat. -Do not crush, puncture, incinerate, or short circuit external contacts. -Please recycle or dispose of the battery properly. Contact your local recycling facilities and/or the manufacturer for further information. ponsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. help. Battery:Built-in 300mAh Li-ion battery This warranty covers the original consumer purchaser only and i s not transferable. This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired or replaced at no charge for parts or labor for a period of one year. What Is Not Covered by Warranty Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including, but not limited to, repair by accident. To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 or visit our website at www.vivitar.com. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the product is within the applicable Warranty period(s), MUST be presented in order to obtain the requested service. It is your responsibility to properly package and send any defective products along with a dated copy of proof of purc valid return address to the authorized service center at your e accessories with the defective product. Any products received by the authorized service center that are not covered by warranty will be returned unrepaired. Warranty Safety Precautions Features FCC Statement © 2024 Sakar International 195 Carter Drive, Edison, NJ 08817 Support: 800 592 9541 www.vivitar.com --Magnetically attatches to most metal surfaces. --Doubles as a phone stand when attatched to compatible devices. Contents -Wireless Speaker -Type-C Charging Cable -User’s Manual Speaker: 3W / 4 Ω Playtime: 1.5 hours* Charging Input: DC 5V-100mA When using your wireless speaker, basic safety precautions should always be followed, including the following: 1. READ ALL INSTRUCTIONS BEFORE USING YOUR WIRELESS SPEAKER. 2. Never expose your wireless speaker to high temperatures, extreme cold, high humidity, moisture, or water. 3. To avoid the risk of electric shock, never attempt to open or repair your wireless speaker without the assistance of certified professionals. 4. Your wireless speaker is not to be used by children or the infirm without suitable adult supervision. 5. Always press all buttons carefully. Do not manhandle your wireless speaker. 6. Do not use your wireless speaker at temperatures under 32°F (0°C) or over 104°F (40°C). 7. Do not drop your wireless speaker, throw it, or subject it to strong impacts or physical trauma. 8. If you detect any abnormalities when using your wireless speaker, contact the manufactur- er for support. In addition, do not continue to use your wireless speaker if you detect any smoke or fire. 9. Unplug your wireless spea…

Text truncated - open the document above for the full version.

Rev1/26/2023 (TelephoneEst(HK)CO.,LTD) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:05-06-2024 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID：2ACE5-FBMAGSPK [TelephoneEst(HK)CO.,LTD](“theapplicant”)certifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules. Sincerely, (Applicantsignature) (HonghongChen) Rev1/26/2023 (TelephoneEst(HK)CO.,LTD) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:05-06-2024 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID：2ACE5-FBMAGSPK [TelephoneEst(HK)CO.,LTD](“theapplicant”)certifiesthat,asofthedateofthefilingoftheapplication, theapplicantisnotidentifiedontheCoveredList(asaspecificallynamedentityoranyofitssubsidiaries oraffiliates)asanentityproducing“covered” equipment. Sincerely, (Applicantsignature) (HonghongChen)

USAgent–AttestationStatement/Part2.911(d)(7 TELEPHONE EST (HK) CO., LTD Room709,7F, FuLi tianhe commercial building,Linhe East Road and tianhe district, Guangzhou, China Guangzhou, China Attention: Honghong Chen Date:[2024.04.12] Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:[2ACE5-FBMAGSPK] FRN:[0023636004] ) DesignatedAgent:[SakarInternational,Inc] DesignatedAgentRepresentative:[DAWNLEITAO [TELEPHONE EST (HK) CO., LTD]certifies, that as of[2024.04.12], we have designated Sakar International , Inc to accept service of process on our behalf for FCC ID:[2ACE5-FBMAGSPK]. [TELEPHONE EST (HK) CO., LTD], accepts to maintain an agent of service of process in the United States for no less than one year after her the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proeitceeding involving the equipment, whichever is later. Sakar International , Inc, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [TELEPHONE EST (HK) CO., LTD]for FCC ID:[2ACE5-FBMAGSPK]. Designated Agent Information: Company Name: Sakar International , Inc FRN:0028102671 Address:195 Carter Drive Edison, Edison,NJ 8817 United States Contact Person: DAWN LEITAO Phone: （ 800 ） 637-1090 Email:[email protected] Sincerely, ] Signature Company:TELEPHONE EST (HK) CO., LTD Company Representative:Honghong Chen Signature: :

TelephoneEst(HK)CO.,LTD Rev11/20/07 FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2ACE5- FBMAGSPK PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram Schematics OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,Wealsorequestingthe commissiontograntshort-termconfidentialityrequestonthefollowingattachmentsuntil180 daysaftertheGrantDateofEquipmentAuthorizations. ExhibitTypeFileName Sincerely, HonghongChen 05-06-2024

Declarationonmodeldifference Wetheundersignedherebyconfirmthatthesemodelsareidentical,andallmodelshavethesame RFmodule,PCBlayout,Antenna,schematicsandcomponent.Onlydifferentonmodelnameand color. ProductionnameTrademarkFCCModelno. WirelessMagnetic Speaker VIVITAR2ACE5-FBMAGSPKFBMAGSPK, FBMAGSPK-ASST, FBMAGSPK-ASST-T27-1, TS-MBS01.TS-MBS03, TS-MBS05,FBMAGSPK-BLK, FBMAGSPK-PNK, FBMAGSPK-LBLU Confirmedby: HonghongChen TelephoneEst(HK)CO.,LTD 05-06-2024

TelephoneEst(HK)CO.,LTD FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Date:05-06-2024 SUBJECT:FCCApplicationforFCCID:2ACE5-FBMAGSPK ToWhomItMayConcern: We,theundersigned,herebyauthorizeSamLv.atEMTEK(DONGGUAN)CO.,LTD.on ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyEMTEK(DONGGUAN)CO.,LTD.onourbehalfshallhave thesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Sincerely, HonghongChen 05-06-2024

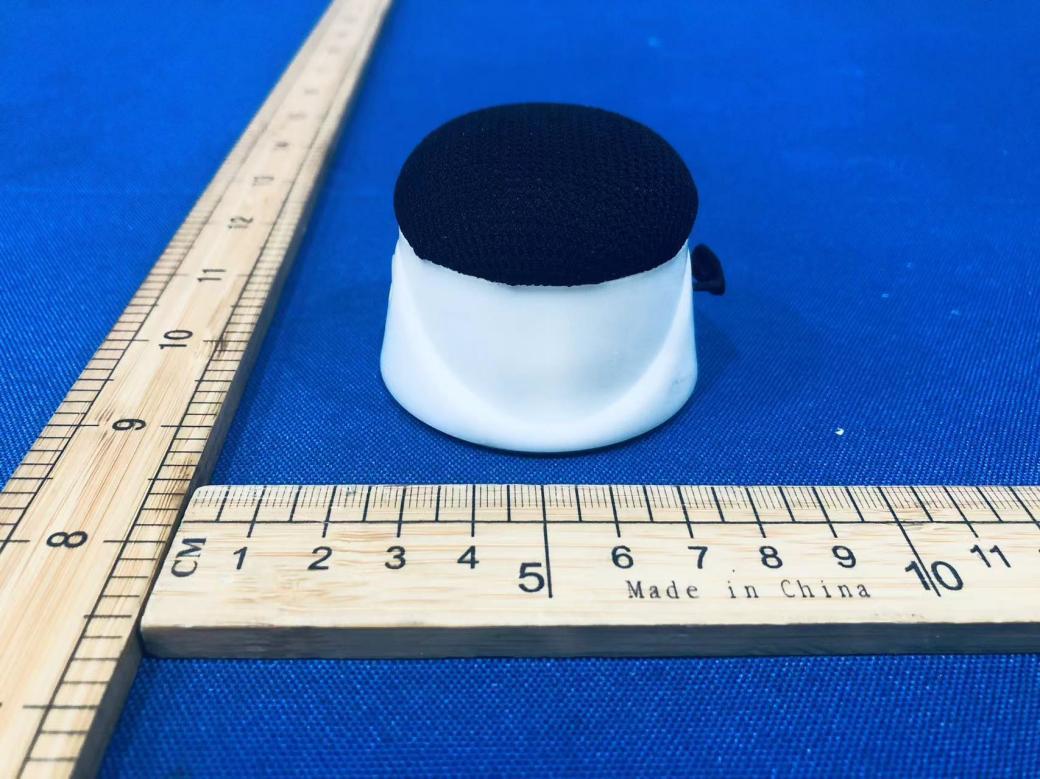

ReportNo.EDG2404150013E003Page1of4Ver.1.0 FCCID:2ACE5-FBMAGSPK ReportNo.EDG2404150013E003Page2of4Ver.1.0 ReportNo.EDG2404150013E003Page3of4Ver.1.0 ReportNo.EDG2404150013E003Page4of4Ver.1.0

ReportNo.EDG2404150013E003Page1of3Ver.1.0 FCCID:2ACE5-FBMAGSPK ReportNo.EDG2404150013E003Page2of3Ver.1.0 BTANT ReportNo.EDG2404150013E003Page3of3Ver.1.0

ReportNo.EDG2404150013E00302RPage1of7Ver.1.0 TESTREPORT ProductName：WirelessMagneticSpeaker ModelNumber： FBMAGSPK,FBMAGSPK-ASST, FBMAGSPK-ASST-T27-1,TS-MBS01. TS-MBS03,TS-MBS05,FBMAGSPK-BLK, FBMAGSPK-PNK,FBMAGSPK-LBLU FCCID：2ACE5-FBMAGSPK Preparedfor:TelephoneEst(HK)CO.,LTD Address:Room709,7F,FuLitianhecommercialbuilding,LinheEast Roadandtianhedistrict,Guangzhou,China Preparedby:EMTEK(DONGGUAN)CO.,LTD. Address:-1&2/F.,Building2,ZoneA,ZhongdaMarineBiotechnology ResearchandDevelopmentBase,No.9,XinchengAvenue, SongshanhuHigh-technologyIndustrialDevelopmentZone, Dongguan,Guangdong,China TEL:+86-0769-22807078 FAX:+86-0769-22807079 ReportNumber:EDG2404150013E00302R Date(s)ofTests:Apr15,2024toApr24,2024 Dateofissue:Apr25,2024 $二维码$ ReportNo.EDG2404150013E00302RPage2of7Ver.1.0 TableofContents 1.TESTRESULTCERTIFICATION...............................................................................................................................................3 2.EUTSPECIFICATION.................................................................................................................................................................5 3.TESTREQUIREMENT................................................................................................................................................................6 4.MEASUREMENTRESULT.........................................................................................................................................................7 ReportNo.EDG2404150013E00302RPage3of7Ver.1.0 1.TESTRESULTCERTIFICATION Applicant:TelephoneEst(HK)CO.,LTD Address: Room709,7F,FuLitianhecommercialbuilding,LinheEastRoadandtianhe district,Guangzhou,China Manufacturer:TelephoneEstElectronicsFactory(ZhongShan) Address:NO.2ShengfengHeyuanRoad,XiaolanTown,Zhongshan,Guangdong,China Factory:TelephoneEstElectronicsFactory(ZhongShan) Address:NO.2ShengfengHeyuanRoad,XiaolanTown,Zhongshan,Guangdong,China EUT:WirelessMagneticSpeaker ModelName: FBMAGSPK,FBMAGSPK-ASST,FBMAGSPK-ASST-T27-1,TS-MBS01. TS-MBS03,TS-MBS05,FBMAGSPK-BLK,FBMAGSPK-PNK, FBMAGSPK-LBLU Trademark:VIVITAR MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT §15.247(i),§2.1093 PASS TheaboveequipmentwastestedbyEMTEK(DONGGUAN)CO.,LTD.Thetestdata,dataevaluation,test procedures,andequipmentconfigurationsshowninthisreportweremadeinaccordancewiththeprocedures giveninANSIC63.10(2013)andtheenergyemittedbythesampleEUTtestedasdescribedinthisreportisin compliancewiththerequirementsofFCCRulesFCC§15.247(i),§2.1093. Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport DateofTest:Apr15,2024toApr24,2024 Preparedby: WarrenDeng/ Editor Reviewer: TimDong/ Supervisor Approve&AuthorizedSigner: SamLv/Manager ReportNo.EDG2404150013E00302RPage4of7Ver.1.0 ModifiedHistory VersionReportNo.RevisionDateSummary EDG2404150013E00302R/OriginalReport ReportNo.EDG2404150013E00302RPage5of7Ver.1.0 2. EUTSpecification CharacteristicsDescription Product:WirelessMagneticSpeaker ModelNumber: FBMAGSPK,FBMAGSPK-ASST,FBMAGSPK-ASST-T27-1,TS-MBS01. TS-MBS03,TS-MBS05,FBMAGSPK-BLK,FBMAGSPK-PNK, FBMAGSPK-LBLU Allmodelsarethesameexceptthemodelnameandcolor.Here, FBMAGSPKisselectedforalltests. Sample:1# DataRate: 1MbpsforGFSKmodulation 2Mbpsforπ/4-DQPSKmodulation 3Mbpsfor8DPSKmodulation Modulation: GFSK,π/4-DQPSK,8DPSK OperatingFrequency Range(s): 2402-2480MHz NumberofChannels: 79channels TransmitPowerMax: -6.22dBm(0.000239W) AntennaGain:1.68dBi Powersupply: DC5VfromUSB DC3.7Vfrombattery Evaluationapplied:MPEEvaluation SAREvaluation ReportNo.EDG2404150013E00302RPage6of7Ver.1.0 3. TestRequirement RFEXPOSUREEVALUATION Accordingto§15.247(i)and§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbe operatedinamannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessof theCommission’sguidelines. RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,usingmeasurementsorcomputer simulation.WhenroutineSARevaluationisnotrequired,portabletransmitterswithoutputpowergreaterthan theapplicablelowthresholdrequireSARevaluationtoqualityforTCBapproval. OneantennaisavailablefortheEUT.Theminimumseparationdistanceis5mm. ReportNo.EDG2404150013E00302RPage7of7Ver.1.0 4. MeasurementResult Antennagain:1.68dBi Whenasinglemoduleworks,themeasurementresultsareasfollows: Transmit Frequency (MHz) Mode Measured Power (dBm) Tune upPower (dBm) Maxtuneup power (dBm) Calculation Result 1-gSAR 2402GFSK-7.65 -7±1-6 0.07793 2441GFSK-7.24-7±1-60.07853 2480GFSK-7.08-7±1-60.07913 2402Π/4-DQPSK-7.11-7±1-60.07793 2441Π/4-DQPSK-6.86-6±1-50.09883 2480Π/4-DQPSK-6.45-6±1-50.09963 24028DPSK-6.63-6±1-50.09803 24418DPSK-6.22-6±1-50.09883 24808DPSK-6.27-6±1-50.09963 AccordingtoKDB447498,nostand-alonerequiredforBT&BLEantenna,andnosimultaneousSAR measurementisrequired. ***EndofReport***

V . S .W . R < 1.4 Polarization Type V ertical & Horizontal Frequenc Range 2400 ~ 2500GHz Input Impendence(ohm) 50 Efficiency (dB) 6 0.2 % 6 0.2 % Maximum Power (dBm) 1.6 8(XZ-plane) Gain (dBi) 1.6 8 Peak EIRP(dBm)1.2 Tot. Rad. Pwr. (dBm)-1.2 (Input pwr – loss pwr) Product specification Quick Reference Date Antenna module on the system board Ant. Port Input Pwr. (dBm)0 (Typ. BT class 2 output power) Directivity (dBi)1 (all direction antenna) Minimum Power (dBm ) -3.83(XZ-plane) Avg. Power (dBm) -0.48(XY-plane) All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHzXY-planeXZ-planeYZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.68 1.35 -0.48 -3.83 1.11 -2.99 Design company:shenzhen HuaSai Electric Technology Co.Ltd. spce:ANT_XZR01 Return Loss The Environment of Antenna Radiation Pattern 3D radiation pattern diagram XY-planeXZ-planeYZ-plane

ReportNo.EDG2404150013E00301RPage1of71Ver.1.0 TESTREPORT ProductName：WirelessMagneticSpeaker ModelNumber： FBMAGSPK,FBMAGSPK-ASST, FBMAGSPK-ASST-T27-1,TS-MBS01. TS-MBS03,TS-MBS05,FBMAGSPK-BLK, FBMAGSPK-PNK,FBMAGSPK-LBLU FCCID：2ACE5-FBMAGSPK Preparedfor:TelephoneEst(HK)CO.,LTD Address:Room709,7F,FuLitianhecommercialbuilding,LinheEast Roadandtianhedistrict,Guangzhou,China Preparedby:EMTEK(DONGGUAN)CO.,LTD. Address:-1&2/F.,Building2,ZoneA,ZhongdaMarineBiotechnology ResearchandDevelopmentBase,No.9,XinchengAvenue, SongshanhuHigh-technologyIndustrialDevelopmentZone, Dongguan,Guangdong,China TEL:+86-0769-22807078 FAX:+86-0769-22807079 ReportNumber:EDG2404150013E00301R Date(s)ofTests:Apr15,2024toApr24,2024 Dateofissue:Apr25,2024 $ 二维码 $ ReportNo.EDG2404150013E00301RPage2of71Ver.1.0 TableofContents 1TESTRESULTCERTIFICATION..................................................................................................................................................3 2EUTTECHNICALDESCRIPTION.................................................................................................................................................5 3SUMMARYOFTESTRESULT.....................................................................................................................................................6 4TESTMETHODOLOGY.................................................................................................................................................................7 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS......................................................................................................7 4.2MEASUREMENTEQUIPMENTUSED..................................................................................................................................7 4.3DESCRIPTIONOFTESTMODES..........................................................................................................................................8 5FACILITIESANDACCREDITATIONS........................................................................................................................................9 5.1FACILITIES..............................................................................................................................................................................9 5.2EQUIPMENT............................................................................................................................................................................9 5.3LABORATORYACCREDITATIONSANDLISTINGS.........................................................................................................9 6TESTSYSTEMUNCERTAINTY.................................................................................................................................................10 7SETUPOFEQUIPMENTUNDERTEST.....................................................................................................................................11 7.1RADIOFREQUENCYTESTSETUP1.................................................................................................................................11 7.2RADIOFREQUENCYTESTSETUP2.................................................................................................................................11 7.3CONDUCTEDEMISSIONTESTSETUP.............................................................................................................................13 7.4BLOCKDIAGRAMCONFIGURATIONOFTESTSYSTEM.............................................................................................14 7.5SUPPORTEQUIPMENT........................................................................................................................................................14 8FREQUENCYHOPPINGSYSTEMREQUIREMENTS...............................................................................................................15 8.1StandardApplicable.................................................................................................................................................................15 8.2EUTPseudorandomFrequencyHoppingSequence................................................................................................................15 8.3EqualHoppingFrequencyUse................................................................................................................................................16 8.4FrequencyHoppingSystem.....................................................................................................................................................16 9TESTREQUIREMENTS...............................................................................................................................................................17 9.120DB&99%BANDWIDTH.....................................................................................................................................................17 9.2CARRIERFREQUENCYSEPARATION..............................................................................................................................29 9.3NUMBEROFHOPPINGFREQUENCIES............................................................................................................................32 9.4AVERAGETIMEOFOCCUPANCY(DWELLTIME)........................................................................................................35 9.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER.........................................................................................................41 9.6CONDUCTEDSUPRIOUSEMISSION.................................................................................................................................47 9.7RADIATEDSPURIOUSEMISSION.....................................................................................................................................57 9.8CONDUCTEDEMISSIONTEST..................................................................................................…

Text truncated - open the document above for the full version.

ReportNo.EDG2404150013E00301RPage41of71Ver.1.0 9.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER 9.5.1ApplicableStandard AccordingtoFCCPart15.247(b)(1)andKDB558074D0115.247MEASGUIDANCEv05r02 AccordingtoICRSS-247.5.4andRSS-Gen6.12 9.5.2ConformanceLimit ThemaxForfrequencyhoppingsystemsoperatinginthe2400-2483.5MHzbandemployingatleast75 non-overlappinghoppingchannels:1watt.Forallotherfrequencyhoppingsystemsinthe2400-2483.5MHzband: 0.125watts. 9.5.3TestConfiguration Testaccordingtoclause7.1radiofrequencytestsetup1 9.5.4TestProcedure Asanalternativetoapeakpowermeasurement,compliancewiththelimitcanbebasedonameasurementofthe maximumconductedoutputpower. Usethefollowingspectrumanalyzersettings: SetSpan=approximately5timesthe20dBbandwidth,centeredonahoppingchannel(about8MHz) SetRBW>the20dBbandwidthoftheemissionbeingmeasured(about3MHz) SetVBW  RBW SetSweep=auto SetDetectorfunction=peak SetTrace=maxhold Allowthetracetostabilize.Usethemarker-to-peakfunctiontosetthemarkertothepeakoftheemissionto determinethepeakamplitudelevel. TestResults Temperature: 25 ̊C RelativeHumidity:45% ATMPressure:1011mbar Note:N/A Test Mode AntennaFrequency[MHz] ConductedPeak Powert[dBm] Conducted Limit[dBm] Verdict DH5Ant12402-7.65≤20.97PASS DH5Ant12441-7.24≤20.97PASS DH5Ant12480-7.08≤20.97PASS 2DH5Ant12402-7.11≤20.97PASS 2DH5Ant12441-6.86≤20.97PASS 2DH5Ant12480-6.45≤20.97PASS 3DH5Ant12402-6.63≤20.97PASS 3DH5Ant12441-6.22≤20.97PASS 3DH5Ant12480-6.27≤20.97PASS ReportNo.EDG2404150013E00301RPage42of71Ver.1.0 DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS ReportNo.EDG2404150013E00301RPage43of71Ver.1.0 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS ReportNo.EDG2404150013E00301RPage44of71Ver.1.0 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS ReportNo.EDG2404150013E00301RPage45of71Ver.1.0 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS ReportNo.EDG2404150013E00301RPage46of71Ver.1.0 3DH5-Ant1-2480-PASS ReportNo.EDG2404150013E00301RPage47of71Ver.1.0 9.6CONDUCTEDSUPRIOUSEMISSION 9.6.1ApplicableStandard AccordingtoFCCPart15.247(d)andKDB558074D0115.247MEASGUIDANCEv05r02 AccordingtoICRSS-2475.5 9.6.2ConformanceLimit Inany100kHzbandwidthoutsidethefrequencybandinwhichthespreadspectrumintentionalradiatoris operating,theradiofrequencypowerthatisproducedbytheintentionalradiatorshallbeatleast20dBbelowthat inthe100kHzbandwidthwithinthebandthatcontainsthehighestlevelofthedesiredpower,basedoneitheran RFconducted,providedthetransmitterdemonstratescompliancewiththepeakconductedpowerlimits. 9.6.3TestConfiguration Testaccordingtoclause7.1radiofrequencytestsetup1 9.6.4TestProcedure Thetransmitteroutput(antennaport)wasconnectedtothespectrumanalyzer Referencelevelmeasurement Establishareferencelevelbyusingthefollowingprocedure: SetinstrumentcenterfrequencytoDSSchannelcenterfrequency. SetSpan=approximately5timesthe20dBbandwidth,centeredonahoppingchannel. SettheRBW=100kHz.SettheVBW≥3xRBW. SetDetector=peak.SetSweeptime=autocouple. SetTracemode=maxhold.Allowtracetofullystabilize. UsethepeakmarkerfunctiontodeterminethemaximumMaximumconducetedlevel. Notethatthechannelfoundtocontainthemaximumconducetedlevelcanbeusedtoestablishthereference level. Band-edgemeasurement Usethefollowingspectrumanalyzersettings: Span=wideenoughtocapturethepeakleveloftheemissionoperatingonthechannelclosesttotheband-edge, aswellasanymodulationproductswhichfalloutsideoftheauthorizedbandofoperation SetRBW  1%ofthespan=100kHzSetVBW  3xRBW SetSweep=autoSetDetectorfunction=peakSetTrace=maxhold Allowthetracetostabilize.Setthemarkerontheemissionatthebandedge,oronthehighestmodulation productoutsideoftheband,ifthislevelisgreaterthanthatatthebandedge.Enablethemarker-deltafunction, thenusethemarker-to-peakfunctiontomovethemarkertothepeakofthein-bandemission.Themarker-delta valuenowdisplayedmustcomplywiththelimitspecifiedinthisSection. Now,usingthesameinstrumentsettings,enablethehoppingfunctionoftheEUT.Allowthetracetostabilize. Followthesameprocedurelistedabovetodetermineifanyspuriousemissionscausedbythehoppingfunction alsocomplywiththespecifiedlimit. Emissionlevelmeasurement Usethefollowingspectrumanalyzersettings: Span=wideenoughtocapturethepeaklevelofthein-bandemissionandallspuriousemissions(e.g.,harmonics) fromthelowestfrequencygeneratedintheEUTupthroughthe10thharmonic.(30MHzto25GHz).SetRBW= 100kHzSetVBW  RBW SetSweep=autoSetDetectorfunction=peakSetTrace=maxhold Allowthetracetostabilize.Setthemarkeronthepeakofanyspuriousemissionrecorded.Theleveldisplayed mustcomplywiththelimitspecifiedinthisSection. ReportNo.EDG2404150013E00301RPage48of71Ver.1.0 9.6.5TestResults Temperature: 25 ̊ C RelativeHumidity:45% ATMPressure:1011mbar Note:N/A Bandedgemeasurements Alltheantenna(Antenna1)andmodes(GFSK,π/4-DQPSK,8DPSK)modehavebeentested,andthe worst(Antenna1,GFSK)resultrecordedwasreportasbelow: TestModeAntennaChNameFrequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1Low2402-8.97-48.01≤-28.97PASS DH5Ant1High2480-8.58-47.58≤-28.58PASS DH5Ant1LowHop_2402-9.86-47.38≤-29.86PASS DH5Ant1HighHop_2480-8.19-47.35≤-28.19PASS ReportNo.EDG2404150013E00301RPage49of71Ver.1.0 DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS ReportNo.EDG2404150013E00301RPage50of71Ver.1.0 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS ReportNo.EDG2404150013E00301RPage51of71Ver.1.0 ConductedSpuriousEmission Alltheantenna(Antenna1)andmodes(GFSK,π/4-DQPSK,8DPSK)modehavebeentested,andthe worst(Antenna1,GFSK)resultrecordedwasreportasbelow: TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant124020~Reference-9.16-9.16---PASS DH5Ant1240230~1000-9.16-45.05≤-29.16PASS DH5Ant124021000~26500-9.16-49.6≤-29.16PASS DH5Ant124410~Reference-8.64-8.64---PASS DH5Ant1244130~1000-8.64-45.06≤-28.64PASS DH5Ant124411000~26500-8.64-48.36≤-28.64PASS DH5Ant124800~Reference-9.03-9.03---PASS DH5Ant1248030~1000-9.03-45.44≤-29.03PASS DH5Ant124801000~26500-9.03-46.97≤-29.03PASS ReportNo.EDG2404150013E00301RPage52of71Ver.1.0 DH5-Ant1-2402-0~Reference-PASS DH5-Ant1-2402-30~1000-PASS ReportNo.EDG2404150013E00301RPage53of71Ver.1.0 DH5-Ant1-2402-1000~26500-PASS …

Text truncated - open the document above for the full version.

ReportNo.EDG2404150013E003Page1of2Ver.1.0 FCCID:2ACE5-FBMAGSPK ReportNo.EDG2404150013E003Page2of2Ver.1.0
