2ACE5-IHQI42 in 1 Magnetic 15W Wireless Charging Stand

2-in-1Magnetic15WWirelessCharging Stand Model:2IHQI2056 PackageContents 1、2in1wirelesscharger 2、UserManual 3、USBtoUSB-Cchargingcable Chargingfunction Productindicatorlightstatus LEDindicatorStatusStatus GreenlightstayonPoweron DarkBluelightstayonbothwirelesschargersworking LightBluelightstayononeofthewirelesschargersworking BluelightflashFODStatus(ForeignObjectDetection) ProductSpecifications Input:9V2A,12V2A Wirelesschargingoutput:5W/7.5W/10W/15W Wirelesschargingtransmissiondistance:3-6mm Operatingfrequency:100-250KHZ Includes1chargingcable Safetyprecautions 1.Whenwirelesscharging,makesurethereisnometalforeigniteminthewireless chargingarea. 2.MobilephonesforwirelesschargingshouldmeettheQistandard 3.Donotusethisproductinahightemperature,humidenvironment.Pleasestayaway fromfireandwater. 4.Thedistancebetweenmobilephoneandwirelesschargerislessthan6mmwhenusing wirelesscharging. 5.Whenusingthisproduct,pleasedonotplacemetalforeignobject(suchaskeys,coins, batteriesorjewelry)onit,otherwiseitwillcauseabnormalchargingorhotness. 6.Thepositionofthemobilephoneprotectioncaseandthedeviceonthewirelesscharger willaffectthechargingspeed,thefartheritisplacedonthewirelesschargerfromthecentral position,theslowerthechargingspeedwillbe 7.Donotdissemblethisproductatwill. FCCSTATEMENT: ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: 1）Thisdevicemaynotcauseharmfulinterference,and 2）Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. Warning:Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich thereceiverisconnected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCCRadiationExposureStatement: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith minimumdistance20cmbetweentheradiator&yourbody.

- LIFEWORKS TECHNOLOGY GROUP, LLC - The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/1/23 [LIFEWORKS TECHNOLOGY GROUP, LLC] acknowledges their obligation to accept service of process on behalf of [TELEPHONE EST (HK) CO., LTD] U.S. Agent Designation [TELEPHONE EST (HK) CO., LTD]acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID:[FCC ID:2ACE5-IHQ14]): Name and company of U.S. agent:LIFEWORKS TECHNOLOGY GROUP, LLC Physical U.S. address of agent:530 7TH AVE, 21ST FLOOR, NEW YORK,NY 10018, USA FRN of U.S. agent:0018271106 Email address of U.S. agent: [email protected] . [TELEPHONE EST (HK) CO., LTD] with the FRN [0023636004] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature： [Name]：Honghong [Title]：CEO [Company]:TELEPHONE EST (HK) CO., LTD 48_[model] US_Agent_2.911(d)(7)-U, V04 -LIFEWORKSTECHNOLOGYGROUP,LLC- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotifytheFCCwithin30daysvia thegrantingTCB. Signature： [NameofU.S.agent]:SteveLee [TitleofU.S.agent]:QAManager [CompanyofU.S.agent]: [CompanyofU.S.agent][CompanyofU.S.agent]

-TELEPHONEEST(HK)CO.,LTD- TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB986446D01. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 9/13/23 Towhomitmayconcern: We,[TELEPHONEEST(HK)CO.,LTD],herebycertifythattheequipmentforwhichauthorizationis sought(FCCID:[2ACE5-IHQI4])isnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuantto§2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,wearenotidentifiedontheCovered List(https://www.fcc.gov/supplychain/coveredlist)asanentityproducing“covered”equipment. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirements listedunder§2.911(b)and(d)(5)and(6). Sincerely, Signature [HonghongChen] [Manager] [TELEPHONEEST(HK)CO.,LTD] 6 2 _ [ m o d e l ] C o v e r e d E q u _ 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - U , V 0 2

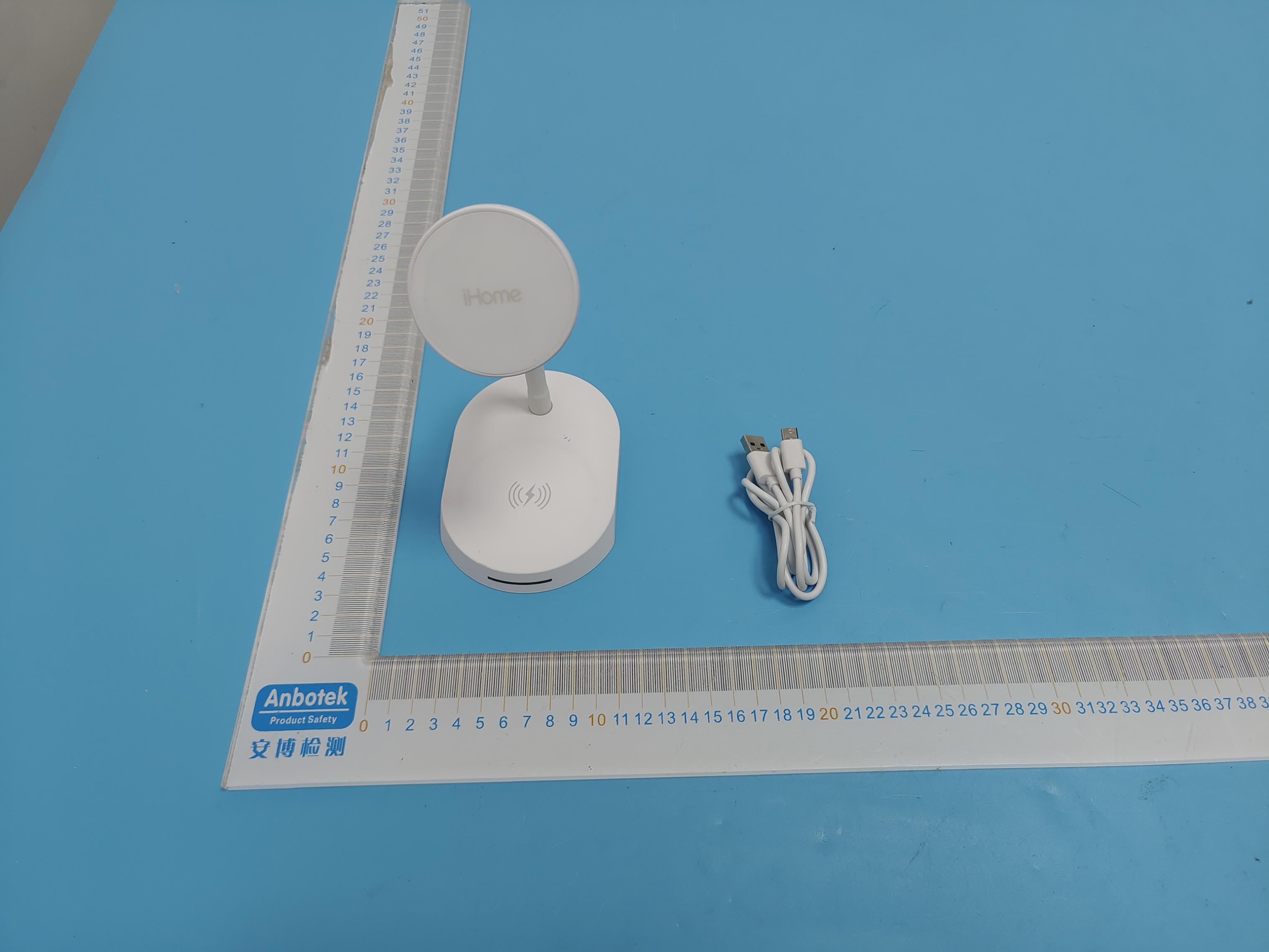

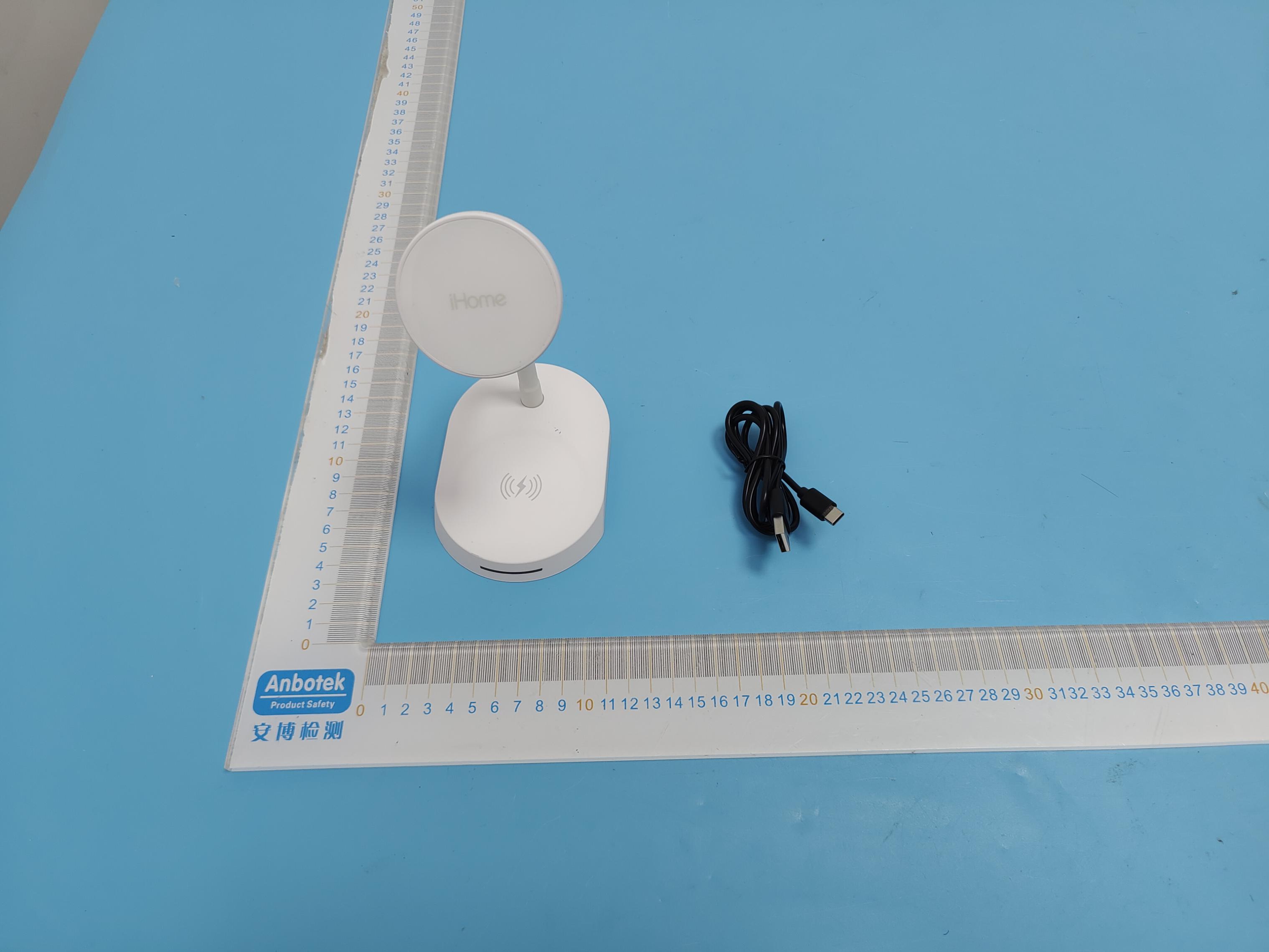

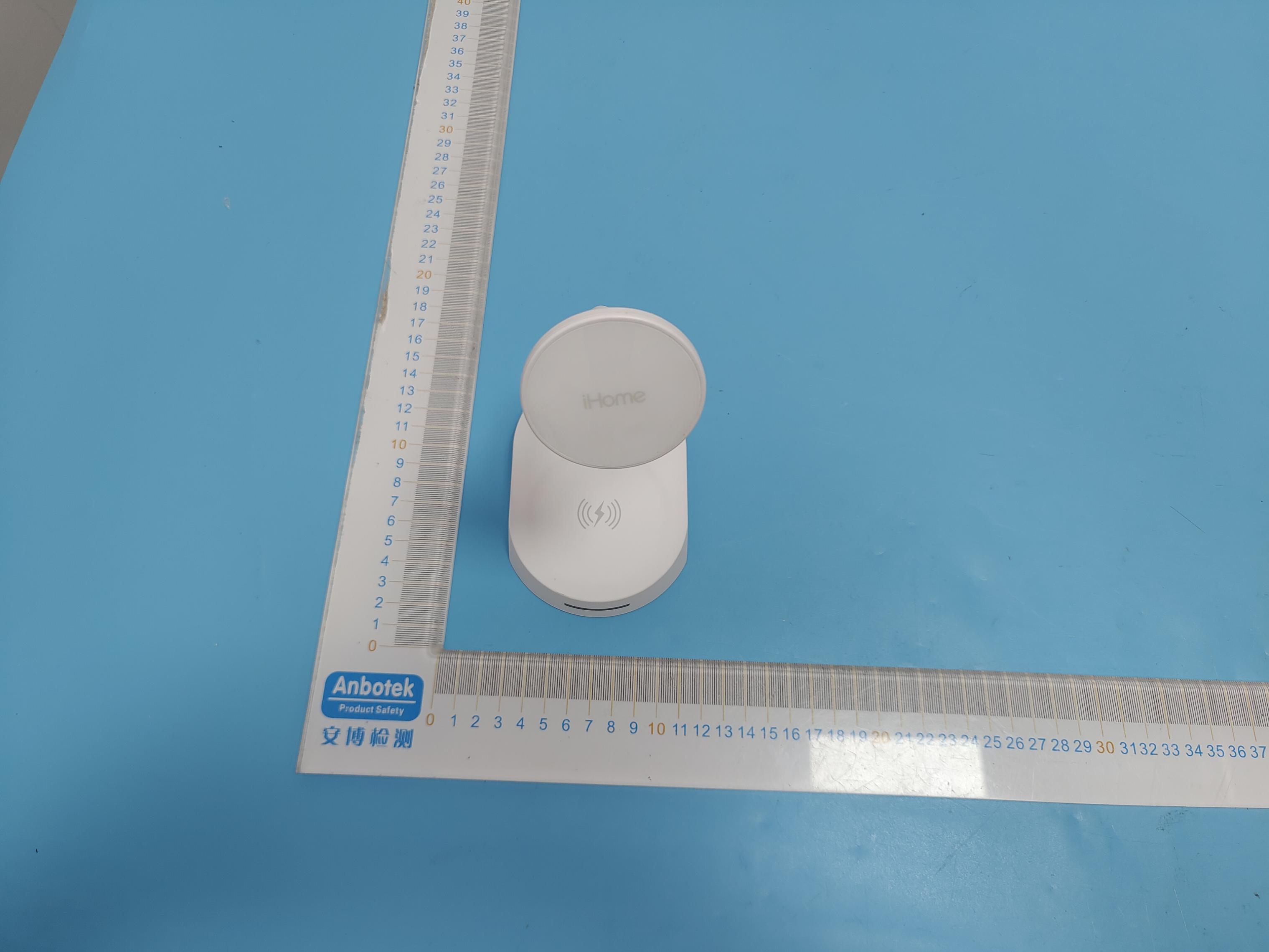

ProjectNo.:18220WC301854Page1of5 Code:AB-RF-05-b AppendixII--ExternalPhotograph ProjectNo.:18220WC301854Page2of5 Code:AB-RF-05-b ProjectNo.:18220WC301854Page3of5 Code:AB-RF-05-b ProjectNo.:18220WC301854Page4of5 Code:AB-RF-05-b ProjectNo.:18220WC301854Page5of5 Code:AB-RF-05-b

LabelLocationOnEUT Label 2-in-1Magnetic15WWirelessChargingStandModel:2IHQI2056 SKU:2IHQI2056W0L2 FCCID:2ACE5-IHQI4 Input:DC9V/2A,12V/2A WirelessOutputforPhone:5W-7.5W-10W-15WMaxWireless OutputforEarphones:5WMax TotalOutput:15WMax MadeinChina

ProjectNo.:18220WC301854Page1of3 Code:AB-RF-05-b AppendixIII--InternalPhotograph 5WANT ProjectNo.:18220WC301854Page2of3 Code:AB-RF-05-b ProjectNo.:18220WC301854Page3of3 Code:AB-RF-05-b 15WANT

ReportNo.:18220WC30185402FCCID:2ACE5-IHQI4Page1of11 Code:AB-RF-05-b FCCTestReport Applicant:TELEPHONEEST(HK)CO.,LTD Address: Room709,7F,FuLitianhecommercial building,LinheEastRoadandtianhedistrict, Guangzhou,China ProductName:2in1Magnetic15WWirelessChargingStand ReportDate:Sept.13,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30185402FCCID:2ACE5-IHQI4Page2of11 Code:AB-RF-05-b Contents 1.GeneralInformation...........................................................................................................................................5 1.1.ClientInformation....................................................................................................................................5 1.2.DescriptionofDevice(EUT)..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest................................................................................................6 1.4.TestEquipmentList.................................................................................................................................6 1.5.MeasurementUncertainty.....................................................................................................................6 1.6.DescriptionofTestFacility.....................................................................................................................6 1.7.Disclaimer.................................................................................................................................................7 2.MeasurementandResult..................................................................................................................................8 2.1.Requirements...........................................................................................................................................8 2.2.TestSetup.................................................................................................................................................9 2.3.TestProcedure.........................................................................................................................................9 2.4.TestResult................................................................................................................................................9 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................11 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................11 APPENDIXIII--INTERNALPHOTOGRAPH..................................................................................................11 ReportNo.:18220WC30185402FCCID:2ACE5-IHQI4Page3of11 Code:AB-RF-05-b TESTREPORT Applicant:TELEPHONEEST(HK)CO.,LTD Manufacturer:TelephoneEstElectronicsFactory(ZhongShan) ProductName:2in1Magnetic15WWirelessChargingStand TestModelNo.:2IHQI2056 ReferenceModelNo.:2IHQI2056W0L2 TradeMark:N/A Rating(s): Input:DC9V/2A,12V/2A WirelessOutputforPhone:5W-7.5W-10W-15WMax WirelessOutputforEarphones:5WMax TotalOutput:15WMax TestStandard(s): FCCPart1.1310,1.1307(b) TestMethod(s): KDB680106D01RFExposureWirelessChargingAppsv03 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart1.1307&KDB680106D01requirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Aug.31,2023 DateofTest Aug.31~Sept.12,2023 PreparedBy (NianxiuChen) Approved&AuthorizedSigner (EdwardPan) ReportNo.:18220WC30185402FCCID:2ACE5-IHQI4Page4of11 Code:AB-RF-05-b RevisionHistory ReportVersionDescriptionIssuedDate R00OriginalIssue.Sept.13,2023 ReportNo.:18220WC30185402FCCID:2ACE5-IHQI4Page5of11 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:TELEPHONEEST(HK)CO.,LTD Address: Room709,7F,FuLitianhecommercialbuilding,LinheEastRoadandtianhe district,Guangzhou,China Manufacturer:TelephoneEstElectronicsFactory(ZhongShan) Address:No.2HeyuanShengfengRoad,XiaolanTown,Zhongshan,China Factory:TelephoneEstElectronicsFactory(ZhongShan) Address:No.2HeyuanShengfengRoad,XiaolanTown,Zhongshan,China 1.2.DescriptionofDevice(EUT) ProductName:2in1Magnetic15WWirelessChargingStand TestModelNo.:2IHQI2056 ReferenceModelNo.: 2IHQI2056W0L2 (Note:Allsamplesarethesameexceptthemodelnumber,appearance andcolor,soweprepare"2IHQI2056"fortestonly.) TradeMark:N/A TestPowerSupply:AC120V,60HzforAdapter TestSampleNo.:1-2-1(NormalSample),1-2-2(EngineeringSample) Adapter:N/A RFSpecification OperationFrequency:110.1-205kHz ModulationType:FSK AntennaType:InductiveloopcoilAntenna AntennaGain(Peak):0dBi(Providedbycustomer) Remark: (1)AlloftheRFspecificationareprovidedbycustomer. (2)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecificationsorthe User’sManual. ReportNo.:18220WC30185402FCCID:2ACE5-IHQI4Page6of11 Code:AB-RF-05-b 1.3.AuxiliaryEquipmentUsedDuringTest DescriptionRating(s) AdapterModel:MDY-11-EX Input:100-240V~0.7A,50-60Hz USB-Aoutput:5V⎓3A,9V⎓3A,12V⎓2.25A,20V⎓1.35A,11V⎓3A MobilePhoneiPhone12 AppleAirPodsM/N:AirPodsPro 1.4.TestEquipmentList ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1 Electricand Magneticfield Analyzer NARDAEHP-200A180ZX10202Oct.17,20221Year 1.5.MeasurementUncertainty MagneticFieldReading(A/m): +/-0.04282(A/m) ElectricFieldReading(V/m): +/-0.03679(V/m) ThemeasurementuncertaintyanddecisionriskevaluatedaccordingtoAB/WI-RF-F-032. Thisuncertaintyrepresentsanexpandeduncer…

Text truncated - open the document above for the full version.

ReportNo.:18220WC30185401FCCID:2ACE5-IHQI4Page1of22 Code:AB-RF-05-b FCCTestReport Applicant:TELEPHONEEST(HK)CO.,LTD Address: Room709,7F,FuLitianhecommercial building,LinheEastRoadandtianhedistrict, Guangzhou,China ProductName:2in1Magnetic15WWirelessChargingStand ReportDate:Sept.13,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30185401FCCID:2ACE5-IHQI4Page2of22 Code:AB-RF-05-b Contents 1.GeneralInformation...........................................................................................................................................5 1.1.ClientInformation....................................................................................................................................5 1.2.DescriptionofDevice(EUT)..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest................................................................................................6 1.4.DescriptionofTestModes.....................................................................................................................6 1.5.DescriptionOfTestSetup......................................................................................................................7 1.6.TestEquipmentList.................................................................................................................................8 1.7.MeasurementUncertainty.....................................................................................................................9 1.8.DescriptionofTestFacility.....................................................................................................................9 1.9.Disclaimer...............................................................................................................................................10 2.SummaryofTestResults................................................................................................................................11 3.ConductedEmissionTest................................................................................................................................12 3.1.TestStandardandLimit.......................................................................................................................12 3.2.TestSetup...............................................................................................................................................12 3.3.TestProcedure.......................................................................................................................................12 3.4.TestData.................................................................................................................................................12 4.RadiationSpuriousEmission.........................................................................................................................15 4.1.TestStandardandLimit.......................................................................................................................15 4.2.TestSetup...............................................................................................................................................15 4.3.TestProcedure.......................................................................................................................................16 4.4.TestData.................................................................................................................................................16 5.AntennaRequirement......................................................................................................................................21 5.1.TestStandardandRequirement.........................................................................................................21 5.2.AntennaConnectedConstruction......................................................................................................21 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................22 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................22 APPENDIXIII--INTERNALPHOTOGRAPH..................................................................................................22 ReportNo.:18220WC30185401FCCID:2ACE5-IHQI4Page3of22 Code:AB-RF-05-b TESTREPORT Applicant:TELEPHONEEST(HK)CO.,LTD Manufacturer:TelephoneEstElectronicsFactory(ZhongShan) ProductName:2in1Magnetic15WWirelessChargingStand TestModelNo.:2IHQI2056 ReferenceModelNo.:2IHQI2056W0L2 TradeMark:N/A Rating(s): Input:DC9V/2A,12V/2A WirelessOutputforPhone:5W-7.5W-10W-15WMax WirelessOutputforEarphones:5WMax TotalOutput:15WMax TestStandard(s): FCCPart15SubpartC,Paragraph15.209 TestMethod(s): ANSIC63.10:2020 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart15SubpartCrequirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Aug.31,2023 DateofTest Aug.31~Sept.12,2023 PreparedBy (NianxiuChen) Approved&AuthorizedSigner (EdwardPan) ReportNo.:18220WC30185401FCCID:2ACE5-IHQI4Page4of22 Code:AB-RF-05-b RevisionHistory ReportVersionDescriptionIssuedDate R00OriginalIssue.Sept.13,2023 ReportNo.:18220WC30185401FCCID:2ACE5-IHQI4Page5of22 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:TELEPHONEEST(HK)CO.,LTD Address: Room709,7F,FuLitianhecommercialbuilding,Li…

Text truncated - open the document above for the full version.

version01 TELEPHONEEST(HK)CO.,LTD DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:2IHQI2056,2IHQI2056W0L2 FCCID:2ACE5-IHQI4 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:20.5x39-10Ts-0.08x24*2P-20mm-CLB/ 20.5x41-10Ts-0.08x105-240mm-CLB Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205kHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:TELEPHONEEST(HK)CO.,LTD Address:Room709,7F,FuLitianhecommercialbuilding,LinheEastRoadandtianhe district,Guangzhou,China City:Guangzhou ZIP/Postalcode:/ Country:China Place:Date:9/13/2023 Signature:

FY-GZ001 Fine SPECIFICATIONFORAPPROVAL 客戶： CUSTOMER: 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 冯伯群 苏燕平 钱立谋 工厂地址：深圳市光明区公明街道上村 社区五联队工业区B区第10栋701 TEL ：13824883512 客戶料號： CUSTP/N: 淘软料號： BESOFTP/N: 産品型號： DESC: 日期： DATE: 版本： 20.5x39-10Ts-0.08x24*2P-20mm- CLB 2023/06/27 Version: Page1of4 A.0 FY-GZ001 Fine VersionChangeHistory 版本 Rev. 變更前 BeforeChange 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ---- 2023/06/27 钱立谋 Page2of4 FY -GZ 001 Fine 産 品 型 號： DE SC20.5x39-10Ts -0.08x24*2-20 mm-CLB 版本 Rev：A 0 客戶CUST : 淘软料号Fine P/N： 客户料号CUSTP/N: 一、尺寸DIMENSION:( mm ) 二、原理图SCHEMATICDIAGRAM: 三、绕线参数WindingSpecification: A 39.0 ±1 B 20.5 ±0.5 C 0. 6±0.05 D1 22 ±2 D2 20 ±2 E 3 mm ±1.5 F 42.5 ±0.5 G 11.0ref H 1.5 ±0.2Max I 5. 0±0.3 注： 1.Coil attached disk, disk size 42.5±0.5mm, Inner bore：5.0 mm, The thickness is： 0.8 ±0. 1mm, 2.Wrap high temperature adhesive paper with a width of 8mm±0.5 at the coil outlet position. 3.The back of the magnetic disc is affixed with hand-torn circular diameter 38 mm(ref), the inner hole 7.0 mm(ref) ordinary double-sided tape. 序号 NO 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1 S F 热风线0.08*24P*2 10Ts CCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25 ± 10 °C ,湿度RELATIVEHUMIDITY:65 ±20 % 序号 NO 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1 IND . S-F 3 .8uH ±20% Individual coil 100 KHz / 1. 0V LCZ METER1062 B 2 IND . S-F 6 .5 uH ± 10% Magnetized sheet 100KHz/1.0 V LCZ METER1062 B 3 Q值 S-F ≤60(ref) Magnetized sheet 100KHz/ 1.0V LCZ METER1062 B 4 DC RS-F ≤70mΩ LCZ METER502 B 擬制/日期PREPAREDBY /DATE審核/日期CHECKEDBY /DATE 冯伯群202 3/06/27 苏燕平20 23/06 /27 Page3of 4 FY -GZ 001 Fine 産 品 型 號： DE SC20.5x39-10Ts -0.08x24*2P-20 mm- CLB 版本 Rev：A 0 客戶CUST : 淘软料号Fine P/N： 客户料号CUSTP/N: 五、包装PACKONG: 5. 1包装图片Packingpictures: 5.2包装数量及规格PackingQuantity: 项目Item数量Quantity材料规格Material 盒Box350 Pcs370*265*55mm 箱Big Carton 1400 Pcs390* 270*245mm 5.3包装以现有包装盘为参照标准，以实际出货包装为准,如有特需要求可以定制。 The packagingshall be based on the existingpackingplate and the actual deliverypackageshall prevail . If there is any requirement, we can customizeit. 六、材料清单Materiallist : 序号 number Description Ma nufacturerMaterialname 1 Hot air wire 0.08*24 stocks2P Hot air enamelled wire 0.08*24 2P Dongguan Jinjieyuan electronic materials Co., LTD 2 Lead-free tin stripLead-free tin strip Shenzhen Daoqin tin industry Co., LTD 3 Magnetic sheet Φ42.5*5.0*0.8mm Manganese zinc hard disk Guangzhou Ruijing new material Technology Co., LTD 4 glue 201 glue Dongguan Feiquan electronic material Co., LTD 5 High-temperature adhesive paper Dongguan Zhixing tape new material Co., LTD 6 Double-sided tape with holes With hand tear position round diameter 38 mm(ref) adhesive backing Shenzhen Hongweida Technology Co., LTD 擬制/日期PREPAREDBY /DATE審核/日期CHECKEDBY /DATE 冯伯群202 3/06/27 苏燕平20 23/06/27 Page4of 4

FY-GZ001 Fine SPECIFICATIONFORAPPROVAL 客戶： CUSTOMER: Version: 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 冯伯群 苏燕平 钱立谋 工厂地址：深圳市光明区公明街道上村 社区五联队工业区B区第10栋701 TEL ：13824883512 20.5x41-10Ts-0.08x105-240mm-CLB 2023/06/27 客戶料號： CUSTP/N: 淘软料號： BESOFTP/N: 産品型號： DESC: 日期： DATE: 版本： Page1of4 A.0 FY-GZ001 Fine VersionChangeHistory 版本 Rev. 變更前 BeforeChange 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ---- 2023/06/27 钱立谋 Page2of4 FY-GZ001 Fine 産 品 型 號： DESC 20.5x41-10Ts -0.08x105-24 0mm-CLB 版本 Rev：A 0 客戶CUST : 淘软料号Fine P/ N： 客户料号CUSTP/ N: 一、尺寸DIMENSION:( mm ) 二、原理图SCHEMATICDIAGRAM: 三 、 绕线参数 WindingSpecification: A 41.0 ±1 B 20.5 ±0.5 C 1.2 ±0.05 D1 24 2±2 D2 24 0±2 E 3 mm ±1. 5 F 42.5 ±0.5 G 11.0ref H 2.3 ±0.2Max I 5.0 ±0.3 注： 1.线圈贴磁片，磁片尺寸 42.5 ±0.5 mm , 内孔5.0 mm , 厚 度为0.8 ± 0. 1mm , 直槽 2 . 线圈出线位置缠宽度8 mm ± 0.5高温胶纸。 3 . 磁片背面贴带手撕位圆形 直径 3 8mm (ref)，内孔7.0 mm ( ref ) 普通双面胶。 序号 NO 端子 TERMINAL 线径 WIR E 圈数 Turn s 绕线方向 WindingDirection 1 S F 丝包线0.08*105 10Ts CCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:2 5 ± 10 ° C ,湿度RELATIVEHUMIDITY:6 5 ± 20% 序号 NO 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1 IND . S-F 3 . 8 uH ± 20% Individual coil100 KHz / 1.0 V LCZ METER106 2B 2 IND . S-F 6 .8 uH ± 10% Magnetized sheet 100 KHz/ 1.0V LCZ METER106 2B 3 Q值 S-F ≤80(ref) Magnetized sheet 100KHz/1.0V LCZ METER106 2B 4 DCRS-F ≤70mΩ LCZ METER502 B 擬制 / 日期 PREPAREDBY /DATE 審核 / 日期 CHECKEDBY /DATE 冯伯群20 23/06/27 苏燕平2023/06/27 Page3of 4 FY-GZ001 Fine 産 品 型 號： DESC 20.5x41-10Ts -0.08x105-240mm-CLB 版本 Rev：A 0 客戶CUST : 淘软料号Fine P/ N： 客户料号CUSTP/ N: 五、包装PACKONG: 5 . 1包装图片Packingpictures: 5 .2包装数量及规格PackingQuantity: 项 目Item数 量Quantity材 料 规 格Material 盒Box 350 Pcs370*265*55mm 箱Big Carton 1400 Pcs390*270*245mm 5 . 3包装以现有包装盘为参照标准，以实际出货包装为准,如有特需要求可以定制。 Thepackagingshall be based on the existingpackingplate and the actual deliverypackageshall prevail . If thereis any requirement, we can customizeit . 擬 制/日期PREPAREDBY /DATE審核/日期CHECKEDBY /DATE 冯伯群2023/06/27 苏燕平2023/06/27 Page4of 4

ProjectNo.:18220WC301854Page1of3 Code:AB-RF-05-b AppendixI--TestSetupPhotograph_MPE ProjectNo.:18220WC301854Page2of3 Code:AB-RF-05-b ProjectNo.:18220WC301854Page3of3 Code:AB-RF-05-b

ProjectNo.:18220WC301854Page1of2 Code:AB-RF-05-b AppendixI--TestSetupPhotograph_RF PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest ProjectNo.:18220WC301854Page2of2 Code:AB-RF-05-b
