2ACE5-RLT7004Party Cooler Speaker

TELEPHONE EST (HK) CO., LTD
Party Cooler Speaker - FCC ID 2ACE5-RLT7004 - TELEPHONE EST (HK) CO., LTD
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Apr 12, 2021
Application Purpose
Original Equipment
Date of Application
Apr 12, 2021
Equipment Note
Party Cooler Speaker
Frequency Range
2402.00000000 - 2480.00000000
Company
TELEPHONE EST (HK) CO., LTD
Country
China

Documents & Files

Select a file to view

Users Manual

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

UserManual PortableBluetooth ® Cooler MODEL:COOLER WARNING! CAUTION:TOREDUCETHERISKOFELECTRICSHOCK,DONOTREMOVETHECOVERONTHISSPEAKER.THERE ARENOUSERSERVICEABLEPARTSINSIDE.REFERALLSERVICINGTOAQUALIFIEDTECHNICIAN Thelightningflashwitharrowheadsymbolwithinanequilateraltriangleisintendedtoalerttheusertothe presenceof"dangerous"voltagewithintheproduct'senclosurethatmaybeofsufficientmagnitudetoconstitutea riskofelectricshocktohumans.Usersshouldexhibitextrasafetywhenthissymbolappearsinthisinstruction manualandfollowallprecautionsastheyarestated. Theexclamationpointwithinanequilateraltriangleisintendedtoalerttheusertothepresenceofimportant operatingandmaintenance(servicing)instructionsinthismanual. P-1 1- Read these instructions thoroughly before using this item. 2- Keep these instructions for future reference. 3- Heed all warnings. 4- Follow all instructions. 5- WARNING: To prevent fire or electric shock, do not expose this equipment to rain or moisture. Do not store or operate this product near any liquids. 6- Clean only with a dry cloth. 7- Do not store or operate this product near any heat sources such as radiators, heat registers, stoves, or other apparatuses (including amplifiers) that produce heat. 8- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.A grounding plug has two blades and a round grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit your outlet, consult an electrician for the replacement of the obsolete outlet. 9- Protect the all wires connected to this unit from being walked on or pinched, particularly plugs and the point where they exit from the unit. When removing the cord from the power outlet, remove it by holding the plug not by pulling the cord. 10- Unplug the unit during lightning storms or when unused for long periods of time. 11- When wiring this unit and all other equipment used in connection to this unit make sure that all of your equipment is turned OFF. 12- Once installation and wiring is complete power on all your equipment with the volume and level controls turned DOWN. Once all the equipment is ON slowly raise the volume or level controls to their proper positions. 13- When grounding this unit, be sure to do so correctly, so as not to defeat the built-in grounding in this unit. 14- Before placing, installing, rigging, or suspending any product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation, placement or array.Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term, unexpected overloading. Never exceed the rating of the hardware or equipment. 15- Consult a licensed, Professional Engineer regarding physical equipment installation. Ensure that all local, state and national regulations regarding the safety and operation of equipment are understood and adhered to. 16- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Introduction Congratulations and thank you for your purchase of this Party Cooler. To get the most from your unit, it is recommended that you review all of the information provided in this instruction manual before operating this equipment. SAFETY AND KIT INFORMATION 1.1 SAFETY INFORMATION -FOR ADULT USE ONLY. NOT INTENDED FOR OPERATION BY CHILDREN WITHOUT ADULT SUPERVISION. -To prevent electric shock, always charge the with the provided adapter indoors, in a dry environment and away from water sources. -When the power adapter is used as a power source, the Party Cooler Speaker should only be used indoors and away from water sources. -The Party Cooler Box is resistant for water spray and should not be immersed in or submerged under water. -The power input and USB input should always be plugged with the provided rubber plug when the Party Cooler Box is not being used. -Failure to use the adapter and power cord provided may create a fire hazard and may void warranty. -To conserve energy, turn off the when not in use. -Keep the Party Cooler Box away from high heat, open flame and radiation. -Tampering with or opening the device housing will void all manufacturer warranties. -The built-in lithium ion battery is designed to be recharged only, do not try to replace. -If you find any operational defects, do not attempt to repair. Turn off the Party Cooler Box and disconnect from the power adapter. 1.2 PARTY COOLER BOX ACCESSORIES - 5V 2A Car Adapter- (1A for iOS and 2.1A for Android) -3M charging cable - Instruction Manual -Mini USB adapter for Apple charging P-2 P-3 ControlPanel 1.USBInput:InsertyourUSBflashdriveintothisslot.Theunitwillonlyread.mp3,.wmaand.wavfilesfromthe USBflashdrive.ThemaximumstoragesizeoftheUSBflashdrivecannotexceed32GB.DONOTATTEMPTTO CONNECTALAPTOP,SMARTPHONEORHARDDRIVEDIRECTLYTOTHISCONNECTOR. TheUSBconnectoralsoprovides5V/2Apowertochargeasmartphone,tabletetc.(1AforiOSand2.1Afor Android) 2.LEDDisplayScreen 3.PowerSupply:Onlyusethepowercordprovidedwiththeunit.Whenconnectinganddisconnectingthepower cord,besurethepoweroftheunitisoff.ConnectthecordtotherearoftheunitandthenconnectittotheUSB outlet. 4.PowerButton:Pressandholdthepowerbuttonfor3secondstopowertheunitonandoff. 5.ModeSelectorButton/BluetoothTWS:PressthisbuttontoswitchbetweentheBluetoothandUSBinputs. 6.Pre-setEqualizer:Pressthesebuttonstoswitchthroughthepre-setequalizationmodeswhenplayingfromthe USBandBluetoothinputs. 7.PreviousTrackB…

Text truncated - open the document above for the full version.

External Photos

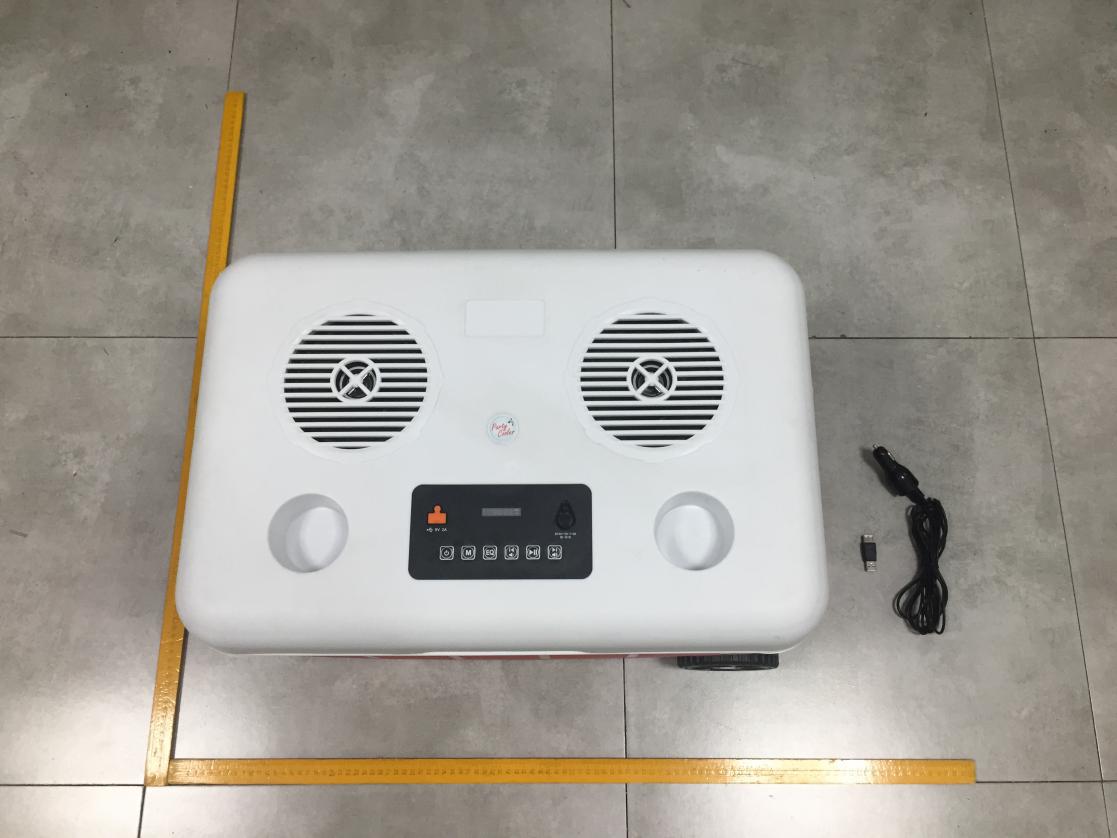

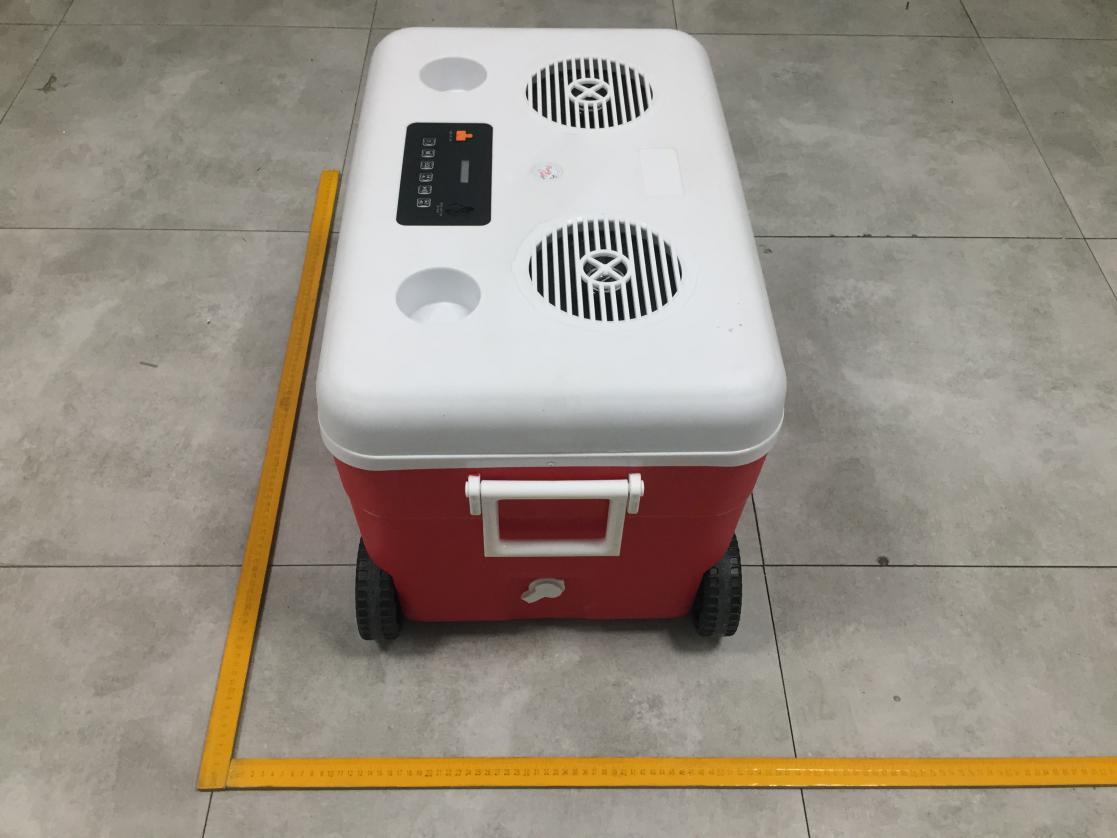

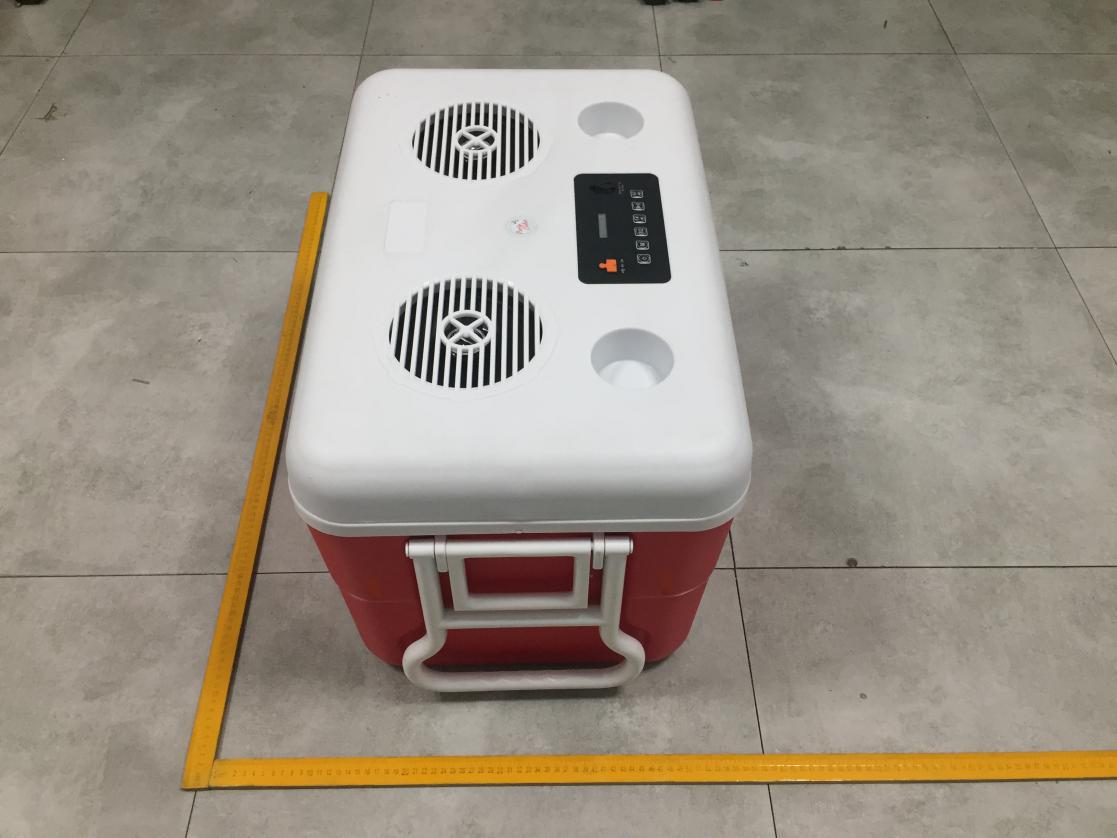

FCCID:2ACE5-RLT7004

ID Label/Location Info

LabelLocationOnEUT Label ProductName:PartyCoolerSpeaker ModelNo.:RLT7004 FCCID:2ACE5-RLT7004 ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesired operation.

Internal Photos

FCCID:2ACE5-RLT7004 ANT

Operational Description

version01 TELEPHONEEST(HK)CO.,LTD DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.: RLT7004,VIV7004,TST-CS7004,MUZ7004,TST-CS010 FCCID:2ACE5-RLT7004 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna Gainoftheantenna:-17dBi Frequencyrange: 2402-2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Sincerely, HonghongChen Manager CompanyName:TELEPHONEEST(HK)CO.,LTD CompanyAddress:Room709,7F,FuLitianhecommercialbuilding,LinheEastRoadandtianhe district,Guangzhou,China

RF Exposure Info

RFEXPOSUREEVALUATION FCCID:2ACE5-RLT7004 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode 2402 -1.123-1.123 ±1 -0.123 5 0.301 3 BDR 2441 -0.777-0.777 ±10.223 5 0.329 3 2480 -0.736-0.736 ±10.26450.3353 2402 -1.700-1.700 ±1 -0.700 5 0.264 3 EDR2441 -1.586-1.586 ±1-0.586 5 0.273 3 2480 -1.653-1.653 ±1-0.65350.2713 TestResults:PASS.
