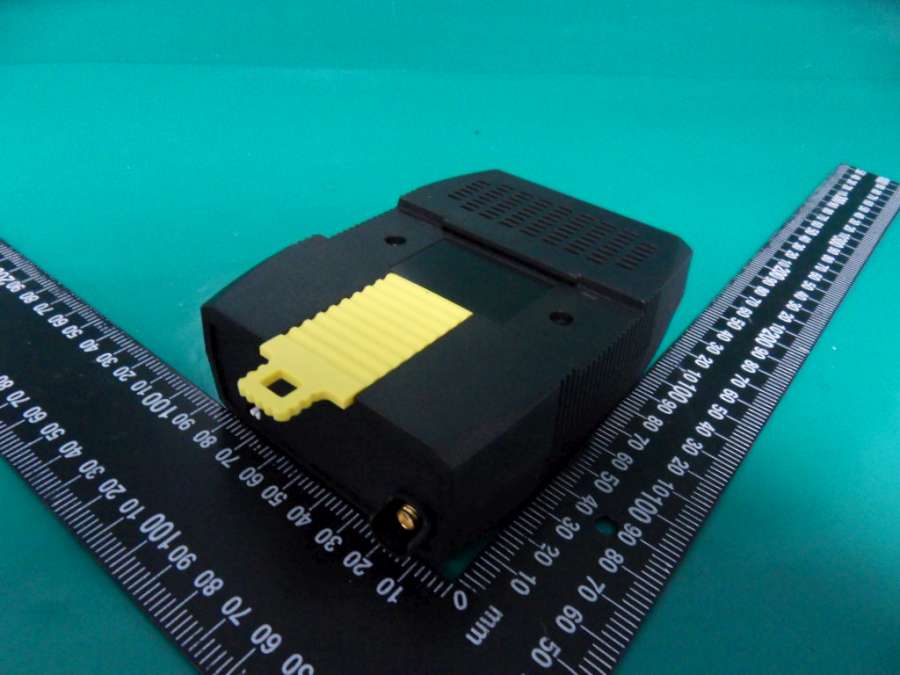

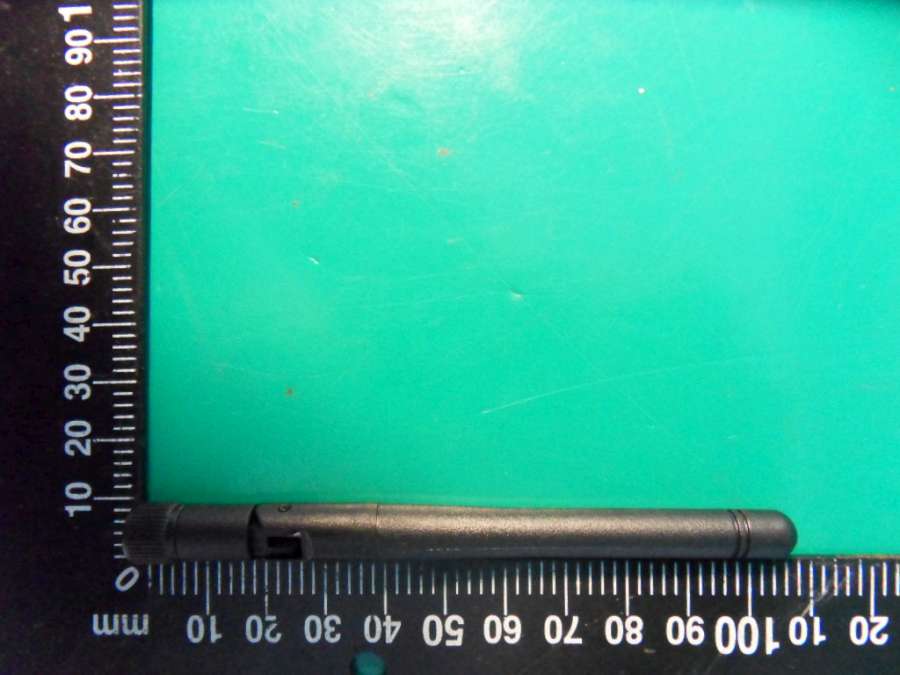

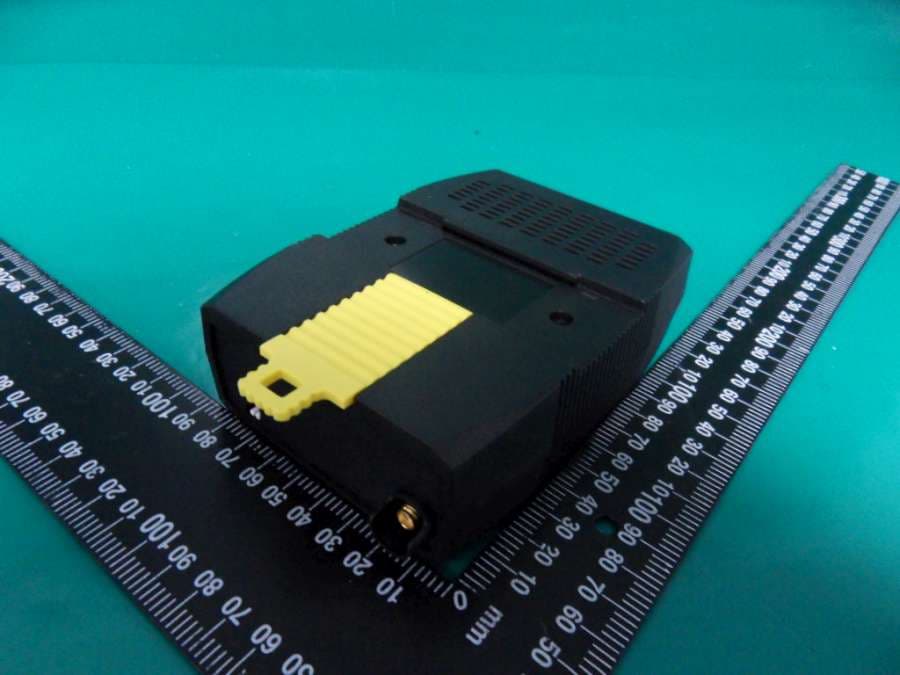

2ACEXKT-61205WSmart I/O+ Controller

SIO Plus Series Controller User’s Manual Version 1.0, Aug. 2015 KT‐612XXSIO Plus Series Controller UM 2 KT‐61205/KT‐61205W/KT‐61220/KT‐61220W SIO Plus Series Controller User’s Manual Copyright Notice ©2015 Keystone Microtech Corporation. All rights reserved. Important Note Radiation Explosure Statement This equipment complies with CE/FCC radiation exposure limits set forth for anuncontrolled environment. This equipment should be installed and operated withminimum distance 20cm between the radiator & your body. FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interferencethat may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate this equipment. This product contains a radio transmitter with wireless technology which has beentested and found to be compliant with the applicable regulations governing a radiotransmitter in the 2.400GHz to 2.483GHz frequency range. KT‐612XXSIO Plus Series Controller UM 3 The KT‐61205 SIO Plus controller is a standalone remote IO controller that can connect sensors and turn on/off relays or switches for application over Ethernet and IP‐based networks. A PLC‐like logic processing engine is builtin the KT‐61205, so the user can program this device for process control, data aquitision or other automation application. One of the most powerful feature of the SIO Plus controller is the capability to connect to a cloud on the internet, call K‐Cloud service. The K‐Cloud service provides the user an infrastructure for remote sensor reading and output control over the Internet without the complex network settings of firewallor VPN (virtual private network). This user’s manual guides you through the following steps to understandthe basic operation of the KT‐61205 Smart‐IO controllers: z Understand the hardware z Install the hardware z Download and install the PC Software z Configure and monitor the Smart IO controller via the PC Software z Write and update an advanced control block (ACB) program to the SIO plus controller z Use the K‐Cloud service KT‐612XXSIO Plus Series Controller UM 4 1. Understand the hardware Hardware description: KT‐61205 product overview: 1 2 3 4 5 6 7 8 1.Normal/Setting: Normal Mode or Setting Mode 2.Reset : System Reset Push Button. 3.Default: Reset to Factory default setting，not include Modbus setting. 4.Mode : Switch to Local Mode or Cloud Mode. 5.Terminal Block 1 : For DC 12~24V power input and RS232/RS485 signal connection. 6.USB: USB2.0 Pen‐drive plug inut. 7：LAN: Ethernet RJ45 cable plug input. 8 : Terminal Block 2 : Digital Input and Output Terminal. KT‐612XXSIO Plus Series Controller UM 5 KT‐61205W product overview: 1 2 3 4 5 6 7 8 1.Normal/Setting: Normal Mode or Setting Mode 2.Reset : System Reset Push Button. 3.Default: Reset to Factory default setting，not include Modbus setting. 4.Mode : Switch to Local Mode or Cloud Mode. 5.Terminal Block 1 : For DC 12~24V power input and RS232/RS485 signal connection. 6.USB: USB2.0 Pen‐drive plug inut. 7：LAN: Ethernet RJ45 cable plug input. 8 : Terminal Block 2 : Digital Input and Output Terminal. KT‐612XXSIO Plus Series Controller UM 6 KT‐61220 product overview: 1 2 3 4 5 6 7 8 1.Normal/Setting: Normal Mode or Setting Mode 2.Reset : System Reset Push Button. 3.Default: Reset to Factory default setting，not include Modbus setting. 4.Mode : Switch to Local Mode or Cloud Mode. 5.Terminal Block 1 : For DC 12~24V power input and RS232/RS485 signal connection. 6.USB: USB2.0 Pen‐drive plug inut. 7：LAN: Ethernet RJ45 cable plug input. 8 : Terminal Block 2 :Analog Input (Voltage/Current)Terminal. KT‐612XXSIO Plus Series Controller UM 7 KT‐61220W product overview: 12 3 4 5 6 7 8 1.Normal/Setting: Normal Mode or Setting Mode 2.Reset : System Reset Push Button. 3.Default: Reset to Factory default setting，not include Modbus setting. 4.Mode : Switch to Local Mode or Cloud Mode. 5.Terminal Block 1 : For DC 12~24V power input and RS232/RS485 signal connection. 6.USB: USB2.0 Pen‐drive plug inut. 7：LAN: Ethernet RJ45 cable plug input. 8 : Terminal Block 2 : Analog Input (Voltage/Current)Terminal. KT‐612XXSIO Plus Series Controller UM 8 Panel Guide I/O Terminal Block 1 : (KT‐61205/KT‐61205W/KT‐61220/KT‐61220W) Pin Assign Description: Signal Pin Description Specification TXD0 RTS0 RXD0 CTS0 RS232 UART serial Port 0 Maximum baud rate: 115200bps TXD0 / D0+ RXD0 / D0‐ 2‐wire RS48 UART serial Port 0 Maximum baud rate: 921600 bps TXD1 RTS1 RXD1 CTS1 RS232 UART serial Port 1 Maximum baud rate: 115200bps TXD1 / D1+ RXD1 / D1‐ 2‐wire RS48 UART serial Port 1 Maximum baud rate: 921600 bps VS ‐ / VS + DC Power Input +12V ~ +24V USB USB2.0 Pen‐drive Plug Save data into USB Pen‐drive GND Signal GND KT‐612XXSIO Plus Series Controller UM 9 I/O Terminal Block 2 : (KT‐61205/KT‐61205W) Signal Pin Description Specification DIO0 ~ DIO11 Digital Input/Output Port S/W Configurable Digital Input Supprot: Type:Dry Contact, Wet Contact (NPN Type) Off Voltage : 0~ +3 Vdc, On Voltage: 5~50Vdc Over voltage protection: +50 VDC Digital Output Type: Sink Current Rating: 200mA/Channel Isolation: 3750 Vrms Over voltage protection: +50 VDC GND Digital Input/Output GND I/O Terminal Block 2 : (KT‐61220/KT‐61220W) Signal Pin Description Specification Ain0 ~ Ain5 Analog Input S/W Configurable Current mode: 0 ~ 20mA; 4~20mA Voltage mode: 0~5V; ‐5V~+5V; 0~10V; ‐10V~+10V KT‐612XXSIO Plus Series Controller UM 10 Resolution: 16‐bits LED Indicators: LED LED Status Description System ON OFF Blinking System is in Normal Operation System Power Off System is in Setting Mode Alarm ON OFF Blinking Failed to upgrade firmware No alarm Equipment abnormally warning Local ON Blinking (100ms) Blinking (250ms) Local Mode Module is in booting Module is in getting IP sta…
