2ACFTRT1505NNHAJEN_SPRINT AI Speaker (LTE, BT, WIFI)

• 본 사용 설명서를 필독하신 후 보관하여 주십시오. • 제품을 물 근처에서 사용하지 말아 주십시오. • 제품 외관은 마른걸래로 닦아 주십시오. • 난방기구나 발열기기 근처에 두지 마십시오. • 전원케이블 위에 무거운 물체를 올려두거나 무리한 힘을 가하지 않도록 주의 하십시오. • 제품은 평평한 곳에서 사용해 주십시오. • 번개가 치는 날이나 오래 사용하지 않을 경우에는 전원 (USB) 케이블을 분리하십시오. • 본 제품은 소량의 누설 자기장이 있으므로 마그네틱카드 등 자기 기록이 있는 물건을 접촉하지 마십시오. • 본 제품은 내장 배터리가 들어있습니다. 주변 온도가 50°C 이상의 환경에서 사용하지 마십시오. • 본 제품을 폐기해야 할 때는 법에서 지정한 적절한 폐기 업자를 통해 처리되어야 하며, 가정용 쓰레기와 엄격히 분리되어야 합니다. • 추운환경에서 더운환경으로 갑자기 제품을 옮기면 결로 현상에 의해 성능과 수명이 감소할 수 있습니다. • 제품이 직접 직사광선에 닫지 않도록 주의 바랍니다. • 제품을 닦을때 솔벤트와 같은 용제를 사용하지 말아 주십시오. 또한 먼지가 많은 곳을 피해 주십시오. • 제품의 분해는 지정된 AS 센터에서만 가능합니다. • 본 제품은 아답터를 제공하지 않습니다. 규격에 맞지 않는 아답터를 사용하여 발생한 문제에 대해 책임지지 않습니다. • 물기가 있는 작은 화분이나 이불속, 책꽂이, 가방속 등 공기의 흐름이 나쁜 곳에서 사용하지 말아 주십시오. • 불 붙은 양초, 담배등을 올려 놓지 말아 주십시오. • 무거운 물체가 떨어지지 않도록 주의해 주십시오. • 제품을 임의로 분해하지 말아 주십시오. • 제품으로 부터 완전히 전원을 제거하기 위해서는 전원케이블을 제거하십시오. • 일반적인 온도에서 사용해 주십시오. 사용 온도가 너무 높거나 낮으면 성능과 수명이 저하됩니다. 참고 : 제조업체는이 장비의 무단 개조 또는 변경으로 인한 라디오 또는 TV 간섭에 대해 책임을지지 않습니다. 이러한 수정/변경으로 인해 장비 작동 권한이 무효화 될 수 있습니다. 참고 : 이 장비는 FCC 규칙 15 부에 따라 테스트되었으며 클래스 B 디지털 장치의 제한을 준수하는 것으로 확인되었습니다. 이러한 제한은 주거 지역 설치시 유해한 간섭으로부터 적절한 보호를 제공하기 위해 고안되었습니다. 이 장비는 무선 주파수 에너지를 생성하고 방출 할 수 있으며 지침에 따라 설치 및 사용하지 않을 경우 무선 통신에 유해한 간섭을 일으킬 수 있습니다. 그러나 특정 설치에서 간섭이 발생하지 않을 것이라는 보장은 없습니다. 이 장비가 라디오 또는 TV 수신에 유해한 간섭을 일으키는 경우 (장비를 껐다 켜서 확인할 수 있는 경우) 다음 조치 중 하나 이상을 사용하여 간섭을 수정하는 것이 좋습니다. • 수신 안테나의 방향을 바꾸거나 재배치하십시오. • 장비와 수신기 사이의 거리를 넓힙니다. • 장비를 다른 회로의 콘센트에 연결하십시오. • 판매점이나 숙련 된 라디오 / TV 기술자에게 도움을 요청하십시오. FCC 규정 : 이 장치는 FCC 규칙의 15 부를 준수합니다. 다음 두 상태에서 작동되어야 합니다. (1)이 장치는 유해한 방해 전파를 일으키지 않으며, (2)장치의 오작동을 일으킬 수 있는 방해전파를 포함하여 수신되는 모든 방해 전파를 수용해야 합니다. 미국(FCC)의 SAR 한계는 조직 1g에 대한 평균 1.6 W/kg입니다. 장치 유형 HAJEN SPRINT AI Speaker (FCC ID: 2ACFTRT1505NN) 도 이 SAR 한계에 대해 시험했습니다. 본 표준에 따라 제품 인증 중 보고된 가장 높은 SAR 값은 신체에 적절하게 착용했을 때 신체 기준 0.74 W/kg 이고, 동시 RF 노출은 1.303 W/Kg입니다. 이 장치는 핸드셋의 뒷면이 본체에서 10mm 떨어진 상태에서 일반적인 신체 착용 작동에 대해 테스트 되었습니다. FCC RF 노출 요구사항을 준수하려면 사용자 몸과 단말기 뒷면 사이에 10mm 거리를 유지하는 부속품을 사용하십시오. 벨트 클립, 홀스터 및 이와 유사한 액세서리를 사용하는 경우 조립품에 금속 부품이 포함되어서는 안됩니다. 이러한 요구 사항을 충족하지 않는 액세서리를 사용하면 FCC RF 노출 요구 사항을 준수하지 않을 수 있으므로 피해야합니다. 전자 제품 취급 및 사용에 대한 일반적인 주의 사항들이므로 주의깊게 읽어 주시기 바랍니다. 1.Ge�ng to Know Your Device User Guide English 2.Se�ng Up Your Device 4.Using LTE Hotspot5.Using Blutooth & Spo�fy Cer�fica�on and Warnings 3.Using Amazon Alexa fixta is Alexa Voice Service enabled LTE mobile hotspot. You can enjoy Alexa voice service with all Alexa skills wherever you have LTE or WiFi signal. Learn more about the device setting like connecting to your car or to your network as a multi room speaker, fixta hotspot connection and so on. www.fixta.com Use your phone, tablet or computer as a remote control for Spotify. Go to Spotify.com/connect to learn how. The Spotify Software is subject to third party’s licenses found here: www.spotify.com/connect/third-party-licenses. 1. Install fixta app. Download fixta app. on your mobile device. 2. Charging Charge the device before using. (DC 5V, 2A , USB-C Type Jack) 3. Insert USIM Card Check out SIM Card direction. Use Nano SIM. ( Mini or Micro SIM size is not available) 4. Setup 1. Connect fixta Device to internet 2. Login Amazon account in FIXTA app 3. Say ‘Hello’ to your FIXTA 4. Alexa Status LED 1. Go to the Settings Page2. Press Network Menu2. Choose Available Device 3. Select LTE and activate hotspot4. Select hotspot WiFi band(Optional)Spotify Connect 1. Enter Blutooth Menu 5. Network Mode Change Open fixta app on your mobile device and follow the instruction to complete the device set up and Alexa log in. Using LTE Mode with your valid usim card. Using WiFi Mode with your AP Router. Press LTE button on the device to change network mode from WiFi to LTE or LTE to WiFi. Or change the mode button on fixta app. 1) Turn on the fixta device and press action button for 4 seconds 2) Select your device FIXTA-XXXX & click Next 3) Device connected to your phone 4) Sign in with Amazon 5) Click get gtarted amazon account log in 6) Sign in your amazon account 7) Select alexa language 8) To access additional features download Amazon alexa app. 9) Setup completed GroupStatusColor IdleIdle- CoreListening / Thinking / SpeakingCyan & Blue Microphone OffMicrophone OffRed AlertsTimers / Alarms / Reminders Cyan & Blue NotificationsNotification Arrives / QueuedYellow Do Not DisturbDo Not Disturb EnabledPurple Pairing & DiscoveryBluetoothBlue System and Device Errors ErrorsAlexa Service UnavailableRed No Internet Connection 4. Volume Control (+/-) Button 5. Action Button Short PressLong Press Adjust volume 1 level Adjust volume continuously Short PressLong Press Wake up AlexaDevice Serching Mode 1. Wake Word On/Off Button Disable or Enable microphone. Pressing the button, turns on and off the LTE mode. When LTE is off, the device changes to WiFi mode. 2. Power Button 3. LTE On/Off Button, LED Status Status LTE Signal Strong LTE Signal Middle LTE Signal Normal LTE Signal Week ConnectingFlashed Green Flashed Red Blue Green Orange Red Authentication Fail / Out of range LTE Off Short Press Status Show Battery Level No Response Power OFF Power ON System ON System OFF Long Press(3s) Visuals LED Off 6. Battery LED 7. Sim Card Slot 8. Charging Port Visuals Fully Carged100% Details LED Off Power Off Blue Green Orange Red 81~99% 50~80% 20~49% 5~19% ~5% Status Battery High Battery Normal Battery Low Need to charge Discharged 5V, 2A NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harm…

Text truncated - open the document above for the full version.

Document No: HJ20-0227-02 Attention : Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Subject : Request of Confidentiality for FCC ID: 2ACFTRT1505NN Date: 27.2.2020 To Whom It May Concern: The Hajen Co., Ltd., the undersigned, hereby authorizes Miss. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Hajen Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID: 2ACFTRT1505NN including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the Hajen Co., Ltd. in connection with the Application shall have the same effect as acts of the Hajen Co., Ltd. Hajen Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name: Jonghwa Park Title: CTO Tel: +82-70-7596-9902 Email: [email protected] Company name: Hajen Co., Ltd

Document No: HJ20-0227-01 Attention : Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Subject : Request of Confidentiality for FCC ID: 2ACFTRT1505NN Date : 27.2.2020 To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, Hajen Co., Ltd hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short -Term Confidentiality for 180 days after the grant as outlined in Public Notice DA04-1705. This provision will give Hajen Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short -Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune up procedure SHORT-TERM 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory： Name：Jonghwa Park Company name：Hajen Co., Ltd Address：D-304 Digital Empire Bldg,. 16, Deogyeong-daero 1556beon-gil, Yeongtonggu, Suwon-si, South Korea Tel：+82-70-7596-9902 Email：[email protected]

HAJEN Co., Ltd UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID:2ACFTRT1505NN (1) DFS Device -- Master,Client with Radar detection capability , Client without radar detection capability,N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 –2472 MHzYes,NoYes,NoYes,NoYes,No 2422 –2462 MHzYes,NoYes,NoYes,NoYes,No 5745 –5825 MHzYes,NoYes,NoYes,NoYes,No 5755 –5795 MHzYes,NoYes,NoYes,NoYes,No 5180 – 5240 MHz Yes,NoYes,NoYes,NoYes,No 5190 –5230 MHzYes,NoYes,NoYes,NoYes,No 5260 –5320 MHzYes,NoYes,NoYes,NoYes,No 5270 –5310 MHzYes,NoYes,NoYes,NoYes,No 5500 –5700 MHzYes,NoYes,NoYes,NoYes,No 5510 – 5670 MHz Yes,NoYes,NoYes,NoYes,No (3) Country code selection ability -Yes ,No If no, pls explain how was implemented : Country is selected as US by default and user can not change the country code. (4) Meet 15.202 requirement - Yes ,No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. N/A (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply ,No Apply, (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) The device configuration can not be modified by user as program is not exposed to user by any means. Hardware does not allow USB connection for user which is must to change the configuration. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Printed Name :Jonghwa Park Position :CTO

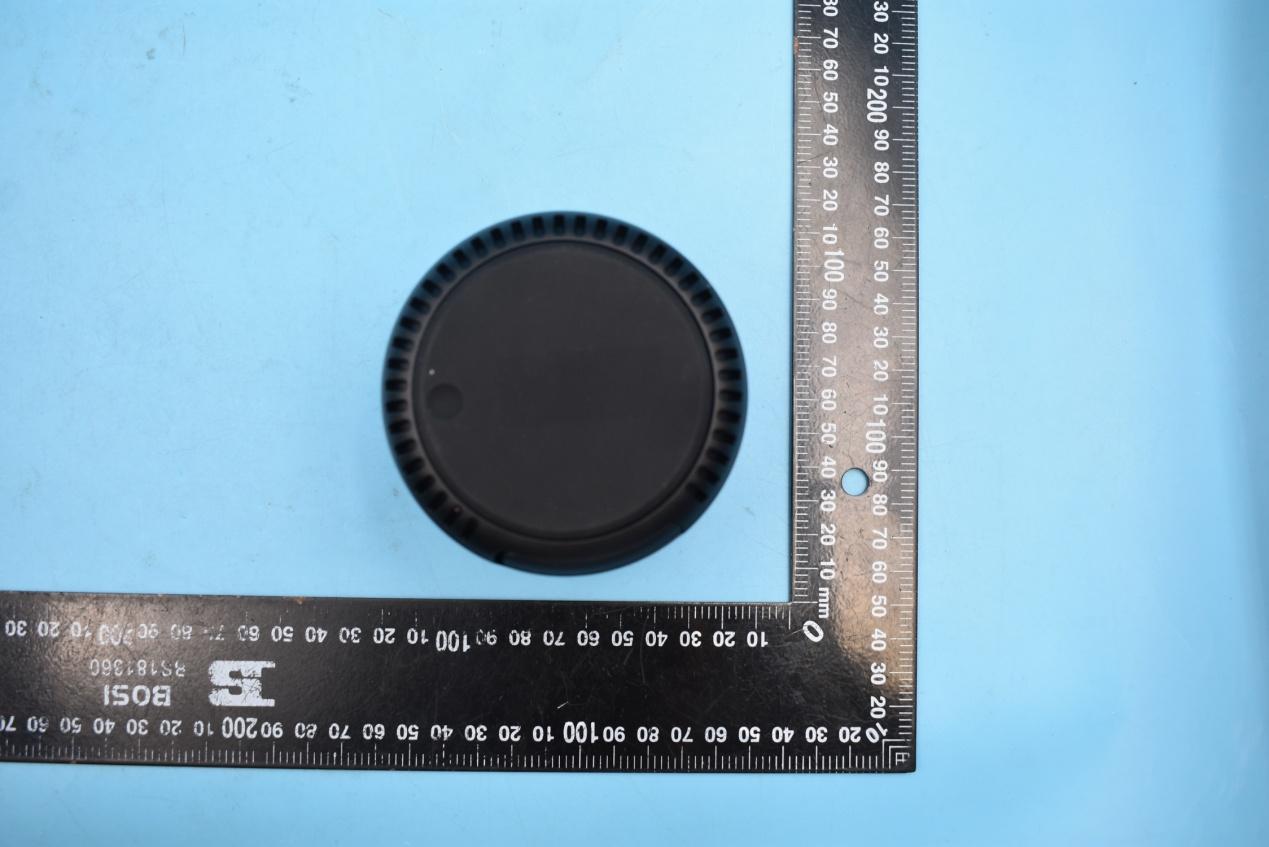

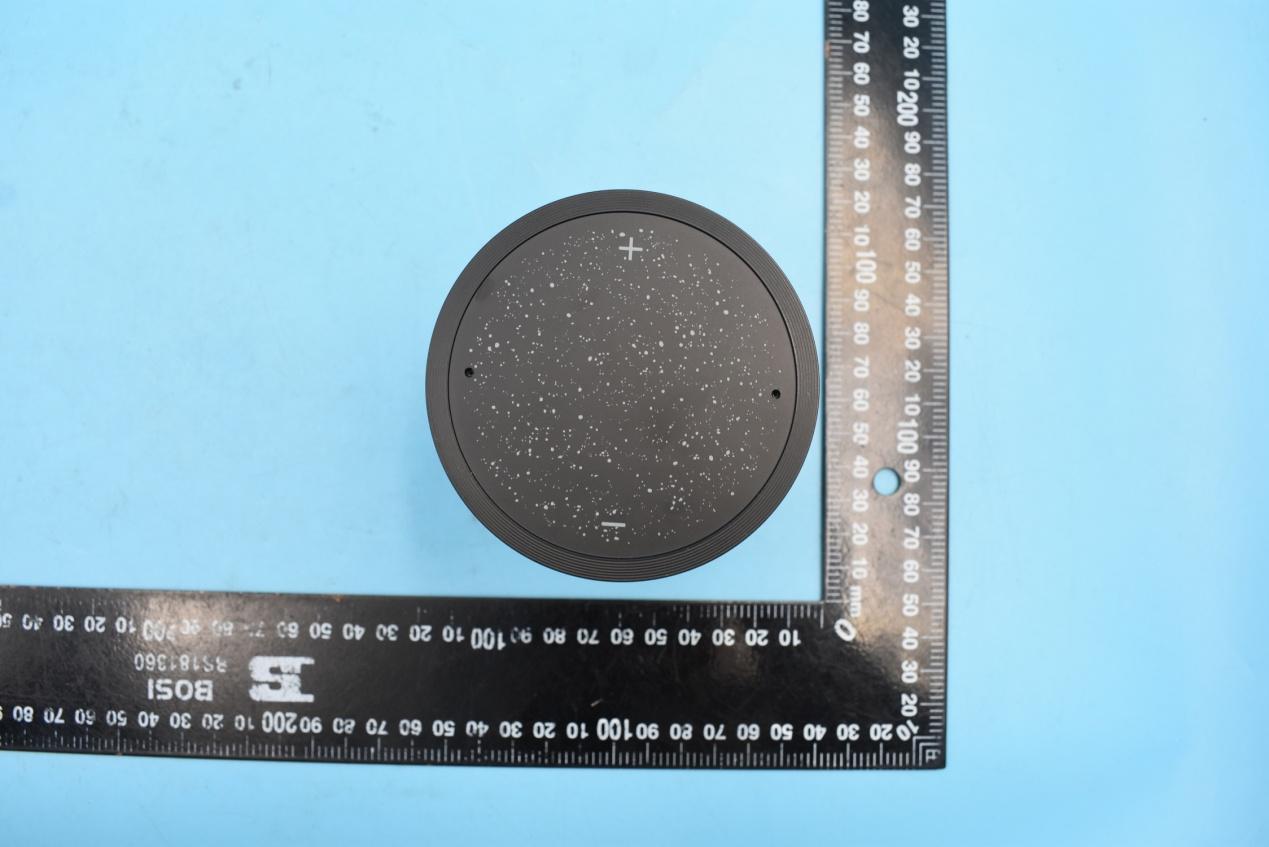

FCC ID:2ACFTRT1505NN External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

FCC LABEL & Label LOCATION The label will be permanently affixed at a conspicuous location on the device. FCC ID : 2ACFTRT1505NN Bottom M O D E L : F I X T A D E S I G N E D B Y H A J E N K O R E A M A N U F A C T U R E D I N C H I N A I N P U T : 5 V , 2 A F C C I D : 2 A C F T R T 1 5 0 5 N N Product Information Label

FCC ID:2ACFTRT1505NN Internal Photos 1. EUT uncover view 2. Antenna view LTE DIV Antenna Bluetooth/WIFI Antenna LTE Main Antenna

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ19120121S01 Annex C Plots of System Performance Check Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.06.05 System Check_835MHz_Head Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 835 MHz; σ = 0.932 S/m; ε r = 42.881; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn871; Calibrated: 2019.06.27 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW835/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.58 W/kg CW835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.70 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.42 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.61 W/kg 0 dB = 2.61 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.06.06 System Check_1900MHz_Head Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1900 MHz; σ = 1.389 S/m; ε r = 39.745; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn871; Calibrated: 2019.06.27 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW 1900/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 11.4 W/kg CW 1900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.87 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 18.8 W/kg SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.26 W/kg Maximum value of SAR (measured) = 11.4 W/kg 0 dB = 11.4 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.06.07 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.817 S/m; ε r = 38.801; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.3, 7.3, 7.3); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn871; Calibrated: 2019.06.27 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW 2450/Area Scan (101x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 16.0 W/kg CW 2450/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.16 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 28.9 W/kg SAR(1 g) = 13.46 W/kg; SAR(10 g) = 6.19 W/kg Maximum value of SAR (measured) = 15.6 W/kg 0 dB = 15.6 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.06.08 System Check_2600MHz_Head Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600 Medium parameters used: f = 2600 MHz; σ = 1.987 S/m; ε r = 38.294; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7, 7, 7); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn871; Calibrated: 2019.06.27 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW2600/Area Scan (81x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 16.9 W/kg CW2600/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.76 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 31.7 W/kg SAR(1 g) = 14 W/kg; SAR(10 g) = 6.05 W/kg Maximum value of SAR (measured) = 16.0 W/kg 0 dB = 16.0 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.06.09 System Check_5250MHz_Head Communication System: UID 0, CW (0); Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5250 Medium parameters used: f = 5250 MHz; σ = 4.631 S/m; ε r = 34.974; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(5.29, 5.29, 5.29); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn871; Calibrated: 2019.06.27 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW5250/Area Scan (201x201x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 8.36 W/kg CW5250/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 35.52 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 44.3 W/kg SAR(1 g) = 8.11 W/kg; SAR(10 g) = 2.23 W/kg Maximum value of SAR (measured) = 7.97 W/kg 0 dB = 7.97 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.06.09 System Check_5750MHz_Head Communication System: UID 0, CW (0); Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: HSL_5750 Medium parameters used: f = 5750 MHz; σ = 5.03 S/m; ε r = 34.288; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Te…
