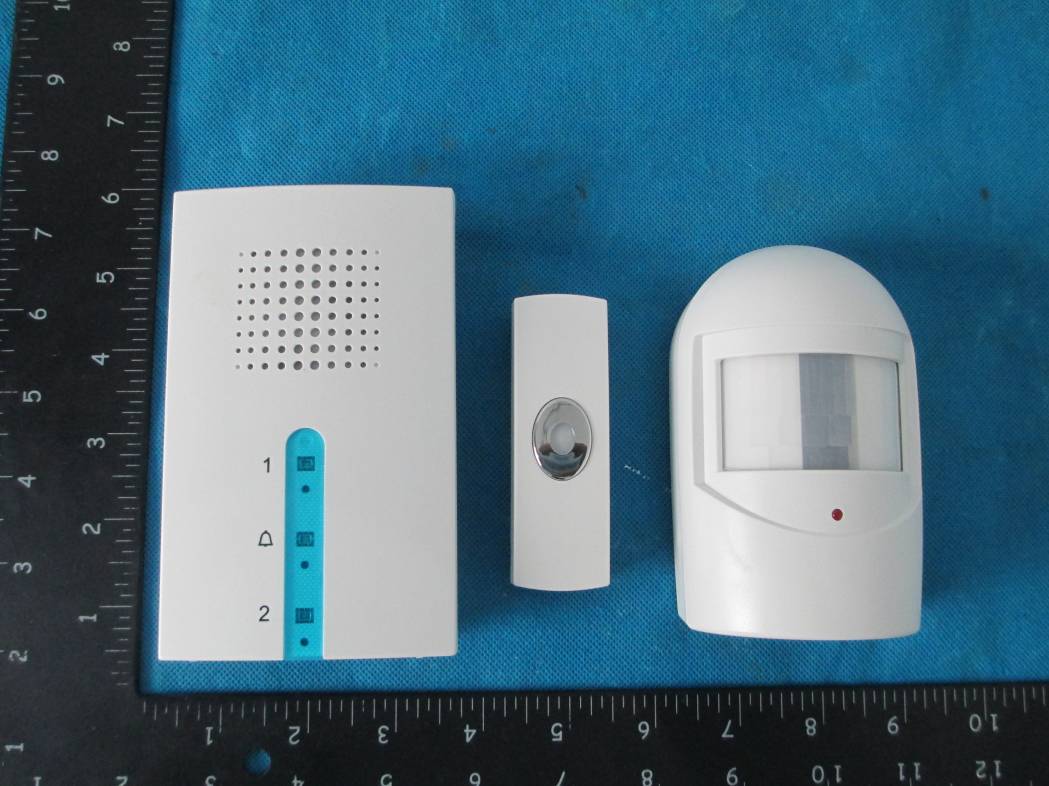

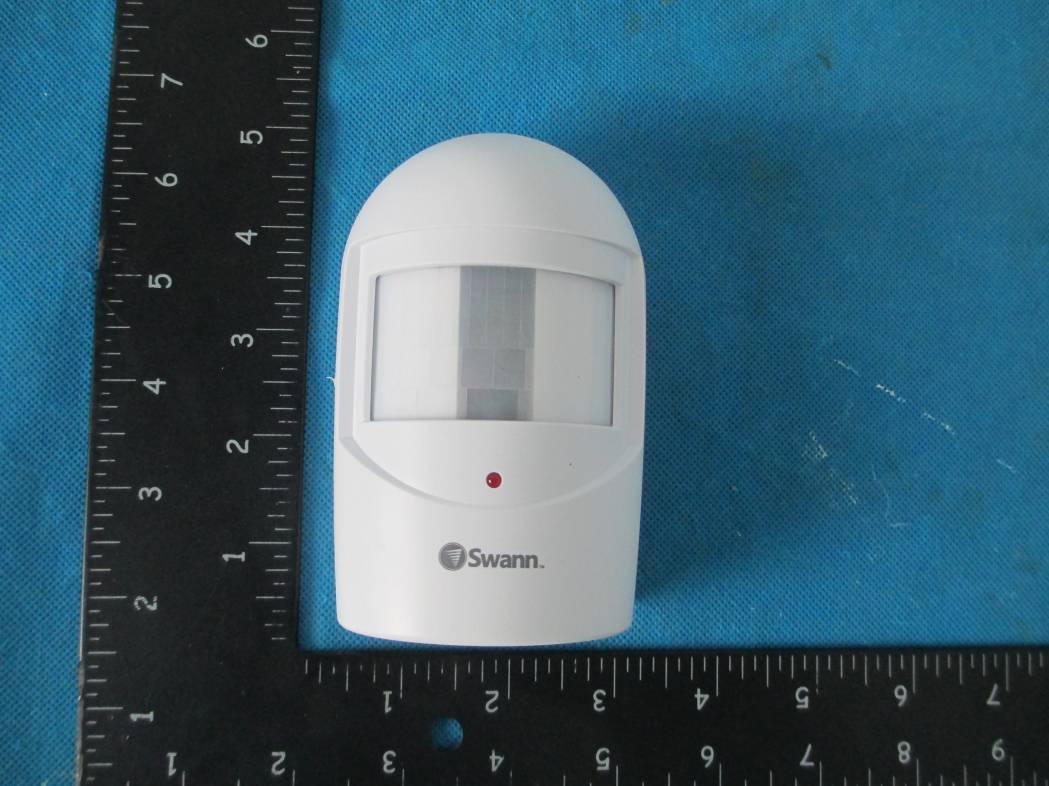

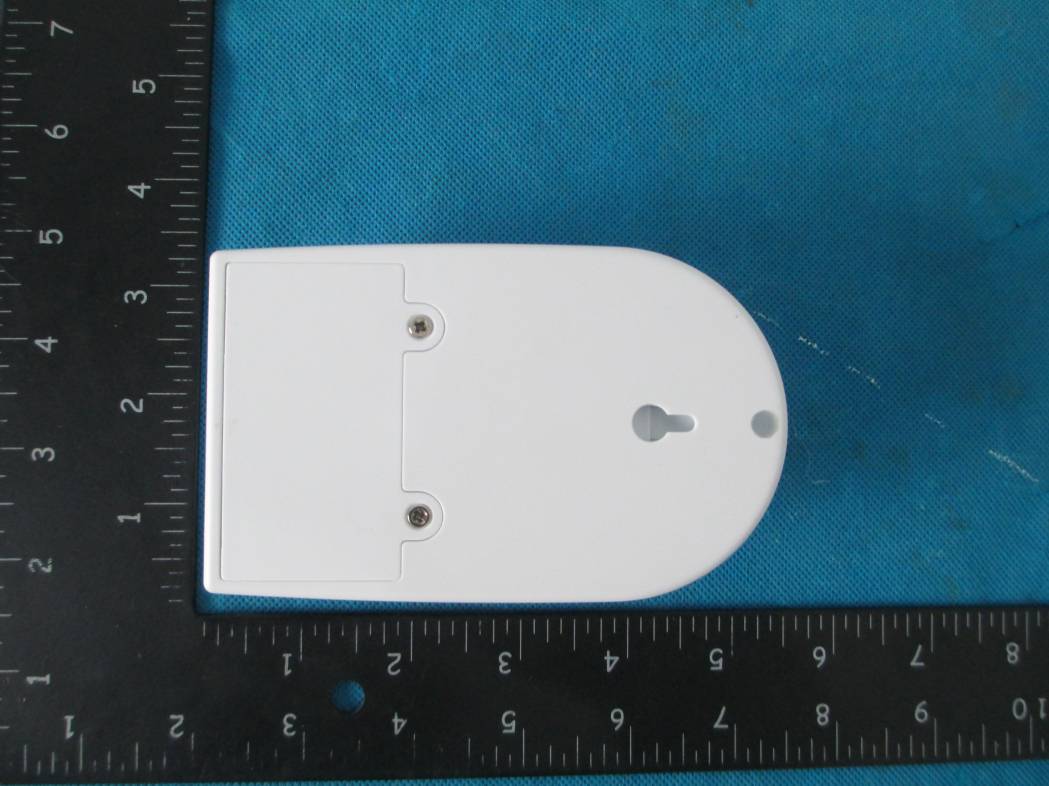

Driveway Alert INSTRUCTION MANUAL EN MDRIVE2260214E 2 ENGLISH Long driveway? Security conscious? Is that car driving up your driveway, or just passing by? Can’t hear someone knocking on your front door while you’re at the back of your home? Presenting the Driveway Alert from Swann, the unique system which will let you know when people are coming to visit! How does it work? Basically, there are three parts to the Driveway Alert system. 1. The Indoor Alarm Receiver works as an alarm buzzer and a doorchime. It monitors for signals coming from the Passive Infrared (PIR) Motion Sensors and the Doorbell, and activates an alert in response to that signal. It also features a series of LED indicators on the front of the unit so you can visually tell where an alert is coming from. The Indoor Alarm Receiver can be either mounted to a fixed location or completely free standing. 2. The PIR Motion Sensors enable you to monitor for movement in two zones or areas surrounding your property. Each contains a miniature radio transmitter, which sends a signal to the Indoor Alarm Receiver whenever motion is detected. The motion sensors should be deployed outdoors, where there is a clear view of the driveway or the likely entry and exit paths that you plan to secure. 3. The Doorbell enables visitors to send a chime to the Indoor Alarm Receiver so you know that someone’s waiting at your doorstep. As it is neither water nor weatherproof, it must be installed in a sheltered location. Introduction Layout Motion SensorDoorbell PIR Sensor Window Sensor Activity Indicator Chime Button Chime Indicator 3 ENGLISH Layout 1. Sensor 1 LED Indicator 2. Doorbell LED Indicator 3. Sensor 2 LED Indicator 1. Sensor 1 Select Button 2. Doorbell Select Button 3. Sensor 2 Select Button 4. Battery Compartment 5. Chime Select Button 6. Volume (Low-Medium-High) Slide Switch 7. Speaker 8. Mounting Hook Hangers Back of the Indoor Alarm Receiver Front of the Indoor Alarm Receiver 123 1 5 6 8 7 4 2 3 4 ENGLISH Operation Guide Installing Batteries The Indoor Alarm Receiver and Motion Sensors require batteries. These are necessary for the devices to be able to receive and transmit active wireless signals. For best performance, use fresh, high quality alkaline batteries. Note: We recommend changing the batteries in the receiver and sensors every six months. Indoor Alarm Receiver • The Indoor Alarm Receiver requires 3 x A A batteries (not included) to operate. • To install batteries, slide off the battery cover on the back of the unit to reveal the battery compartment and then insert batteries matching the polarity (+ and -) markings inside the battery compartment. • Replace the battery cover until it clicks into place. Motion Sensors • Each motion sensor requires a 9V battery (not included) to operate. • To install battery, remove the two screws on the back of the motion sensor securing the battery compartment cover in place using a small Phillips head screwdriver, attach a battery to the 9V connector and then place the battery into its compartment. • Replace the battery cover. Ensure that it makes complete contact with the silicone seal lining the battery compartment. If moisture is able to enter the motion sensor, it will adversely affect performance dramatically. Doorbell • If you need to replace the battery, insert a small flat-head screwdriver into the small notch on the base of the doorbell and then push against the tab inside to lift the front cover off. • Replace with same type of battery (1 x CR2032 battery). Ensure the battery is secured properly before refitting the front cover. Placement of the Motion Sensor The range of the wireless transmission for the Driveway Alert system is dependent on local environment (i.e., obstructions, weather, signal interferences, etc) and can be up to approximately 80 meters (around 263 feet) – take this into consideration when selecting positions for the motion sensors and make sure you test if the location you place the motion sensor is in range before fitting in place. The motion sensor, under typical conditions, is designed to detect people and vehicles moving within an area of approximately 6 meters (around 20 feet) at a 100° angle from the sensor. For best coverage and to maximize detection, place the sensor approximately 2m/6ft off the ground, pointing on a slightly downwards angle. 6ft/2m 13ft/4m 20ft/6m 100° 5 ENGLISH Operation Guide Changing the Doorbell Chime The Indoor Alarm Receiver provides a choice of 16 different chimes. To change the doorbell chime: 1. Press the Chime Select button on the back of the Indoor Alarm Receiver. The next chime is played. Keep pressing the button until you hear a chime you like. 2. Press and hold the Doorbell Select button on the the back of the Indoor Alarm Receiver until the Doorbell LED indicator lights up. 3. Within 10 seconds, press and hold the Chime button on the Doorbell until the chime indicator stops blinking. The selected chime will now be heard whenever the doorbell is pressed. Adjusting the Alarm/Chime Volume To adjust the volume of the alarm/chime, use the volume control slide switch on the back of the Indoor Alarm Receiver. There are three settings available: low, medium and high. Turning Off/On the Sensor Alarm and Doorbell Chime Like some peace and quiet for a period of time? You have the ability to put the alarm/chime for each individual sensor and the doorbell on “silent” mode. 1. If mounted, remove the Indoor Alam Receiver from the mounting hook. 2. Press any Sensor 1/Sensor 2/Doorbell Select button on the back of the Indoor Alarm Receiver once to turn off the alarm/chime from that particular component. You will hear two beeps from the Indoor Alarm Receiver, indicating that the alarm/chime has turned off. 3. To turn the alarm/chime back on, press the corresponding Sensor 1/Sensor 2/Doorbell Select button again. You will hear a single beep from the Indoor Alarm Receiver, indicating that the alarm/chime has turned on. Note: The LED indicat…
