2ACG3M80Mini speaker

User Manual Mini speaker (M80) 3.0 High-speed pair hands-free phone built-in polymer li-ion battery botton control User Manual 1.Press botton up to 1.5 seconds for power on,5 seconds for power off, shortly press to play or pause music, 2.when there is an incoming call,the blue light is flashing. 3.Shortly press botton to answer or hang up the coming call,1.5 seconds to refuse to answer the coming call,double-click for redail,press button for 1.5 seconds to enter into private call. 3.Press botton for 5 seconds to enter into bluetooth pair status,red and blue lights flash alternately.(Remark:bluetooth can not be searched until bluetooth enter into pair status) 4.Red and blue lights flash alternately when bluetooth pair status,it’s pair successful when blue light flashes twice every 4seconds.. 5.Holding button to decrease / increase volume.Shortly pressbutton for previous /next song selection. 6.When charging,red light is on,after changing full,red light is off,blue light is on.when low battery power,voice will hint once every 20 seconds,if no charging in time,it will automatically power off. 7.When line-in input,bluetooth is shut off,and audio input function is turned on.(this moment all buttons are shielded and no definition) Blue light Multifunction key MIC Forward/volume down Next/volume increase Red light Power on /off Play/Pause Technical parameters Speaker:4Ω 2W Bluetooth:3.0 Transmission Range:linear distance 10 meters Polymer battery capacity:3.7V 350mAh Charging input:USB 5V Charging time:3 hours Frequency Response:100HZ~20KHZ Separation:≥80dB Distortion:≤10% Operating temperature:-10°C~50°C Product Size:36*36mm Continuous playback time:90-350minutes Warranty card Warranty The product warranty period is 12 months from the date of purchase Free Services During the product warranty,all products quality caused by the fault,the user with warranty card and purchase receipts contact the dealers to enjoy free warranty. The following situations without warranty 1.No warranty cards or product repair damaged label 2.Disassemble damage 3.Due to water or dropping damage caused by mechanical failures and human 4.Faults and damage caused by force majeure Customer Service Information Customer Name_________ Telephone _________ Address _________ Product Name _________ Model _________ Purchase Date _________ Dealer _________ Date of service _________ FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try correct the interference by one or more of the receiving measures: Reorient or replace relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless user could lose the authority to operate this equipment if an unauthorized change or modification is made. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

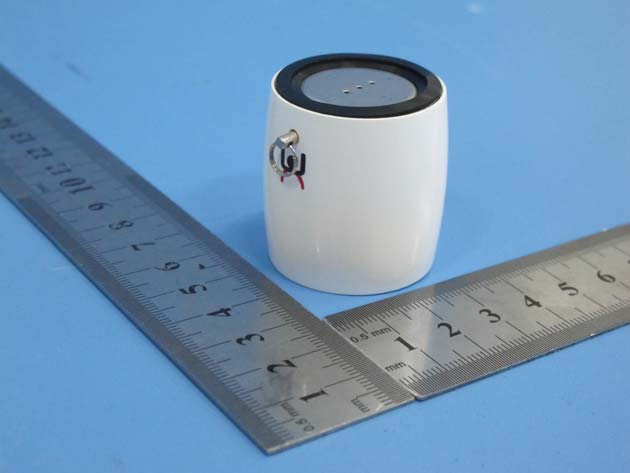

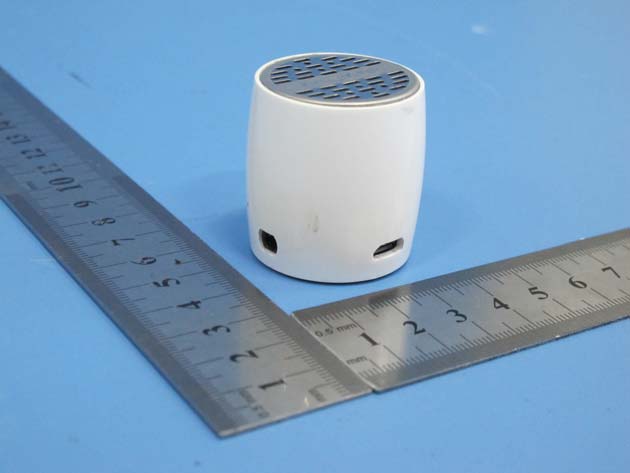

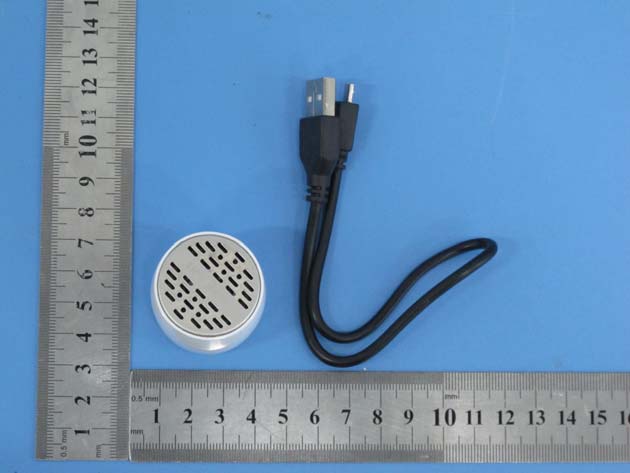

Report No.: TB-FCC141667 Page: 3 of 10 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC141667 Page: 4 of 10 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC141667 Page: 1 of 10 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2ACG3M80 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. HANGZHOU YANGCHANG I&E Co.,LTD Model: M80 Made in China

Report No.: TB-FCC141667 Page: 2 of 10 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC141667 Page: 5 of 10 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT Report No.: TB-FCC141667 Page: 6 of 10 TB-RF-075-1.0 Photo 7 Internal of EUT Photo 8 Appearance of PCB BT(2.4G) Antenna Report No.: TB-FCC141667 Page: 7 of 10 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Report No.: TB-FCC141667 Page: 8 of 10 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE141668 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ACG3M80 1. Client Information Applicant : HANGZHOU YANGCHANG I&E Co.,LTD Address : The A12A05 room of the Blue Ocean International Times Building 1NO.39.Yile Road HangZhou Manufacturer : East West Life Technology CO.,LTD Address : 6/F,Fuyuan Industry and commerce Building Chentian,hangcheng Industrial Area,Xixiang Town Bao’an District,ShenZhen,Guangdong, China 2. General Description of EUT EUT Name : Mini speaker Models No. : M80 Model Difference : N/A Product Description : Operation Frequency: Bluetooth:2402~2480MHz Number of Channel: Bluetooth:79 Channels Max Peak Output Power:8-DPSK: -0.885 dBm Antenna Gain: 0 dBi PCB Antenna Modulation Type: GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) Power Supply : DC Voltage supplied from Host System by USB cable DC power by Li-ion Battery Power Rating : DC 5.0V by USB cable. DC 3.7V Li-ion Battery Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE141668 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE141668 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -1.679 0 0.679 5 0.211 3.0 2.441 -2.962 0 0.506 5 0.158 3.0 2.480 -4.924 0 0.321 5 0.101 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -0.885 0 0.815 5 0.233 3.0 2.441 -2.118 0 0.614 5 0.191 3.0 2.480 -4.042 0 0.394 5 0.124 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC141667 Page: 1 of 83 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ACG3M80 Original Grant Report No. : TB-FCC141667 Applicant : HANGZHOU YANGCHANG I&E Co.,LTD Equipment Under Test (EUT) EUT Name : Mini speaker Model No. : M80 Series Model No. : N/A Brand Name : N/A Receipt Date : 2014-08-15 Test Date : 2014-08-15 to 2014-08-25 Issue Date : 2014-08-25 Standards : FCC Part 15, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC141667 Page: 2 of 83 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. CONDUCTED EMISSION TEST ........................................................................................... 10 3.1 Test Standard and Limit .................................................................................................... 10 3.2 Test Setup ........................................................................................................................... 10 3.3 Test Procedure ................................................................................................................... 10 3.4 Test Equipment Used ........................................................................................................ 11 3.5 EUT Operating Mode ........................................................................................................ 11 3.6 Test Data ............................................................................................................................. 11 4. RADIATED EMISSION TEST ................................................................................................ 14 4.1 Test Standard and Limit .................................................................................................... 14 4.2 Test Setup ........................................................................................................................... 15 4.3 Test Procedure ................................................................................................................... 16 4.4 EUT Operating Condition ................................................................................................. 16 4.5 Test Equipment .................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 32 5.1 Test Standard and Limit .................................................................................................... 32 5.2 Test Setup ........................................................................................................................... 32 5.3 Test Procedure ................................................................................................................... 32 5.4 EUT Operating Condition ................................................................................................. 33 5.5 Test Equipment .................................................................................................................. 33 6. NUMBER OF HOPPING CHANNEL .................................................................................... 46 6.1 Test Standard and Limit .................................................................................................... 46 6.2 Test Setup ........................................................................................................................... 46 6.3 Test Procedure ................................................................................................................... 46 6.4 EUT Operating Condition ................................................................................................. 46 6.5 Test Equipment .................................................................................................................. 46 6.6 Test Data ............................................................................................................................. 46 7. AVERAGE TIME OF OCCUPANCY .......…

Text truncated - open the document above for the full version.

Report No.: TB-FCC141667 Page: 9 of 10 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC141667 Page: 10 of 10 TB-RF-075-1.0 Photo of Setup for Conducted Emission
