2ACG4S1501Onyx Beacon

Onyx Beacon SRL

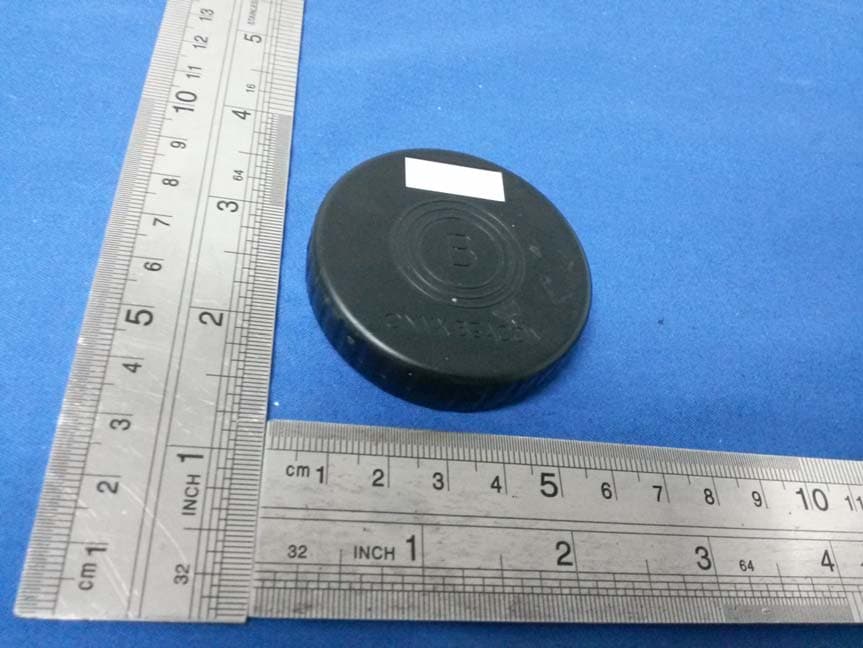

Onyx Beacon - FCC ID 2ACG4S1501 - Onyx Beacon SRL
Click to zoom

Application Details

Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant
May 29, 2014
Application Purpose
Original Equipment
Date of Application
May 28, 2014
Equipment Note
Onyx Beacon
Frequency Range
2402.00000000 - 2480.00000000
Company
Onyx Beacon SRL
Country
Romania

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 / 4 S1501 manual 1.Description The Beacon module is built-in a battery holder and a coin battery, it can work as alone system.We would like to provide the housing development service at low cost to potential customers. 2 / 4 2.Features - Built-in Beacon firmware - Built-in a coin battery - Bluetooth low energy technology compatible - Excellent link budget (up to 97dB) - Enable long range applications - Accurate digital RSSI - Compatible with CE and FCC regulation - High performance and low power 8051 core MCU - AES security coprocessor 3. Beacon parameter default setting -UUID: EBEFD08370A247C89837E7B5634DF524 -Major and minor identifier: 0x0001, 0x0001 -Pairing password: 0x666666 -Power Value:0xc5 -Broadcast Rate:0x14 -It can be rang(default) -It will ring 3 times after reset(default) 4.Modify Beacon parameter Please download theeBeacon from Apple store and then refer to the below pictures . 3 / 4 5. Electronic Parameters ItemTest DataRemarks Battery modelCR2016(CR2032)Coin battery, 3.0Vdc, 1pc Operation Voltage2.0-3.6VDC Operation Frequency2402-2480MHzProgrammable Frequency Error+/- 20KHzNull ModulationQPSKNull Standby current12uANull Output Power-3 dBmProgrammable Receiving Sensitivity-93dBmHigh gain mode Transmission distance30 metersBER<0.1%, Open space Antenna50ohmOnboard Size23.1 x 23.1 x 4mm (23.1 x 23.1 x 5.6mm) Null 4 / 4 6.Operation state and power consumption StateOperation Current (mA) State 1: wake-u p6 State 2: pre-processing7.4 State 3: pre-receiving11 State 4: receiving17.5 State 5: Rx changed to TX7.4 State 6: transmitting17.5 State 7: pre-processing7.4 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interfere nce in a residential installation. This equipment generates and can radiate radio frequency energy and, if no t installed and used in accordance with the instructions, may cause harmful interference to radio communic ations. However, there is no guarantee that interference will not occur in a particular installation. If this equi pment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fol lowing measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1)Thi s device may not cause harmful interference, and (2)This device must accept any interference received, in cluding interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modific ations to this equipment. such modifications could void the user’s authority to operate this equipment.

Cover Letter(s)

Onyx Beacon SRL Str. Onisifor Ghibu Nr. 1, Cluj-Napoca, Cluj,400185, Romania To: SIEMIC, INC. 775 Montague Expressway. Milpitas, CA 95035, USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Onyx Beacon SRL . hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID: 2ACG4S1501 Product: Onyx Beacon Model No.: S1501 Brand :Onyx Beacon We affirm that between SIEMIC and Onyx Beacon SRL . any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, signature : name / title : Roman Foeckl /Managing Director information / address: Onyx Beacon SRL/Str. Onisifor Ghibu Nr. 1, Cluj-Napoca, Cluj,400185, Romania

Cover Letter(s)

Onyx Beacon SRL Str. Onisifor Ghibu Nr. 1, Cluj-Napoca, Cluj,400185, Romania SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 3.0 Confidentiality Letter To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACG4S1501 We hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, signature : name / title : Roman Foeckl /Managing Director information / address: Onyx Beacon SRL/Str. Onisifor Ghibu Nr. 1, Cluj-Napoca, Cluj,400185, Romania

ID Label/Location Info

Label Size:10*10mm(L*W) Label Location Model No.: S1501 FCC ID: 2ACG4S1501

Internal Photos

Antenna Location

Test Report

FCC ID: 2ACG4S1501 Keyway Testing Technology Co., Ltd. Report No. 13KWE10996F Page 1 of 20 FCC TEST REPORT for Onyx Beacon SRL. Onyx Beacon Model Number: S1501 FCC ID: 2ACG4S1501 Prepared for : Onyx Beacon SRL. Address : Str. Onisifor Ghibu Nr. 1, Cluj-Napoca, Cluj,400185, Romania Prepared by : Keyway Testing Technology Co., Ltd. Address : Baishun Industrial Zone, Zhangmutou Town, Dongguan, Guangdong, China Report No. : 14KWE051372F Date of Test : May 16~ 20, 2014 Date of Report : May 21, 2014 FCC ID: 2ACG4S1501 Keyway Testing Technology Co., Ltd. Report No. 13KWE10996F Page 2 of 20 TABLE OF CONTENTS Test Report Declaration Page 1. TEST SUMMARY .............................................................................................................4 2. GENERAL PRODUCT INFORMATION ............................................................................5 2.1. Product Function.................................................................................................................... 5 2.2. Description of Device (EUT) .................................................................................................. 5 2.3. Independent Operation Modes .............................................................................................. 5 2.4. Difference between Model Numbers...................................................................................... 5 2.5. Test Supporting System......................................................................................................... 5 3. TEST SITES .....................................................................................................................6 3.1. Test Facilities ......................................................................................................................... 6 3.2. List of Test and Measurement Instruments............................................................................ 7 4. TEST SET-UP AND OPERATION MODES......................................................................8 4.1. Principle of Configuration Selection ....................................................................................... 8 4.2. Block Diagram of Test Set-up ................................................................................................ 8 4.3. Test Operation Mode and Test Software ............................................................................... 8 4.4. Special Accessories and Auxiliary Equipment ....................................................................... 8 4.5. Countermeasures to Achieve EMC Compliance.................................................................... 8 5. EMISSION TEST RESULTS.............................................................................................9 5.1. Radiated Emission Test .........................................................................................................9 6. 20DB OCCUPY BANDWIDTH ........................................................................................14 6.1. Limits.................................................................................................................................... 14 6.2. Test setup ............................................................................................................................ 14 7. BAND EDGE COMPLIANCE TEST ................................................................................17 7.1. Limits.................................................................................................................................... 17 7.2. Test setup ............................................................................................................................ 17 8. ANTENNA REQUIREMENT: ..........................................................................................19 9. PHOTOGRAPHS OF TEST SET-UP..............................................................................20 10. PHOTOGRAPHS OF THE EUT ..................................................................................20 FCC ID: 2ACG4S1501 Keyway Testing Technology Co., Ltd. Report No. 13KWE10996F Page 3 of 20 Keyway Testing Technology Co., Ltd. Applicant: Address: Onyx Beacon SRL. Str. Onisifor Ghibu Nr. 1, Cluj-Napoca, Cluj,400185, Romania Manufacturer: Address: Onyx Beacon SRL. Str. Onisifor Ghibu Nr. 1, Cluj-Napoca, Cluj,400185, Romania E.U.T: Onyx Beacon Model Number: S1501 Trade Name: Onyx Beacon Serial No.: ------ Date of Receipt: May 16, 2014 Date of Test: May 16~ 20, 2014 Test Specification: FCC Part 15, Subpart C: Oct. 1, 2013 ANSI C63.4:2009 Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Issue Date: May 21, 2014 Tested by: Reviewed by: Approved by: Andy Gao / Engineer Jade Yang/ Supervisor Chris Du / Manager Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under tested This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Keyway Testing Technology Co., Ltd. FCC ID: 2ACG4S1501 Keyway Testing Technology Co., Ltd. Report No. 13KWE10996F Page 4 of 20 1. TEST SUMMARY Test Items Test Requirement Uncertainty Result Conducted Emissions 15.207 ANSI C63.4 ±2.6dB N/A Radiated Emissions 15.209 15.249 ANSI C63.4 ±3.6dB PASS 20dB Bandwidth 15.249 ANSI C63.4 ±1kHz PASS Band Edge Compliance Test 15.249 ANSI C63.4 ±3.6dB PASS Antenna Requirement 15.203 ANSI C63.4 / PASS Note:N/A means not applicable. FCC ID: 2ACG4S1501 Keyway Testing Technology Co., Ltd. Report No. 13KWE10996F Page 5 of 20 2. GENERAL PRODUCT INFORMATION 2.1. Product Function Refer to Technical Construction Form and User Manual. 2.2. Description of Device (EUT) Description: Onyx Beacon M/N: S1501 Operation Frequency: 2402~2480MHz Channel numbers: 79 Channel separation: 1M Modulation Technology: GFSK, Pi/4DQPSK, 8-DQPSK…

Text truncated - open the document above for the full version.

Test Setup Photos

Set-up for Radiated Emission Test

Contact Information

Applicant

Roman Foeckl(Managing Director)
[email protected]0040752629655Fax: 0040752629655

Test Firm

Keyway Testing Technology Co., Ltd.Jade Yang
[email protected]86-769-87182258Fax: 86-769-87181058

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
Confidentiality
Long Term
