2ACGF-GO-001WGYENNO One

User Manual for GYENNO One Activation 1. Please take out the smartband, charge docking station, USB Charge cable(only for charge use) from package. 2. Connect USB charge cable with charge docking station and plugged into PC or power adapter USB. Note: The output interface should be 5V500mA. 3. Put smartband onto the charge docking station, with “one” logo coming out, the device will be activated successfully. Connect your phone 1. Click “one” app on your phone, then the registration screen will be popped out. 2 Input information according to requirements, then the successful registration will be popped out. 3 Enter the appropriate parameters and save them according to the conditions of yourself. 4 The device should be ready to use. Telephone, messaging, calendar, mail, alarm will be feedback to the smartband. Charge: 1. Place the smartband on the energized charge docking station, then “one” logo will be popped out and current charge level will display on the screen(The power is full if there is no charge level display) 2.The charge level sign will be off when power is full. Remove the smartband and continuously click the screen, it will show current charge level. FCC Notice FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. such modifications could void the user’s authority to operate this equipment.

Gyenno Technology CO.,LTD.

Gyenno Technology CO.,LTD. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Gyenno Technology CO.,LTD. would like the following documents regarding this submission for FCC ID: 2ACGF-GO-001W to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours, Gyenno Technology CO.,LTD. Sinnar Chow / Hardware Manager Fax: + 086-0755- 23917859 Tel: + 086-0755- 23917311 E-mail: [email protected]

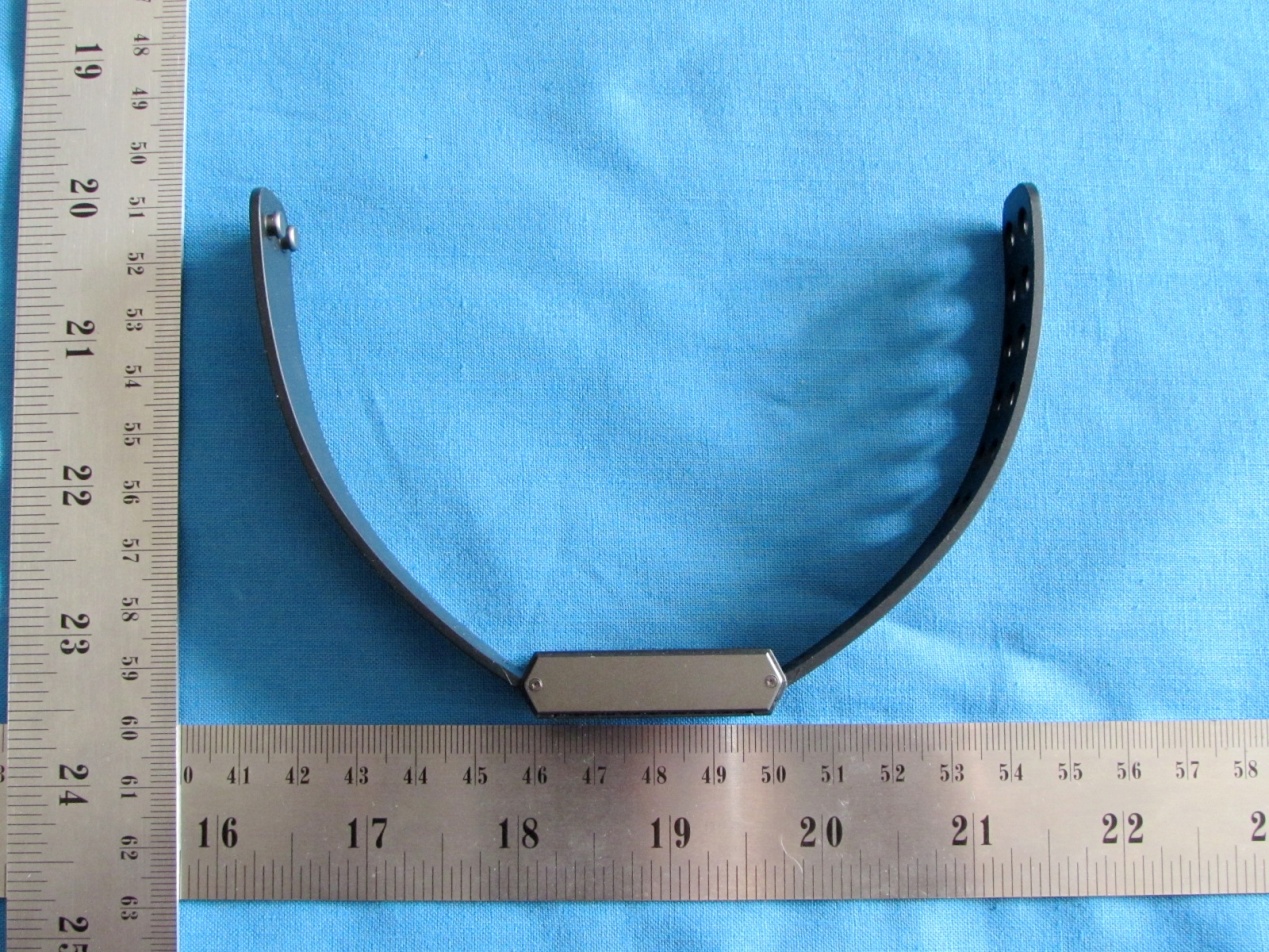

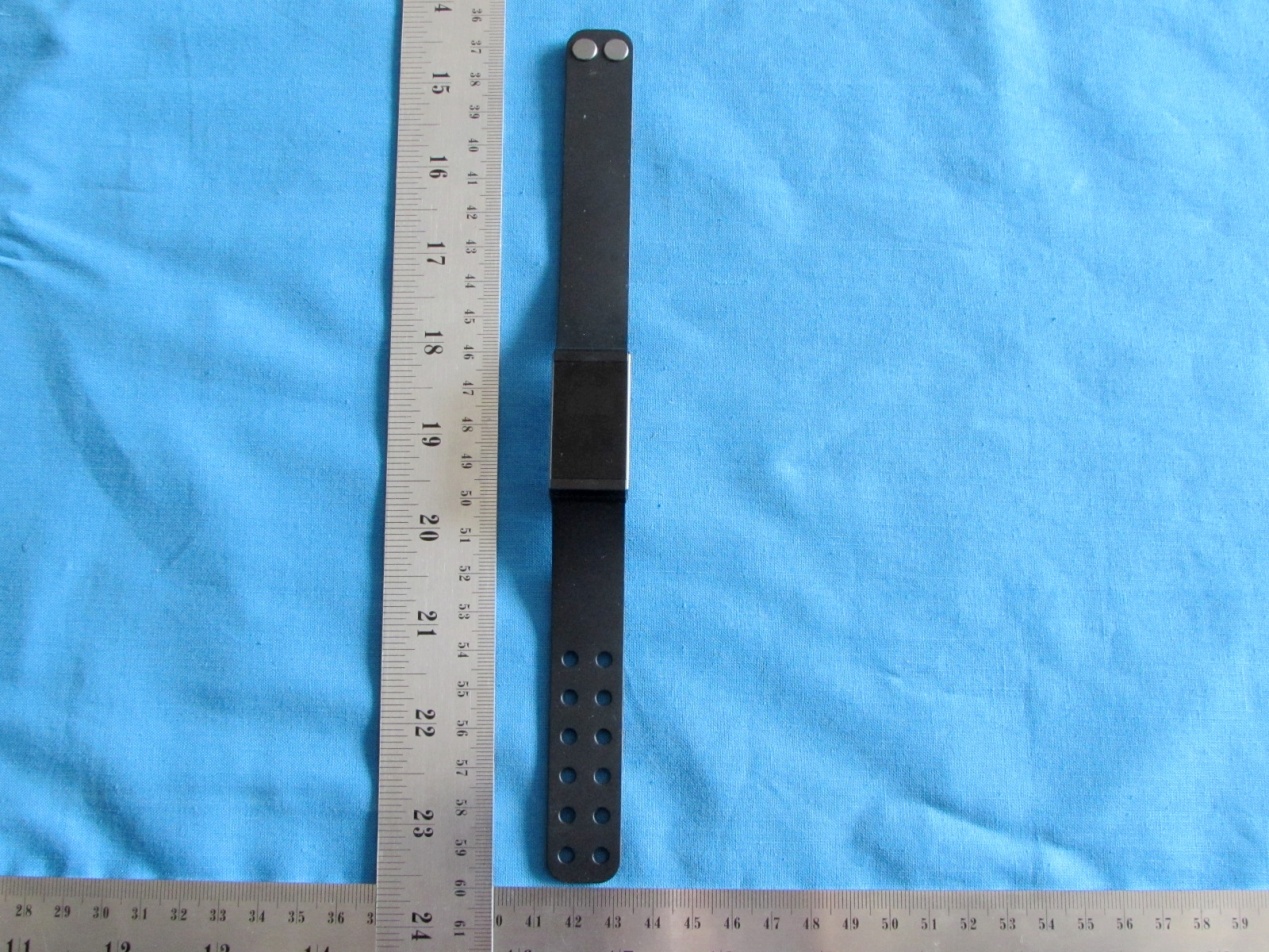

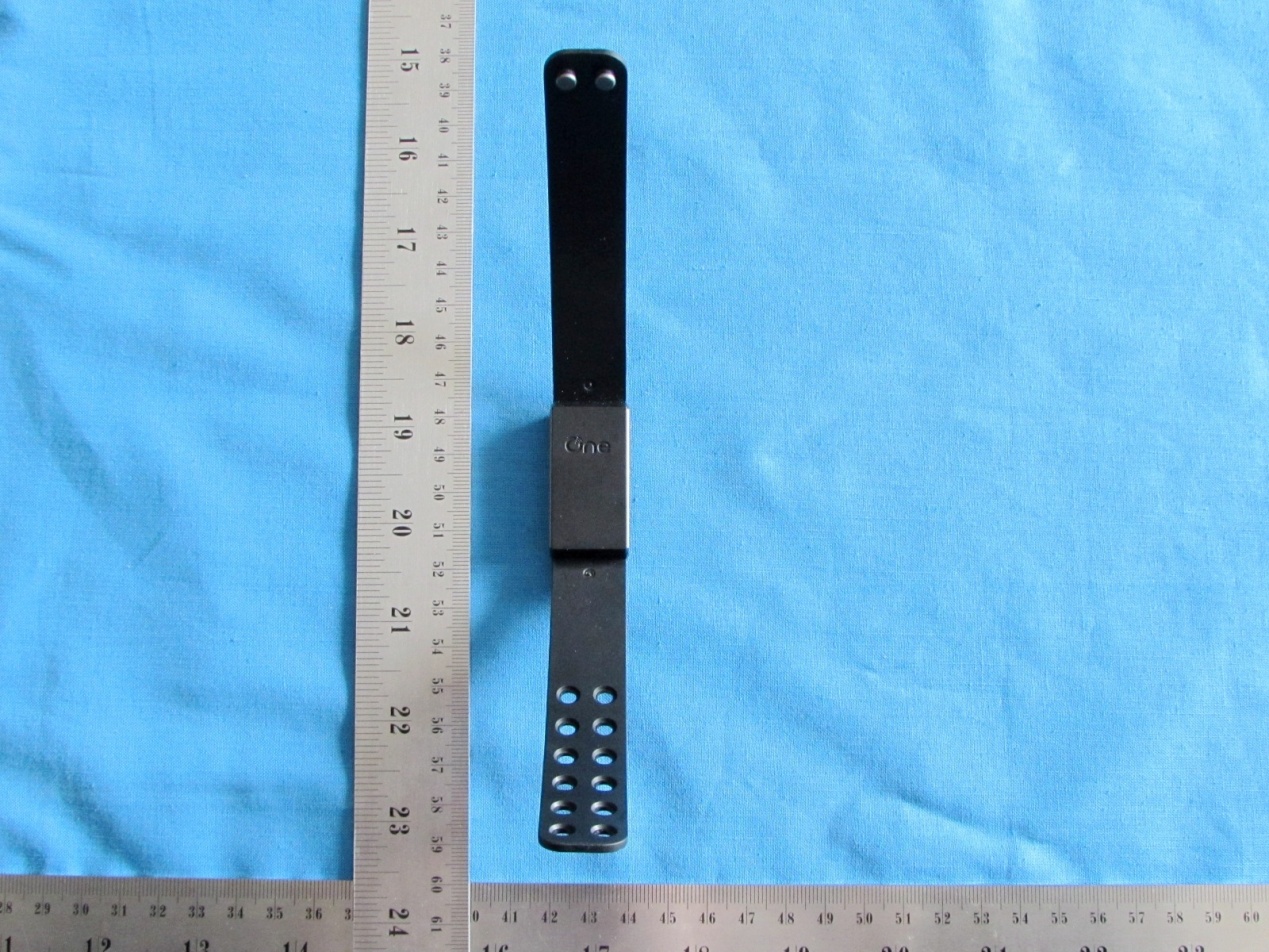

External Photos:

Label: Gyenno Technology CO.,LTD. Model: GYENNO One FCC ID: 2ACGF-GO-001W Label Location:

Internal Photos:

Shenzhen CTL Electron Technology Co., Ltd. Report No.: A1404096029-MPE RF EXPOSURE REPORT FCC Per 47 CFR 2.1093(d) Report Reference No. .................... : FCC ID. ........................................... : A1404096029-MPE 2ACGF-GO-001W Compiled by ( position+printed name+signature) .. : File administrators Tony Li Supervised by ( position+printed name+signature) .. : Technique principal Robin Fang Approved by ( position+printed name+signature) .. : Manager James Wu Date of issue ..................................... : May,26 2014 Representative Laboratory Name .... : Shenzhen CTL Electron Technology Co., Ltd. Address ............................................. : A0402, Block 1, Kefa Industrial District, Huanguan Nan Rd, Xintian community, Guanlan, Baoan, Shenzhen, China Testing Laboratory Name ................. : Dongguan Dongdian Testing Service Co.,Ltd Address ............................................. : No.17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China Applicant’s name ............................ : Gyenno Technology CO.,LTD. Address ............................................. : Room 601-C, Bike Science Bldg, No.9 KeYan Road, Science Park, Nanshan District, Shenzhen, P.R. China Test specification .......................... : Standard ........................................... : FCC Per 47 CFR 2.1093(d) KDB447498 TRF Originator .................................. : Shenzhen CTL Electron Technology Co., Ltd. Master TRF ....................................... : Dated 2012-06 Shenzhen CTL Electron Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electron Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electron Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : GYENNO One Trade Mark ....................................... : Manufacturer .................................... : Gyenno Technology CO.,LTD. Model/Type reference ....................... : GO-001 Listed Models .................................. : / Operation Frequency ........................ : From 2402MHz to 2480MHz Modulation Type ............................... : GFSK Rating ............................................... : DC 3.7V Result ................................................ : PASS Page 2 of 7 Report No.: A1404096029-MPE RF EXPOSURE REPORT Test Report No. : A1404096029-MPE May,26 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : GYENNO One Model /Type : GO-001 Listed Models : / Applicant : Gyenno Technology CO.,LTD. Address : Room 601-C, Bike Science Bldg, No.9 KeYan Road, Science Park, Nanshan District, Shenzhen, P.R. China Manufacturer : Gyenno Technology CO.,LTD. Address : Room 601-C, Bike Science Bldg, No.9 KeYan Road, Science Park, Nanshan District, Shenzhen, P.R. China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 3 of 7 Report No.: A1404096029-MPE Contents 1. SUMMARY ............................................................................. 4 1.1. EUT configuration 4 1.2. NOTE 4 2. TEST ENVIRONMENT ............................................................... 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT .................................................... 6 3.1. Applicable Standard 6 3.2. Limit 6 3.3. RF Exposure 7 4. CONCLUSION ........................................................................ 7 Page 4 of 7 Report No.: A1404096029-MPE 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 1.2. NOTE 1. The EUT is a GYENNO One with Bluetooth function,The functions of the EUT listed as below: Test Standards Reference Report Bluetooth FCC Part 15 Subpart C A1404096029-RW RF Exposure FCC Per 47 CFR 2.1093(d) A1404096029-MPE 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz) 2400-2483.5 5150-5350 5470-5725 5725-5850 EUT √ － － － Page 5 of 7 Report No.: A1404096029-MPE 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Dongguan Dongdian Testing Service Co.,Ltd No.17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2003) and CISPR Publication 22. 2.2. Test Facility The test facility is recognized, certified, or accredited by the following organizations: IC Registration No.: 10288A-1 The 3m alternate test site of Dongguan Dongdian Testing Service Co.,Ltd EMC Laboratory has been registered by Certification and Engineer Bureau of Industry Canada for the performance of with Registration No.: 10288A-1 on Mar, 2012. FCC-Registration No.: 270092 Dongguan Dongdian Testing Service Co.,Ltd EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration 270092, Mar 06, 2012. 2.3. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.4. Statement of the measurement uncertainty The data and results referenced in this document are true an…
