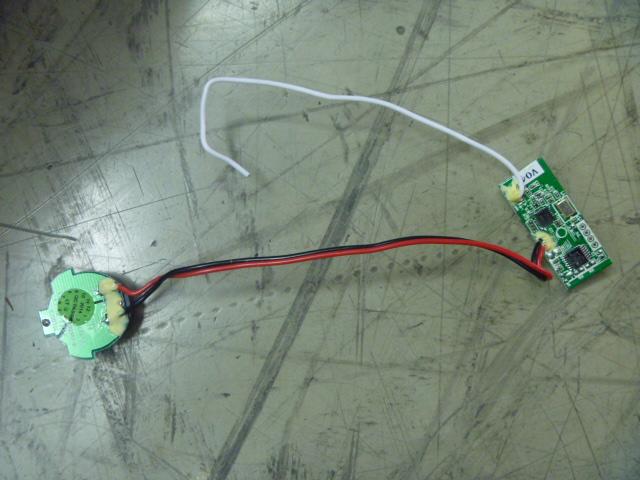

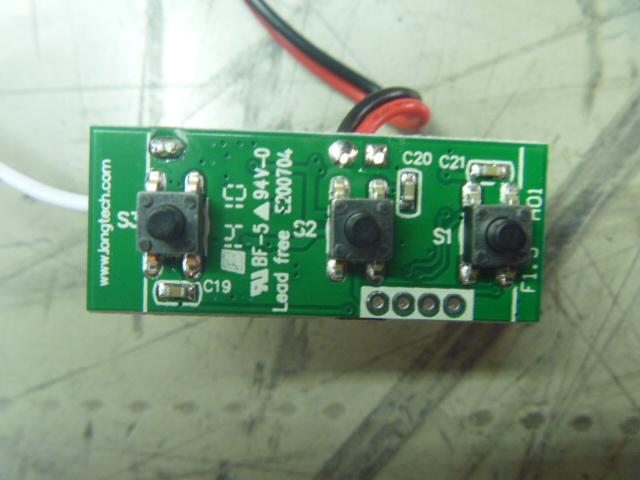

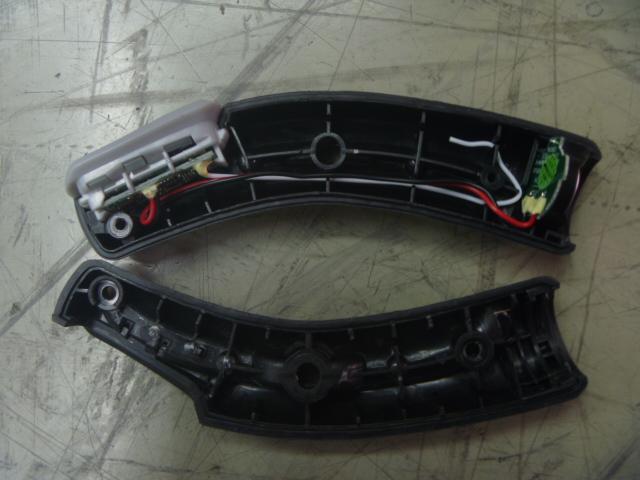

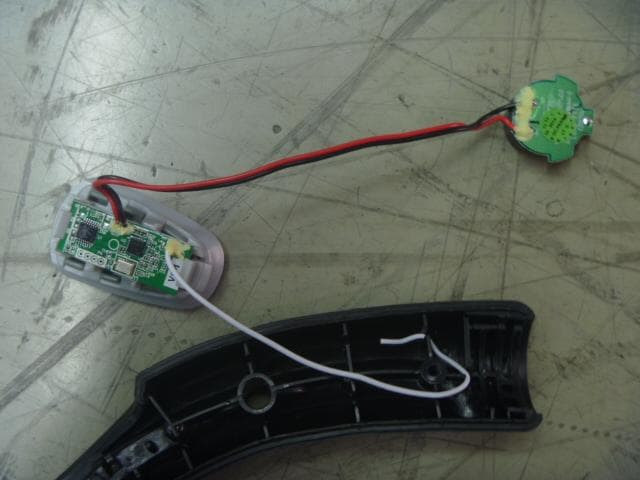

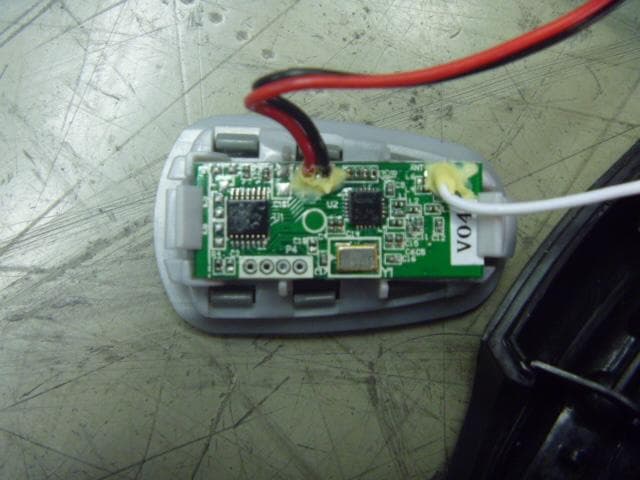

FCC ID: 2ACGJ LW1500RS Page 1 of 4 Internal Picture FCC ID: 2ACGJ LW1500RS Page 2 of 4 FCC ID: 2ACGJ LW1500RS Page 3 of 4 FCC ID: 2ACGJ LW1500RS Page 4 of 4

FCC ID: 2ACGJ LW1500RS Page 1 of 17 EMC TEST REPORT No. 140401703SHA-001 Applicant : Royal Appliance Mfg. Co. 7005 Cochran Road Glenwillow, OH 44139 USA Manufacturer : Suzhou Cleanex Electric Co., Ltd 22, Beiguandu Rd., Wuzhong District, Suzhou Equipment : Vacuum Cleaner Type/Model : LW1500RS SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2013): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Date of issue: June 16, 2014 Prepared by: Reviewed by: Nemo Li (Project Engineer) Jonny Jing (Reviewer) FCC ID: 2ACGJ LW1500RS Page 2 of 17 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Jonny Jing Tel: +86 21 61278200 ext. 271 Fax: +86 21 54262335 ext. 271 FCC ID: 2ACGJ LW1500RS Page 3 of 17 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ................................... 8 3.1 Test limit ......................................................................................................................... 8 3.2 Test Configuration .......................................................................................................... 9 3.3 Test procedure and test setup .......................................................................................... 9 3.4 Test protocol ................................................................................................................. 10 4. DEACTIVATING TIME ................................................................................................................................ 11 4.1 Test limit ....................................................................................................................... 11 4.2 Test Configuration ........................................................................................................ 12 4.3 Test procedure and test setup ........................................................................................ 12 4.4 Test protocol ................................................................................................................. 12 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 13 5.1 Limit .............................................................................................................................. 13 5.2 Test configuration ......................................................................................................... 13 EMI receiver ................................................................................................................... 13 5.3 Test procedure and test set up ....................................................................................... 14 5.4 Test protocol ................................................................................................................. 15 6. EMISSION BANDWIDTH ............................................................................................................................. 16 6.1 Test limit ....................................................................................................................... 16 6.2 Test Configuration ........................................................................................................ 16 6.3 Test procedure and test setup ........................................................................................ 16 6.4 Test protocol ................................................................................................................. 17 FCC ID: 2ACGJ LW1500RS Page 4 of 17 1. General Information 1.1 Applicant Information Applicant: Royal Appliance Mfg. Co. 7005 Cochran Road Glenwillow, OH 44139 USA Manufacturer: Suzhou Clean Bloom Electric Co., Ltd. 8 Renan Street, Berhuan Road, Suzhou, 215128, China Sample received date: April 29, 2014 Date of test : April 30, 2014 ~ May 30, 2013 1.2 Identification of the EUT Equipment: Vacuum Cleaner Type/model: LW1500RS FCC ID: 2ACGJLW1500RS FCC ID: 2ACGJ LW1500RS Page 5 of 17 1.3 Technical specification Operation Frequency Band: 434MHz Modulation: ASK Antenna Designation: Integral antenna, non-user removable. Rating: 120V, 60Hz Transmitter: DC 3V Description of EUT: There is one …

Text truncated - open the document above for the full version.

FCC ID: 2ACGJ LW1500RS Page 1 of 7 Test Data FCC ID: 2ACGJ LW1500RS Page 2 of 7 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 0 10 20 30 40 50 60 70 80 90 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x x x x x x x MES NE0519_LH1_red MES NE0519_LH1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: 2ACGJ LW1500RS Page 3 of 7 1000-5000MHz 0 10 20 30 40 50 60 70 80 90 Level [dBμV/m] 399.9M 402M 404M 406M 408M 410M Frequency [Hz] x x x x x x x x x x x MES NE0519_LH2_red MES NE0519_LH2_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 90 Level [dBμV/m] 1G 2G 3G 4G 5G Frequency [Hz] + + + + + + + + + + x x x x x x x x x MES NE0519_HH1_red + MES NE0519_HH1_red2 MES NE0519_HH1_pre MES NE0519_HH1_pre2 LIM FCC 15 F 3 PK Field Strength QP LIM FCC 15 F 3 AV Field Strength QP FCC ID: 2ACGJ LW1500RS Page 4 of 7 Vertical 30-1000MHz 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 Level [dBμV/m] 30M 50 M 70 M 100M 200M 300M 500M 700M 1 G Frequency [Hz] x x x x x x x x x x x MES NE0519_LV1_red MES NE0519_LV1_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M 402M 404M 406M 408M 410M Frequency [Hz] x x x x x x x x x x x MES NE0519_LV2_red MES NE0519_LV2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: 2ACGJ LW1500RS Page 5 of 7 1000-5000MHz 0 10 20 30 40 50 60 70 80 90 Level [dBμV/m] 1G 2G 3G 4G 5G Frequency [Hz] + + + + + + + + + + x x x x x x x x x x MES NE0519_HV1_red + MES NE0519_HV1_red2 MES NE0519_HV1_pre MES NE0519_HV1_pre2 LIM FCC 15 F 3 PK Field Strength QP LIM FCC 15 F 3 AV Field Strength QP FCC ID: 2ACGJ LW1500RS Page 6 of 7 2. Deactivating time FCC ID: 2ACGJ LW1500RS Page 7 of 7 3. Emission bandwidth Emission bandwidth = 378.76 kHz

FCC ID: 2ACGJ LW1500RS Page 1 of 2 Test Setup FCC ID: 2ACGJ LW1500RS Page 2 of 2 Radiated Emission 30MHz-1000MHz Higher than 1GHz
