2ACGLK561CBluetooth Keyboard

5 floor,4nd building of Wangye industrial park, Baotian 3rd road , Xixiang town, Shenzhen,China TEL: +86-0755-27697045 FAX: +86-0755-27697641 April 13, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Subject: Explanation of differences between product types FCC ID : 2ACGLK561C Model Number: K561C, K561, K561A, K562, K562A, K562B To Whom It May Concern: We, SHENZHEN BAOAN XIXIANG XINAN YuanDa Electronic Factory, hereby declare that the model : K561, K561A, K562, K562A, K562B are identical with the model : K561C, except the housing. Except for the different above, no other modification is performed. Sincerely, SHENZHEN BAOAN XIXIANG XINAN YuanDa Electronic Factory Signature: Company Officer: Manager Telephone Number: +86-0755-27697045 Email: [email protected]

5 floor,4nd building of Wangye industrial park, Baotian 3rd road , Xixiang town, Shenzhen,China TEL: +86-0755-27697045 FAX: +86-0755-27697641 April 28, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Subject: Attestation letter for the using of device FCC ID : 2ACGLK561C Model Number: K561C To Whom It May Concern: We, SHENZHEN BAOAN XIXIANG XINAN YuanDa Electronic Factory, hereby declare that the device cannot be placed into a housing for use with a tablet, and is for use stand-alone. Sincerely, SHENZHEN BAOAN XIXIANG XINAN YuanDa Electronic Factory Signature: Company Officer: Manager Telephone Number: +86-0755-27697045 Email: [email protected]

5 floor,4nd building of Wangye industrial park, Baotian 3rd road , Xixiang town, Shenzhen,China TEL: +86-0755-27697045 FAX: +86-0755-27697641 Date (13/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ACGLK561C Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, SHENZHEN BAOAN XIXIANG XINAN YuanDa Electronic Factory hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Manager Telephone Number: +86-0755-27697045 Email: [email protected]

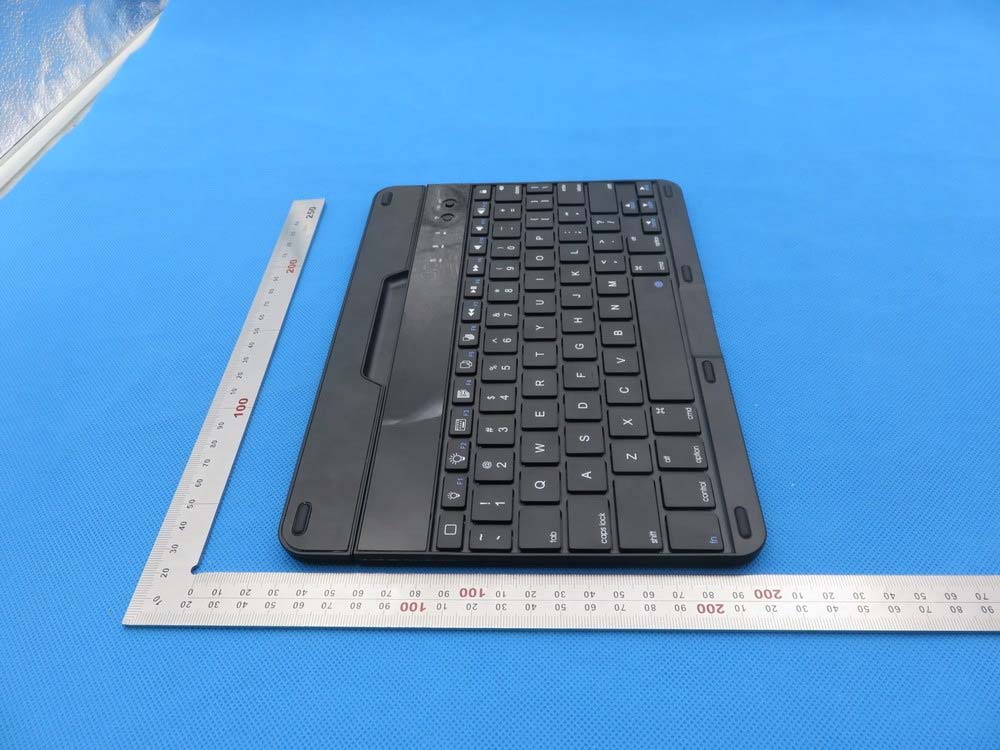

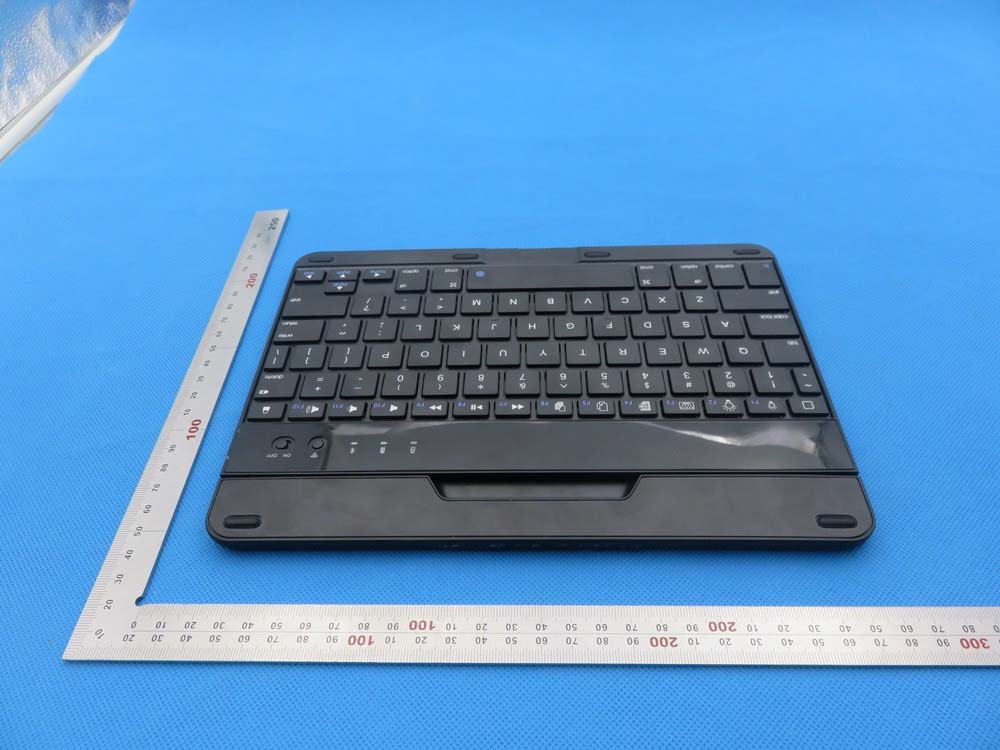

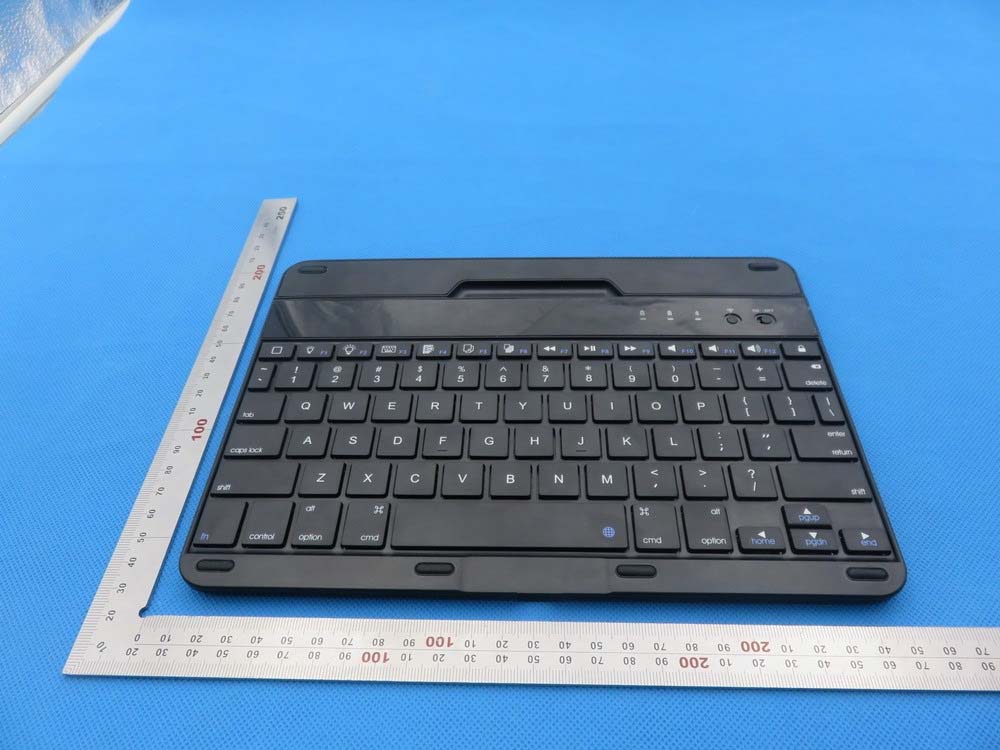

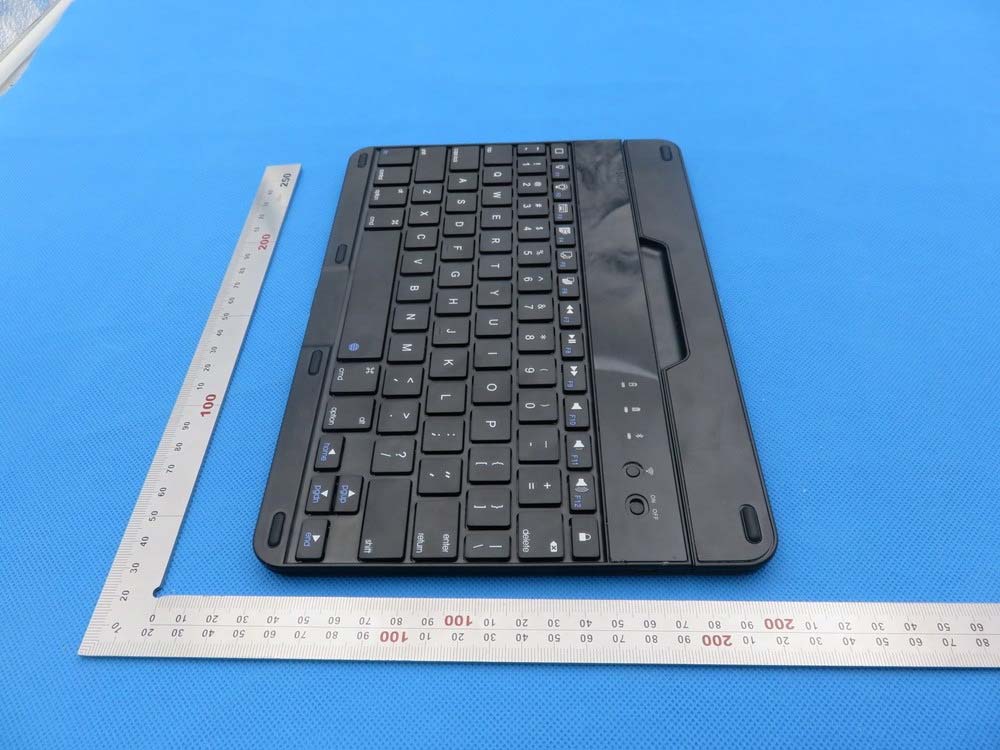

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2ACGLK561C

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

NameSpecificationTolorenceQTY.Location PCBK-561A_V4.0166X105/6PCS,1.2FR41 BT ModuleBCM2073030*14㎜/48PIN1 U1 ICCH4054SOT23-6 1 U2 LDOCH6221 SOT23-5 1 U3 EEPROMFT24C128A 1 U4 CAP104P O6O3,±20% 2 C6,C8 CAP105P O6O3,±20% 2 C1,C5 CAP475P O6O3,±20% 3 C2,C3,C7 RES27ΩO6O3,±1% 1 R10 RES1KO6O3,±1% 1 R3 RES2KO6O3,±1% 1 R16 RES10KO6O3,±1% 3 R4,R17,R18 RES12KO6O3,±1% 1 R2 RES510KO6O3,±1% 1 R8 RES1MO6O3,±1% 1 R9 DiodeIN414812061 D1 TriodeMMBT3904SOT-231 Q2 LEDMBY0603VRC-SA6031 LED2 LEDMBY0603VBC-2036031LED1 Parts List LEDMBY0603VBC-2036031LED1 LEDMBY06030BGC-OG6031 LED3 FPC 26PX1.0PH/H2.0㎜1 CON1 USB Micro5Pin1 J1 Switch 5X5X2.5㎜1 SW2 Switch MSS-22C02/2㎜1 S1 BT ChipBCM207301U1 Crystal24MHz1X1 CAP470P1C1 CAP3P91C2 CAP2P71C9 CAP1P82C10 C11 RES150K1R1 IND2N7H1L1 CAP1U2C5 C17 CAP100N1C3 CAP1P31C4 CAP10U4C6 C7 C16 C18 CAP4U71C12 CAP220P1C8 RES910K1R3 RES470K1R4 Module Parts List RES470K1R4 IND4U7H1L3 RES0R2R6 R9 RES10K1R7 NameSpecificationTolorenceQTY.Location Parts List CAP18P1C13 CAP20P1C14 RES1M1R2

RF Exposure evaluation Product Description:Bluetooh Wireless Keyboard Model Number: K561C FCC ID: 2ACGLK561C According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data,Emax=92.28 dBuv/m=0.041V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.041x3) 2 /(30x1)=0.0005W=0.5mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -0.5mW output power] (0.5mW /50mm) .[√2.480(GHz)]= 0.016<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: The transmitter output power formula you can refer to Part15F (K). For the maximum power, you can refer FCC test report.

RF Exposure evaluation Product Description:Bluetooh Wireless Keyboard Model Number: K561C FCC ID: 2ACGLK561C According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data,Emax=92.28 dBuv/m=0.041V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.041x3) 2 /(30x1)=0.0005W=0.5mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -0.5mW output power] (0.5mW /50mm) .[√2.480(GHz)]= 0.016<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: The transmitter output power formula you can refer to Part15F (K). For the maximum power, you can refer FCC test report.

Page 1 of 43 FCC Test Report Report No.: AGC00718150301FE03 FCC ID : 2ACGLK561C APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooh Wireless Keyboard BRAND NAME : N/A MODEL NAME : K561C, K561, K561A, K562, K562A, K562B CLIENT : SHENZHEN BAOAN XIXIANG XIN’AN YuanDa Electronic Factory DATE OF ISSUE : Apr.08,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00718150301FE03 Page 2 of 43 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.08,2015 Valid Original Report Report No.: AGC00718150301FE03 Page 3 of 43 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 6 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 6 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 28 10. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 32 10.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 32 10.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................ 32 10.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 33 10.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 33 10.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ...................................................... 34 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 36 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 38 Report No.: AGC00718150301FE03 Page 4 of 43 1. VERIFICATION OF CONFORMITY Applicant SHENZHEN BAOAN XIXIANG XIN’AN YuanDa Electronic Factory Address 5 floor, 4nd building of Wangye industrial park, Baotian 3rd road, Xixiang town, Baoan district, Shenzhen, China Manufacturer SHENZHEN BAOAN XIXIANG XIN’AN YuanDa Electronic Factory Address 5 floor, 4nd building of Wangye industrial park, Baotian 3rd road, Xixiang town, Baoan district, Shenzhen, China Product Designation Bluetooh Wireless Keyboard Brand Name N/A Test Model K561C Series Model K561, K561A, K562, K562A, K562B Different Description All the same except for the model name and color Date of test Apr.07,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Shenzhen STS Test Services Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Time Huang Apr.08,2015 Checked By Forrest Lei Apr.08,2015 Authorized By Solger Zhang Apr.08,2015 Report No.: AGC00718150301FE03 Page 5 of 43 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2.402 GHz to 2.480GHz RF Output Power -2.42dBm(Max) Bluetooth Version V3.0 Modulation GFSK Number of channels 79 Hardware Version V4.0 Software Version V1.0 Antenna Des…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
