2ACHBBC200Bluetooth Controller

www.comnavtech-ag.com Quick Guide for Bluetooth Hand Controller www.comnavtech-ag.com 1. Indicator light ⚫ The two indicator lights are located at the top-left corner. ⚫ The left light flashes red to indicate Bluetooth pairing mode. To enter pairing mode, press and hold the Autosteer control button until the red light starts flashing. The light stops flashing when pairing is successful or if no connection is made for an extended period. ⚫ The right indicator light flashes green continuously, indicating that the controller is successfully connected. 2. Autosteer control button Short press to turn on or off autosteer. If you click by mistake, you can hold for five seconds to cancel (It is equivalent to not pressing it). All guidelines support enabling/disabling Autosteer using the controller. 3. Create a new straight guideline button Quickly create a new Straight guideline. If there is already a running www.comnavtech-ag.com guideline, the current guideline will be ended, and the interface for creating a new straight guideline will be entered. If you click by mistake, you can hold for five seconds to cancel (it is equivalent to not pressing it). 4. Quick AB point confirm button After clicking to create a new Straight guideline, short-press once to make point A. After driving to the appropriate place, short-press again to mark point B. Only available in AB line mode. 5. Nudge or Turn around button Short press within two seconds: After successfully setting the nudge value on the main interface of the software, short press within two seconds the left or right button, and the guide line will move left or right correspondingly by the set value. Only available in Straight/Curve/A+ Heading guideline. Long press for more than two seconds: Quickly make a U-turn to the left or right in the direction of the vehicle travel with one click in AB line and A+ modes. Note: The left or right directions are respectively the left or right of the current direction of the car's head. (The autosteer control button is on the top) www.comnavtech-ag.com 6.Bluetooth Pairing Guide Open Bluetooth Settings: After entering the software, navigate to the Menu – Hardware - Bluetooth interface. Enable the Bluetooth option. Enter Pairing Mode: Press and hold the Autosteer control button to enter Bluetooth pairing mode. (The top-left indicator light will flash red) Initiate Pairing: In the software, click the Connect option to begin automatic pairing. Once paired, the software will display a "Connected" status. FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interferenc (2)This device must accept any interference received, including interference that may cause unde operation. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF warning for Portable device: The device has been evaluated to meet general RF exposure requirment. The device can be used in portable exposure condition without restriction.

Company: ComNav Technology Ltd. Add: Building 2, No.618 Chengliu Middle Rd. shanghai, China Tel: +86-21-51079100-1010 FAX: +86-21-54309582 Email: [email protected] Attestation Letter Date: 2026/06/11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911 (d) (5) (i) (ii) Filing FCC ID: 2ACHBBC200 ComNav Technology Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. ComNav Technology Ltd. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. ComNav Technology Ltd. (“the applicant”) certifies that the equipment does not use Kaspersky's software information. Sincerely, Signature: Contact Person: xiaohui Yang Title : Chief Engineer Office

U.S. AGENT LETTER OF ATTESTATION Date: 2026/06/11 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2ACHBBC200 ComNav Technology Lt d. (“the Applicant”) certifies that, as of the date of the filing of the application, Iconsigh is our designated U.S. agent for service of process for the above referenced FCC ID. ComNav Technology Ltd. (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Address: 2310 Homestead Road, Suite C1, Los Altos, CA 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: ComNav Technology Ltd. Address: Building 2, No.618 Chengliu Middle Rd. shanghai, China FRN: 0023666381 Tel: +86-21-51079100-1010 Email: [email protected] Signed by (printed name): xiaohui Yang Signature:

QA-FR-170-B Company: ComNav Technology Ltd. Add: Building 2, No.618 Chengliu Middle Rd. shanghai, China Tel: +86-21-51079100-1010 FAX: +86-21-54309582 Email: [email protected] FCC Authorization Date: 2026/06/11 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, ComNav Technology Ltd., hereby authorizes Bay Area Compliance Laboratories Corp. (Kunshan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Kunshan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Print Name: xiaohui Yang Title: Chief Engineer Office

QA-FR-171-A Company: ComNav Technology Ltd. Add: Building 2, No.618 Chengliu Middle Rd. shanghai, China Tel: +86-21-51079100-1010 FAX: +86-21-54309582 Email: [email protected] FCC Confidential Authorization Date: 2026/06/11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ACHBBC200 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, ComNav Technology Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Print Name: xiaohui Yang Title: Chief Engineer Office

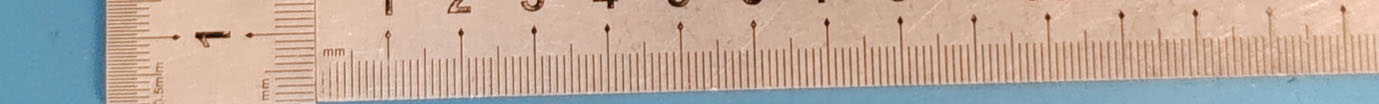

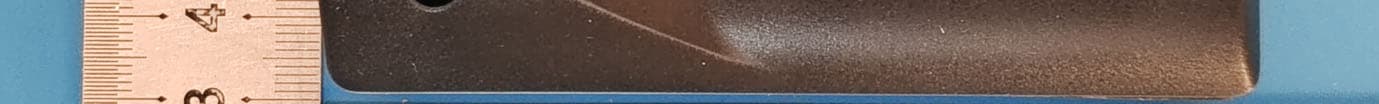

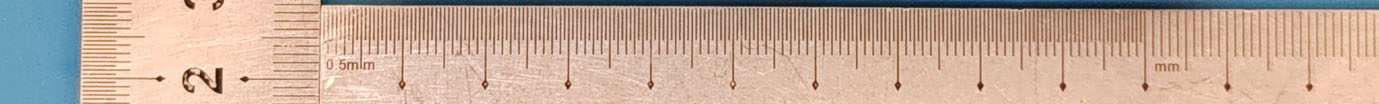

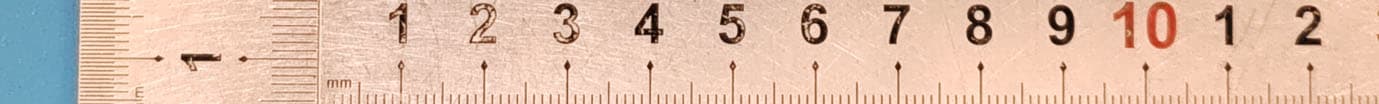

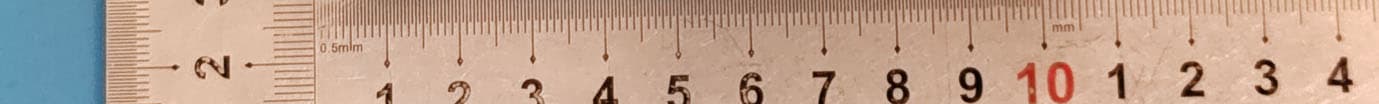

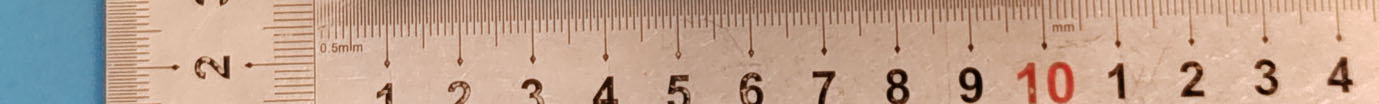

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA260611001 1 / 3 EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA260611001 2 / 3 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA260611001 3 / 3

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA260611001 1 / 2 EXHIBIT B - EUT INTERNAL PHOTOGRAPHS BLE Antenna Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA260611001 2 / 2

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA260611001-00A Page 13 of 47 FCC §1.1307(b) & §2.1093 - RF EXPOSURE Applicable Standard According to§2.1093and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f (GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Calculated Data: Mode Frequency Range (MHz) Max Tune-up Conducted Power Calculated Distance (mm) Calculated Value Threshold (1-g SAR) SAR Test Exclusion (dBm) (mW) BLE 2402-2480 -0.1 0.98 5 0.3 3.0 Yes Note: 1. The above tune up power were declared by the manufacturer. Result: The device meets the exemption requirement.

Tel:021-54266190 Web:www.zxsignalplus.com Antenna Test Report Signal Plus Technology Co.,Ltd Adress:Room 201, Building B, No 2163, WanYuan Road,MinHang District, Shanghai China 201103 Model： BC200-main ant Tel:021-54266190Web:www.zxsignalplus .com Data Preview Freq.(MHz)240024102420243024402450 VSWR9.9710.3510.6410.8910.9911.27 Gain(dBi)-6.48-6.10-6.40-5.76-5.87-5.33 Eff. %6.696.956.056.696.537.31 Freq.(MHz)24602470248024902500 VSWR11.4211.6211.8011.9912.22 Gain(dBi)-4.70-5.60-5.37-5.99-5.95 Eff. %8.427.088.157.117.35 Tel:021-54266190Web:www.zxsignalplus.com 1.RFFixtureExperiment 1.1TestSetup 1.1.1VNATestSetup VSWRandReturnLossmeasurements(S11)wereperformedusingan KeySightE5071CNetworkAnalyzer.Theisolationbetweenantennasisalso tested.Thetestingwasperformedwithapparatusinfreespace. 1.1.2AnechoicChamberTestSetup Thegainoftheantennawasmeasuredintheanechoicchamber. Thechamberprovideslessthan–30dBreflectivityfrom400MHzthrough 6GHz.Thechambersizeis:7m*4m*3m.Themeasurementresultsare calibratedusingaleakywavehornstandard.Wecanmeasuretheantenna gainandefficiencyaccurately. HornAntenna Tel:021-54266190Web:www.zxsignalplus.com 2.AntennaSolution X Z Y--out · Tel:021-54266190Web:www.zxsignalplus.com S11 Radiationpatterns:(2400/2410/2420/2430/2440/2450 /2460/2470/2480/2490/2500MHz) 24003DHE2 24103DHE2 Tel:021-54266190Web:www.zxsignalplus.com 24203DHE2 24303DHE2 24403DHE2 24503DHE2 Tel:021-54266190Web:www.zxsignalplus.com 24603DHE2 24703DHE2 24803DHE2 24903DHE2 Tel:021-54266190Web:www.zxsignalplus.com 25003DHE2

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S. Government. Page 1 of 47 FCC PART 15.247 TEST REPORT For ComNav Technology Ltd. Building 2, No.618 Chengliu Middle Rd. shanghai, China FCC ID: 2ACHBBC200 Report Type: Original Report Product Name: Bluetooth Controller Report Number: RKSA260611001-00A Report Date: 2026-07-28 Reviewed By: Jenny Yang Approved By: Kyle Xu Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu Province, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA260611001-00A Page 2 of 47 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 9 EXTERNAL I/O CABLE.................................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 TEST EQUIPMENT LIST ......................................................................................................................................... 11 SUMMARY OF TEST RESULTS ............................................................................................................................. 12 FCC §1.1307(b) & §2.1093 - RF EXPOSURE ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS............................................................................. 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST SYSTEM SETUP .................................................................................................................................................. 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 16 TEST PROCEDURE ...................................................................................................................................................... 17 TEST RESULTS SUMMARY .......................................................................................................................................... 17 TEST DATA: SEE APPENDIX ....................................................................................................................................... 17 FCC §15.247(a) (2) – 6 dB EMISSION BANDWIDTH ............................................................................................ 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST PROCEDURE .......................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA260611001 1 / 2 EXHIBIT C - TEST SETUP PHOTOGRAPHS Radiated Emissions (Below 30 MHz) Radiated Emissions (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA260611001 2 / 2 Radiated Emissions (1 GHz-18 GHz) Radiated Emissions (18 GHz-25 GHz)
