2ACHK-02110113802.11abgn Mini PCIe module

WPEA-121N PRODUCT SPECIFICATION Standard IEEE802.11a; IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface PCI Express Form Factor PCIe half mini card Data Rate 802.11b: 11, 5.5, 2, 1 Mbps; 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 15 for HT20MHz MCS 0 to 15 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Techniques 802.11b: CCK, DQPSK, DBPSK 802.11a/g: 64 QAM, 16 QAM, QPSK, BPSK 802.11n: 64 QAM, 16 QAM, QPSK, BPSK Network architecture Infrastructure mode Operating Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan 5GHz 12: USA 19: EU 8: Japan Frequency Range 2.4G 2.412 ~ 2.4835 GHz 5G 5.15 ~ 5.85 GHz Transmit Output Power -2x2(Tolerance:+-2dBm) 802.11b 17dBm@11M 802.11a 5180,5240,5320,5400MHz 12dBm@54M 5500,5600,5700,5825MHz 11dBm@54M 802.11g 16dBm@54M 802.11n(measured by 1 spatial) 2.4G 15dBm@MCS7_HT20 14dBm@MCS7_HT40 5G HT20: 5180,5240MHz 12dBm@MCS7 5320,5400MHz 11dBm@MCS7 5500,5700MHz 10dBm@MCS7 5745,5825MHz 9dBm@MCS7 HT40: 5180,5240MHz 11dBm@MCS7 5320,5400MHz 10dBm@MCS7 5500,5700MHz 9dBm@MCS7 5745,5825MHz 8dBm@MCS7 Transmit Output Power -2x2(Tolerance:+-2dBm) 802.11n(measured by 2 spatial) 2.4G 17dBm(MCS7_HT20) 16dBm(MCS7_HT40) 5G HT20: 5180,5240MHz 15dBm@MCS15 5320,5400MHz 14dBm@MCS15 5500,5700MHz 11dBm@MCS15 5745,5825MHz 11dBm@MCS15 HT40: 5180,5240MHz 14dBm@MCS15 5320,5400MHz 13dBm@MCS15 5500.5700MHz 11dBm@MCS15 5745,5825MHz 11dBm@MCS15 Receiver Sensitivity 802.11b -85dBm@11M 802.11a -76dBm@54M 802.11g -76dBm@54M 802.11n 2.4G -90dBm@MCS0_HT20 -75dBm@MCS7_HT20 -88dBm@MCS0_HT40 -72dBm@MCS7_HT40 5G -90dBm@MCS0_HT20 -74dBm@MCS7_HT20 -89dBm@MCS0_HT40 -71dBm@MCS7_HT40 Security WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit, IEEE. 802.1x with EAP support (LEAP, WPA2/AES with EAP-TLS, PEAP-MSCHAPv2 , EAP-FAST, single-sign-on with LEAP) ) Cisco CCX CCX V5 support Radio stream 2x2 multiple-input multiple-output (MIMO) with two spatial streams Operating Voltage 3.3 V ±10% I/O supply voltage OS supported Windows 2000/XP/Vista/Win7/ Linux Power Consumption TX Mode: 600mA RX Mode: 237mA Associated Idle: 11mA RF-off Mode: 9mA Antenna Type 2 U.FL RF connectors Antenna 1Ant. TypePIFAModel No. Peak Gain (dBi)2.4G-2.45.15~5.25GHz-5.15.725~5.850GHz-3.6 2Ant. TypePIFAModel No. Peak Gain (dBi)2.4G-2.45.15~5.25GHz-5.15.725~5.850GHz-3.6 PMT0073 PMT0073 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device is restricted to indoor use. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations (e.g. Verification , Doc) of the host device to be addressed by the integrator/manufacturer. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8…

Text truncated - open the document above for the full version.

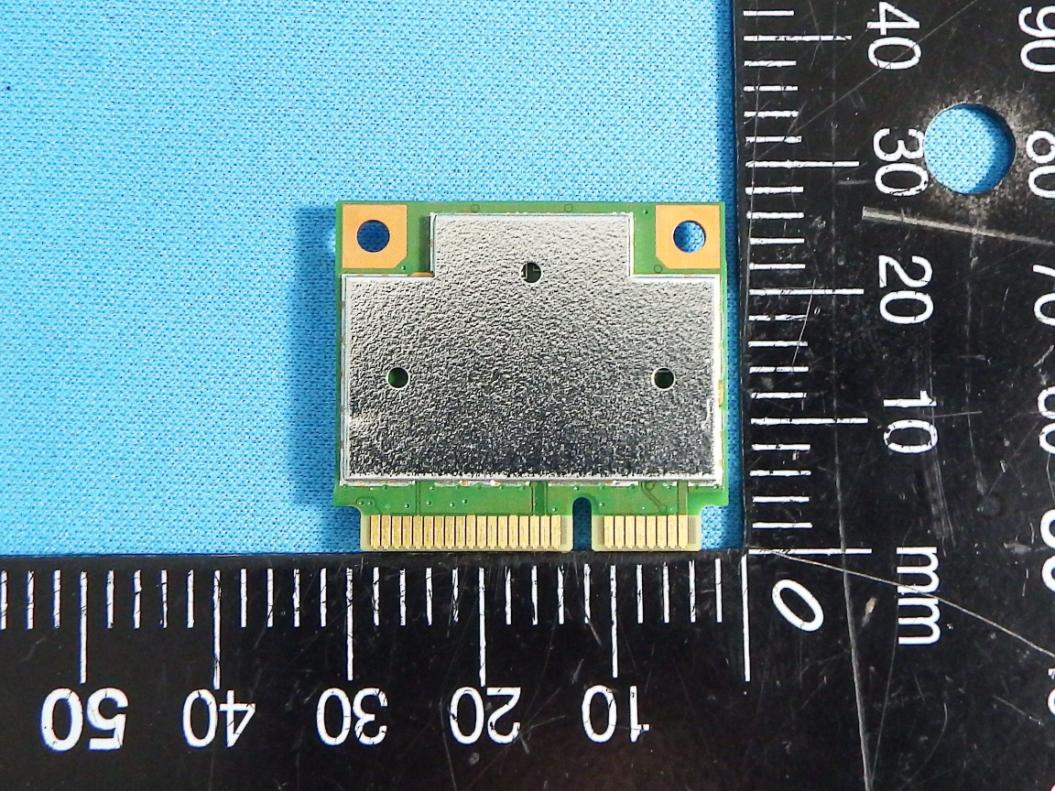

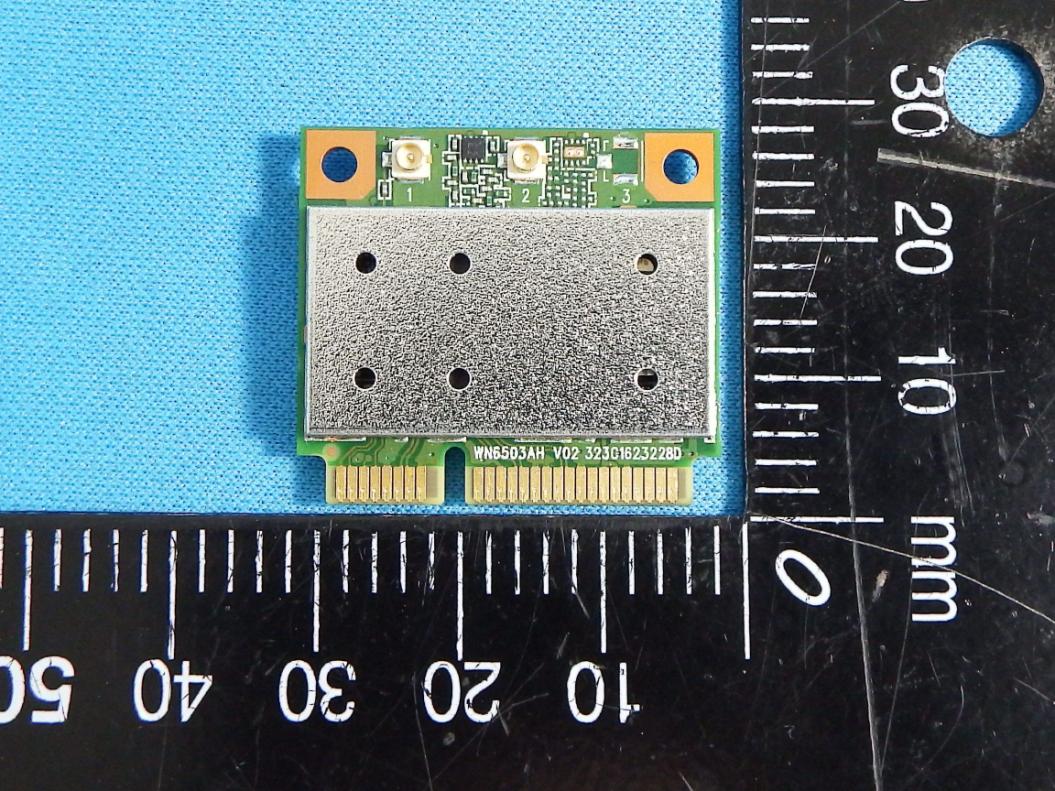

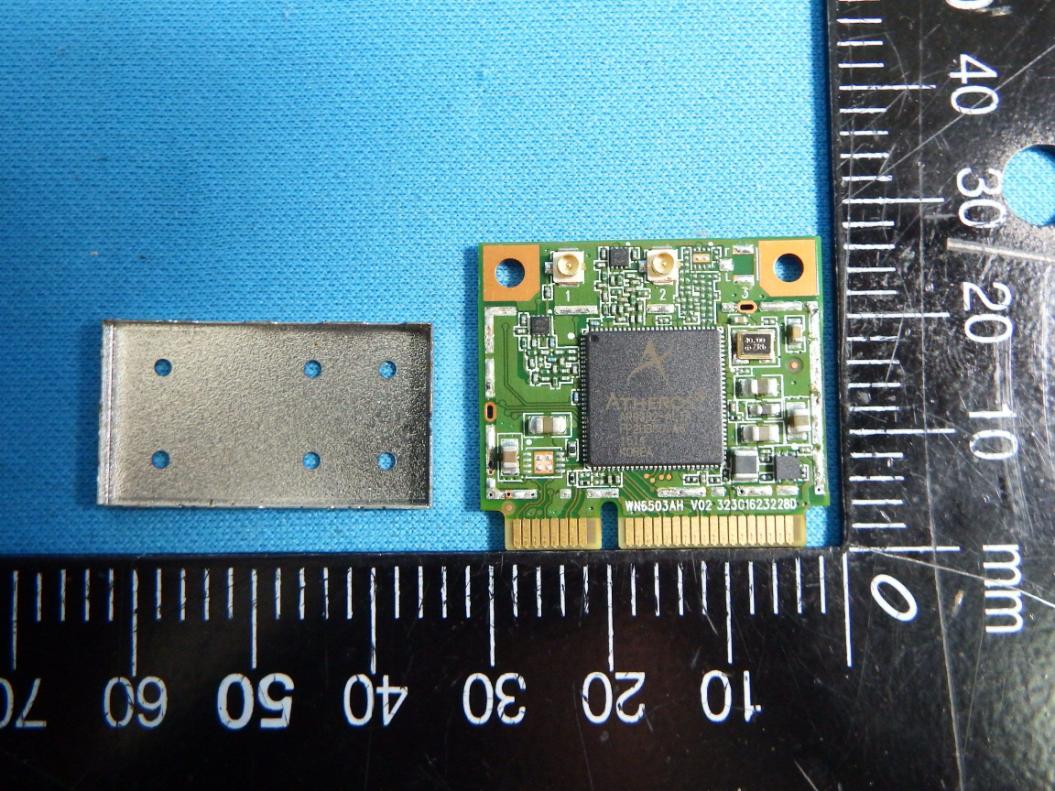

Report No. : EP581324 SPORTON International Inc. Page Number : B1 of B9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP581324 SPORTON International Inc. Page Number : B2 of B9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP581324 SPORTON International Inc. Page Number : B6 of B9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP581324 SPORTON International Inc. Page Number : B7 of B9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP581324 SPORTON International Inc. Page Number : B8 of B9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP581324 SPORTON International Inc. Page Number : B9 of B9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

MAC:000E8EXXXXX SN:XXXXXXXXXXXX Model No.:WPEA-121N FCC ID: 2ACHK-02110113

Report No. : EP581324 SPORTON International Inc. Page Number : B2 of B9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP581324 SPORTON International Inc. Page Number : B3 of B9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP581324 SPORTON International Inc. Page Number : B4 of B9 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Maximum Permissible Exposure Report No. : FA581324 SPORTON INTERNATIONAL INC. Page No. : 1 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Maximum Permissible Exposure Equipment : 802.11abgn Mini PCIe module Brand Name : iRay Model No. : WPEA-121N FCC ID : 2ACHK-02110113 Standard : ANSI/IEEE C95.1 Applicant Manufacturer : iRay Technology (Shanghai) Ltd. RM 202, Building 7, No. 590, Ruiqing RD., Pudong, Shanghai, China The product sample received on Aug. 13, 2015 and completely tested on Oct. 06, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI/IEEE C95.1 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager Maximum Permissible Exposure Report No. : FA581324 SPORTON INTERNATIONAL INC. Page No. : 2 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 HUMAN EXPOSURE ASSESSMENT ................................................................................................... 4 1.1 Maximum Permissible Exposure ............................................................................................................ 4 Maximum Permissible Exposure Report No. : FA581324 SPORTON INTERNATIONAL INC. Page No. : 3 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FA581324 Rev. 01 Initial issue of report Oct. 23, 2015 Maximum Permissible Exposure Report No. : FA581324 SPORTON INTERNATIONAL INC. Page No. : 4 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   Maximum Permissible Exposure Report No. : FA581324 SPORTON INTERNATIONAL INC. Page No. : 5 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (2.4G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 2 20.56 2400-2483.5 g 2412-2462 1-11 [11] 2 17.69 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 21.55 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 17.02 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) 802.11n (HT20) 2 18.84 18.21 21.55 0.61 22.16 0.03269 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains Maximum Permissible Exposure Report No. : FA581324 SPORTON INTERNATIONAL INC. Page No. : 6 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (5.2G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 5150-5250 a 5180-5240 36-48 [4] 2 11.09 5150-5250 n (HT20) 5180-5240 36-48 [4] 2 11.91 5150-5250 n (HT40) 5190-5230 38-46 [2] 2 11.05 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) 802.11n (HT20) 2 9.10 8.69 11.91 -0.59 11.32 0.00270 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains Maximum Permissible Exposure Report No. : FA581324 SPORTON INTERNATIONAL INC. Page No. : 7 of 7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissible Exposure (5.8G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5725-5850 a 5745-5825 149-165 [5] 2 14.14 5725-5850 n (HT20) 5745-5825 149-165 [5] 2 13.51 5725-5850 n (HT40) 5755-5795 151-159 [2] 2 10.69 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) 802.11a 2 11.76 10.40 14.14 -0.59 13.55 0.00451 Maximum P…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : 1 of 72 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : 802.11abgn Mini PCIe module Brand Name : iRay Model No. : WPEA-121N FCC ID : 2ACHK-02110113 Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz 5725 MHz – 5850 MHz FCC Classification : NII Applicant Manufacturer : iRay Technology (Shanghai) Ltd. RM 202, Building 7, No. 590, Ruiqing RD., Pudong, Shanghai, China Function : Outdoor AP; Fixed P2P AP; Indoor AP; Portable Client The product sample received on Aug. 13, 2015 and completely tested on Oct. 06, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : 2 of 72 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 Emission Bandwidth ............................................................................................................................. 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Peak Power Spectral Density ............................................................................................................... 24 3.5 Transmitter Bandedge Emissions ........................................................................................................ 28 3.6 Transmitter Unwanted Emissions ......................................................................................................... 32 3.7 Frequency Stability ............................................................................................................................... 69 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 71 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : 3 of 72 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Result 0 15.203 Antenna Requirement Complied 3.1 15.207 AC Power-line Conducted Emissions Complied 3.2 15.407(a) Emission Bandwidth Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Complied 3.4 15.407(a) Peak Power Spectral Density Complied 3.5 15.407(b) Transmitter Bandedge Emissions Complied 3.6 15.407(b) Transmitter Unwanted Emissions Complied 3.7 15.407(g) Frequency Stability Complied FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : 4 of 72 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR581324AN Rev. 01 Initial issue of report Oct. 23, 2015 FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : 5 of 72 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 5150-5250 a 5180-5240 36-48 [4] 2 11.09 5150-5250 n (HT20) 5180-5240 36-48 [4] 2 11.91 5150-5250 n (HT40) 5190-5230 38-46 [2] 2 11.05 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 5725-5850 a 5745-5825 149-165 [5] 2 14.14 5725-5850 n (HT20) 5745-5825 149-165 [5] 2 13.51 5725-5850 n (HT40) 5755-5795 151-159 [2] 2 10.69 Note 1: RF output power specifies that Maximum Conducted Output Power…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR581324AN SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 EUT take a close-up
