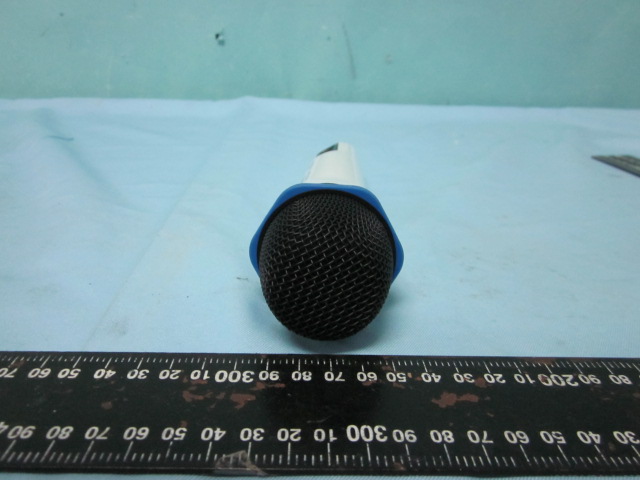

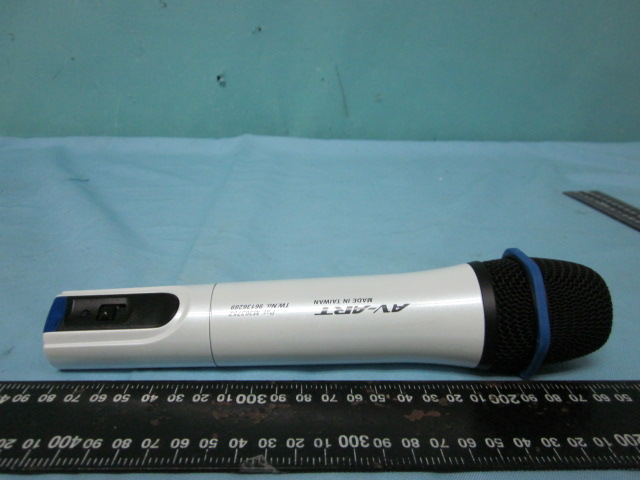

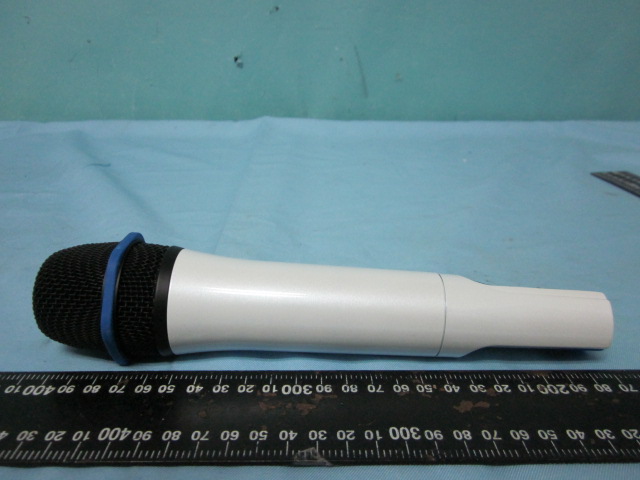

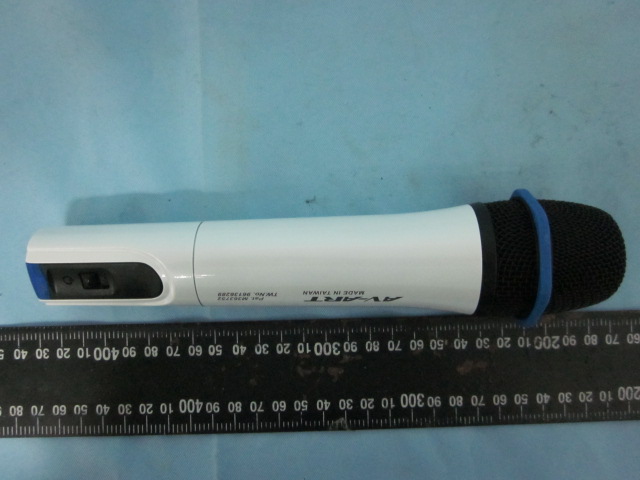

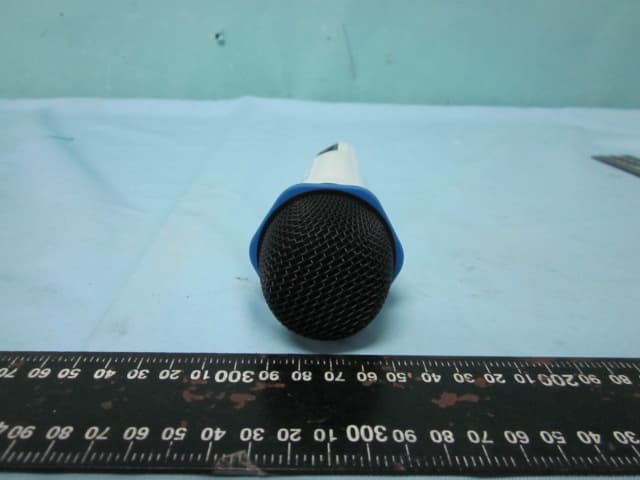

2ACHNWR930DWireless Microphone

A A V V - - A A R R T T W W R R - - 9 9 3 3 0 0 S S E E R R I I E E S S Instruction Manual Thank you for purchasing this product Please read this manual before using Guarantee included 2 PRODUCT WARRANTY Description This product is through high-quality products strict quality management and inspection, where the customers to buy the products in normal use can be according to the following guarantee. 1.By the letter of guarantee from the date of purchase within one year. In normal use failure or damaged parts replacement parts free of charge. 2.In the guarantee period, natural disaster, because of improper operation or other human factors (including non repair or replacement of damaged the company's installation site damage) the parts are damaged, or fails to provide guarantee, the guarantee period or more will charge the parts cost. 3.Generally outside the family (such as business relations, long time use business places, vehicle or ship) using site failure or not in the free repair guarantee range. 4.If malfunction, please stop using do not self demolition, so as not to affect the product quality and safety. 5.Please keep the warranty, if the loss of the company is no longer a replacement, the guarantee if no seller signature also no effect. AVART PRODUCT WARRANTY CLIENT:________ DISTRIBUTOR DATE:________ PRODUCT:________ SERIAL NUMBER:________ CONTACT:____________________________ 3 INDEX Product warranty....................................................................................2 The index .............................................................................................3 Product features ....................................................................................3 Technical specification...........................................................................4 WR-930A /WR-930D the name specification ... ....................................... 5 WM-915 the name and description of function .......................................7 Solution for fr equent asked problem.........................................................9 Product features Wireless microphone to the company's use of UHF automatic frequency and high sensitivity, its biggest characteristic is can be wired microphone equal quality and stability, can also enjoy free singing sensation. The wireless system for radio frequency of 2 32 band, A CH(Hz) and B CH (Hz), select the appropriate frequency range. Antenna streamlined microphone tube body and a hidden type can have a comfortable grip and easy battery replacement, patent design does not drain battery liquid so that the microphone is stronger. Note: Only use frequencies that at approved and legal in your country and follow this instruction manual. 4 TECHNICAL SPECIFICATION Technical data and specifications (System characteristics) Carrier Frequency Range: UHF518MHZ~928MHZ Frequency stability:±0.005% Modulation: FM Peak deviation: ±48KHZ with Audio Compandor AF Frequency Response: 50HZ~18KHZ Operation Temperature Range: ﹣10°C~55°C (Receiver characteristics) Antenna inputs:4 monopole Antenna (2Monopole Antenna with power splitter) Receiving principle: True Diversity Oscillator: PLL synthesized Receiving Sensitivity: At 12dBuV antenna input over 80dB S/N ratio Audio dynamic range:＞90dB S/N ratio : ＞100dB, at peak deviation and 50dBuV antenna input Total Harmonic Distortion :＜1% (at 1KHZ) Receiving Squelch: SQ VR (at Max):25dBuV antenna input SQ VR (at Min):10dBuV antenna input Audio output level: Balance Max. ﹣12dBV (Mic) 660ΩLoad Unbalance MAX. ﹣5dBV(Line)/ ﹣15dBV(Mic)/660ΩLoad Power Supply:12VDC 400mA±50mA SIZE (L×W×H) about43×30×7cm Weight: about 1857g (Transmitter Characteristic) RF Power output: 10dbm (High)/ 4dbm (Low) (Hand-Held) 10dbm (pocket) Oscillator: PLL synthesized Current consumption: 150mA (High)/60mA (Low) (Hand-Held) 95mA (Pocket) Battery:DC1.5V(AA) × 2 Size: Hand-Held:ψ53×240mm Pocket:112×66×25mm (L×W×H) Weight: approx.390g (Hand-Held) (without battery) approx.86g (pocket) (without battery) 5 WR-930A/WR-930D SPECIFICATION 1.Power switch: Operate the receiver (when receiver turns on, the light is bright.) 2.Volume controller: Control the level of volume (before switching on the power, please turn the volume to min. to protect loudspeakers of your system.) 3.Diversity A.B. Indicator: This LED lights to indicate that A or B RF signal is being received. Interference Indicator: This LED lights with red color to indicate the chosen frequency are interfered, you must to change anther frequency from channel selector. 4.AF level signal lamp: Indicate Audio signal level. The audio signal with microphone emits, the LED is bright. 5.32 channels selection: Offer 32channels.A CH is from 614 to 630 M Hz: B CH is between 677 and 693 M Hz. (Set the receiver and transmitters in the same channel.) 6.Antenna: Fixed antenna turns 180°. The best position is right angle (90°),referring to the picture as below. ----------------------------------------------------------------------------------------------------------------------------------- 1.Balanced /Unbalanced volume switch: ”LOW” represents audio output; ”HIGH” stands for AUX output. 2. XLR output: Output for the XLR audio signal. 3.φ6.3 A CH+B CH mixing audio output. 4.”SQ”controller: Level of SQ can be reset if needed. Increase muting in clockwise to avoid signal interference, but shortening the best situation after assembling.) 5. DC power supplier plug: connecting DC power adapter (DC 12~15V, 800mA) 6.Antenna: Fixed antenna turns 180°. The best position is right angle (90°),referring to the picture as below. 6 7 WM-915 DESCRIPTION OF FUNCTION 1.Microphone head: Protect microphone unit and reduce noise “POP” 2.Color-coded protection ring: avoid microphone rolling on the surface and help to distinguish different channels. 3.Sound head: the sound signal is converted into electronic signals. This product uses a separate portfolio. 4.M icrophone body: Metal or plastic material (Metal material present…
