2ACIX-PANWireless Active Soundbar

Welcome to Bowers & Wilkins and the Panorama 3 Thank you for choosing Bowers & Wilkins. When John Bowers first established our company he did so in the belief that imaginative design, innovative engineering and advanced technology were keys that could unlock the enjoyment of audio in the home. His belief is one that we continue to share and it inspires every product we design. The Panorama 3 is a very high performance product that rewards thoughtful installation, so we suggest that you take some time to read this manual before you begin. Panorama 3 is a network connected, active multi-channel Atmos sound bar that enables both TV audio and other audio sources and streams to played without the need for conventional amplification components. The Panorama 3 is primarily intended to be controlled using the Bowers & Wilkins Home iOS or Android app, however commonly used control functions are also available via buttons on the top of the speaker. When connected directly to a television, Panorama 3 volume can be controlled by the television remote control. Before you begin installing and configuring your Panorama 3, please download and install the Bowers & Wilkins Home app on your iOS or Android device. It is only possible to install and configure the Panorama 3 using the Home app. With your Panorama 3 sound bar you can: • Play any audio from a TV connected to the Panorama 3 via HDMI or optical connections • Play audio streams via AirPlay2 directly from compatible devices • Play audio streams via either a wired or wireless network connection directly from a variety of music streaming services or from local network storage devices. • Play music streamed from an OS X, iOS, Android, Windows or Windows Mobile device using Bluetooth wireless technology. This manual will tell you everything you need to know to get the most from your Panorama 3. It begins by listing the contents of the Panorama 3 carton. 1. Panorama 3 Carton Contents • 1 x Panorama 3 sound bar • 1 x 2m mains power cables • 1 x 1m HDMI cable • 1 x mounting bracket hardware pack • 1 x document pack Environmental Information This product complies with international directives, including but not limited to the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment, the Registration, Evaluation, Authorisation and restriction of Chemicals (REACH) and the disposal of Waste Electrical and Electronic Equipment (WEEE). Consult your local waste disposal authority for guidance on how properly to recycle or dispose of this product. 2. Getting to know your Panorama 3 The Panorama 3 sound bar is designed for very high performance left, right, centre, LFE and Atmos height channels. The sound bar is primarily intended to be mounted directly below a television screen using its supplied wall mounting hardware, but may also be placed on a shelf or furniture unit. Placing the Panorama 3 in cabinetry that covers the height channels can significantly limit the audio performance of the speaker. Note: If using a shelf or furniture unit, ensure that it is strong enough securely to support the weight of the sound bar. The Panorama 3 sound bar requires connection to a mains power supply. A mains cable appropriate for your territory is included in the carton. The Panorama 3 incorporates a connection panel on its rear panel incorporating mains power, HDMI, network and digital audio input sockets. Note: The rear panel SERVICE socket is intended for diagnostic and service use only. It cannot be used for audio data. Your Panorama 3 sound bar is primarily intended to be controlled by the TV remote control or the Bowers & Wilkins Home app, however on-body buttons provide volume controls and play/pause control. A reset button adjacent to connection sockets enables the Panorama 3 to be returned to its default factory settings. 2. Wall Mounting your Panorama 3 If your Panorama 3 is to be wall mounted, the bracket screw hole positions on the wall must first be established. Use a spirit level to ensure the bracket is level before marking the hole positions. Drill and plug the wall for appropriate screws. A second person to assist with marking holes and lifting the Panorama 3 is recommended. Use wall plugs that are appropriate for the type of wall construction and ensure that the wall, plugs and screws are capable of reliably supporting the weight of the Panorama 3. If you have any doubt over your ability to mount the bracket securely to the wall you should engage specialist help. Once the bracket has been secured to the wall, the Panorama 3 can be lifted onto the bracket and secured. 3. Connecting your Panorama 3 Use the mains cables supplied to connect the Panorama 3 to a mains power socket. The sound bar will switch on automatically when mains power is connected and enter its default configuration state, indicated by its indicator. If your Panorama 3 installation requires either a wired or wireless network connection or television audio or connection, the network and television audio cables should be connected to the Panorama 3 via its rear panel sockets. The Bowers & Wilkins Home app provides step by step guidance on configuring Panorama 3 connections. 4. Setting up your Panorama 3 Once connected to mains power your Panorama 3 can be configured and set up using the Home app. If you have not already downloaded and installed the app on your iOS or Android device please do so now. The Home app will guide you through the following configuration and setup stages so that your Panorama 3 is ready for use. • Product Identification: Enables your Panorama 3 to be named and the type of installation to be specified. • Network Connection: Configures your Panorama 3 appropriately to connect to your home network. • Music Streaming Setup: Enables your Panorama 3 to connect to and stream audio from a range of music streaming services or from local network storage devices. • Input Configuration: Configures your Panorama 3 appropriately to use your television audio…

Text truncated - open the document above for the full version.

English – Important safety instructions Explanation of Graphical Symbols CAUTION: To reduce the risk of electrical shock, do not dismantle the apparatus. There are no user serviceable parts inside. Refer servicing to qualified personnel. The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute an electrical shock to persons. The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus. 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 6 Clean only with a dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarised or grounding-type plug. A polarised plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Only use attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 Unplug the apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15 In cases where the apparatus is not provided with a switch to disconnect it from the AC mains power supply, disconnect the apparatus fully by switching off the mains wall outlet or removing the power plug from the receptacle. The mains power outlet and plug must remain accessible at all times. Note: A standby switch does not disconnect the apparatus from the power supply. 16 Replace fuses only with the same or equivalent type and specification as marked on the apparatus. 17 Apparatus with Class I construction must only be connected to a power outlet having a protective earthing (grounding) connection. Apparatus marked with the double insulated symbol does not require an earthing connection. 18 Some products are intended for sale in more than one country and are supplied with more than one power cable. Use only the type applicable to your location. 19 Some products are extremely heavy. Have regard to this and always adopt the correct posture when lifting. Wear protective gloves and, if necessary, two or more people should be used to lift the product. 20 Before handling the product, remove rings, bracelets and any other adornments that might damage the surfaces. 21 Loudspeaker drive units produce stray magnetic fields. Do not place any article that may be damaged by such a magnetic field (audio and video tapes, credit and other swipe cards and the like) within 0.5m (2 feet) of the apparatus. The magnetic field will cause distortion of pictures on cathode ray televisions and computer monitors. Plasma, LED and OLED screens are not affected. 22 This product is only designed to work at an ambient temperature of up to 45°C. 23 No naked flame sources, such as lighted candles, should be placed on the apparatus. 24 Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Warranty Bowers & Wilkins products are designed and manufactured to the highest quality standards. However, if something does go wrong with the product, B&W Group Ltd. and its national distributors warrant free of charge labour (exclusions may apply) and replacement parts in any country served by an official Bowers & Wilkins distributor. This warranty complements any national or regional legal obligations of dealers or national distributors and does not affect your statutory rights as a customer. Some regional legal obligations outside the control of B&W Group Ltd. may reduce the scope or time of the terms outlined below. In particular: • Special warranty terms apply in the Russian Federation. • Specific import regulations apply in Brazil. • See reverse of document for specific warranty instructions that apply in Australia. Please contact the relevant national distributor for details. Terms and Conditions This warranty: 1 is valid only for products purchased from an authorised Bowers & Wilkins retailer or dealer. 2 is valid from the date of purchase for a period of five years for passive loudspeakers and two years for powered loudspeakers, electronics and headphones, except that exclusions apply in certain countries in line with national law. Please consult the Bowers & Wilkins distributor in your country for detailed information. 3 is limited to the repair of the equipment. Neither transportation, nor any other costs, nor any risk for removal, transportation and installation of products is covered by this warranty. 4 is only valid for the original owner. It is not transferable. 5 will not be applicable in…

Text truncated - open the document above for the full version.

Software Security Description

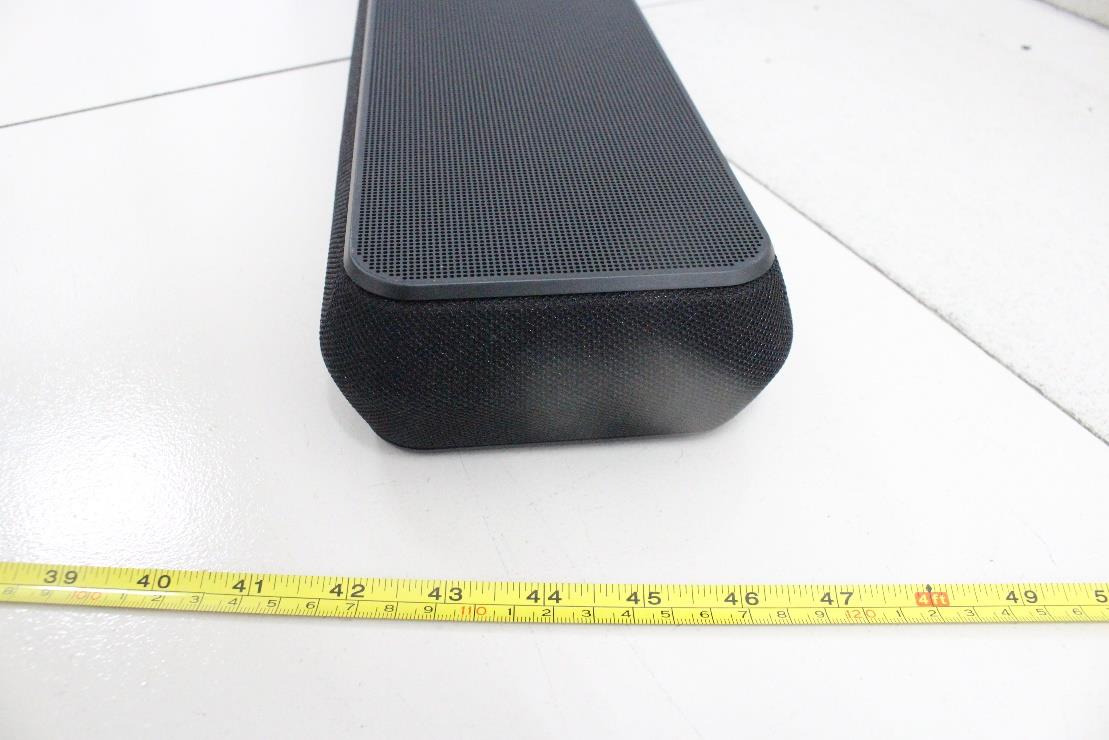

External Photo

Internal Photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch GZCR2103000006AT Page: 1 of 8 FCC ID: 2ACIX-PAN Kobe Jian EMC Laboratory Manager Evaluation REPORT Application No.: GZCR2103000006AT Applicant: B & W Group Ltd Address of Applicant: Dale Road, Worthing, West Sussex BN11 2BH, United Kingdom Manufacturer: B & W Group Ltd Address of Manufacturer: Dale Road, Worthing, West Sussex BN11 2BH, United Kingdom Factory: Guoguang Electric Co., Ltd. Address of Factory: No.8 Jinghu Road, Xinya Street, Huadu Reg, Guangzhou, China Equipment Under Test (EUT): EUT Name: Wireless Active Soundbar Model No.: Panorama 3 Trade mark: Standard(s) : 47 CFR Part 1, subpart I 1.1310 Date of Receipt: 2021-03-09 Date of Test: 2021-03-19 to 2021-03-28 Date of Issue: 2021-04-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Application No..: GZCR2103000006AT Page: 2 of 8 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Revision Record Version Chapter Date Modifier Remark 01 2021-04-16 Original Authorized for issue by: Tested By Curry Wu/Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Application No..: GZCR2103000006AT Page: 3 of 8 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 1 General Information 1.1 Details of E.U.T. Operation Frequency: 2402MHz to 2480MHz 5150MHz to 5250MHz 5250MHz to 5350MHz 5470MHz to 5725MHz 5725MHz to 5800MHz Modulation Type: BT Classic: GFSK, p/4DQPSK, 8DPSK BLE: GFSK 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11a: OFDM(BPSK/QPSK/16QAM/64QAM) IEEE 802.11n: OFDM(BPSK/QPSK/16QAM/64QAM) IEEE 802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM) Antenna type: Integral Antenna Antenna gain: Antenna1：6.9dBi for 5G band, 4.4dBi for 2.4G band Antenna2：5.2dBi for 5G band, 2.7dBi for 2.4G band Two antennas support MIMO synchronous transmission. Software version SUE V0.19 Hardware version BW_ALBD_MAIN_PV Sample NO. A3 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Application No..: GZCR2103000006AT Page: 4 of 8 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. RF Exposure Compliance Requirement 1. Standard requirement Systems operating under the provis…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 1 of 121 FCC ID: 2ACIX-PAN Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZCR2103000006AT Applicant: B & W Group Ltd Address of Applicant: Dale Road, Worthing, West Sussex BN11 2BH, United Kingdom Manufacturer: B & W Group Ltd Address of Manufacturer: Dale Road, Worthing, West Sussex BN11 2BH, United Kingdom Factory: Guoguang Electric Co., Ltd. Address of Factory: No.8 Jinghu Road, Xinya Street, Huadu Reg, Guangzhou, China Equipment Under Test (EUT): EUT Name: Wireless Active Soundbar Model No.: Panorama 3 Trade mark: Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2021-03-09 Date of Test: 2021-03-19 to 2021-03-28 Date of Issue: 2021-04-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 2 of 121 Revision Record Version Chapter Date Modifier Remark 01 2021-04-16 Original Authorized for issue by: Tested By Curry Wu/Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 3 of 121 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Emission Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 4 of 121 3 Contents Page 1 Cover Page ..............................................................................................................................................1 2 Test Summary ..................................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 7 4.1 Details of E.U.T. ........................................................................................................................... 7 4.2 Description of Support Units ......................................................................................................... 7 4.3 Measurement Uncertainty ............................................................................................................ 8 4.4 Test Location ............................................................................................................................... 9 4.5 Test Facility .................................................................................................................................. 9 4.6 Deviation from Standards ............................................................................................................10 4.7 Abnormalities from Standard Conditions ......................................................................................10 5 Equipment List ..................................................................................................................................11 6 Radio Spectrum Technical Requirement ..........................................................................................14 6.1 Antenna Requirement .................................................................................................................14 6.1.1 Test Requirement: ..................................................................................................................14 6.1.2 Conclusion ..............................................................................................................................14 6.2 Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence ...............15 6.2.1 Test Requirement: .......................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 48 of 121 9 Appendix 9.1 Appendix A: 20dB Emission Bandwidth 9.1.1 Test Result Test Mode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.858 2401.541 2402.399 --- PASS 2441 0.858 2440.541 2441.399 --- PASS 2480 0.855 2479.541 2480.396 --- PASS 2DH5 Ant1 2402 1.335 2401.325 2402.660 --- PASS 2441 1.254 2440.361 2441.615 --- PASS 2480 1.287 2479.358 2480.645 --- PASS 3DH5 Ant1 2402 1.260 2401.352 2402.612 --- PASS 2441 1.263 2440.346 2441.609 --- PASS 2480 1.263 2479.349 2480.612 --- PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 49 of 121 9.1.2 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 50 of 121 DH5_Ant1_2480 2DH5_Ant1_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 51 of 121 2DH5_Ant1_2441 2DH5_Ant1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 52 of 121 3DH5_Ant1_2402 3DH5_Ant1_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 53 of 121 3DH5_Ant1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 54 of 121 9.2 Appendix B: Maximum conducted output power 9.2.1 Test Result Test Mode Antenna Channel Result[dBm] Limit[dBm] Verdict DH5 Ant1 2402 7.12 <=20.97 PASS 2441 6.88 <=20.97 PASS 2480 6.56 <=20.97 PASS 2DH5 Ant1 2402 6.21 <=20.97 PASS 2441 5.98 <=20.97 PASS 2480 5.72 <=20.97 PASS 3DH5 Ant1 2402 6.62 <=20.97 PASS 2441 6.35 <=20.97 PASS 2480 6.09 <=20.97 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 55 of 121 9.2.2 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 56 of 121 DH5_Ant1_2480 2DH5_Ant1_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 57 of 121 2DH5_Ant1_2441 2DH5_Ant1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 58 of 121 3DH5_Ant1_2402 3DH5_Ant1_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 59 of 121 3DH5_Ant1_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 60 of 121 9.3 Appendix C: Carrier frequency separation 9.3.1 Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop_2402 0.873 >=0.858 PASS Hop_2441 1.05 >=0.858 PASS Hop_2480 1.014 >=0.858 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 61 of 121 9.3.2 Test Graphs DH5_Ant1_Hop_2402 DH5_Ant1_Hop_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 62 of 121 DH5_Ant1_Hop_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 63 of 121 9.4 Appendix D: Time of occupancy (Dwell Time) 9.4.1 Test Result Test Mode Antenna Channel Burst Width [ms] Total Hops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop_2402 0.38 330 0.125 <=0.4 PASS Hop_2441 0.38 320 0.121 <=0.4 PASS Hop_2480 0.38 330 0.125 <=0.4 PASS DH3 Ant1 Hop_2402 1.63 140 0.229 <=0.4 PASS Hop_2441 1.63 170 0.278 <=0.4 PASS Hop_2480 1.63 150 0.245 <=0.4 PASS DH5 Ant1 Hop_2402 2.88 90 0.259 <=0.4 PASS Hop_2441 2.90 100 0.29 <=0.4 PASS Hop_2480 2.88 120 0.346 <=0.4 PASS 2DH1 Ant1 Hop_2402 0.39 330 0.127 <=0.4 PASS Hop_2441 0.38 330 0.127 <=0.4 PASS Hop_2480 0.38 330 0.127 <=0.4 PASS 2DH3 Ant1 Hop_2402 2.88 110 0.317 <=0.4 PASS Hop_2441 2.88 80 0.231 <=0.4 PASS Hop_2480 2.88 80 0.231 <=0.4 PASS 2DH5 Ant1 Hop_2402 2.38 130 0.309 <=0.4 PASS Hop_2441 2.38 130 0.309 <=0.4 PASS Hop_2480 2.38 100 0.238 <=0.4 PASS 3DH1 Ant1 Hop_2402 1.14 170 0.194 <=0.4 PASS Hop_2441 1.14 180 0.205 <=0.4 PASS Hop_2480 1.14 170 0.194 <=0.4 PASS 3DH3 Ant1 Hop_2402 0.38 180 0.069 <=0.4 PASS Hop_2441 0.38 170 0.065 <=0.4 PASS Hop_2480 0.38 180 0.069 <=0.4 PASS 3DH5 Ant1 Hop_2402 2.89 110 0.317 <=0.4 PASS Hop_2441 2.89 120 0.346 <=0.4 PASS Hop_2480 2.89 120 0.346 <=0.4 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 64 of 121 9.4.2 Test Graphs DH1_Ant1_Hop_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 65 of 121 DH1_Ant1_Hop_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 66 of 121 DH1_Ant1_Hop_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 67 of 121 DH3_Ant1_Hop_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 68 of 121 DH3_Ant1_Hop_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 69 of 121 DH3_Ant1_Hop_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 70 of 121 DH5_Ant1_Hop_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 71 of 121 DH5_Ant1_Hop_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 72 of 121 DH5_Ant1_Hop_2480 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 73 of 121 2DH1_Ant1_Hop_2402 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 74 of 121 2DH1_Ant1_Hop_2441 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZCR210300000602 Page: 75 of 121 2DH1_Ant1…

Text truncated - open the document above for the full version.
