2ACJ932014Bluetooth heart rate monitor

Heapsylon LLC
Bluetooth heart rate monitor - FCC ID 2ACJ932014 - Heapsylon LLC
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jun 09, 2014
Application Purpose
Original Equipment
Date of Application
Jun 09, 2014
Equipment Note
Bluetooth heart rate monitor
Frequency Range
2402.00000000 - 2480.00000000
Company
Heapsylon LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Heapsylon LLC Sensoria HRM - 32014 Manual 1.the product through the heart rate wave monitoring users to measure the user's heart rate. 2.Through the Bluetooth communication, the product can be connected and mobile phone. 3.to monitor the heart rate can be displayed on the mobile phone is accurate. 4.heart rate exceeds the upper limit alarm function, heart rate limit through the mobile phone on the APP settings; heart rate detection range:40-240 BPM. 5.when the heart rate signal automatically enters pairing mode, if a client connection is successfully established, Bluetooth into normal emission state immediately, transmission distance:10M. 6.when the heart rate signal source out of the product signal input end, about 1 minutes after the products enter the sleep mode, the Bluetooth module with extremely low power consumption, ensure the battery can be durable. Once in the heart rate signal source module, Bluetooth heart rate immediately awaken, and enter the normal working state, emission current heart rate. 7.heart rate data processing: heart rate range of this product support for the 40-240bpm, when out of the range considered invalid rate. Invalid value is detected, the heart rate numerical display will show the connection status, show unintentionally rate 8.Environmental impact / interference 1) space transmission loss: loss caused by microwave transmission process of atmospheric loss, rain and snow weather and loss caused by atmospheric refraction. 2) path of dielectric loss: A. from the room objects (including walls and floor) near the reflection and diffraction of objects; B. through the walls, floors and other obstacles in the transmission loss; Channel effect energy under the condition of high frequency, especially in the corridor People or objects in the room movement. 9.Electrical characteristics Limit parameter Min. Typ. Max. unit 1. Transmit Distance 10 ------ ----M 2. working voltage 2.5 3.0 3.3V 3. Heart rate resolution ---- +/-1 ---- Beat/min 4. Battery life(0.5 hours a day) 12-------Months 5. heart rate range 30 ---- 240 Beats/min 6.Operating Temperature For Good Accuracy 52540 FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Cover Letter(s)

Heapsylon LLC 16225 NE 87TH STREET SUITE A-10 REDMOND, WA 98052 UNITED STATES Confidentiality Request Letter Page 1 of 1 Rev 2.0 05 30, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: 2ACJ932014 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: lisa fan/ Manager Contact information / address: 16225 NE 87TH STREET SUITE A-10 REDMOND, WA 98052 UNITED STATES TEL: (425) 883-1828 FAX: (425) 883-1828 E-mail: [email protected]

External Photos

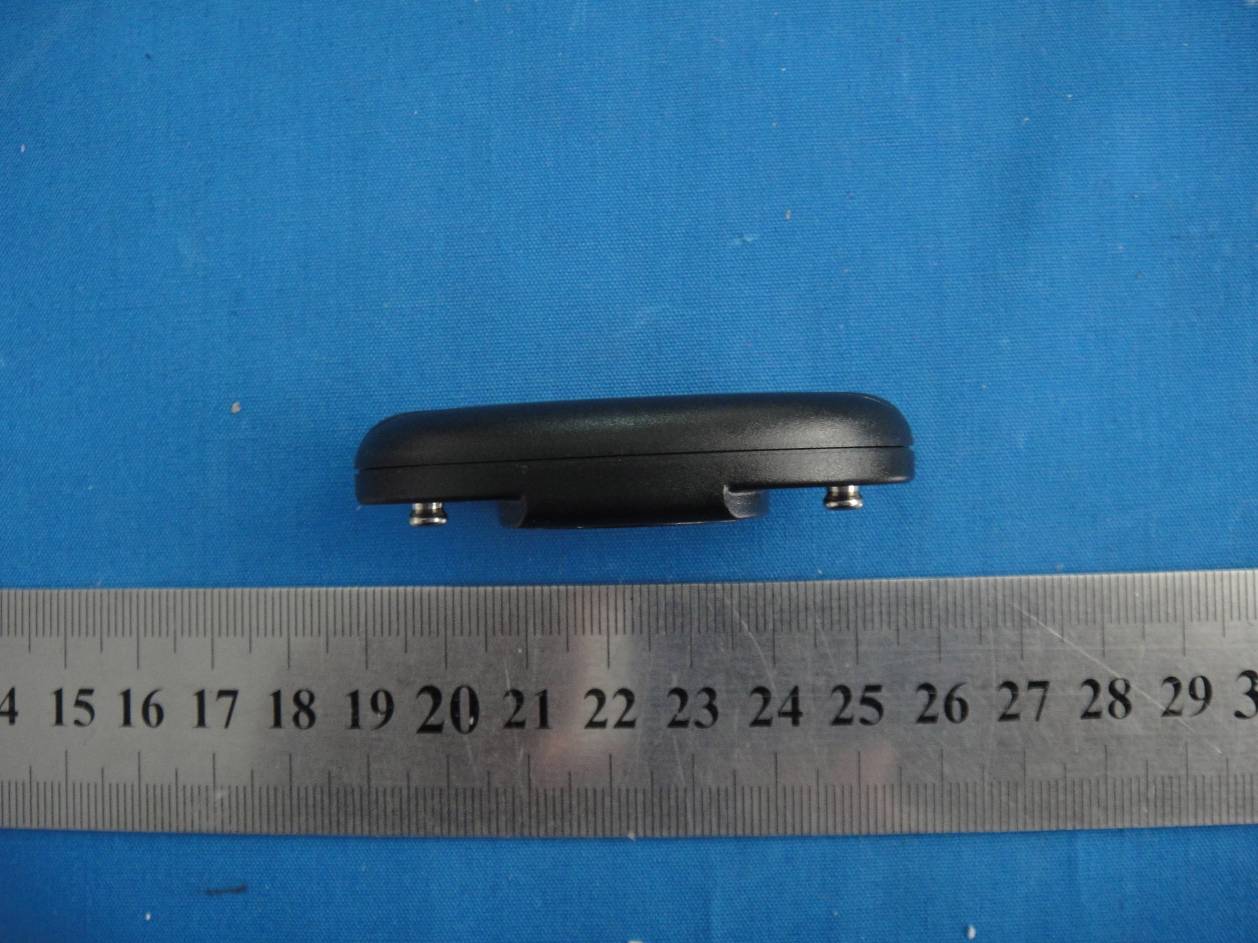

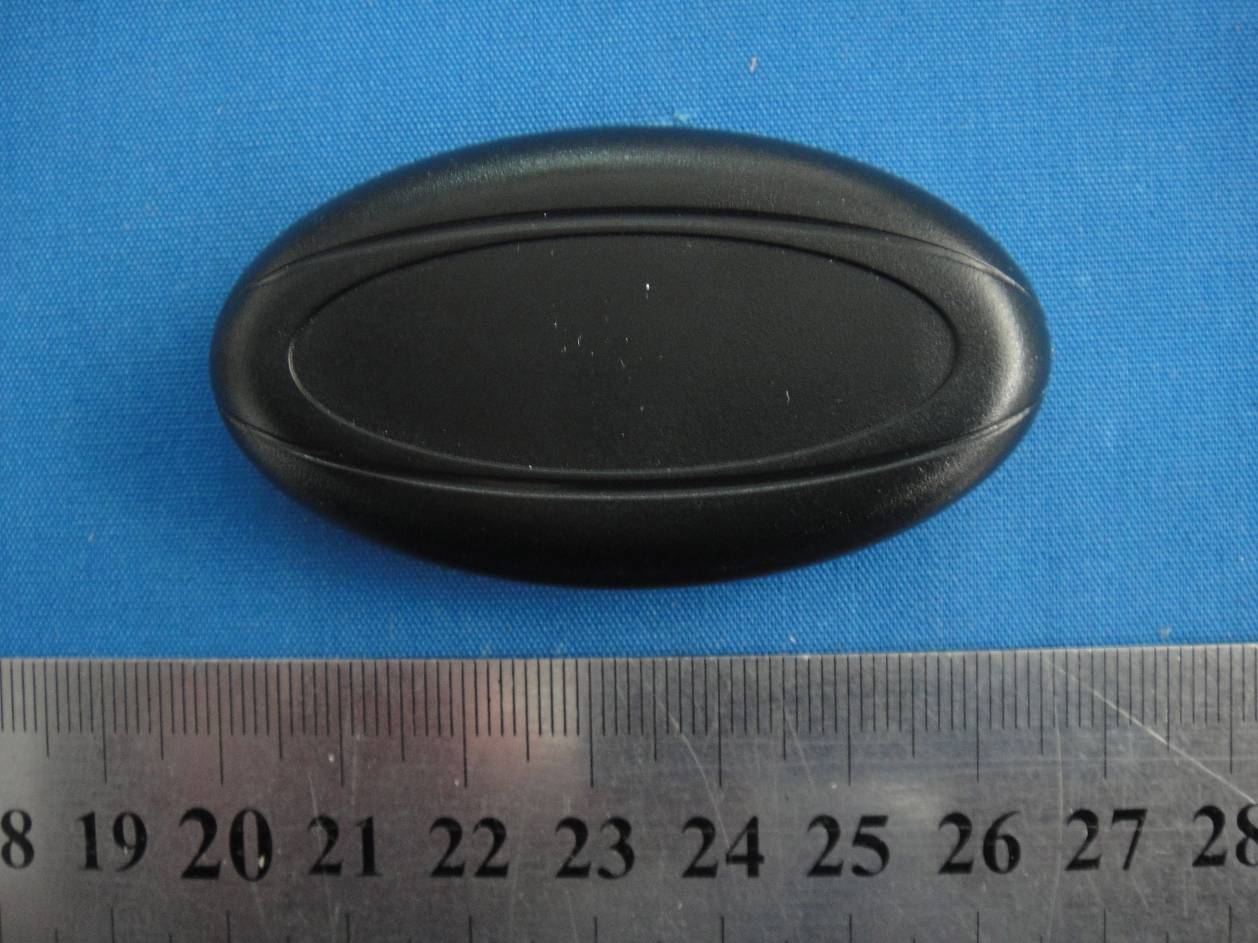

External Photo

ID Label/Location Info

FCC Certification Label FCC ID: 2ACJ932014 Label Location on EUT label size:high 0.5cm, Wide:2 cm EUT View/ FCC ID Label Location

Internal Photos

Internal Photo Antenna

Test Report

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Heapsylon LLC 16225 NE 87TH STREET SUITE A-10 REDMOND, WA 98052 UNITED STATES FCC ID: 2ACJ932014 05 30, 2014 This Report Concerns: Original Report Equipment Type: Bluetooth heart rate monitor Test Engineer: Lisa Chen Report No.: BSL13071011Y-1E4-11 Receive EUT Date/Test Date: 05 13,2014 / 05 13 – 05 30, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID: 2ACJ932014 BSL13071011Y-1E4-11 Page 2/24 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................13 7.5. Radiated Emission Test Result .......................................................................................14 8. BAND EDGE .............................................................................................................................19 8.1. Test Equipment ...............................................................................................................19 8.2. Test Procedure ................................................................................................................19 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................19 8.4. Band Edge Test Result ....................................................................................................20 9. 20-DB BANDWIDTH ...............................................................................................................21 9.1. Test Equipment ...............................................................................................................21 9.2. Test Procedure ................................................................................................................21 9.3. Limit................................................................................................................................21 9.4. Test Result /Plots ............................................................................................................21 FCC ID: 2ACJ932014 BSL13071011Y-1E4-11 Page 3/24 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated emissions test

Contact Information

Applicant

lisa fan(Manager)
[email protected](425) 883-1828Fax: (425) 883-1828

Test Firm

BSL Testing Co.,LTD.Boss Deng
[email protected]75526649703Fax: 75526649703

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
Confidentiality
Long Term
