NRWA5.1x HARDWARE SPECIFICATION TNS23279 Rev0.1 1 Document No：TNS23279 PRODUCT ＆ DELIVERY HARDWARE SPECIFICAION PRODUCT NAME ：NRWA5.10 / NRWA5.11 MODEL NAME ：PC-1070005-1、PC-1070005-2 KANDA ELECTRONICS IND Co., Ltd. Tokyo Communication Equipment Manufacturing Co., Ltd. NRWA5.1x HARDWARE SPECIFICATION TNS23279 Rev0.1 2 Table of Contents 1. Scope 3 2. System Configuration 7 3. Connections 7 4. Electrical Characteristics 7 5. Aspect 8 6. NRWA5.1x Flow 9 7. Function Test 10 8. Shipping 10 9. Miscellaneous 10 10. Revision History 10 NRWA5.1x HARDWARE SPECIFICATION TNS23279 Rev0.1 3 １．Scope This product is the 13.56MHz RFID R/W module. It supports the ISO/IEC15693. ● Product name :NRWA5.10 NRWA5.11（With magnetic sheet） ● Model name :PC-1070005-1 PC-1070005-2 ■ Main specification Item Function RFID Tag ISO/IEC15693 Operation Voltage DC5V Communication Frequency 13.56MHz ±7KHz I/F Data Length 8bit、StopBit:1bit、Parity: NONE error correction: BCC default;38400bps(±3%) 115200bps(±3%),38400bps(±3%) 19200bps(±3%),9600bps(±3%) 8910bps(±3%) ※For VEGA-RFID Communication Range * 25mm or more (With RFID Tag：MB89R119B3-3417) Dimension 50mm × 37mm * It depends on the surround environment. NRWA5.1x HARDWARE SPECIFICATION TNS23279 Rev0.1 4 ■ Supports Legal Regulation This product complies with the regulations of the Radio Law of the United States and Canada (FCC, ISED) and is certified. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines as this equipment has very low levels of RF energy. ・CAN ICES-3 (B)/NMB-3(B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the ISED radio frequency (RF) Exposure rules as this equipment has very low levels of RF energy. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement noncontrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’ISDE puisque cetappareil a une niveau tres bas d'energie RF. NRWA5.1x HARDWARE SPECIFICATION TNS23279 Rev0.1 5 [2.1 General] This user manual describes the integration procedure per Sec. 2.2 to 2.12 of KDB 996369 D03. [2.2 List of applicable FCC rules] This device complies with below part 15 of the FCC Rules. Part 15 Subpart C [2.3 Summarize the specific operational use conditions] Not applicable. [2.4 Limited module procedures] Not applicable. [2.5 Trace antenna designs] Fine tuning of return loss etc. can be performed using a matching network. However, it is required to check "Class1 change" and "Class2 change" which the authorities define then. [2.6 RF exposure considerations] This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. [2.7 Antennas] The device is designed to use the antennas listed below. Do not modify the antenna or any other part of the module. Any modifications will invalidate the modular certifications and require new approvals for the host system. Antenna No is PC-1070005, it is a printed magnetic loop type. Gain is -62.7dBi [2.8 Label and compliance information] Following information must be indicated on the host device of this module. Contains Transmitter Module FCC ID: 2ACJJNRWA51X Contains Transmitter Module IC : 11913A-NRWA51X [2.9 Information on test modes and additional testing requirements] Test modes should take into consideration different operational conditions for a stand-alone modular transmitter in a host, as well as for multiple simultaneously transmitting modules or other transmitters in a host product. [2.10 Additional testing, Part 15 Subpart B disclaimer] The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant (FCC Part 15.225), and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. NRWA5.1x HARDWARE SPECIFICATION TNS23279 Rev0.1 6 [2.11 Note EMI Considerations] We recommend to use "best practice" RF design engineering testing and evaluation in case non-linear interactions generate additional non-compliant limits due to module placement to host components or properties. The host manufacturer is responsible for ensuring compliance with the applicable FCC rules for the transmitters operating individually and simultaneously. This includes com…

Text truncated - open the document above for the full version.

May 23, 2023

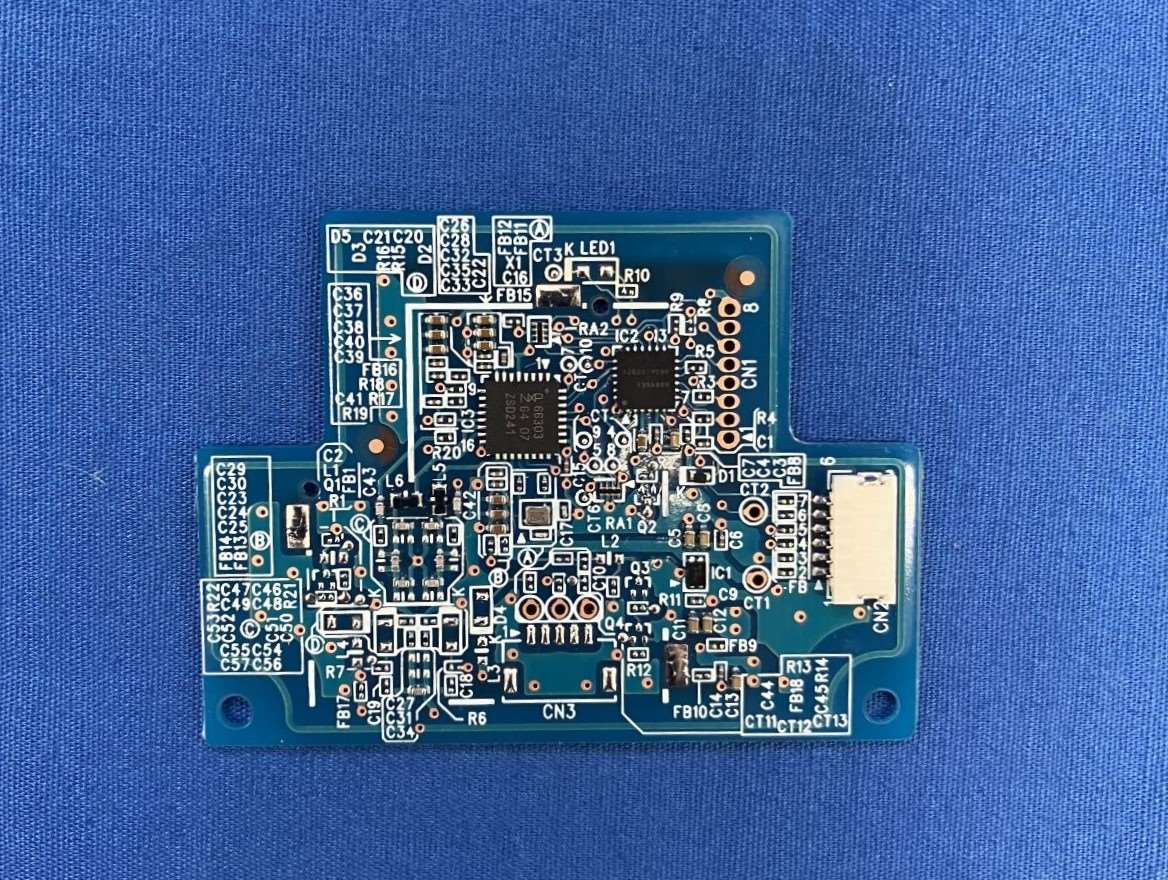

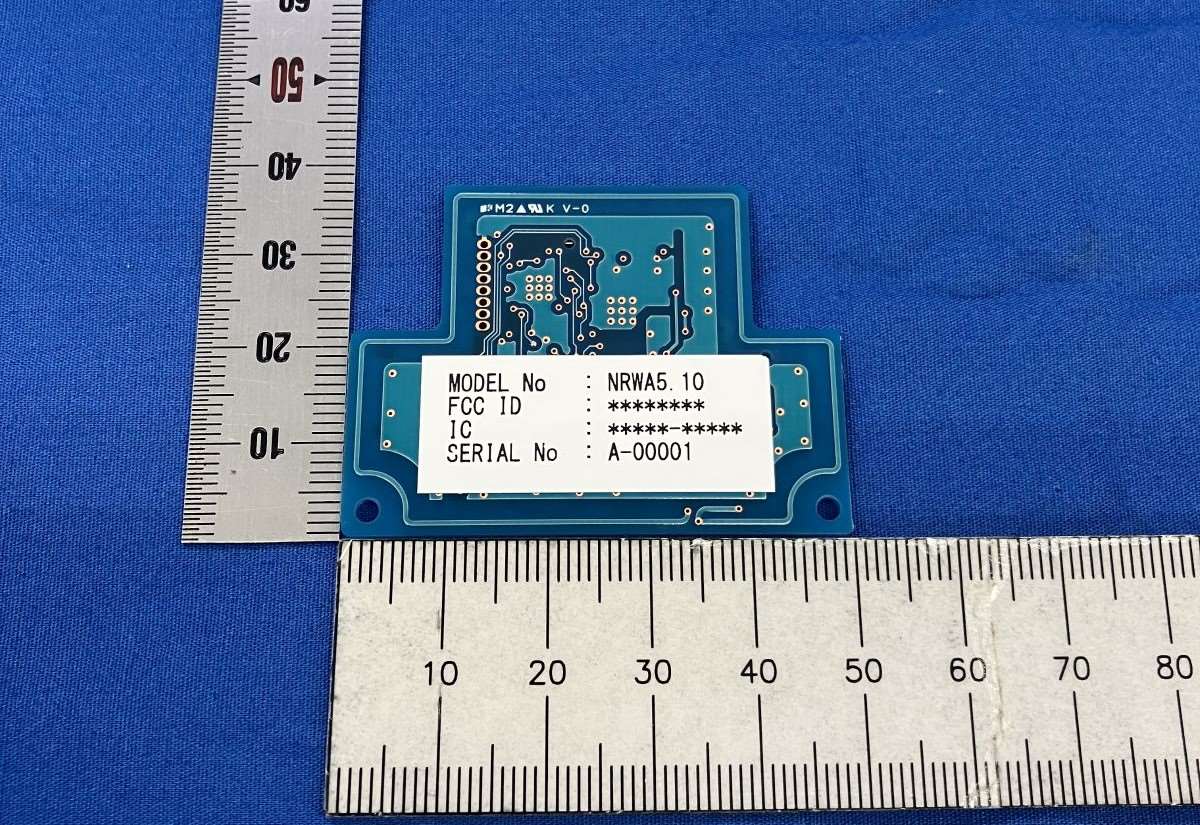

Photo Tokyo Communication Equipment MFG Co.,ltd. [Model: NRWA5.10 / NRWA5.11] 1 , Model: NRWA5.10 Rear side Component side wo shield Antenna Photo Tokyo Communication Equipment MFG Co.,ltd. [Model: NRWA5.10 / NRWA5.11] Upper side Lower side Photo Tokyo Communication Equipment MFG Co.,ltd. [Model: NRWA5.10 / NRWA5.11] Left side Right side Photo Tokyo Communication Equipment MFG Co.,ltd. [Model: NRWA5.10 / NRWA5.11] 2 , Model: NRWA5.11 Rear side Component side wo shield Antenna Photo Tokyo Communication Equipment MFG Co.,ltd. [Model: NRWA5.10 / NRWA5.11] Upper side Lower side Photo Tokyo Communication Equipment MFG Co.,ltd. [Model: NRWA5.10 / NRWA5.11] Left side Right side

May 17, 2023 FCC ID: 2ACJJNRWA51X To whom it may concern, We, UL Japan, Inc, hereby declare that NRWA5.10 / NRWA5.11, model: PC-1070005-1 / PC- 1070005-2 (FCC ID: 2ACJJNRWA51X) of Tokyo Communication Equipment MFG Co.,ltd. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The SAR test exclusion thresholds for below 100 MHz at test separation distances ≤ 50 mm are determined by step c) 2): c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion: 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100 / f(MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½ Numeric exemption threshold: Pth step c) [mW]:442.97 Radio specification and use-case for this deveice are below: f [MHz]:13.56 d [mm]:0 Maximum average output power [mW]:4.89 f [MHz]: Operating frequency d [mm]: Minimum separation distance Maximum average output power [mW]: burst-average power This is less than Pth step c), so SAR test is exemption for this device. Thank you for your attention to this matter. Takumi Shimada Engineer

Test Report No. 14758222H-A-R1 Page 1 of 36 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No. 14758222H-A-R1 Customer Tokyo Communication Equipment MFG Co.,ltd. Description of EUT NRWA5.10 / NRWA5.11 Model Number of EUT PC-1070005-1 / PC-1070005-2 FCC ID 2ACJJNRWA51X Test Regulation FCC Part 15 Subpart C Test Result Complied Issue Date May 26, 2023 Remarks - Representative test engineer Approved by Takumi Nishida Engineer Takumi Shimada Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 22.0 Test Report No. 14758222H-A-R1 Page 2 of 36 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No. 14758222H-A This report is a revised version of 14758222H- A. 14758222H-A is replaced with this report. Revision Test Report No. Date Page Revised Contents - (Original) 14758222H-A May 17, 2023 - 1 14758222H-A-R1 May 26, 2023 Correction of the FCC Part 15.31 (e) in Clause 3.2  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement b y the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the customer for this report is identified in SECTION 1.  For test report (s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 14758222H-A-R1 Page 3 of 36 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics En gineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Develo pment Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management S ystem AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technolo gy BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectriques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. 14758222H-A-R1 Page 4 of 36 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 CONTENTS PAGE SECTION 1: Customer Information .................................................................................... 5 SECTION 2: Equipment Under Test (EUT) ......................................................................... 5 SECTION 3: Test specification, procedures & results ..................................................... 6 SECTION 4: Operation of EUT during testing ................................................................... 9 SECTION 5: Conducted Emission .................................................................................... 12 SECTION 6: Radiated emission (Fundamental, Spurious Emission and Spectrum Mask) ....…

Text truncated - open the document above for the full version.

Test Report No. 14758222H-A-R1 Page 32 of 36 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test Report No. 14758222H-A-R1 Page 33 of 36 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Radiated Emission Photo 1 Photo 2 Test Report No. 14758222H-A-R1 Page 34 of 36 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst Case Position Below 30 MHz: Y-axis Above 30 MHz: Horizontal: X-axis / Vertical: X-axis X-axis Y-axis Z-axis Test Report No. 14758222H-A-R1 Page 35 of 36 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 With/Without Tag Worst Case 9 kHz to 30 MHz 30 MHz to 1 GHz NRWA5.10 With Tag Without Tag NRWA5.11 With Tag With Tag With Tag Without Tag *The worst case distance between EUT and Tag was 1.4 cm. Test Report No. 14758222H-A-R1 Page 36 of 36 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Antenna Terminal Conducted Emission Photo 1 Photo 2 End of Report
