2ACJSMGSC10Tablet PC

REST ORE APPS & DATA You can restore your previous applications and data that have been backed up from another device. You may also setup the tablet as a new device. GOOGLE SERVICES Click to add or remove Google services which include backup, Location Service, and Google Now. RESET OPERATION If you forgot your password or need to clear your password, please follow the below steps to do it. 1. Please turn off the tablet 2. Press the power button and the volume down button simultaneously 3. Press the volume down button to select Clear eMMC 4. Power on button confirms reset (you will see the follow picture) SAR tests are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value, in general, the closer you are to a wireless base station antenna, the lower the power output. Before a new tablet is available for sales to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each tablet are performed in positions and locations as required by the FCC. For b ody worn operation, this model tablet has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 0cm from the body. Non-compliance with the above restrictions may result in violation of RF exposure guidelines. User's Guide Android technology platform INTRODUCTION Wh en you initially power on your tablet, there will be a series of steps to set up basic features. SELECT LANGUAGE While on the welcome screen, please scroll to select your language. SELECT Wi-Fi This process allows the device to connect to the internet. Click on the Wi-Fi name you need to link and enter the WiFi password, that the device will be connected to. Please note that any A DD YOUR ACCOUNT Sign in to your Google account in order to keep accounts streamlined with Google services. Your Gmail account will be used for some Google programs. If you don't have a Google account, click to create a new account. In this step you can also setup payment info if needed. unsecured Wi-Fi network can be connected to directly and any secured Wi-Fi network require a password for credentials prior to connect, it's recommended that you connect to a Wi-Fi network to check for software update prior to startup. SET DATE &TIME Adjust the date and time to local time if needed SET SCREEN LOCK Please choose to skip screen lock or be sure to use the password you can remember. And if you forgot the password or need to clear your password, please see the RESET OPERATION. Model 2: WIFI Tablet(Only One TF Card Slot) on device settings, usage, and others. Certain apps may reduce battery life. you initially complete two to three charge cycles. Battery life will vary based the battery fully 7 hours before using the tablet for the first time and that For better performance and longer battery life, it is recommended that you charge Battery Usage avoid damage. Your tablet is not waterproof. Keep your tablet away from water or liquid to Water Hazard Remember to follow all airport and flight safety regulations. Airport Safety interfere that equipment not fully-protected. off when you are near medical equipment. Any wireless transmission device will You have to abide by the relevant regulations of hospital and turn your device The Tablet PC must be turned off when you are in a hospital. Hospital Safety Please observe all transportation laws and regulations Transportation Safety SAFETY INFORMATION there is no guarantee that interference will not occur in a particular instructions, may cause harmful interference to radio communications. However, energy and, if not installed and used in accordance with the restart. (ALL DATA WILL BE LOST) confirm, the system will automatically complete this process, automatically Recovery Modemeans restore the factory settings, press the power button to [Normal Boot] [Fastboot Mode] [Recovery Mode] [VOLUME_UP to Select. VOLUME_DOWN is OK] Select Boot Mode : that may cause undesired operation. cause harmful interference, and (2) this device must accept any interference Operation is subject to the following two conditions: (1) This device may no This device complies with parts 15 of the FCC Rules. user will result in internal failure, system halted. Any changes or modifications without permission which operated by unauthorized WARNING: Normal Bootmeans normal restart, no data loss. Fastboot Modemeans development mode, notrecommended. frequency residential installation. This equipment generates, uses and can radiate radio designed to provide reasonable protection against harmful interferencein a Class B digital device, pursuant to Part 15 of the FCC Rules. These limitsare Note: This equipment has been tested and found to comply with the limits fora Consult the dealer or an experienced Radio/TV technician for help. which the receiver is connected. 一一 Connectthe equipment into an outlet on a circuit different fromthat to Increase the separation between the equipment and receiver. 一一 Reorient or relocate the receiving antenna. of the following measures: on, the user is encouraged to try to correct the interference by one or more television reception, which can be determined by turning the equipment off and installation. If this equipment does cause harmful interference to radio or KEY FUNCTIONS 一一 一一

QA-FR-170-B MULTI-GOLD INDUSTRIAL LIMITED ADD: Lasting Pear IndustriaL Section, No.2 Qianjin Road, Xixiang Town, Baoan District, Shenzhen, China TEL: 0755-83109002 FAX: 0755-83109002 E-mail: [email protected] FCC Authorization Date: 2020-8-5 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We ,MULTI-GOLD INDUSTRIAL LIMITED, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Name: Serina Hu Title: Manager

QA-FR-171-A MULTI-GOLD INDUSTRIAL LIMITED ADD: Lasting Pear IndustriaL Section, No.2 Qianjin Road, Xixiang Town, Baoan District, Shenzhen, China TEL: 0755-83109002 FAX: 0755-83109002 E-mail: [email protected] FCC Confidential Authorization Date: 2020-08-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ACJSMGSC10 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, MULTI-GOLD INDUSTRIAL LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Name: Serina Hu Title: Manager

MULTI-GOLD INDUSTRIAL LIMITED ADD: Lasting Pear IndustriaL Section, No.2 Qianjin Road, Xixiang Town, Baoan District, Shenzhen, China TEL: 0755-83109002 FAX: 0755-83109002 E-mail: [email protected] Date: :2020-07-13 Product Similarity Declaration FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, MULTI-GOLD INDUSTRIAL LIMITED,hereby declare that the product: Tablet PC, FCC ID:2ACJSMGSC10, model: MGSC30 is electrically identical with the model:MGSC10 which was tested by BACL with the same electromagnetic emissions and electromagnetic compatibility characteristics. The different between them is the model name, color, RAM capacity. Besides the differences in the table above, we declare the products are electrically identical. We guarantee all the information provided above is true, and notice that we will bear all the consequences caused by any false information or concealing. Please contact me should there be need for any additional or information. Sincerely, Signature: Name: Serina Hu Title: Manager

MULTI-GOLD INDUSTRIAL LIMITED ADD: Lasting Pear IndustriaL Section, No.2 Qianjin Road, Xixiang Town, Baoan District, Shenzhen, China TEL: 0755-83109002 FAX: 0755-83109002 E-mail: [email protected] Date: 2020-08-05 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Declaration Subject: FCC ID: 2ACJSMGSC10 declaration of frequency bands restriction Dear Sir or Madam: We, MULTI-GOLD INDUSTRIAL LIMITED, hereby declare that our product Tablet PC, Model Number: MGSC10, MGSC30 have the ability to work in 2.4G and 5G frequency bands. For the purpose of marketing, the frequency of the product sold in U.S. are programmed and locked to work only in 5150-5250MHz, 2412-2462 MHz, 2402-2480MHz. The other frequency bands are disabled by firmware in factory. The end user or any other parties cannot have the capability to activate the other frequency bands. We applied for testing frequency bands: 5180-5240 MHz, 2412-2462 MHz, 2402-2480MHz for the United States this time in BACL. Please contact me if you have any question. Signature: Name: Serina Hu Title: Manager

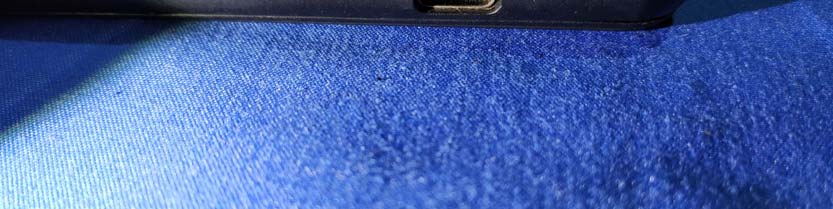

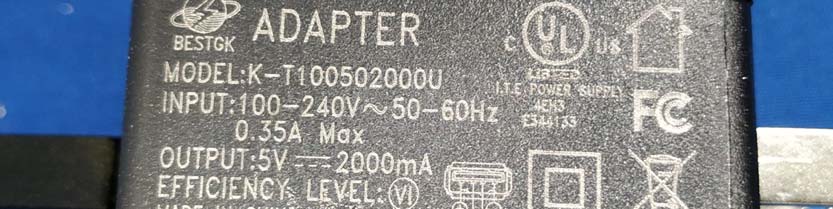

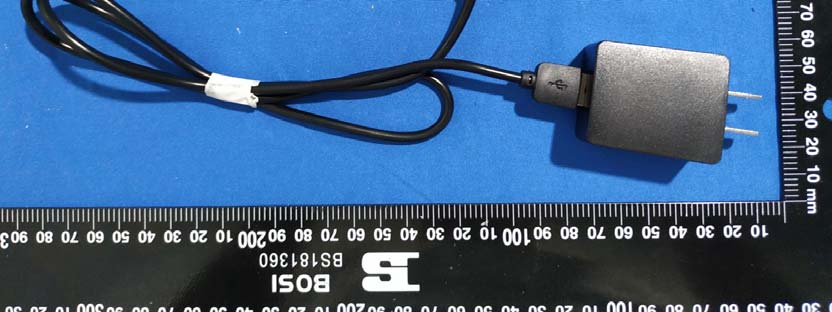

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Chip Antenna

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For MULTI-GOLD INDUSTRIAL LIMITED Lasting Pear IndustriaL Section, No.2 Qianjin Road, Xixiang Town, Baoan District, Shenzhen, China FCC ID: 2ACJSMGSC10 Report Type: Original Report Product Type: Tablet PC Report Number: RXM200715056-20 Report Date: 2020-08-05 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200715056-20 SAR Evaluation Report 2 of 39 Attestation of Test Results EUT Information EUT Description Tablet PC Tested Model MGSC10 Multiple Model MGSC30 FCC ID 2ACJSMGSC10 Serial Number RXM200715056-SA-S1 Test Date 2020-07-31 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) Wi-Fi 2.4G 1g Body SAR 0.22 1.6 Wi-Fi 5.2G 1g Body SAR 0.09 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 616217 D04 SAR for laptop and tablets v01r02 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200715056-20 SAR Evaluation Report 3 of 39 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 17 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 18 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 20 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 20 CHEEK/TOUCH POSITION ........................................................................................................................................... 21 EAR/TILT POSITION ................................................................................................................................................... 21 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 22 TEST DISTANCE FOR SAR EVALUATION .................................................................................................................... 22 SAR EVALUATION PROCEDURE ................................................................................................................................. 23 CONDUCTED OUTPUT POWER MEASUREMENT .................................................................…

Text truncated - open the document above for the full version.

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: RXM200715056-20 Page 1 of 2 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1874 Report No.: RXM200715056-20 Page 2 of 2 Body Back Setup Photo (0mm) Body Top Setup Photo (0mm)

FCC PART 15.407 TEST REPORT For MULTI-GOLD INDUSTRIAL LIMITED Lasting Pear IndustriaL Section, No.2 Qianjin Road, Xixiang Town, Baoan District, Shenzhen, China Report Type: Original Report Product Name: Tablet PC Re port Number: RXM200715056-00C Re port Date: 2020-08-06 Reviewed By: Ivan Cao Assistant Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID:2ACJSMGSC10 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200715056-00C Page 2 of 51 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 9 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 FCC §15.407 (f) & §1.1310 & §2.1093- RF EXPOSURE ............................................................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST RESULT ............................................................................................................................................................. 11 FCC §15.203- ANTENNA REQUIREMENT .............................................................................................................. 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207(a)– CONDUCTED EMISSIONS ......................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 15 FCC §15.209, §15.205 , §15.407(b) –UNWANTED EMISSION .............................................................................. 17 APPLICABLE STANDARD ............................................................................................................................................ 17 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 19 TEST PROCEDURE ......................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
