2ACLAM520WWireless Mouse

ZALMAN Tech Co., Ltd
Wireless Mouse - FCC ID 2ACLAM520W - ZALMAN Tech Co., Ltd
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jun 21, 2014
Application Purpose
Original Equipment
Date of Application
Jun 21, 2014
Equipment Note
Wireless Mouse
Frequency Range
2403.00000000 - 2478.00000000
Company
ZALMAN Tech Co., Ltd
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1,(Dimensions) Model No. Length: Width: Height: Weigh: 2、 (Electrical specifications) ① ③ ⑤ The indicating lamp working state AA*1 Acceleration: Speed: Battery Spec: 28in/s Work frequency band 2403-2478Mhz Resolution: 1000/1600 DPI10G The working distance 8m Group channels16 Mouse The mouse manual 51g 58mm 31mm ZM-M520W 100.5mm Operating Voltage: DC 1.5V Operating Current:10mA 3000fps Scanning Frequency: Battery Life: Mouse Type: 2.4G Three months the right mouse button The middle mouse button mouse CPI conversion key The power switch ② ④ ⑥ the left mouse button Weak light direction for use a .Part: the mouse 1PCS receiver 1PCS AA cell 1PCS. b .The receiver is inserted into the USB interface of the computer, the computer will automatically install the driver. C . Open the battery cover of the mouse, the AA battery into the battery slot, and then loaded on the battery cover. D .The power switch to NO position, press the mouse button can be normal use. Weak functional indicator Low power state indicating lamp twinkle to 4HZ DPI Function indicator 800DPI Slow flashing/1600DPI quick flashing FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Cover Letter(s)

ZALMAN Tech Co., Ltd (Seoksu-dong, Zalman Tower),88,Iljik-ro,Manan-gu,Anyang-si,Gyeonggi-do,Korea Confidentiality Request Letter Page 1 of 1 Rev 2.0 Jun 19, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: 2ACLAM520W We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: PARK MIN SEOK / Manager Contact information / address: (Seoksu-dong, Zalman Tower),88,Iljik-ro,Manan-gu,Anyang-si,Gyeonggi-do,Korea TEL: +82-2-2107-3232 FAX: +82-2-2107-3232 E-mail: [email protected]

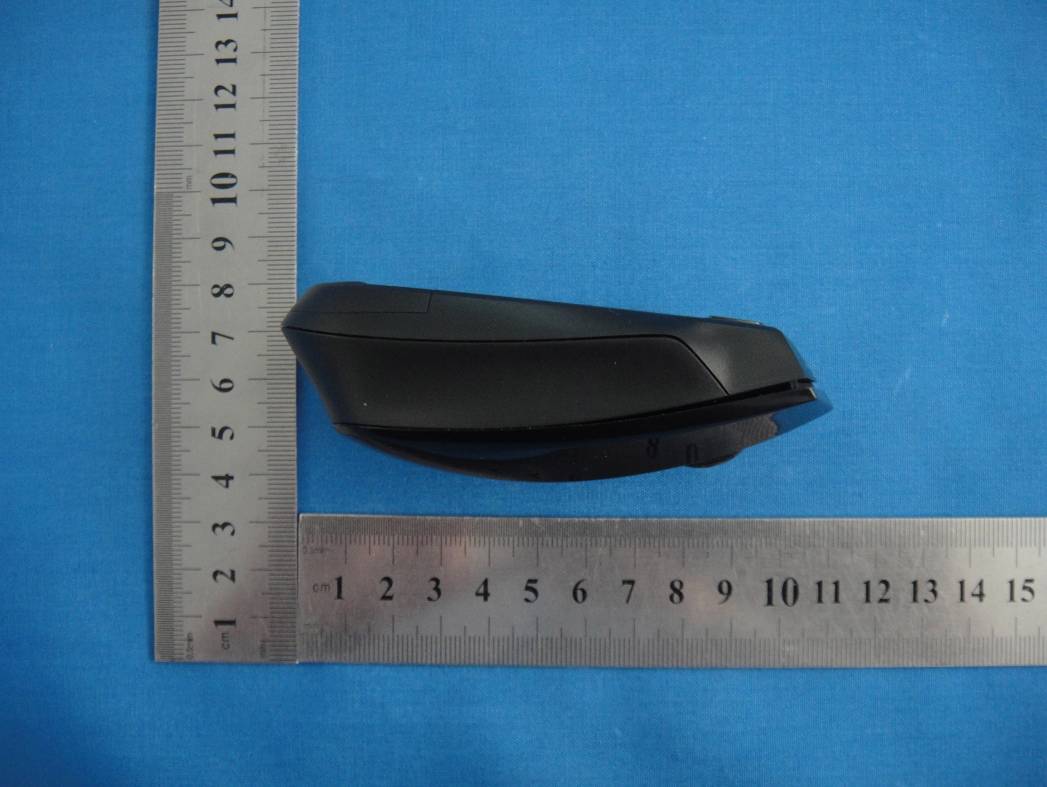

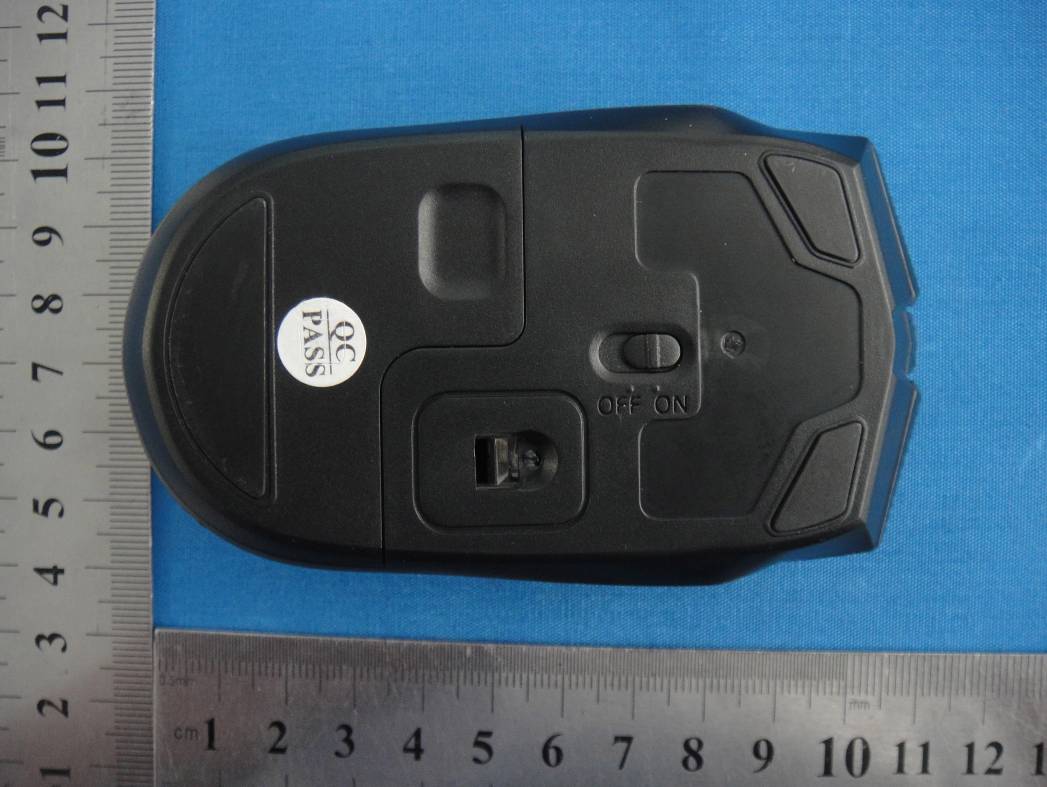

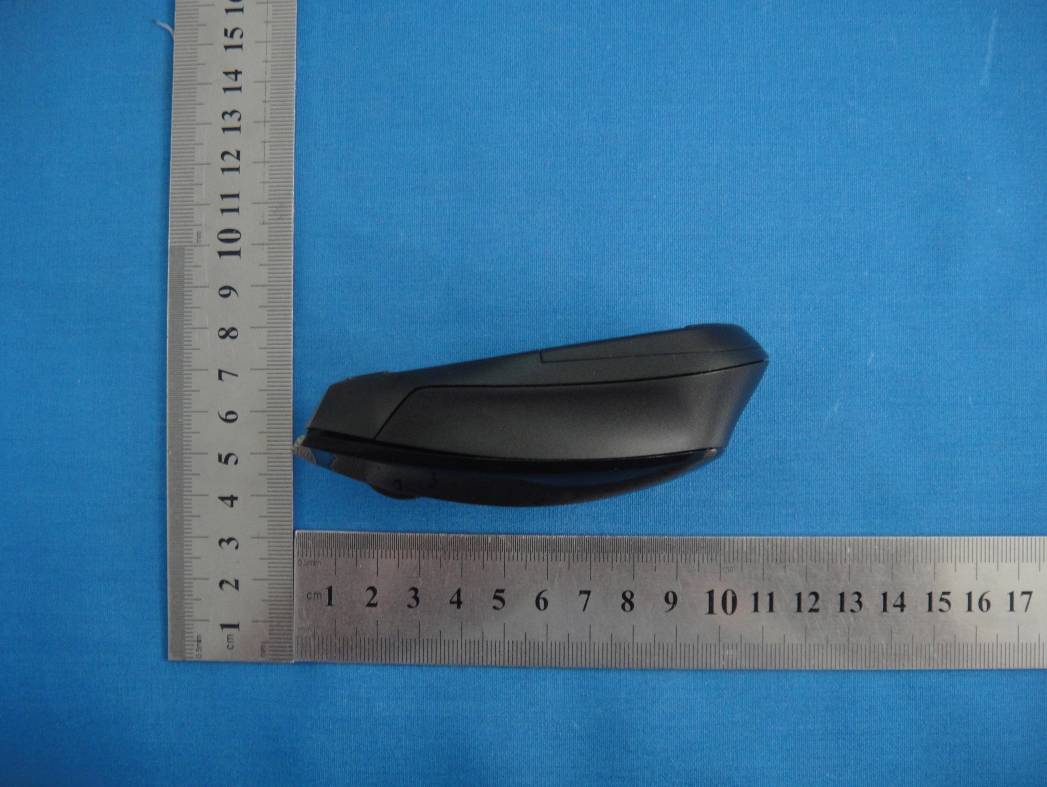

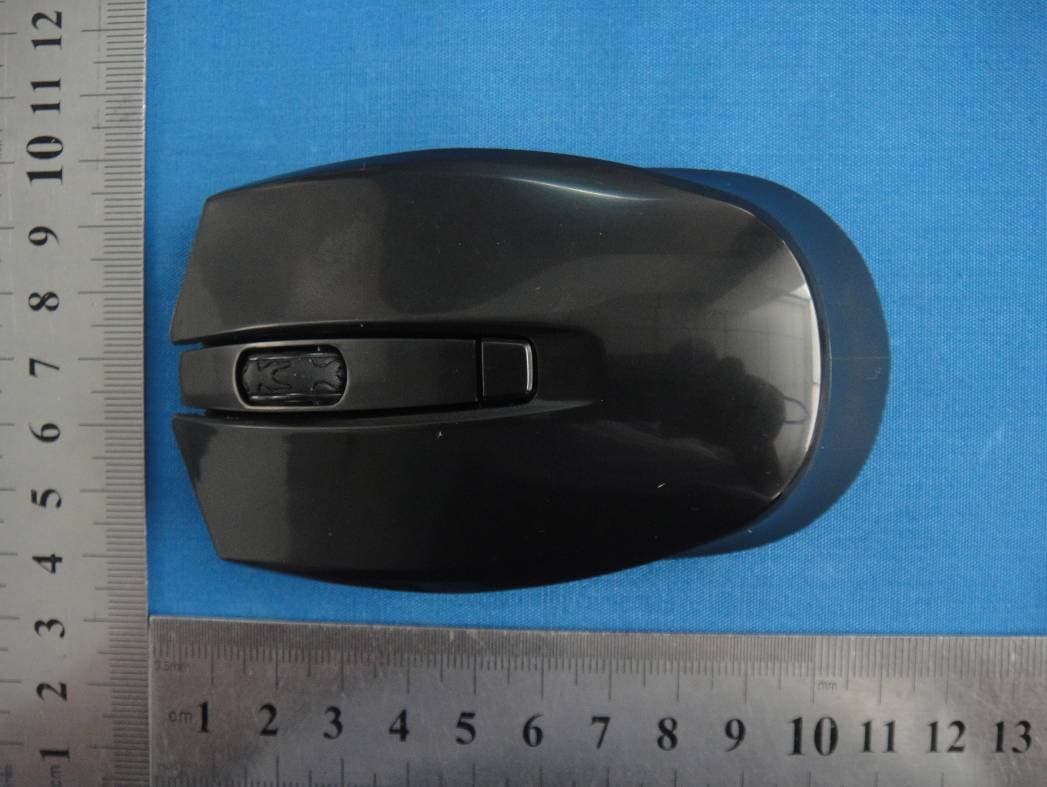

External Photos

External Photo

ID Label/Location Info

FCC Certification Label FCC ID: 2ACLAM520W Label Location on EUT EUT Bottom View/ FCC ID Label Location label size:high 1.0cm, Wide:2.0cm

Internal Photos

Internal Photo Antenna

Test Report

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For ZALMAN Tech Co., Ltd (Seoksu-dong, Zalman Tower),88,Iljik-ro,Manan-gu,Anyang-si,Gyeonggi-do,Korea FCC ID: 2ACLAM520W Jun 19, 2014 This Report Concerns: Original Report Equipment Type: Wireless Mouse Test Engineer: Lisa Chen Report No.: BSL1506913 Receive EUT Date/Test Date: Jun 15,2014 / Jun 15-19, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID: 2ACLAM520W BSL1506913 Page 2/24 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................13 7.5. Radiated Emission Test Result .......................................................................................14 8. BAND EDGE .............................................................................................................................19 8.1. Test Equipment ...............................................................................................................19 8.2. Test Procedure ................................................................................................................19 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................19 8.4. Band Edge Test Result ....................................................................................................20 9. 20-DB BANDWIDTH ...............................................................................................................21 9.1. Test Equipment ...............................................................................................................21 9.2. Test Procedure ................................................................................................................21 9.3. Limit................................................................................................................................21 9.4. Test Result /Plots ............................................................................................................21 FCC ID: 2ACLAM520W BSL1506913 Page 3/24 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate o…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated emissions test

Contact Information

Applicant

PARK MIN SEOK
[email protected]+82-2-2107-3232Fax: +82-2-2107-3322

Test Firm

BSL Testing Co.,LTD.Boss Deng
[email protected]75526649703Fax: 75526649703

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz-
Confidentiality
Long Term
