2ACMYAMZ10WFull HD 1080p IP CAM

FO LD FO LD FO LD FO LD FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FO LD FO LD FO LD FO LD FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Atoms Labs LLC 2670 Firewheel Dr.Suite D Flower Mound, Texas 75028 United States Tel: 3105989211 E-mail: [email protected] Series Models Description Date: 2020/07/15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2ACMYAMZ10W Dear Sir/Madam, We, Atoms Labs LLC H ereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Full HD 1080p IP CAM Model no.: AWF62, AMZ10W Sincerely, Name: Justin Wang Company: Atoms Labs LLC Address: 2670 Firewheel Dr.Suite D Flower Mound, Texas 75028 United States Phone: 3105989211 Fax: 8447678544 E-Mail: [email protected]

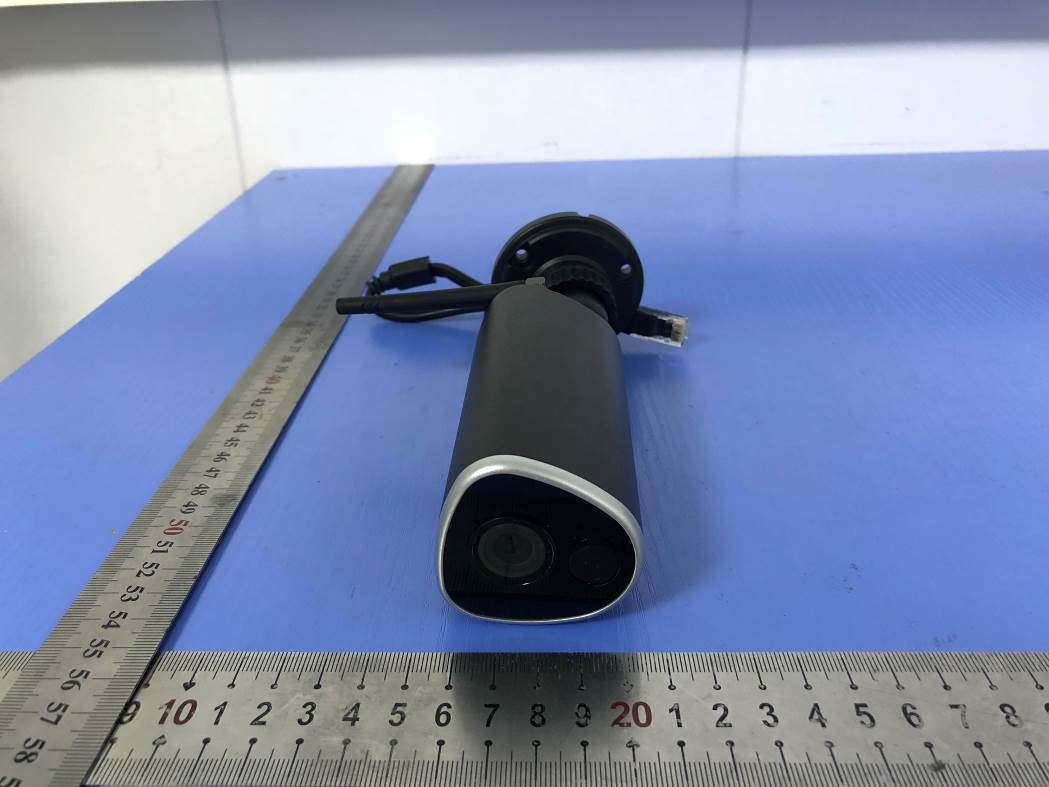

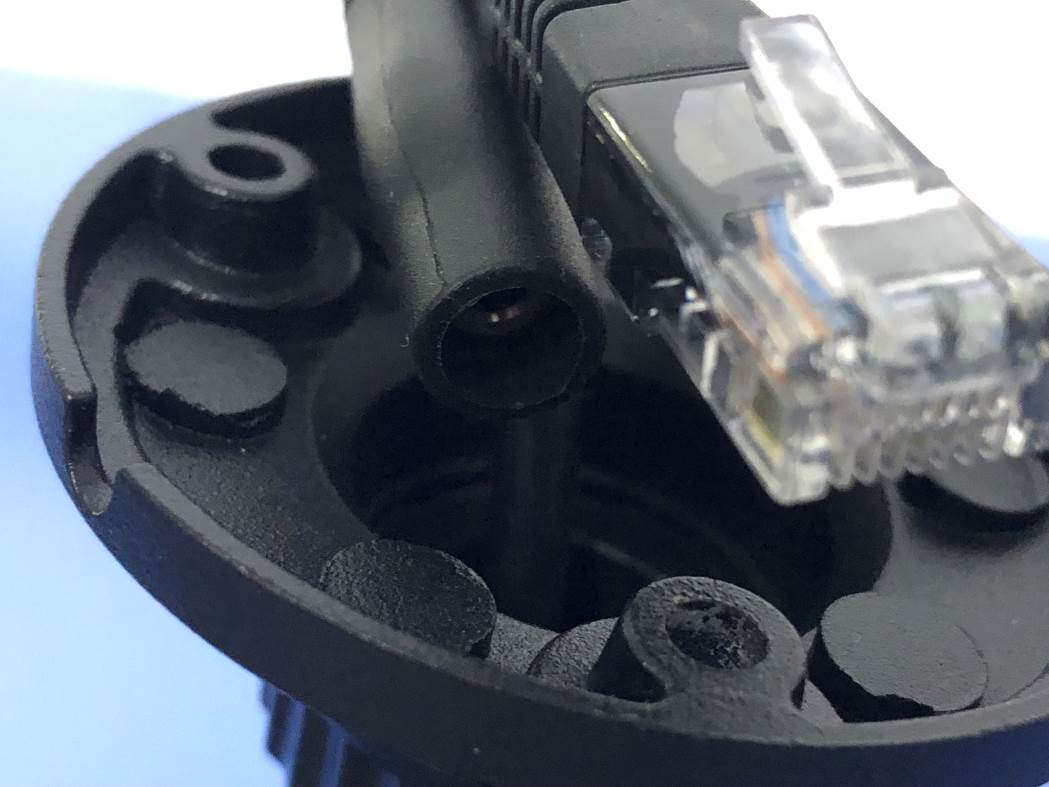

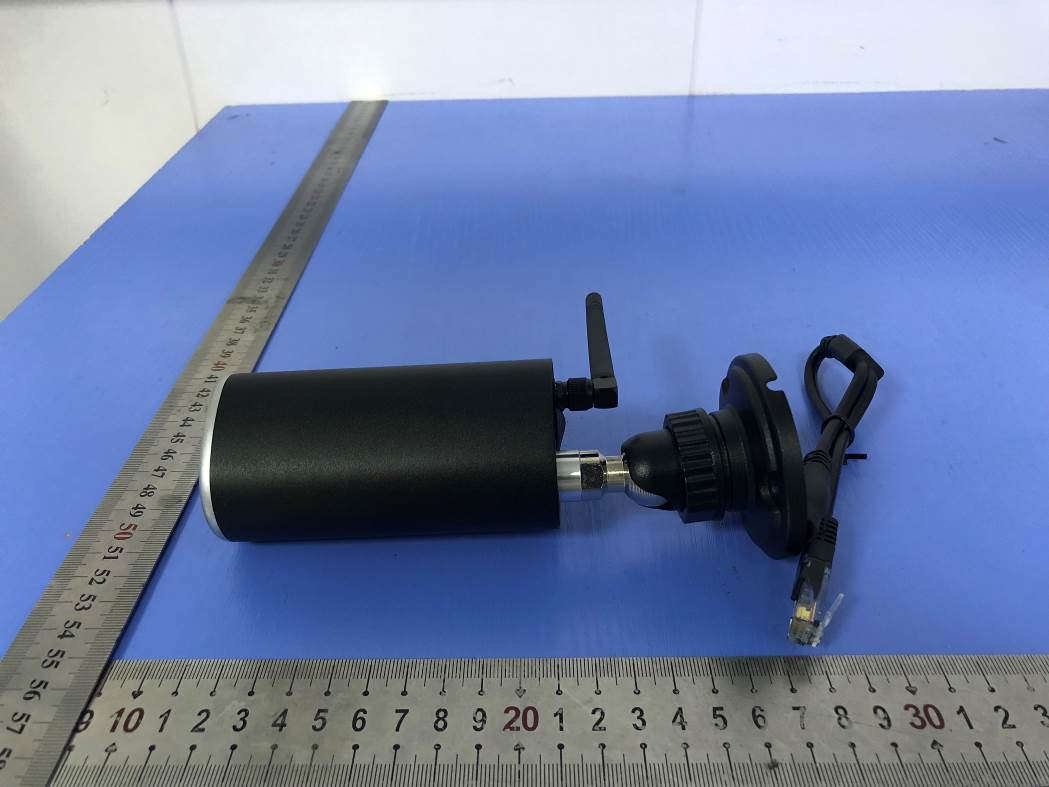

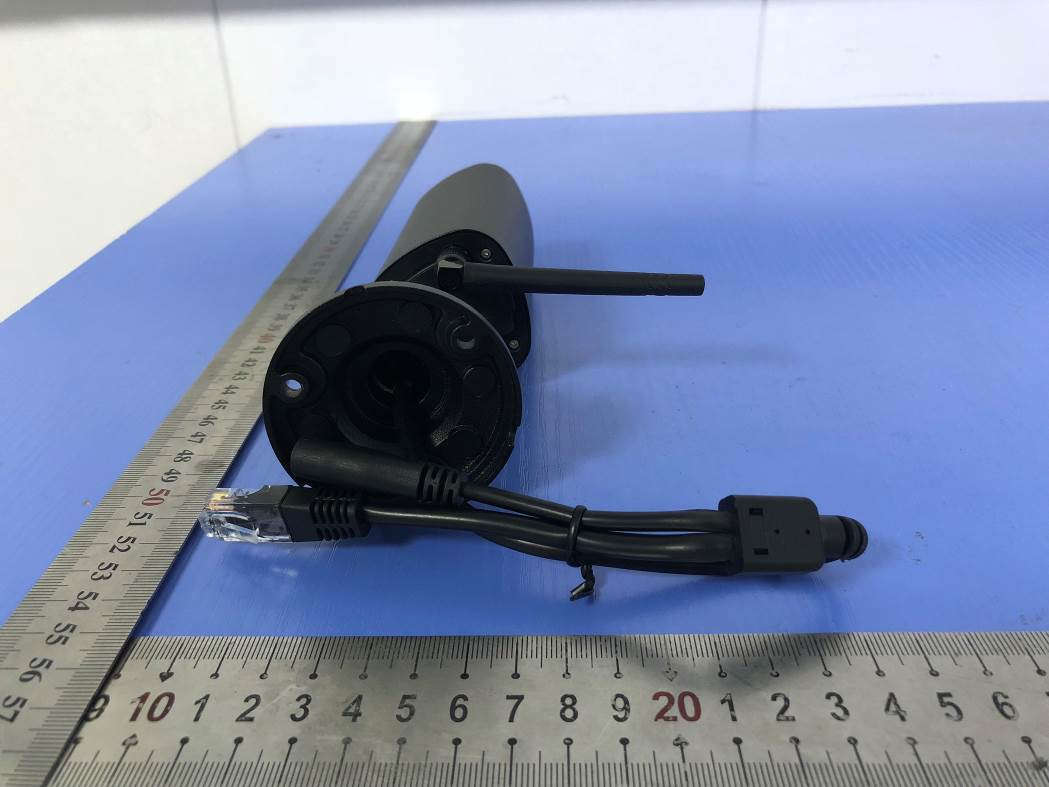

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Full HD 1080p IP CAM Model No.: AWF62 FCC ID: 2ACMYAMZ10W

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Maximum Permissible Exposure Report 1. Product Information FCC ID: 2ACMYAMZ10W Product name Full HD 1080p IP CAM Test Model AWF62 Power supply For adapter Input: 100-240V~, 50/60Hz, 0.2A For adapter Output: DC 5V, 1A, 5W Operation frequency 2412MHz ~ 2462 MHz Antenna Type External Antenna Antenna Gain 2dBi(Max.) Hardware version / Software version / Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Fixed D evice 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information GTV c an only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Notes External Antenna 2000 MHz – 2500 MHz 2dBi WiFi Antenna This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W 6. Conducted Power [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) 11B 1 2412 14.14 6 2437 14.93 11 2462 14.96 11G 1 2412 14.18 6 2437 14.99 11 2462 15.06 11N20SISO 1 2412 14.40 6 2437 15.18 11 2462 15.25 11N40SISO 3 2422 14.09 6 2437 14.49 9 2452 14.62 7. Measurement Results 2.4GWIFI 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 14.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 14.0 14.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 14.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 14.0 14.0 14.0 Tolerance ±(dB) 1.0 1.0 1.0 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W 8. Evaluation Results As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. 2.4GWIFI Band/Mode f (GHz) RF output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm2) MPE Limits (mW/cm2) dBm mW IEEE 802.11b 2.462 16.…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Full HD 1080p IP CAM Trade Mark: N/A Test Model: AWF62 Environmental Conditions Temperature: 22.5 ° C Relative Humidity: 53.2% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS Page 1 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 Page 2 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 Page 3 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 14.14 30 PASS MCH 14.93 30 PASS HCH 14.96 30 PASS 11G LCH 14.18 30 PASS MCH 14.99 30 PASS HCH 15.06 30 PASS 11N20SISO LCH 14.40 30 PASS MCH 15.18 30 PASS HCH 15.25 30 PASS 11N40SISO LCH 14.09 30 PASS MCH 14.49 30 PASS HCH 14.62 30 PASS Page 4 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -18.725 8 PASS MCH -17.944 8 PASS HCH -17.892 8 PASS 11G LCH -21.846 8 PASS MCH -21.403 8 PASS HCH -21.125 8 PASS 11N20SISO LCH -21.767 8 PASS MCH -21.153 8 PASS HCH -20.844 8 PASS 11N40SISO LCH -23.098 8 PASS MCH -21.343 8 PASS HCH -21.684 8 PASS Test Graphs 11B/LCH Page 5 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11B/MCH 11B/HCH Page 6 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11G/LCH 11G/MCH Page 7 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11G/HCH 11N20SISO/LCH Page 8 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N20SISO/MCH 11N20SISO/HCH Page 9 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N40SISO/LCH 11N40SISO/MCH Page 10 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N40SISO/HCH Page 11 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.13 ≥0.5 PASS MCH 10.13 ≥0.5 PASS HCH 10.13 ≥0.5 PASS 11G LCH 16.54 ≥0.5 PASS MCH 16.55 ≥0.5 PASS HCH 16.57 ≥0.5 PASS 11N20SISO LCH 17.75 ≥0.5 PASS MCH 17.69 ≥0.5 PASS HCH 17.71 ≥0.5 PASS 11N40SISO LCH 36.50 ≥0.5 PASS MCH 36.49 ≥0.5 PASS HCH 36.48 ≥0.5 PASS Test Graphs 11B/LCH Page 12 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11B/MCH 11B/HCH Page 13 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11G/LCH 11G/MCH Page 14 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11G/HCH 11N20SISO/LCH Page 15 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N20SISO/MCH 11N20SISO/HCH Page 16 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N40SISO/LCH 11N40SISO/MCH Page 17 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N40SISO/HCH Page 18 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 1.322 -38.613 -18.678 PASS MCH 2.115 -37.982 -17.885 PASS HCH 2.167 -37.438 -17.833 PASS 11G LCH -7.142 -37.515 -27.142 PASS MCH -6.452 -37.916 -26.452 PASS HCH -6.738 -38.024 -26.738 PASS 11N20 SISO LCH -7.493 -37.530 -27.493 PASS MCH -6.403 -37.851 -26.403 PASS HCH -6.415 -37.012 -26.415 PASS 11N40 SISO LCH -10.893 -38.511 -30.893 PASS MCH -10.158 -37.878 -30.158 PASS HCH -10.591 -36.940 -30.591 PASS Page 19 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH Page 20 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH Page 21 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH Page 22 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH Page 23 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH Page 24 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH Page 25 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH Page 26 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH Page 27 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH Page 28 of 46 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA 11N40SISO_LCH_Graphs Pref/11N40 SISO/L…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For Atoms Labs LLC Full HD 1080p IP CAM Test Model: AWF62 Additional Model No. : AMZ10W Prepared for : Atoms Labs LLC Address : 2670 Firewheel Dr.Suite D Flower Mound, Texas 75028 United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 07, 2020 Number of tested samples : 2 Serial number : Prototype Date of Test : July 07, 2020 ~ July 13, 2020 Date of Report : July 14, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS20070654AEA Date of Issue ................................... : July 14, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Atoms Labs LLC Address ........................................... : 2670 Firewheel Dr.Suite D Flower Mound, Texas 75028 United States Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Full HD 1080p IP CAM Trade Mark ...................................... : N/A Test Model ...................................... : AWF62 Ratings ............................................ : For adapter Input: 100-240V~, 50/60Hz, 0.2A Output: DC 5V, 1A, 5W Result ............................................ : Positive Compiled by: Supervised by: Approved by: Ray Yang/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT EUT......................................... : Full HD 1080p IP CAM Test Model........................... : AWF62 Applicant............................... : Atoms Labs LLC Address.................................. : 2670 Firewheel Dr.Suite D Flower Mound, Texas 75028 United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Atoms Labs LLC Address................................... : 2670 Firewheel Dr.Suite D Flower Mound, Texas 75028 United States Telephone............................... : / Fax.......................................... : / Factory................................... : JSW(DongGuan)Ltd Address................................... : No.138, Sanjiang Industry District, Hengli Town, Dongguan City, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS20070654AEA July 14, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue Date Revisions Revised By 000 July 14, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W Report No.: LCS200706054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. D ESCRIPTION OF D EVICE (EUT) ........................................................................................................................ 6 1.3. E XTERNAL I/O C ABLE ......................................................................................................................................... 7 1.4. D ESCRIPTION OF T EST F ACILITY ........................................................................................................................ 7 1.5. S TATEMENT OF THE M EASUREMENT U NCERTAINTY ..................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACMYAMZ10W _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
