2ACN25757-T27M2 PK RC Stunt Car

27.145MHz Transmitter Block Diagram IC1 ANT

TOY2U MANUFACTORY COMPANY LIMITED [ June 25 ,2014 ] To whom it may concern, Letter of Agency I, an officer of TOY2U MANUFACTORY COMPANY LIMITED do hereby authorize Intertek Testing Services (Mr. Shawn Xing / Billy Li) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, KEV LAI Director

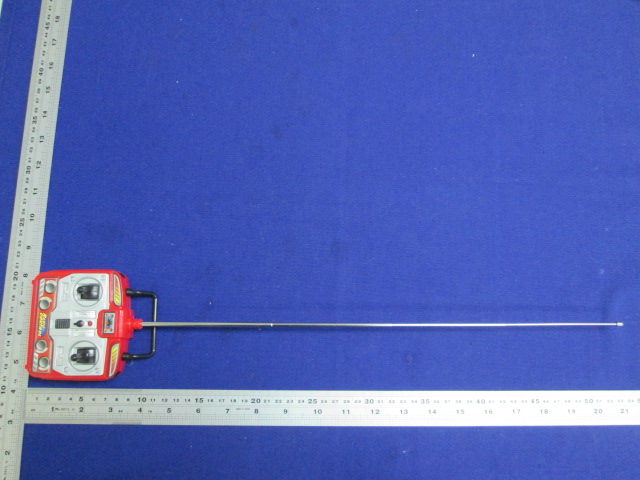

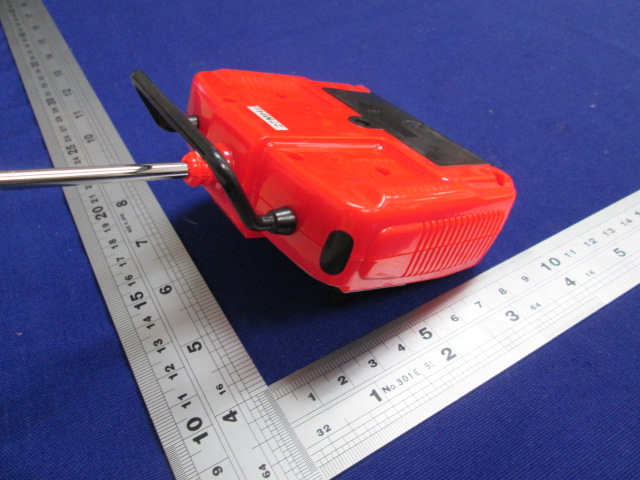

External Photos

Label Artwork and Location SIZE: 30mm (W) x 20mm (H) FCC ID: 2ACN25757-T27M This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L3, C4 RF IC Generate code signal to modulator IC1 Oscillator Generate 27.145 MHz carrier X1, Q1 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q2 Antenna Type: Dedicated antenna with unique antenna connector Antenna Gain: 0dBi The nominal conducted output power specified: -34.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -36.15dBm (+/- 3dB) Modulation Type: Pulse modulation

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a 2 PK RC Stunt Car operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by one 9.0V 6F22 size battery. For more detail information pls. refer to the user manual. Antenna Type: Dedicated antenna with unique antenna connector Antenna Gain: 0dBi The nominal conducted output power specified: -34.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -36.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 60.9dBμV/m at 3m in the frequency 27.145 MHz The EIRP = [(FS*D) ^2 / 30] mW= -34.33dBm The ERP = EIRP – 2.15 = -36.48 dBm which is within the production variation. The maximun conducted output power specified is -31dB m =0.0008mW The source- based time-averaging conducted output power = 0.0008* Duty Cycle mW < 0.1 mW (Duty Cycle <100%) The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 23.6ms Effective period of the cycle = 700μs x 10 + 2.1ms x 4 = 15.4ms DC = 15.4ms / 23.6ms = 0.6525 or 65.25% FCC ID: 2ACN25757-T27M

Transmitter Circuit Diagram IC1 27.145MHz TX-2B

Date: 2.JUL.2014 04:54:11 Date: 2.JUL.2014 04:56:12 Date: 2.JUL.2014 04:58:08 Date: 2.JUL.2014 04:58:49

Date: 2.JUL.2014 04:46:58

 The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained.  This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program.  For Terms And Conditions of the services, it can be provided upon request.  The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 TOY2U MANUFACTORY COMPANY LIMITED Application For Certification FCC ID: 2ACN25757-T27M 2 PK RC Stunt Car Model: 5757 Transmitter Report No.: SZHH00882748-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] Prepared and Checked by: Approved by: Sign on file Powell Bao Engineer Andy Yan Project Engineer Date: July 25, 2014 INTERTEK TESTING SERVICES Report No.: SZHH00882748-001 FCC ID: 2ACN25757-T27M TRF No.: FCC 15C_TX_b i GENERAL INFORMATION TOY2U MANUFACTORY COMPANY LIMITED MODEL: 5757 FCC ID: 2ACN25757-T27M Grantee: TOY2U MANUFACTORY COMPANY LIMITED Grantee Address: SUITE 511, 5TH FLOOR, CHINACHEM GOLDEN PLAZA, 77 MODY ROAD, TSIMSHATSUI EAST, KOWLOON,Hong Kong Contact Person: KEV LAI Tel: 852-23011711 Manufacturer: TOY2U MANUFACTORY COMPANY LIMITED Manufacturer Address: SUITE 511, 5TH FLOOR, CHINACHEM GOLDEN PLAZA, 77 MODY ROAD, TSIMSHATSUI EAST, KOWLOON,Hong Kong Model: 5757 Type of EUT: Transmitter Description of EUT: 2 PK RC Stunt Car Serial Number: N/A FCC ID : 2ACN25757-T27M Date of Sample Submitted: June 27, 2014 Date of Test: July 2, 2014 Report No.: SZHH00882748-001 Report Date: July 25, 2014 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZHH00882748-001 FCC ID: 2ACN25757-T27M TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT TOY2U MANUFACTORY COMPANY LIMITED MODEL: 5757 FCC ID: 2ACN25757-T27M TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a dedicated antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZHH00882748-001 FCC ID: 2ACN25757-T27M TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants .............................................................................. 1 1.3 Test Methodology ............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software .................................................................................. 2 2.3 Special Accessori…

Text truncated - open the document above for the full version.

Radiated Photos
