2ACN4CT-RM411Wireless Remote Control Outlet

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY All of the safety and operating instructions should be read, adhered to and followed before the unit is operated PARTs AND sPECIFICATIONs This product consists of two remote controls and three socket receivers Remove protective tape from remote control’s battery chamber prior to use Features: - For indoor use only - Buttons on remote control correspond to socket reciever units (1, 2, 3). - The socket receiver can be manually operated or via the handy Remote Control. - Individual ON ( ) & OFF () function for the remote control. - The Wireless Remote Control Outlets operate on radio frequency and will perform through walls, doors and floors up to 18.3m /60’ away (remote signal is not dependent on line of sight). - No wiring is required. - Red LED indicators on socket receiver indicate POWER SWITCHED ON. Manual POWER ON/OFF ( ) - Red transmit LED on the remote control activates when buttons are pressed to confirm signal is being sent. - Easy to use and operate. Use one remote control to match more socket receivers or program more than one remote control to each socket. Any one remote control and socket receiver can match use after finish programming operation. - The socket receiver will still remain in the “OFF” mode after a power out, even when the power comes on again. Technical data: - Working Voltage for socket:120V~/60Hz - Max. load current: 10A / 1,000 watts (do not overload) - Transmission frequency: 315 MHz - Power for remote control: DC12V 23A battery - For indoor use only, it should be installed in places of aeration and far from high-temperature sources. Make sure to avoid strong sunlight, raining and moisture places NOTE: Socket receivers feature 3-prong grounding plugs and are intended for use ONLY in 3-prong INDOOR household AC outlets. DO NOT remove the round grounding prong. If your household AC outlets do not accept 3-prong plugs then consult a qualified electrician to have your household AC outlets upgraded. - DO NOT ExCEED ThE MAxIMUM LOAD CURRENT. Manual Operation - Manual operation button allows users to turn socket receiver ON or OFF () in the event the remote controls cannot be located or if the battery in the remote fails. - Press to turn Power ON. Press again to turn Power OFF Remote Control Operation: Remove protective tape from battery chamber prior to use 1. Open the battery compartment 2. Slide the battery compartment cover off. Remove protective tape (only for first time users). Replace battery compartment cover by sliding into place. 3. Test the remote control by pressing any button, LED light on remote control unit will flash if a signal is being sent. 4. ON/OFF buttons correspond with socket receiver ID #. Green buttons are ON ( ) - Red buttons are OFF (). Socket Receiver 1 1 3 2 1 Remote Control 1. Close supervision is necessary when this unit is used near children. 2. To reduce the risk of electrical shock, do not put the unit in water or other liquid. For cleaning, use a soft dry cloth. Do not place or store appliance where it can fall or be pulled into a tub or sink. 3. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. THERE ARE NO SERVICEABLE PARTS INSIDE. WARNING ! Indicator LED Receiver ID # Manual Power Button ON/OFF ON OFF ITM. / ART. 879798 Made in China Green buttons are ON ( ) Red buttons are OFF ( ) IMPORTANTE, CONsÉRVELO PARA FUTURAs CONsULTAs: LEA CUIDADOsAMENTE Debe leer, observar, y seguir todas las instrucciones de seguridad y funcionamiento antes de hacer funcionar la unidad. PARTEs Y EsPECIFICACIONEs Este producto consta de dos controles remotos y tres tomacorrientes. Retire la cinta protectora del compartimento de la batería del control remoto antes de usar. Características: - solo para uso en interiores. - Los botones del control remoto corresponden a las unidades del tomacorriente (1, 2, 3). - Se puede operar el tomacorriente manualmente o con el control remoto. - Las opciones ON ( ) y OFF () funcionan individualmente para el control remoto. - Los tomacorrientes inalámbricos a control remoto operan en la frecuencia de radio y se usan en paredes, puertas y pisos de hasta 18.3m/60’ de distancia (la señal remota no depende del campo visual). - No se requiere cableado. - Los indicadores rojos LED del tomacorriente indican ON. Manual ON / OFF ( ) - La emisión roja LED del control remoto se activa cuando se pulsan los botones para confirmar si está enviando la señal. - Fácil de usar y operar. Utilice un control remoto para combinar más tomacorrientes o para programar más de un control remoto a cada tomacorriente. Cualquier control remoto se puede usar con un tomacorriente después de terminar la operación de programación. - El tomacorriente todavía permanecerá en el modo “OFF” después de un apagón, incluso cuando vuelva la electricidad. Datos técnicos: - Voltaje de funcionamiento para el enchufe: 120V~/60Hz - Máxima corriente de carga: 10A / 1,000 watts (no sobrecargue) - Frecuencia de transmisión: 315 MHz - Energía para el control remoto: batería DC12V 23A - Sólo para uso en interiores, debe instalarse en lugares ventilados y lejos de fuentes con alta temperatura. Asegúrese de evitar la exposición solar intensa, la lluvia y los lugares húmedos. NOTA: Los tomacorrientes incluyen adaptadores de 3 clavijas y están destinados para USO EXCLUSIVO INTERNO en tomacorrientes AC de 3 clavijas en el hogar. NO retire la clavija de tierra redonda. Si su interruptor AC en el hogar no acepta enchufes de 3 clavijas, consulte a un electricista calificado para renovarlo. - NO ExCEDA LA CORRIENTE MÁxIMA DE CARGA. Funcionamiento manual - El botón de funcionamiento manual permite a los usuarios cambiar el tomacorriente a ON u OFF ( ) en caso de que no se pueda encontrar el control remoto o por si falla la batería del control remoto. - Pulse el botón para cambiar a ON. Presione de nuevo para cambiar a OFF. Funcionamiento del control remoto: Retire la cinta protectora del compartimento de la batería a…

Text truncated - open the document above for the full version.

Ersteller:D.BrandhorstRevision:00 Erstelldatum:02.01.2012Datum:00.00.0000Seite1von1 Long/Short-termConfidentialityRequest PHOENIXTESTLABGmbHDate:25July2014 ProductCertification Königswinkel10 D32825Blomberg FCCID:2ACN4CT-RM411 ToWhomitmayconcerns, Pursuanttosections0.457(d)and0.459ofCFR47andtoavoidprematurerelease ofsensitiveinformationpriortomarketingorreleaseoftheproducttothepublic,we herebyrequestslong-termconfidentialtreatmentofinformationaccompanyingthis applicationasoutlinedbelow: SchematicsPartsList BlockDiagramTune-UpInfo OperationalDescription Inadditionweherebyrequestthefollowingexhibitscontainedinthisapplicationtobe temporarily(short-termconfidentilality)withheldfromthepublicdisclosure foraninitialperiodofdaysuntil:not applicable ExternalPhotosTestSetupPhotos InternalPhotosUsersManual Theabovematerialscontaintradesecretsandproprietaryinformationnot customarilyreleasedtothepublic.Thepublicdisclosureofthesemattersmightbe harmfultotheapplicantandprovideunjustifiedbenefitstoitscompetitors. Theapplicantunderstandsthatpursuanttorule0.457(d),disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateof theGRANTforthisapplication. Thankyouforyourattentioninthismatter. Applicant’sCompanyCAPSTONEINDUSTRIESINC address:SUITE120,350JIMMORANBLVD,DEERFIELDBEACH,FL33442,USA Signature: TitleandDept.:ChiefOperatingOfficer/GMOffice

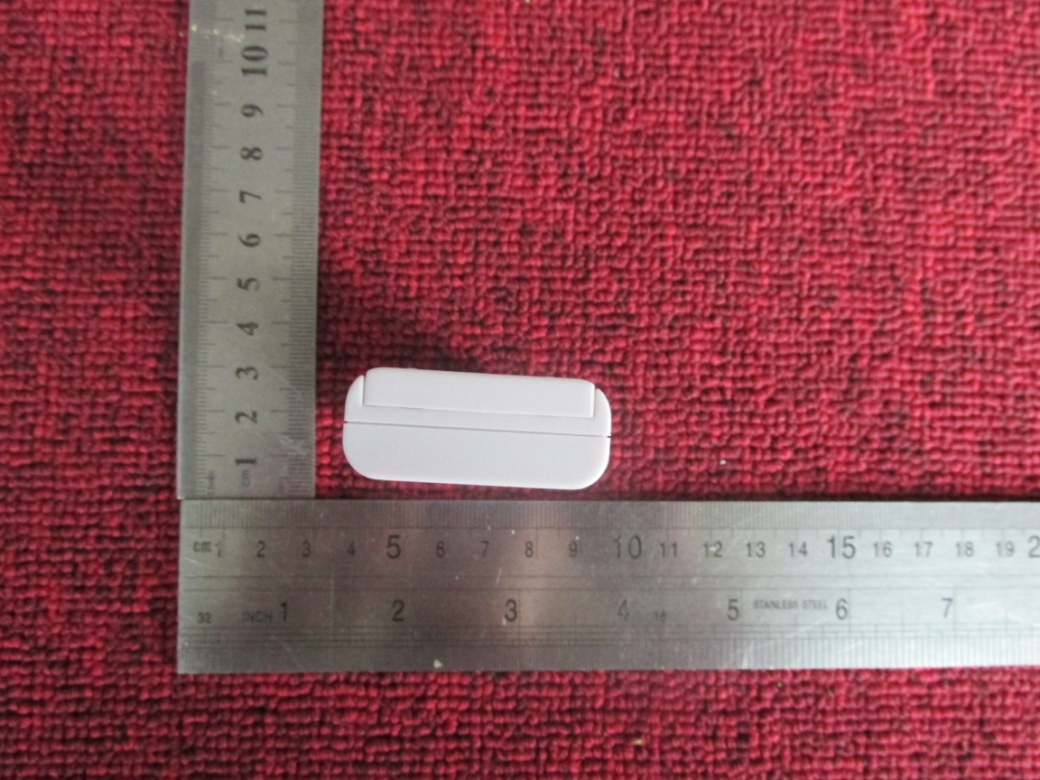

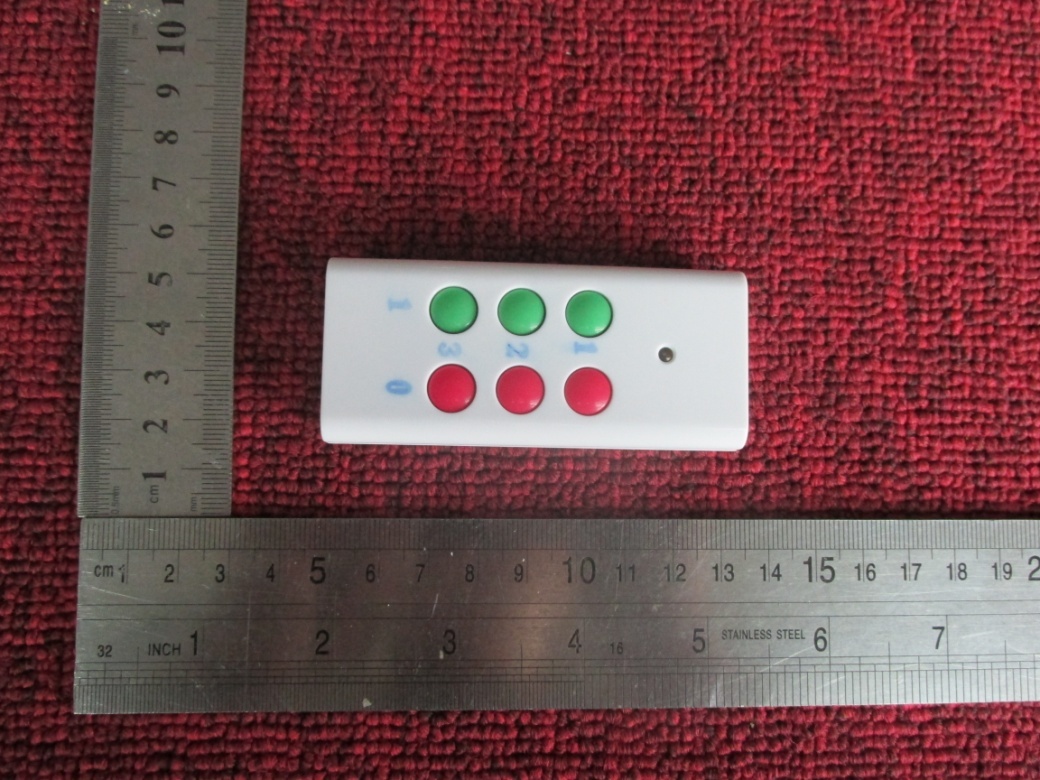

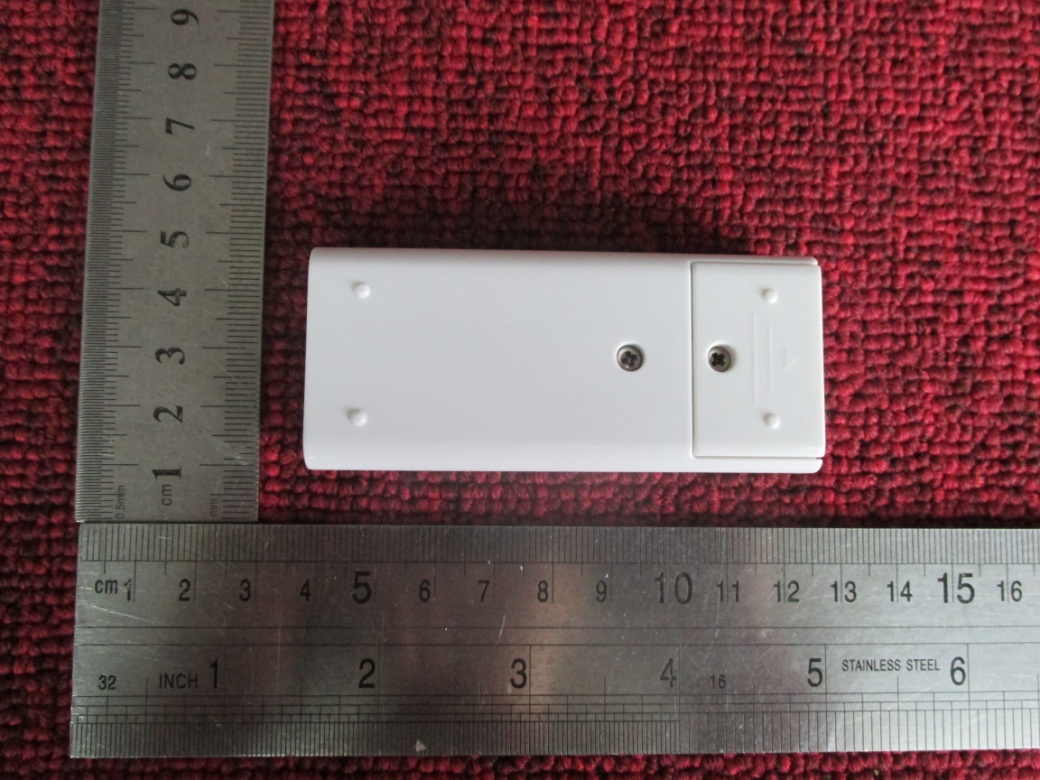

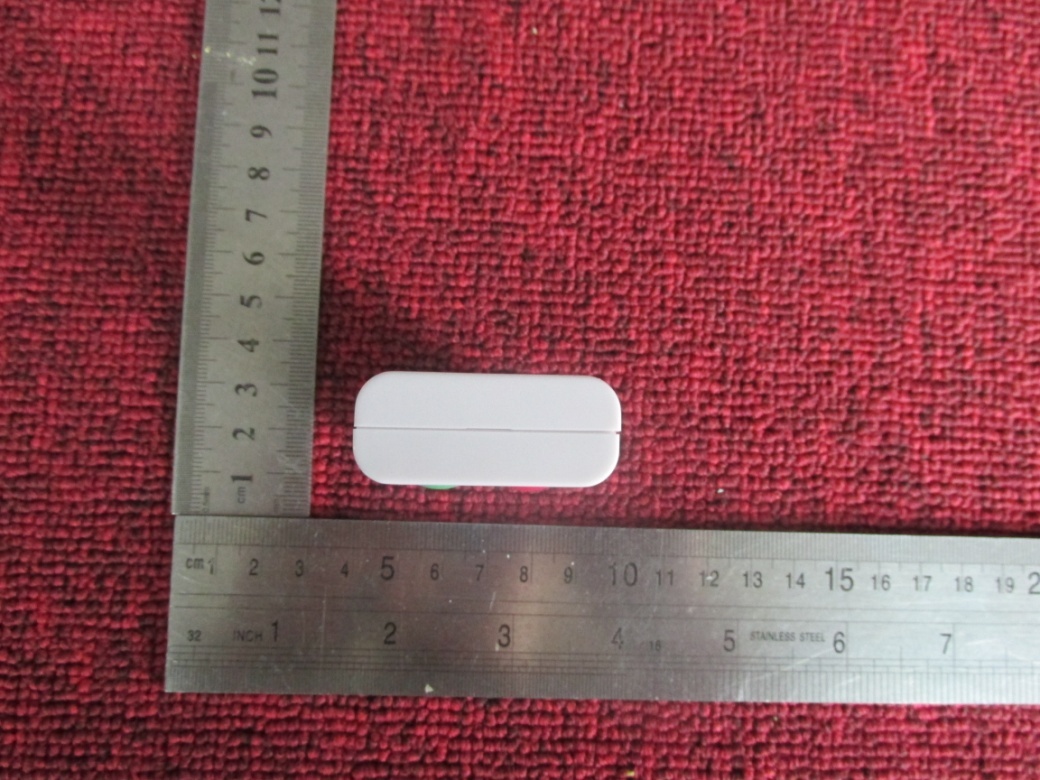

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

FCC ID: 2ACN4CT-RM411 Label Location on EUT FCC ID Label: Size: 15mm * 25mm Wireless Remote Control Outlet M/N: CT-RM411 FCC ID: 2ACN4CT-RM411 CAPSTONE INDUSTRIES INC This may replace by other model(s): CT-RM431

Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT

Report No: FCC1407138 Page 6 of 22 Date: 2014-07-22 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 3.0 Technical Details 3.1 Summary of test results The EUT has been tested according to the following specifications: Standard Test Type Result Notes FCC Part 15, Paragraph 15.203 Antenna requirements PASS Compliant FCC Part 15, Paragraph 15.207 Conducted Emission Test PASS N/A FCC Part 15, Paragraph 15.209 General Requirement PASS Compliant FCC Part 15, Paragraph 15.231 (b) Radiated Emission Test PASS Compliant FCC Part 15, Paragraph 15.231 (c) 20dB Bandwidth Testing PASS Compliant FCC Part 15, Paragraph 15.231 (a) (1) Deactivate Testing PASS Compliant 3.2 Test Standards FCC Part 15 Subpart C, Paragraph 15.231 4.0 EUT Modification No modification by Shenzhen Timeway Technology Consulting Co.,Ltd Report No: FCC1407138 Page 7 of 22 Date: 2014-07-22 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 5. Power Line Conducted Emission Test 5.1 Schematics of the test Test Receiver AC Mains L.I.S.N EUT Load EUT: Equipment Under Test 5.2 Test Method and test Procedure The EUT was tested according to ANSI C63.4-2003.The Frequency spectrum From 0.15MHz to 30MHz was investigated. The LISN used was 50ohm/50uH as specified by section 5.1 of ANSI C63.4 –2003. Block diagram of Test setup Cable 800mm 5.3 Configuration of The EUT The EUT was configured according to ANSI C63.4-2003. All interface ports were connected to the appropriate peripherals. All peripherals and cables are listed below. A. EUT Device Manufacturer Model FCC ID Wireless Remote Control Outlet Jie Du Electronics Technology Co., LTD CT-RM411, CT-RM431 2ACN4CT-RM411 B. Internal Device Device Manufacturer Model FCC ID/DOC N/A C. Peripherals Device Manufacturer Model FCC ID/DOCCable N/A EUT L.S.I.N AC Receiver Report No: FCC1407138 Page 8 of 22 Date: 2014-07-22 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. 5.4 EUT Operating Condition Operating condition is according to ANSI C63.4 -2003. 5.5 Power line conducted Emission Limit according to Paragraph 15.207 Class A Limits (dBμV) Class B Limits (dBμV) Frequency (MHz) Quasi-peak Level Average Level Quasi-peak Level Average Level 0.15 ～ 0.50 79.0 66.0 66.0～56.0* 56.0～46.0* 0.50 ～ 5.00 73.0 60.0 56.0 46.0 5.00 ～ 30.00 73.0 60.0 60.0 50.0 Notes: 1. *Decreasing linearly with logarithm of frequency. 2. The tighter limit shall apply at the transition frequencies 5.6 Test Results The frequency spectrum from 0.15MHz to 30MHz was investigated. All reading are quasi-peak values with a resolution bandwidth of 9kHz. (The average detector is necessary when the Quasi-peak emission level beyond the average Limit.) Note: Battery operation, this test item not applicable. Report No: FCC1407138 Page 9 of 22 Date: 2014-07-22 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co…

Text truncated - open the document above for the full version.

Radiated Emission Below 1GHz Radiated Emission Above 1GHz .
