2ACO3-18830Portable wireless speaker set

User Manual #18830 Portable Wireless Speaker Set P.1 The packaging contains: ○ 1EA Portable wireless speaker x 2 A ○ 2EA Charging stand A ○ 3EA Carabiner A ○ 4EA USB charging cable A ○ 5EA User manual Description of functions: P.2 1. Portable wireless speaker set protection cover 2. Portable wireless speaker set protection cover open button 3. Portable wireless speaker set power ON/OFF button (for both wireless speakers pairing) 4. Carabiner hole 5. Portable wireless speaker charging port 6. Microphone (for answering incoming call) 7. Portable wireless speaker power ON/OFF button 8. Portable wireless speaker LED indicators 9. Left portable wireless speaker charging LED indicator 10. Right portable wireless speaker charging LED indicator 11. Charging stand 4-LED indicators 12. Charging stand micro USB input port User guide: Power source: 1. This portable wireless speaker set is powered by li-ion rechargeable battery with a built-in battery capacity of 200mAh on each portable wireless speaker and 1000mAh on charging stand. 2. Charging the charging stand: Use the USB charging cable provided and insert the micro USB plug into the charging stand micro USB input port. Insert the other side of the USB plug to the power bank (not included), notebook or PC’s USB port. The charging stand LED light indicators will turn on in blue and start flashing. Once the charging stand is fully charged (it will take approx. 2-h o u r, depending on the charging equipment), all charging stand 4-LED indicators will turn on in blue color and stop flashing. Once the charging stand is fully charged, remove the micro USB plug from the charging stand micro USB input port and remove the USB plug from the power bank (not included), notebook or PC’s USB port immediately. Energy of charging stand: 1-LED indicator turned on in blue = Approx. 25% energy. 2-LED indicators turned on in blue = Approx. 50% energy. 3-LED indicators turned on in blue = Approx. 75% energy. All 4-LED indicators turned on in blue = Approx. 100% energy. 3. Charging the portable wireless speaker set: Place the two portable wireless speakers into the charging stand. The left and right portable wireless speaker charging LED indicators will turn on in red. At the same time, the charging stand LED indicator (s) will also turn on in blue. Once the portable wireless speaker (s) is fully charged (it will take approx. 1.5-hour), the portable wireless speaker charging LED indicator (s) will turn off. At the same time, the charging stand LED indicator (s) will turn off too. Note: Both portable wireless speakers may not fully charged at the same time. 4. When the portable wireless speaker set under operation, if you hear a message “Battery low” frequently from both speakers or any one of speaker, it means that speaker (s) battery power is almost exhausted. Please re-charge the speaker (s) immediately. NOTE: If the battery power of both portable wireless speakers or any one speaker is totally exhausted, the speaker (s) and the speaker’s LED indicator (s) will turn off automatically. To pair the portable wireless speaker set and connect to the wireless device: 1. To pair the portable wireless speaker set. Press and hold the portable wireless speaker set power ON/OFF button (on the charging stand) in approx. 2-second. You will hear a short melody and both portable wireless speakers of 2-LED indicators (on the bottom of each speaker) will turn on in blue color and flashing. After approx. 5-second, both portable wireless speakers will connect together automatically and you will hear an audible sound. To connect the wireless device. Turn on the wireless mode from the smartphone, tablet, or any other devices, which have wireless mode function. Search the pairing name of "18830" and confirm pairing. The portable wireless speaker set will connect to the wireless device successfully and you will hear an audible sound from the portable wireless speaker set. Press the portable wireless speaker set protection cover open button once. The protection cover will open. N o w, y ou can enjoy the music from the portable wireless speaker set. Or, you can take out both portable wireless speakers from the charging case and placed on the flat area. Note: The portable wireless speaker set has an automatic wireless connection function. When a connected smartphone, tablet, or other wireless device turns on the wireless function, the portable wireless speaker set will actively connect to the last connected device. 2. If the portable wireless speaker set fails to pair, it may be paired with another mobile, tablet or device. In this case, deactivate the wireless function from your mobile, tablet or other device and reactivate the wireless function again. Repeat the above steps for pairing. It should work. 3. The portable wireless speaker set will auto power off in approx. 5-minute if there is no connection to the wireless device. You will hear an audible sound and all LED indicators on the portable wireless speaker set will turn off. 4. Use a single portable wireless speaker: If you just wanted to use a single portable wireless speaker, press the portable wireless speaker set protection cover open button once. The protection cover will open. Take out any one powered off portable wireless speaker from the charging stand. Press and hold the portable wireless speaker power ON/OFF button (on the bottom of speaker) in approx. 2-second. You will hear a short melody and the 2-LED indicators (on the bottom of speaker) will turn on in blue color and flashing. To connect the wireless device, repeat the above pairing steps and you can enjoy the music from the single wireless speaker. Note: The single speaker wireless speaker also has an automatic wireless connection function. When a connected smartphone, tablet, or other wireless device turns on the wireless function, the single wireless speaker will actively connect to the last connected device. A single portable wireless speaker will auto power off in…

Text truncated - open the document above for the full version.

CONFIDENTIALITYREQUEST forCertificationServiceinUSA FederalCommunicationCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21046 Date:<2021-7-6> PursuanttoParagraphs§0.457and0.459oftheCommission’sRules(47C.F.R.)and Section§552(b)(4)oftheFreedomofInformationAct,werequestsconfidentialityfor thefollowingproducts: FCCIDModelname 2ACO3-18830#18830 Fortheproductstatedabove,werequestthatthefollowinginformationbeheld confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term ConfidentialityDays ExternalPhotos InternalPhotos BlockDiagram Schematics TestSetupPhotos User’sManual PartsList TuneUp OperationalDescriptions Thelong-termconfidentialityexhibitscontainourtradesecretsandproprietary informationthatcouldbeofbenefittoourcompetitors. Theshort-termconfidentialityonthebasisofensuringthatbusinesssensitive informationremainsconfidentialuntiltheactualmarketingofournewdevice. Ifyouhaveanyquestions,pleasefeelfreetocontactmeattheaddressshownbelow. Sincerely, Name/Title： JacobYeh/N/A Company: LuckyGroup(H.K.)Limited Address: BuildingB,LuckyIndustrialPark,HongjinRoad,HongmeiTown, Dongguan,China Phone: 0769-81212988 Fax: 0769-81212998 E-Mail: [email protected]

LuckyGroup(H.K.)Limited BuildingB,LuckyIndustrialPark,HongjinRoad,HongmeiTown,Dongguan,China FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2021-7-6 Towhomitmayconcern: We,LuckyGroup(H.K.)Limitedtheundersigned,herebyauthorizeEurofinsProductService GmbHtoactonourbehalfinallmattersrelatingtoapplicationsforequipmentauthorization FCCID:2ACO3-18830includingthesigningofalldocumentsrelatedtothesematters. AnyandallactscarriedoutbyEurofinsProductServiceGmbHonourbehalfshallhavethesame effectasactsofourown. Wealsoherebycertifythatnopartytothisapplicationissubjecttoadenialofbenefits,including FCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21U.S.C.862. Sincerely, Name/Title ： JacobYeh/N/A Company: LuckyGroup(H.K.)Limited Address: BuildingB,LuckyIndustrialPark,HongjinRoad,HongmeiTown, Dongguan,China Phone: 0769-81212988 Fax: 0769-81212998 E-Mail: [email protected]

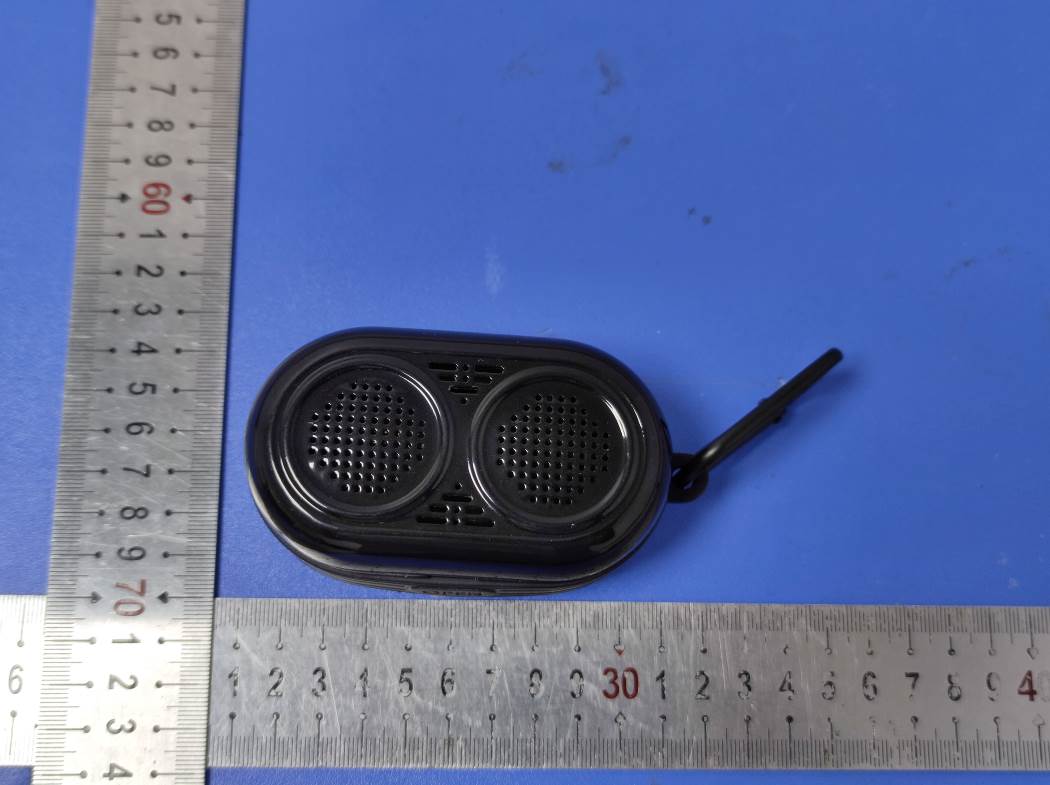

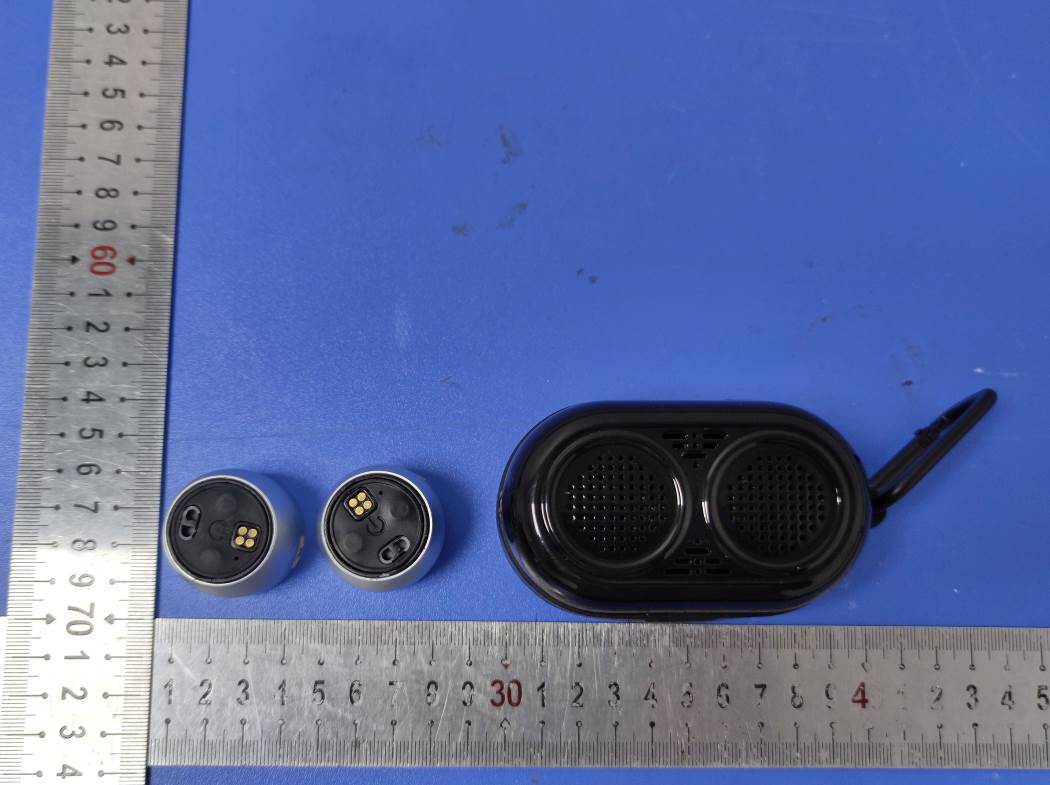

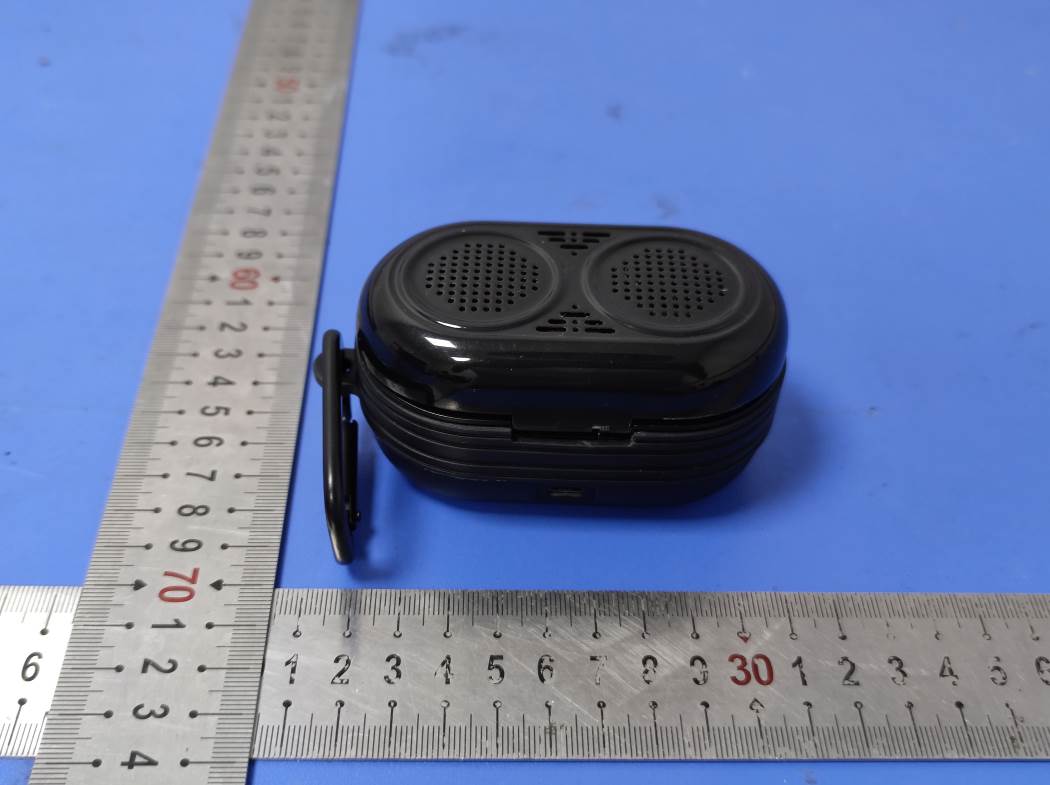

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 6 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 6 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 6 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 6 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 6 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 6 of 6 Fig.11 Fig.11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W2.0cm Label Location Portable wireless speaker set Model No.: #18830 FCC ID: 2ACO3-18830

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Fig.7 Fig.8 ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3‐18830 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2ACO3‐18830 Product name Portable wireless speaker set Test Model #18830 Power supply Input: DC 5V, 310mA DC 3.7V by Rechargeable Li‐ion Battery,200mAh BOX: DC 3.7V by Rechargeable Li‐ion Battery,1000mAh Modulation Type GFSK, π/4‐DQPSK for Bluetooth V5.1 (DSS) Antenna Type PCBAntenna Antenna Gain ‐0.68dBi(maximum) Hardware version / Software version / Bluetooth Operation frequency 2402MHz‐2480MHz Bluetooth Version V5.1 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1‐g head or body and 10‐g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source‐based time‐averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune‐up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two‐way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune‐up tolerance, mW)/ (min. test separaƟon distance, mm)] · [√f (GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3‐18830 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or esƟmated SAR for each standalone antenna configuraƟon, adjusted for maximum tune‐up tolerance) / 1.6 W/kg] + [∑ of MPE raƟos] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operaƟng in portable device exposure condiƟons are all ≤ 0.04, and the [∑ of MPE raƟos] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [BT Classics] Mode Channel Frequency (MHz)Peak Conducted Output Power (dBm) GFSK 0 2402 0.135 39 2441 0.389 78 2480 0.127 π/4DQPSK 0 2402 0.716 39 2441 0.979 78 2480 0.741 5. Manufacturing Tolerance [BT Classics] GFSK (Peak) Channel Channel 0Channel 39Channel 78 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0Channel 39Channel 78 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3‐18830 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.441 5 1.0 1.2589 0.3934 < 3.0 Yes π/4DQPSK 2.441 5 1.0 1.2589 0.3934 < 3.0 Yes Remark: 1. RF output power including tune up tolerance; 2. When the minimum test separation d…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 1 of 34 Appendix A RF Test Data for BT V5.1(BDR/EDR) (Conducted Measurement) Product Name: Portable wireless speaker set Trade Mark: N/A Test Model: #18830 Environmental Conditions Temperature: 21.6 C Relative Humidity: 52.7% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Maxmum Peak Conducted Output Power Mode Channel. Maximum Peak Output Power [dBm]Limit [dBm] Verdict GFSK LCH 0.135 21 PASS MCH 0.389 21 PASS HCH 0.127 21 PASS π/4DQPSK LCH 0.716 21 PASS MCH 0.979 21 PASS HCH 0.741 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 2 of 34 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 3 of 34 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 4 of 34 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 5 of 34 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9513 Not Specified PASS MCH 0.9544 Not Specified PASS HCH 0.9556 Not Specified PASS π/4DQPSK LCH 1.311 Not Specified PASS MCH 1.313 Not Specified PASS HCH 1.314 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 6 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 7 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 8 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 9 of 34 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.855 0.637 PASS MCH 0.992 0.637 PASS HCH 0.846 0.637 PASS π/4DQPSK LCH 1.008 0.876 PASS MCH 0.982 0.876 PASS HCH 1.006 0.876 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 10 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 11 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 12 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 13 of 34 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N]Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 14 of 34 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s]Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.89 106.7 0.308 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 15 of 34 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 16 of 34 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 17 of 34 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 18 of 34 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.559 -36.924 -20.559 PASS MCH -0.331 -37.863 -20.331 PASS HCH -0.552 -37.993 -20.552 PASS π/4DQPSK LCH -0.647 -37.285 -20.647 PASS MCH -0.181 -36.913 -20.181 PASS HCH -0.707 -37.532 -20.707 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 19 of 34 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 20 of 34 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 21 of 34 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 22 of 34 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 23 of 34 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 24 of 34 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 25 of 34 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -0.498 Off -49.532 -20.5 PASS -0.380 On -48.946-20.38 PASS HCH 2480 -0.475 Off -48.258 -20.48 PASS -0.193 On -48.751-20.19 PASS π/4DQPSK LCH 2402 -0.913 Off -49.972 -20.91 PASS -0.146 On -47.909-20.15 PASS HCH 2480 -0.325 Off -48.856 -20.33 PASS 0.090 On -48.117-19.91 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 26 of 34 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 27 of 34 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA Page 28 of 34 π/4DQPSK/LCH/No Hop π/4DQPSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LT…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT For Lucky Group (H.K.) Limited Portable wireless speaker set Test Model: #18830 Prepared for : Lucky Group (H.K.) Limited Address : Building B, Lucky Industrial Park, Hongjin Road, Hongmei Town, Dongguan, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 15, 2021 Number of tested samples : 2 Serial number : 210608063A-1(Engineer sample), 210608063A-2(Normal sample) Date of Test : June 15, 2021 ~ June 23, 2021 Date of Report : June 26, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210608063AEA Date of Issue .................................. : June 26, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Lucky Group (H.K.) Limited Address .......................................... : Building B, Lucky Industrial Park, Hongjin Road, Hongmei Town, Dongguan, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Portable wireless speaker set Trade Mark ..................................... : N/A Test Model...................................... : #18830 Ratings ........................................... : Input: DC 5V, 310mA DC 3.7V by Rechargeable Li-ion Battery,200mAh BOX: DC 3.7V by Rechargeable Li-ion Battery,1000mAh Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Model............................... : #18830 EUT......................................... : Portable wireless speaker set Applicant............................... : Lucky Group (H.K.) Limited Address.................................. : Building B, Lucky Industrial Park, Hongjin Road, Hongmei Town, Dongguan, China Telephone............................... : Fax.......................................... : Manufacturer........................ : Dongguan Xing Yue Electronic Co., Ltd. Address................................... : No.98,LiWu Swan Industrial Zone, Qiaotou Town, Dongguan City, Guangdong Province, China. Telephone............................... : Fax.......................................... : Factory................................... : Dongguan Xing Yue Electronic Co., Ltd. Address................................... : No.98,LiWu Swan Industrial Zone, Qiaotou Town, Dongguan City, Guangdong Province, China. Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210608063AEA June 26, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 June 26, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 Report No.: LCS210608063AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description .................................................................................................................................. Page 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTE…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACO3-18830 _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
