2ACO4-X77 ANDROID TABLET PC

FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE 3: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 1. Announcements ①. Please keep the device away from moist and dust. ②. Do not put the device in high-temperature environment, especially closed car in hot weather. ③. Do not drop or strike the device. ④. Do not shake the device violently, especially the LCD Screen part. Or, it will cause abnormal display on the screen. ⑤. Please choose proper volume when using the earphone which will be good for your ear. ⑥. Please charge the device when (1) The power icon shows lowest power. (2) The device is turned off automatically, and when you turn on it, it is turned off automatically again. (3) No response when operating the buttons. Attention: Please use the charger offered by manufacturer to charge, other charges may causes damage to the device. Input: 100-240V ~ 50/60 Hz Output: 5V 2000 mA ⑦. Do not disconnect the device from PC when downloading, uploading or formatting, or it will cause programming errors of the device. ⑧. Do not dismounting the device privately without professional guidance. ⑨. Do not use alcohol, thinner or benzene-chemical to clean the surface of the device. ⑩. Do not use the device in forbidden place, like airplane. ⑪. Please back-up your files in device’s memory always. The manufacturer is not responsible for the clear of files after damage or repair of the device. ⑫. The manufacture reserves all right of device’s technology and design, and will have no obligation to inform the user if there are new versions or designs been developed. ⑬. The device is NOT water-proof; please keep it away from water. The turn on time of this device is about 20 seconds; please don’t operate the device when it is turned on in 20 seconds. 2. Introduction 2.1 Packing Details. Each unit of Tablet PC has the following items: Tablet PC device*1, charger*1, earphone*1, USB cable*1,OTG cable*1 and user manual*1. Warranty paper *1 .All items are packed in gift box. 2.2 Instructions on Keys. Name Description POWER Press this button shortly to enter sleeping/wake up mode, long press to switch ON/OFF MENU Press this button shortly to enter the submenu ESC Press shortly to return, TF Card Slot For external TF card, 1GB to 16GB Stereo Earpieces Jack Stereo earpieces jack for earphone DC Socket Connect with 5V DC charger MINI USB Port MINI_5 PIN USB Port Display HD Display area Long Press: Press the item for more than 1--2 seconds. 2.3 Features Overview „ CPU: Rockchip3026(Dual Core), 1.0GHz. With ANDROID 4.2 operation system. „ 7" TFT touch panel LCD display, 800*480 pixel resolution. „ Support 4~16GB built-in Flash Memory, support 128MB-32GB external TF card. „ Support Medias playing: Video, audio, pictures, Ebooks, etc. „ Built-in Wi-Fi. Support external 3G USB-DONGLE wireless network card (3G card or USB-Dongle are not provided by the Tablet PC manufacturer). „ Various applications are available in the ANDROIED4.2 OS. (APK applications only). „ Support built-in microphone record function (optional). „ Support USB-HOST and external U-disk, MP3, MP4, Mouse, keyboard, etc. „ Support G-sensor screen rotation function. „ Support Stereo Earpieces and speaker. „ Supports multiple languages. „ The device can be used as USB portable hard disk, driver not needed for WIN2000 or above. 2.4 Technical Specifications Screen 7 inch capacitive Multi touch screen ，Resolution: 800 x 480. 16:9 CPU Chipset: Rockchip3026(Dual Core); Frequency: 1.0GHz RAM DDR3 1GB Storage 8GB NAND Flash（Micro Sd Card Max to 32GB） System Android 4.2 Jelly Bean0 Network Wifi: Built-in Wifi Module. IEEE 802.11b/g/n. 11Mbps to 150Mbps 3G: External 3G by USB Dongle. Applications APK format applications Video RM, RMVB, AVI, MOV, WMV, MP4, ASF, 3GP, TS, MKV, MPEG, etc. All videos support HD 2160P. Music MP3, WMA, WAV, APE, FLAC, AAC, OGG, etc. Pictures JPG, JPEG, GIF, BMP, PNG Ebooks TXT, EPUB, PDF,WORD,EXCEL, POWERPOINTS Office Files Supported files: Word, Excel, PDF, etc. PC Connection MINI USB2.0 x 1 Battery Built-in Lithium Battery:2400mAh 3. Quick Guides 3.1 About Touch Panel The touch screen is capacitive touch screen; you can use five fingers to touch the screen at the same time. 3.2 Switch On/Off. Switch On and Unlock: When the device is in the OFF mode, press and hold “Power” key for 3 seconds to enter the Android startup pr…

Text truncated - open the document above for the full version.

All Land Networking Co,. Ltd 4 Floor, #B Building, Weiyulong Industrial Park, Xuegang North Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23083456 Fax: +86-755-23083456 Rev 11/20/07 Confidentiality Letter Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ACO4-X7. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operation Description Operation Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Chen Qi/ Manager

All Land Networking Co,. Ltd 4 Floor, #B Building, Weiyulong Industrial Park, Xuegang North Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23083456 Fax: +86-755-23083456 DOC ATTESTATION LETTER FCC ID: 2ACO4-X7 Date: July 01, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the personal computer parting of. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Chen Qi/ Manager

All Land Networking Co,. Ltd 4 Floor, #B Building, Weiyulong Industrial Park, Xuegang North Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23083456 Fax: +86-755-23083456 AGENCY AUTHORIZATION LETTER FCC ID: 2ACO4-X7 Date: July 01, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Shenzhen CTL Testing Technology Co., Ltd.(MR. Tracy Qi) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen CTL Testing Technology Co., Ltd. (MR. Tracy Qi) on our behalf shall have the same effect as acts of our own. This authorization expires on June 30, 2015. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, All Land Networking Co,. Ltd are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Chen Qi/ Manager

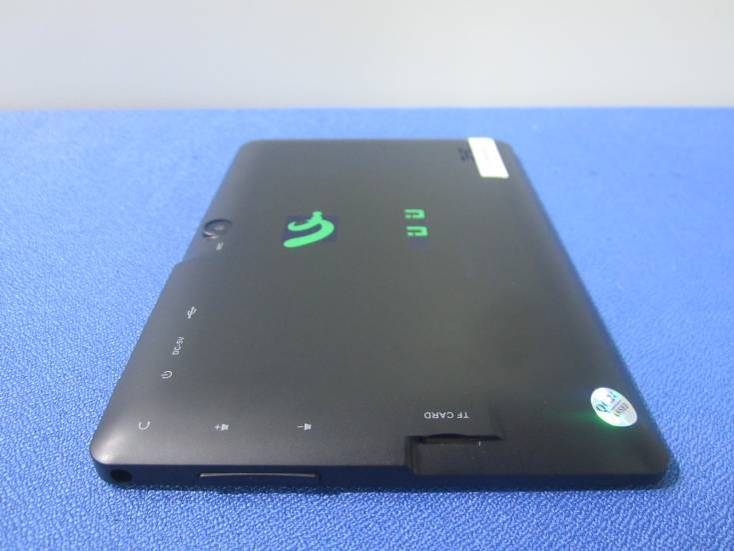

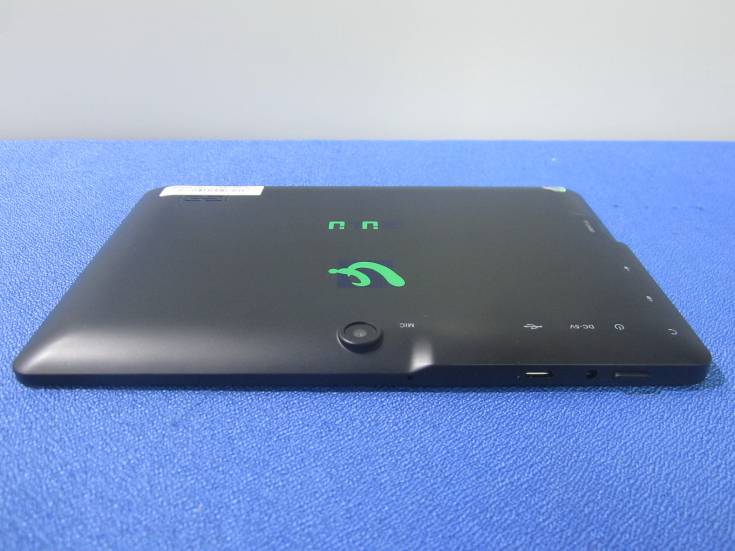

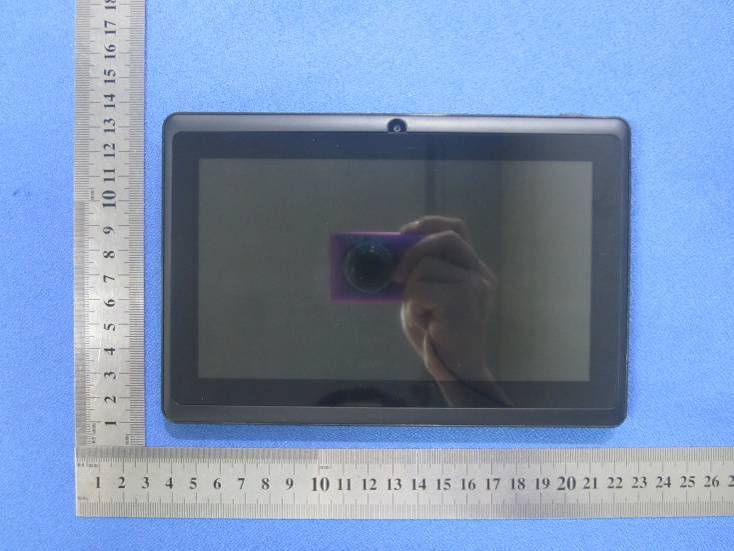

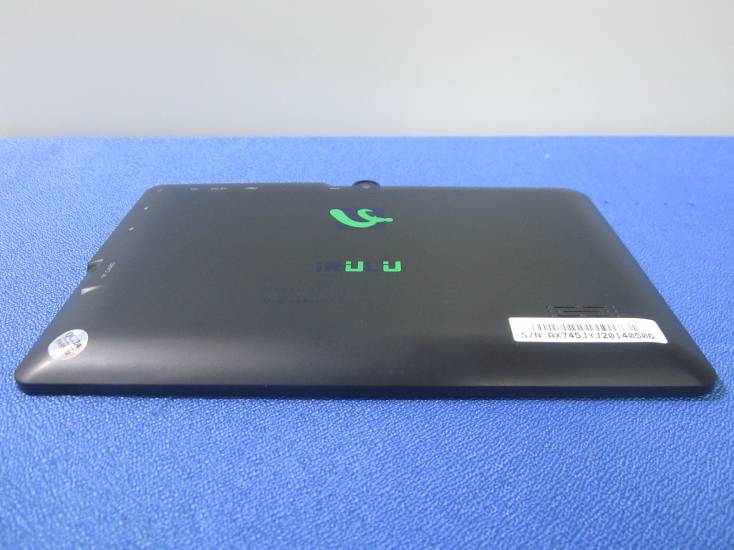

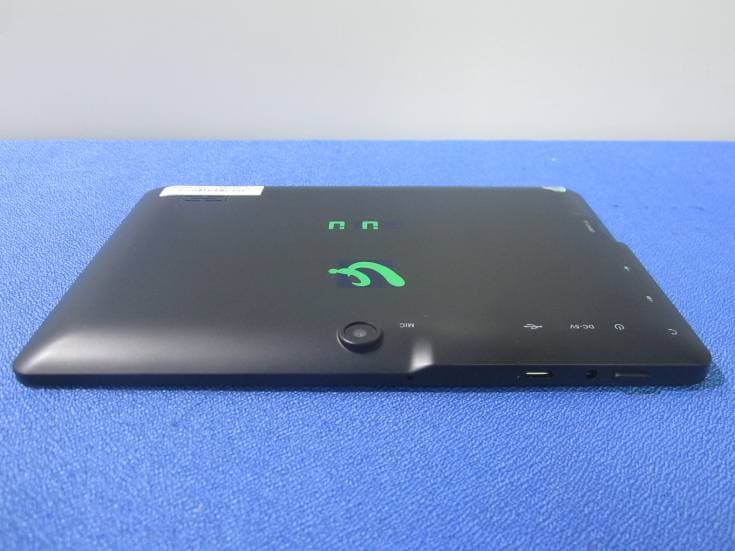

External Photos of EUT

FCC ID Label Information 1. Label location: 2. FCC ID Label: 7”Android Tablet PC X7 FCC ID: 2ACO4-X7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos of EUT

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.247 Report Reference No......................: CTL1406041263-WF Compiled by ( position+printed name+signature) .: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature) .: Test Engineer Tracy Qi Approved by ( position+printed name+signature) .: Manager Tracy Qi Date of issue.....................................: June 30, 2014 Test Laboratory Name...................: Shenzhen CTL Testing Technology Co., Ltd. Address ............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: All Land Networking Co,. Ltd Address ............................................: 4 Floor, #B Building, Weiyulong Industrial Park, Xuegang North Road, Bantian Street, Longgang District, Shenzhen, China Test specification: Standard ...........................................: FCC Part 15.247: Operation within the bands 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz. TRF Originator..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: 7” Android Tablet PC FCC ID.......................................: 2ACO4-X7 Trade Mark....................................... : iRulu Model/Type reference ......................: X7 Work frequency ................................: 802.11b/g/n(20MHz): 2412~2462MHz 802.11n(40MHz): 2422~2452 Type of modulation ...........................: 802.11b DSSS, 802.11g/n: OFDM Data Rate ......................................... : 802.11b: 1/2/5.5/11 Mbps 802.11g: 6/9/12/18/24/36/48/54 Mbps 802.11n: up to 150 Mbps Antenna Gain ................................... : -1.0dBi Antenna type ....................................: Internal Result ............................................... : Positive V1.0 Page 2 of 115 Report No.: CTL1406041263-WF T E S T R E P O R T Test Report No. : CTL1406041263-WF June 30, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : 7” Android Tablet PC Model /Type : X7 Applicant : All Land Networking Co,. Ltd Address : 4 Floor, #B Building, Weiyulong Industrial Park, Xuegang North Road, Bantian Street, Longgang District, Shenzhen, China Manufacturer : All Land Networking Co,. Ltd Address : 4 Floor, #B Building, Weiyulong Industrial Park, Xuegang North Road, Bantian Street, Longgang District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 115 Report No.: CTL1406041263-WF Contents 1. TEST STANDARDS................................................................. 4 2. SUMMARY............................................................................ 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 6 2.6. NOTE 6 2.7. Related Submittal(s) / Grant (s) 6 2.8. Modifications 6 3. TEST ENVIRONMENT ............................................................. 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 8 3.7. Summary of Test Result 9 4. TEST CONDITIONS AND RESULTS.......................................... 10 4.1. Conducted Emissions Test 10 4.2. Radiated Emission Test 13 4.3. 6dB Bandwidth Measurement 21 4.4. Maximum Peak Output Power 30 4.5. Band Edge Measurement 32 4.6. Power Spectral Density Measurement 65 4.7. Spurious RF Conducted Emission 74 4.8. Operation Frequency Range of 20dB Bandwidth 99 4.9. Antenna Requirement 104 4.10. RF Exposure 105 5. TEST SETUP PHOTOS OF THE EUT ....................................... 106 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT .................... 108 V1.0 Page 4 of 115 Report No.: CTL1406041263-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. ANSI C63.4-2009 KDB Publication No. 558074 D01 v03r01 Guidance on Measurements for Digital Transmission Systems V1.0 Page 5 of 115 Report No.: CTL1406041263-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : June 13, 2014 Testing commenced on : June 13, 2014 Testing concluded on : June 30, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ● 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ○ Other (specified in blank below) DC3.7V from battery Description of the test mode IEEE 802.11b/g/n: Thirteen channels are provided to the EUT,but only eleventh channels used for USA. Channel Frequency(MHz)ChannelFrequency(MHz) 1 241282447 2 241792452 3 2422102457 4 2427112462 5 2432 6 2437 7 2442 2.3. Short description of the Equipment under Test (EUT) A 7” Android Tablet PC support Wi-Fi 802.11b/g/n. For m…

Text truncated - open the document above for the full version.

V1.0 Page 65 of 115 Report No.: CTL1406041263-WF 4.6. Power Spectral Density Measurement TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE The EUT was tested according to KDB558074 D01 v03r01 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 3 kHz, VBW≥10KHz, SPAN to 1.5 times greater than the EBW,. LIMIT For digitally modulated systems, the power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8 dBm in any 3 kHz band during any time interval of continuous transmission. TEST RESULTS Product : 7” Android Tablet PC Test Item : Power Spectral Density Test Mode : Mode 1: Transmit by 802.11b Channel No. Frequency (MHz) Measurement PPSD (dBm/3KHz) Limit (dBm/3KHz) Result 01 2412 -16.23 8 Pass 06 2437 -15.83 8 Pass 11 2462 -15.56 8 Pass V1.0 Page 66 of 115 Report No.: CTL1406041263-WF Channel 01 (2412MHz) Channel 06 (2437MHz) V1.0 Page 67 of 115 Report No.: CTL1406041263-WF Channel 11 (2462MHz) V1.0 Page 68 of 115 Report No.: CTL1406041263-WF Product : 7” Android Tablet PC Test Item : Power Spectral Density Test Mode : Mode 2: Transmit by 802.11g Channel No. Frequency (MHz) Measurement PPSD (dBm/3KHz) Limit (dBm/3KHz) Result 01 2412 -19.79 8 Pass 06 2437 -17.80 8 Pass 11 2462 -18.17 8 Pass Channel 01 (2412MHz) V1.0 Page 69 of 115 Report No.: CTL1406041263-WF Channel 06 (2437MHz) Channel 11 (2462MHz) V1.0 Page 70 of 115 Report No.: CTL1406041263-WF Product : 7” Android Tablet PC Test Item : Power Spectral Density Test Mode : Mode 3: Transmit by 802.11n (20MHz) Channel No. Frequency (MHz) Measurement PPSD (dBm/3KHz) Limit (dBm/3KHz) Result 01 2412 -20.12 8 Pass 06 2437 -17.95 8 Pass 11 2462 -17.51 8 Pass Channel 01 (2412MHz) V1.0 Page 71 of 115 Report No.: CTL1406041263-WF Channel 06 (2437MHz) Channel 11 (2462MHz) V1.0 Page 72 of 115 Report No.: CTL1406041263-WF Product : 7” Android Tablet PC Test Item : Power Spectral Density Test Mode : Mode 4: Transmit by 802.11n (40MHz) Channel No. Frequency (MHz) Measurement PPSD (dBm/3KHz) Limit (dBm/3KHz) Result 03 2422 -37.70 8 Pass 06 2437 -36.06 8 Pass 09 2452 -37.73 8 Pass Channel 03 (2422MHz) V1.0 Page 73 of 115 Report No.: CTL1406041263-WF Channel 06 (2437MHz) Channel 09 (2452MHz) V1.0 Page 74 of 115 Report No.: CTL1406041263-WF 4.7. Spurious RF Conducted Emission TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE The EUT was tested according to KDB558074 D01 v03r01 for compliance to FCC 47CFR 15.247 requirements. The Spurious RF conducted emissions compliance of RF radiated emission should be measured by following the guidance in ANSI C63.10-2009 with respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization etc. Set RBW=100kHz and VBM= 300KHz to measure the peak field strength , and measure frequeny range from 30MHz to 26.5GHz. LIMIT In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. TEST RESULTS Product : 7” Android Tablet PC Test Item : RF Antenna Conducted Spurious Test Mode : Mode 1: Transmit by 802.11b Channel 01 (2412MHz) V1.0 Page 75 of 115 Report No.: CTL1406041263-WF V1.0 Page 76 of 115 Report No.: CTL1406041263-WF V1.0 Page 77 of 115 Report No.: CTL1406041263-WF Channel 06 (2437MHz) V1.0 Page 78 of 115 Report No.: CTL1406041263-WF V1.0 Page 79 of 115 Report No.: CTL1406041263-WF Channel 11 (2462MHz) V1.0 Page 80 of 115 Report No.: CTL1406041263-WF V1.0 Page 81 of 115 Report No.: CTL1406041263-WF Product : 7” Android Tablet PC Test Item : RF Antenna Conducted Spurious Test Mode : Mode 2: Transmit by 802.11g Channel 01 (2412MHz) V1.0 Page 82 of 115 Report No.: CTL1406041263-WF V1.0 Page 83 of 115 Report No.: CTL1406041263-WF Channel 06 (2437MHz) V1.0 Page 84 of 115 Report No.: CTL1406041263-WF V1.0 Page 85 of 115 Report No.: CTL1406041263-WF Channel 11 (2462MHz) V1.0 Page 86 of 115 Report No.: CTL1406041263-WF V1.0 Page 87 of 115 Report No.: CTL1406041263-WF Product : 7” Android Tablet PC Test Item : RF Antenna Conducted Spurious Test Mode : Mode 3: Transmit by 802.11n (20MHz) Channel 01 (2412MHz) V1.0 Page 88 of 115 Report No.: CTL1406041263-WF V1.0 Page 89 of 115 Report No.: CTL1406041263-WF Channel 06 (2437MHz) V1.0 Page 90 of 115 Report No.: CTL1406041263-WF V1.0 Page 91 of 115 Report No.: CTL1406041263-WF Channel 11 (2462MHz) V1.0 Page 92 of 115 Report No.: CTL1406041263-WF V1.0 Page 93 of 115 Report No.: CTL1406041263-WF Product : 7” Android Tablet PC Test Item : RF Antenna Conducted Spurious Test Mode : Mode 4: Transmit by 802.11n (40MHz) Channel 03 (2422MHz) V1.0 Page 94 of 115 Report No.: CTL1406041263-WF V1.0 Page 95 of 115 Report No.: CTL1406041263-WF Channel 06 (2437MHz) V1.0 Page 96 of 115 Report No.: CTL1406041263-WF V1.0 Page 97 of 115 Report No.: CTL1406041263-WF Channel 09 (2452MHz) V1.0 Page 98 of 115 Report No.: CTL1406041263-WF V1.0 Page 99 of 115 Report No.: CTL1406041263-WF 4.8. Operation Frequency Range of 20dB Bandwidth TEST CONFIGURATION EUT SPECTRUM ANALYZER TEST PROCEDURE The EUT was tested according to KDB558074 D01 v03r01 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. LIMIT 20 dB bandwidth of the emission is contained within the operation frequency band. TEST RESUTL Product : 7” Android Tablet PC Test Item : Operation Frequency Range of 20dB Bandwidth Test Mode : Mode 1: Transmit by 802.11b Channel 01 (2412MHz) V1.0 Page 100 of 115 Report No.: CTL1406041263-WF Channel 11 (2462MHz) V1.0 Page 101 of 115 Report No.: CTL1406041263-…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
