LGA22U 802.11 a/b/g/n USB module Gemicom Technology Inc. LGA22U is an 802.11a/b/g/n Wireless 2T2R dual-band MIMO USB interface LGA module that enables devices with high performance wireless connectivity. FEATURES  Supports 2T2R 2.4/5GHz dual-band  PHY data rate up to 144.4 Mbps using 20MHz bandwidth, 300 Mbps using 40MHz bandwidth  Supports IEEE 802.11e/ i/ h/ k SPECIFICATIONS Standards IEEE 802.11 a/b/g/n Chipset Realtek RTL8192DU Frequency Band 2.4 - 2.483 GHz; 5.150 ~ 5.825 GHz Encryption 64/128 bit WEP, WPA,WPA2, IEEE 802.1x Output Power 2.4GHz Band: 802.11n (HT20, MCS7): 9 ± 2 dBm 802.11n (HT40, MCS7): 9 ± 2 dBm 802.11g (54Mbps): 11 ± 2 dBm 802.11b: 17 ± 2 dBm 5GHz Band: 802.11n (HT20, MCS7): 9 ± 2 dBm @ Lower/Middle Band 802.11n (HT20, MCS7): 7 ± 2 dBm @ Upper Band 802.11n (HT40, MCS7): 9 ± 2 dBm @ Lower/Middle Band 802.11n (HT40, MCS7): 7 ± 2 dBm @ Upper Band 802.11a: 10 ± 2 dBm @ 54Mbps Receive Sensitivity 2.4GHz: 802.11b: -80 dBm max. @ 11Mbps 802.11g: -65 dBm max. @ 54Mbps 802.11n (HT20): -64 dBm max. @ MCS07 802.11n (HT40): -61 dBm max. @ MCS07 5GHz: 802.11a: -65 dBm max. @ 54Mbps 802.11n (HT20): -64 dBm max. @ MCS07 802.11n (HT40): -61 dBm max. @ MCS07 DC Voltage 3.3V (Typical) Host Interface USB 2.0 Antenna Two printed PCB antennas on board (2T2R) LGA22U 802.11 a/b/g/n USB module Gemicom Technology Inc. Host Connector LGA module Temperature Operating: 0 ~ 70 Celsius Storage: -20 ~ 70 Celsius Humidity Storage: 10 ~ 80% (Non Condensing) Dimensions (L x W x H) 38.5 x 23.0 x 2.85 mm *Specifications are subject to change without further notice. LY 6DIHW\ZDUQLQJQRWLFH FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limit s for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Canada IC Regulatory notices This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

14F, No.108, Sec. 1, Hsin-Tai-Wu Rd., Hsi-Chih Dist., New Taipei City TEL: +886-2-26961898 FAX: +886-2-26967570 Date: October 9, 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ACOL-LGA22U Confidentiality Request To Whom It May Concern: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Gemicom Technology, Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation Tune-up procedure Antenna Specification Gemicom Technology, Inc. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely yours, __________________________ Wind Hsu Compliance Certification Services Inc. Phone: +886-3-324-0332 Fax: +886-3-324-7460 Email: [email protected]

Applicant/Grantee Gemicom Technology, Inc. FCC ID: 2ACOL-LGA22U Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The RF components of this modular transmitter is shielded by metal plate. Y. Internal pictures. 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The modular transmitter applies buffered modulation/data inputs. These inputs are provided. Y. Schematics SW1,SW2,U2 3 The modular transmitter must have its own power supply regulation. The modular transmitter has its own power supply regulation: U12,U2 Y. Schematics. 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna is permanently attached Y. Specification and internal pictures. 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting The modular transmitter is tested in a stand-alone configuration. Y. Testing configuration and internal pictures. equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The modular transmitter is equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number ”2ACOL-LGA22U”. Please refer to the manual documents for details. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular transmitter complies with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the applicant “Gemicom Technology, Inc.” provides adequate instructions along with the module to explain any such requirements. A copy of these instructions is included in the application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The modular transmitter complies with any applicable RF exposure requirements in its final configuration. A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 1…

Text truncated - open the document above for the full version.

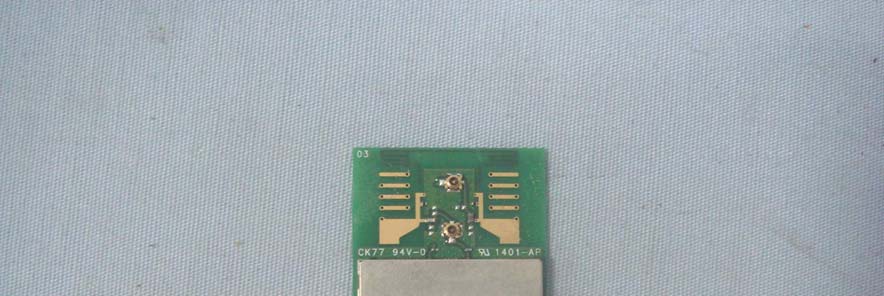

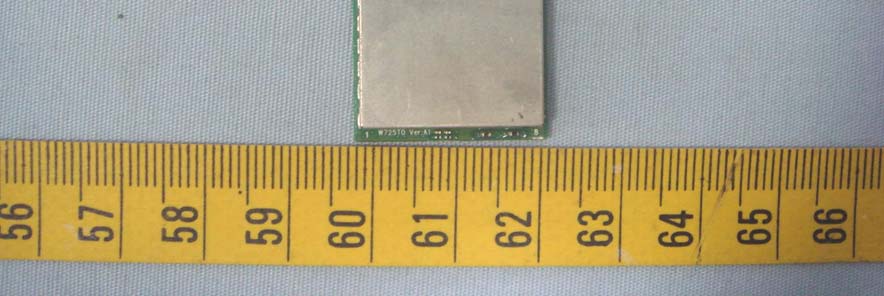

Report No: T140710L08 Page 1 / 3 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT

2014/07/29 786-WW725T0HA3 20*16mm/1R Frank 02 MAC 1 2D Barcode; 5X5mm FCC ID/ MAC 1/ Origin of country; Arial,3 pt 20.0 m m 16.0 mm MAC XXXXXXXXXXXX FCC ID: 2ACOL- LGA22U Made in China Customer model; Arial,4 pt Top Bottom MAC XXXXXXXXXXXX FCC ID: 2ACOL- LGA22U Made in China

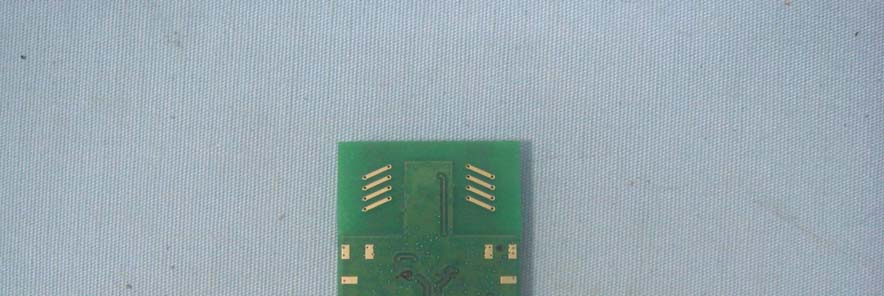

Report No: T140710L08 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T140710L08 Page 3 Rev.00 Antenna
