2ACOVMAIN2.1CH Wireless subwoofer soundbar

User Guide Manual del usuario 866-235-5029 [email protected] Soundbar with Wireless Subwoofer 6 Remote Control 1 POWER: Switch the unit between on and standby mode. 2SOURCE:Select the play function. 3VOL+ / VOL-: Increase/decrease the volume level. 4 / :InBluetooth ® 5:InBluetooth ® mode, start or pause playback. 6PAIR: InBluetooth ® mode, activate the pairing function and disconnect the existing pairedBluetooth ® device. 7MUTE:Mute or resume the sound. 8EQ: Remote Control 866-235-5029 [email protected] Soundbar with Wireless Subwoofer 7 Remote Control (Cont.) Remote Control Battery The remote control comes with a CR2025 3V button cell battery pre-installed. First Time Use •To activate the battery and use the remote control, pull out the plastic tab that separates the battery from the contacts inside the compartment. Battery Replacement •If the remote control unit is no longer working even when it is operated near the soundbar, you will need to replace the battery with a new battery of the same type. •Push in the tab and pull out the battery tray. Remove the old battery. •Insert a fresh CR2025 battery with the (+) marking facing upwards. Then push the battery tray with the battery back into the slot. WARNING! Keep batteries out of reach of children. Swallowing may lead to serious injury or death in as little as 2 hours due to internal burns. If swallowed, go straight to a hospital emergency room. Dispose of used batteries immediately. Remote Control 866-235-5029 [email protected] Soundbar with Wireless Subwoofer 8 Using the Remote Control •The remote control has a range of up to 6 metres from the soundbar. Point the remote control directly towards the sensor at the front of the soundbar. •Make sure no obstacles are blocking its path. The remote control will not operate if its path is blocked. •Handle the remote control with care. Do not drop, apply shock or step on the remote control. Do not spill water on the unit. •Do not use the remote control while simultaneously operating a remote control unit of any another unit, which may result in interference. •If the remote control is operated near other products which generate infra-red rays, or if other remote control devices using infra-red rays are used near the unit, it may operate incorrectly. Conversely, the other products may operate incorrectly. •If you do not intend to use the remote control for an extended period of time (more than a month), remove the battery to prevent possible damage from battery leakage and corrosion. Battery Precautions •Do not use any other battery than the ones specified. •Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. •Do not carry or store batteries with other metallic objects. Doing so could cause batteries to short-circuit, leak or explode. •Do not expose the battery to excessive heat such as sunshine, fire or the like. •Do not attempt to short-circuit, disassemble or throw batteries into a fire. •Never recharge a battery unless it is confirmed to be a rechargeable type. •Dispose of batteries promptly and properly, observing any local hazardous waste regulations. Do not burn or bury them. Remote Control (Cont.) Remote Control 866-235-5029 [email protected] Soundbar with Wireless Subwoofer 9 1 NFC (Near Field Communication) Sensor 2Speakers 3 Power Switch: Press to switch the unit between on and standby mode. 4SOURCE: Select the play function. 5LED Indicators • Red Indicator: In STANDBY mode. • Green Indicator Lights Up: In AUX mode. • Green Indicator Flashes: In HDMI ARC mode. • Orange Indicator: In OPTICAL mode. • Blue Indicator: (Bluetooth ® indicator flashing slowly: in Bluetooth ® mode.) (Bluetooth ® indicator flashing fast: in Bluetooth ® pairing mode.) • Indicator Flashes: Adjust the volume / select a preset sound effect. 6VOL+/VOL-: Increase/decrease the volume level. 7Remote Control Sensor 8Stand 9Power Socket 10 HDMI (ARC) Socket 11 OPTICAL Socket 12 AUX Socket: Connect to an external audio device. 13 USB Charging Port: 5V 1A Product Overview DC 21V 3A DC 21V 3A Main Unit (right) Front ViewRear View Product Overview DC 21V 3A 866-235-5029 [email protected] Soundbar with Wireless Subwoofer 10 Controls and Connections AUX Socket AUse the supplied 3.5mm to 3.5mm audio cable to connect the headphone socket of the connected audio device, such as a media player, to the AUX socket on the unit. BUse the supplied RCA to 3.5mm audio cable to connect the TV’s audio output sockets to the AUX socket on the unit. Optical Socket CRemove the protective cap from the OPTICAL socket, then connect an OPTICAL cable to the TV’s OPTICAL OUT socket and the OPTICAL socket on the unit. TIP: make sure the audio setting of your source player (e.g. DVD player, game player, TV) is set to PCM with optical output. HDMI (ARC) Socket DThe ARC (Audio Return Channel) function allows you to send audio input from an ARC-compliant TV to an ARC-compliant audio device (e.g. soundbar) without the need for an additional audio cable connection. To enjoy the ARC function, make sure the soundbar main unit's HDMI OUT socket is connected via HDMI cable to the HDMI (ARC) socket of your ARC-compliant TV. Then just use your TV remote control to adjust the volume output (VOL +/– and MUTE) of the connected audio device. Back Panel Connections Controls and Connections DC 21V 3A 866-235-5029 [email protected] Soundbar with Wireless Subwoofer 11 Controls and Connections (Cont.) NOTE: tYour TV must support the HDMI-CEC and ARC, and the HDMI-CEC and ARC must be set to On. t details about ARC function, please refer to the TV's instruction manual. tMake sure the HDMI cable you use can support the ARC function. t your TV's instruction manual for details on setting up HDMI-CEC and ARC. Power Connection tBefore connecting the power adapter, ensure you have completed all other connections. tRisk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on…

Text truncated - open the document above for the full version.

Shenzhen Juneed Technology Co., Ltd. Rm 20C,Guang Hao International Center,Mei Long Rd.,Longhua New Dist. Shenzhen,China Confidentiality Request Letter Page 1 of 1 Rev 2.0 September 19, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID:2ACOVMAIN We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: shou nian liang / Quality Engineer Contact information / address: Rm 20C,Guang Hao International Center,Mei Long Rd.,Longhua New Dist. Shenzhen,China TEL: +86-755-23917902 FAX: +86-755-23069506 E-mail: [email protected]

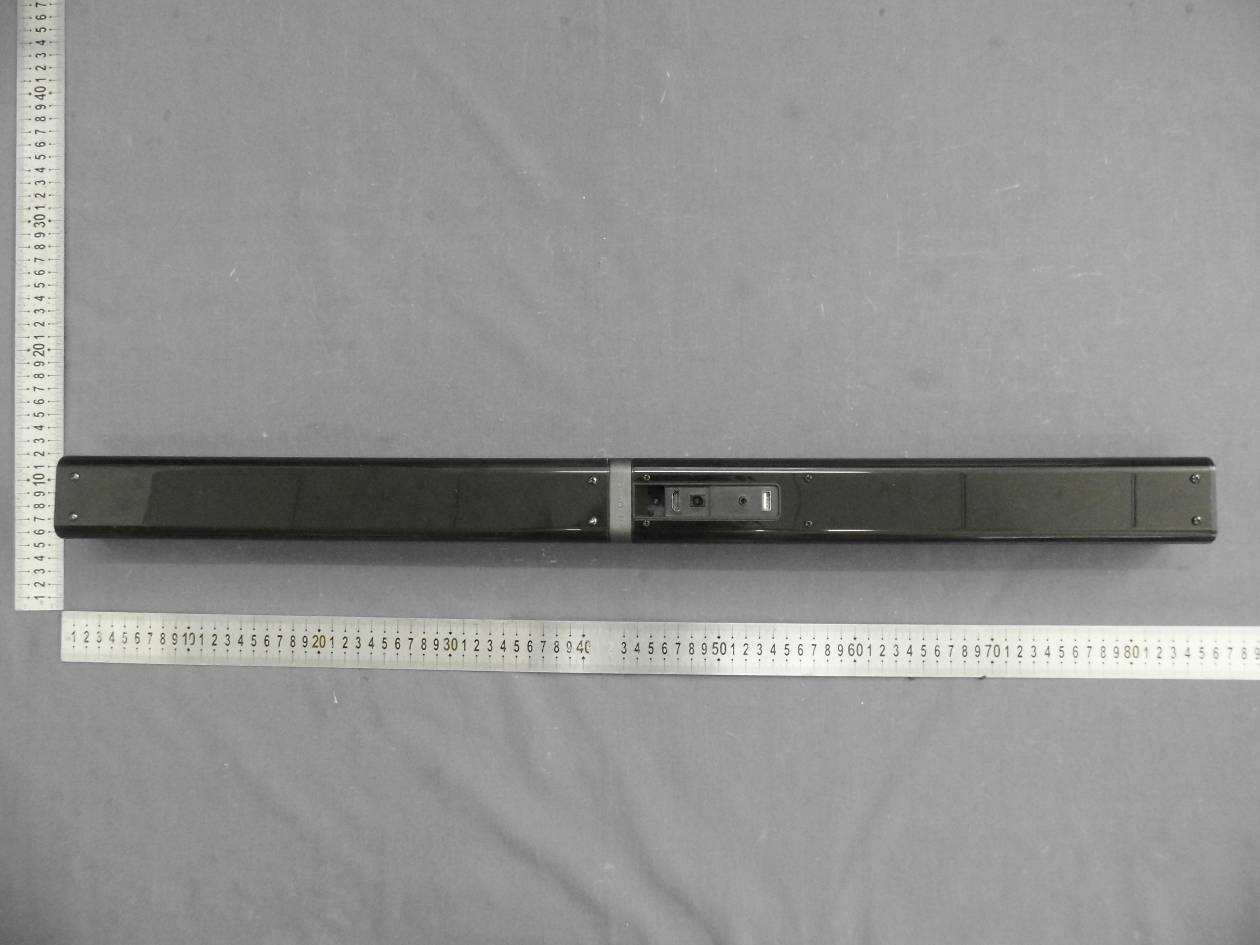

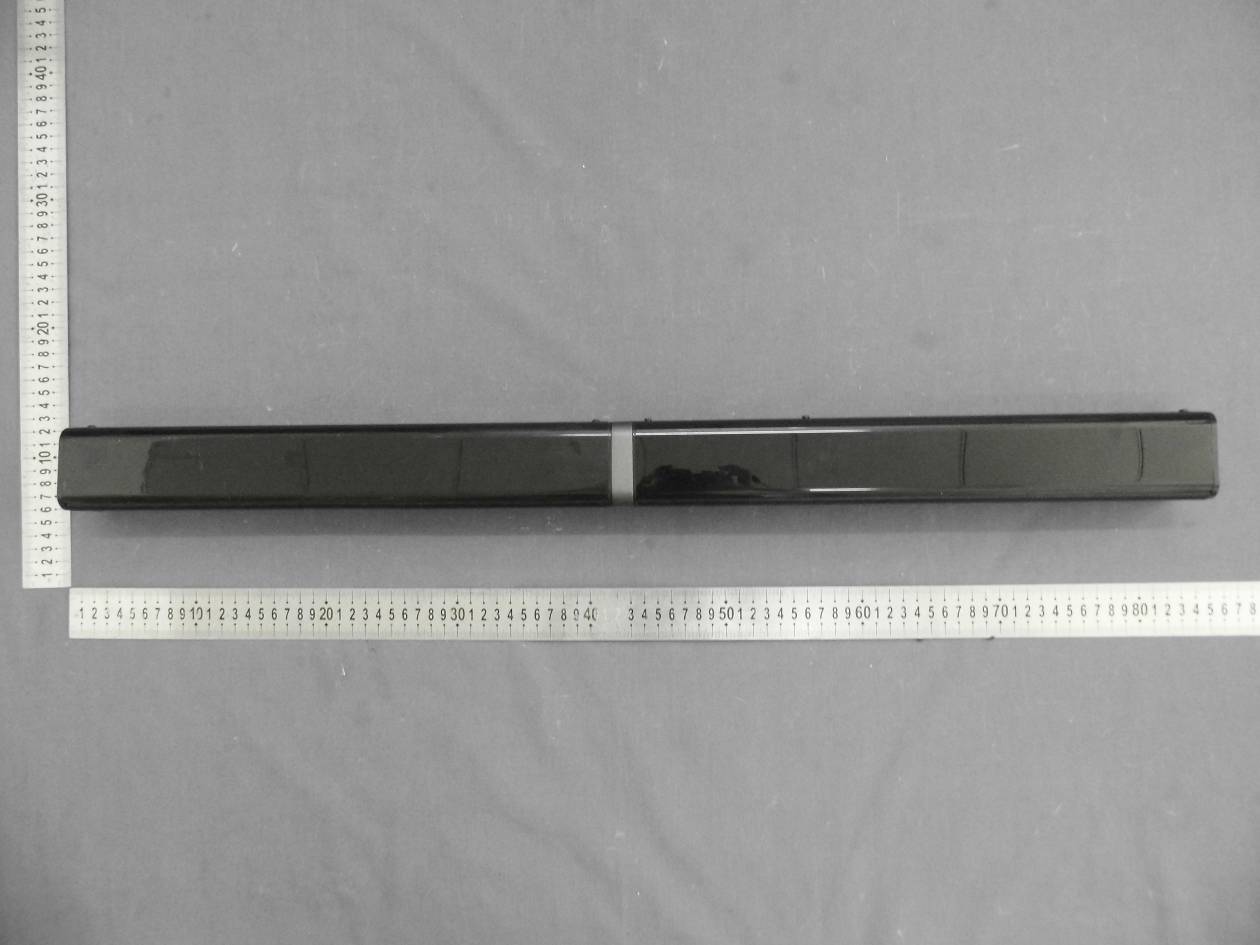

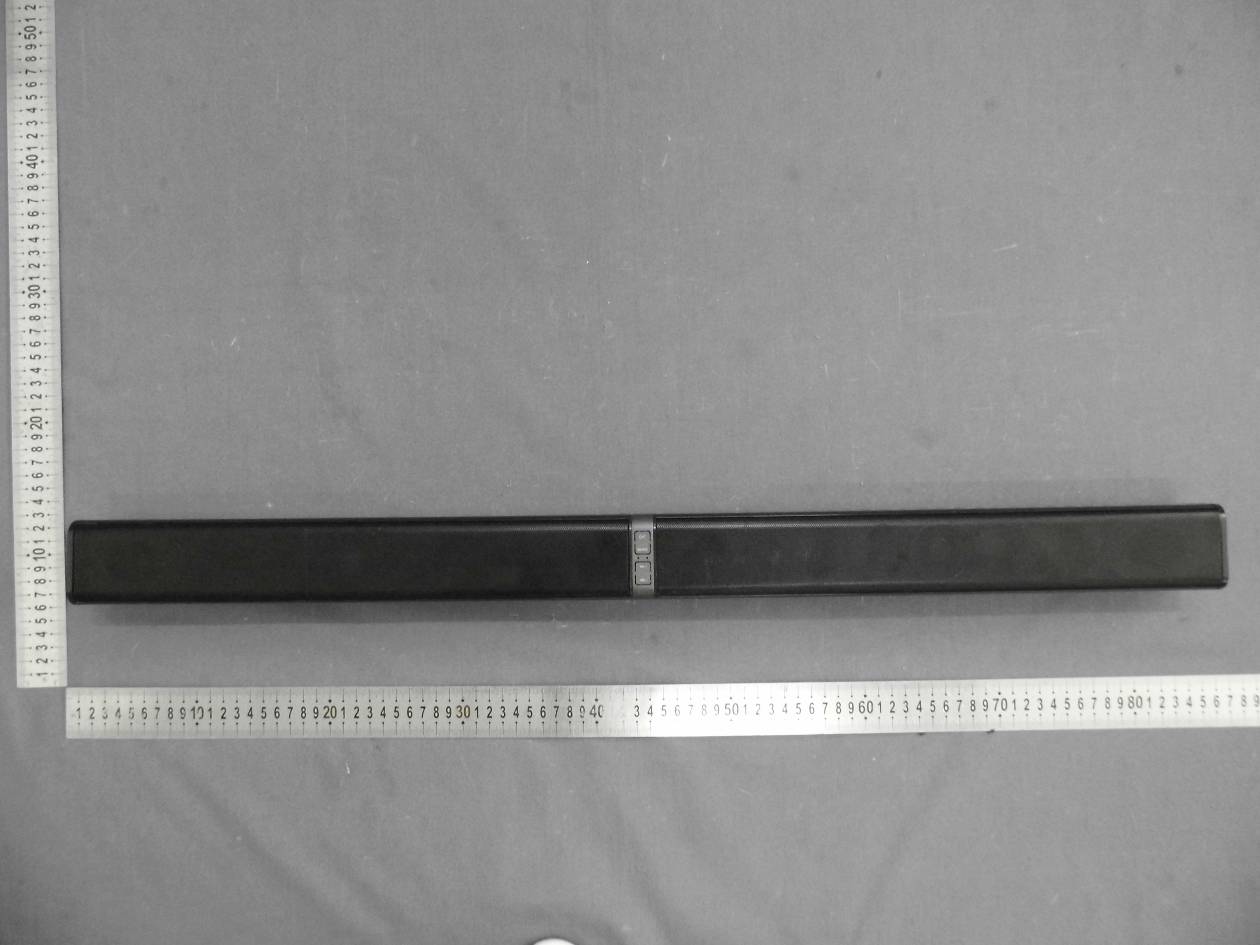

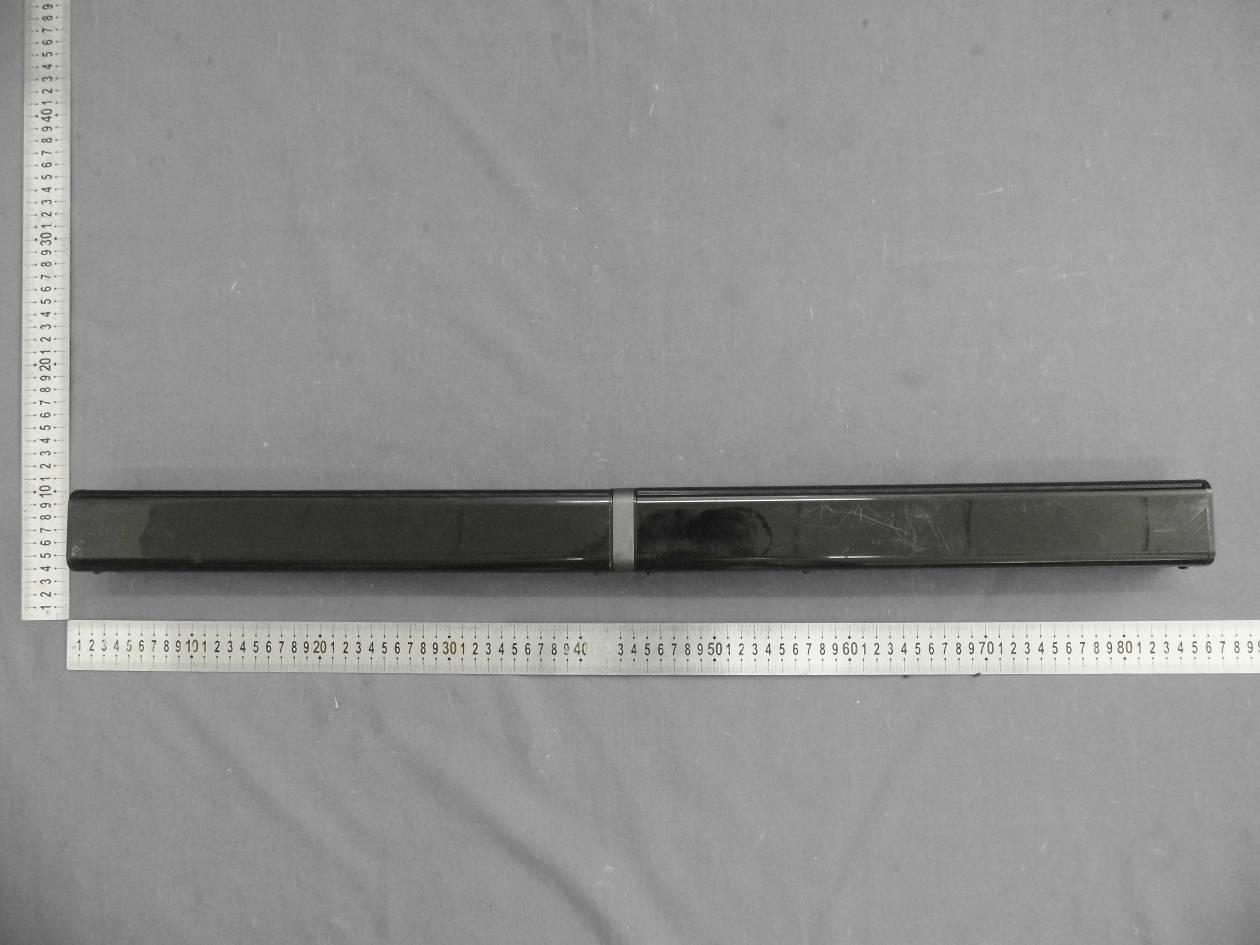

External Photo

FCC Certification Label FCC ID:2ACOVMAIN Label Location on EUT label size:high 1.5cm, Wide:3cm EUT View/ FCC ID Label Location

Internal Photo BT Antenna 2.4G Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Shenzhen Juneed Technology Co., Ltd. Rm 20C,Guang Hao International Center,Mei Long Rd.,Longhua New Dist. Shenzhen,China FCC ID:2ACOVMAIN Trade: N/A This Report Concerns: Original Report Equipment Type: 2.1CH Wireless subwoofer soundbar Test Engineer: Lisa Chen Report No.: BSL20150919-2 Receive EUT Date/Test Date: September 01, 2015/ September 01- September 19, 2015 Reviewed By: Mike moo Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 FCC ID:2ACOVMAIN Page 2/25 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................12 7.1. Test Equipment ...............................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Radiated Test Setup ........................................................................................................12 7.4. Radiated Emission Limit.................................................................................................14 7.5. Radiated Emission Test Result .......................................................................................15 8. BAND EDGE .............................................................................................................................20 8.1. Test Equipment ...............................................................................................................20 8.2. Test Procedure ................................................................................................................20 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................20 8.4. Band Edge Test Result ....................................................................................................21 9. 20-DB BANDWIDTH ...............................................................................................................22 9.1. Test Equipment ...............................................................................................................22 9.2. Test Procedure ................................................................................................................22 9.3. Limit................................................................................................................................22 9.4. Test Result /Plots ............................................................................................................22 FCC ID:2ACOVMAIN Page 3/25 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BSL approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BSL in any way guarantees the later performance of the prod…
