SPBT3 User Manual Please read the user manual carefully before using . Enjoy your music everywhere. This is fashion ,unique design fully upgraded digital MINI bluetooth speaker. Clear treble, pure bass, Special design makes the sound quality is much better. New concept of digital audio player, 2.4G Bluetooth wireless audio receiver, TF card .USB And FM function，Bluetooth version 3.0 A variety of colors to choose, you can get what you like. Build-in 18650 Li-ion battery, computer 5V USB both can provide power to play the music 1.Fully charge the product for the first use 2.With 5V DC adapter can charge the speaker 3.Can play the music from and TF card ,USB in MP3 Format. 4.Key function ①LED display ② Next song/ Long press to increase volume. Under FM radio, short press to previous channel ③ OFF/ON .Mode change .Stop/Play .Bluetooth answering function .Long press three second to turn on the speaker. short press to stop, double press to change mode. Under FM radio ,Short press to search the channel and keep automatically .Under Blueooth mode. Press this button to answer the call. ④ Previous song/long press to decrease the volume. Under FM radio, Short press to next channel ⑤ Mic:Under phone function ,speak through this mic Bluetooth indicator: Under Blueooth mode, the light will be flash ⑥ LED:Blue in blueooth mode, Green Under TF,FM USB AUX mode ⑦ USB: Insert USB card can play the music inside ⑧ TF:Insert TF card can play the music inside ⑨ Micro USB: connecting to DC 5V USB cable to charge the speaker ⑩ AUX:Connecting to computer ,MP3,Tablet,mobile etc devices through 3.5mm audio cable ⑪This product have a reset button in AUX, When its not working properly ,use a pin to reset ,it will work again. ⑫Under FM radio,please connecting with the 3.5mm data cable to search the channel Bluetooth connection guidance: Turn on the product will go to Bluetooth mode automatically, with music tips to connect the Bluetooth, please turn on the Bluetooth function on your phone, search the Bluetooth file named SPBT3, click to connect, you can play the music or use the Bluetooth phone function after the successful connection. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user’s authority to operate this equipment.

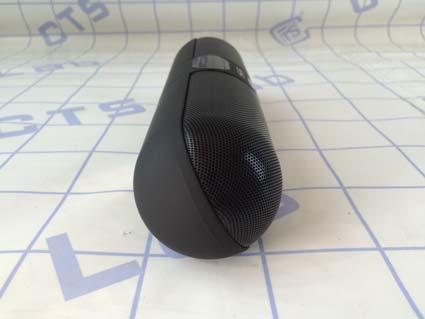

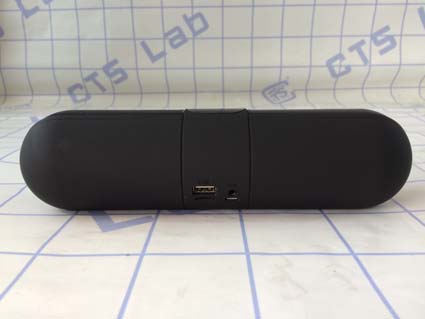

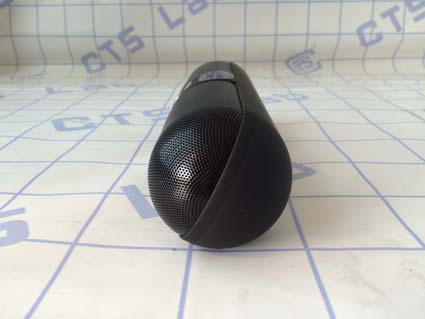

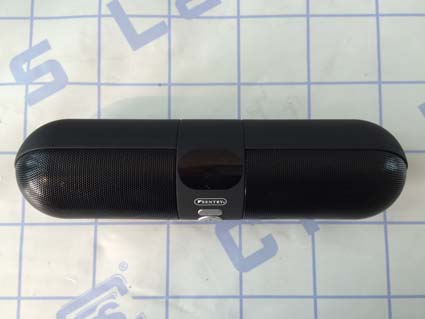

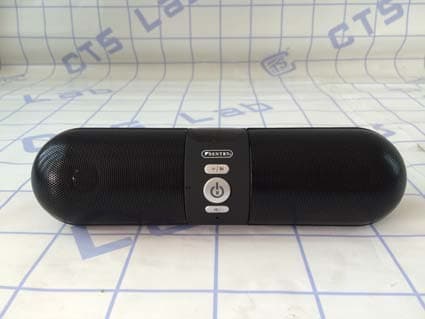

FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150206-00157-EF Page 1 of 2 1.External Photos of the EUT External view-1 External view-2 External view-3 FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150206-00157-EF Page 2 of 2 External view-4 External view-5 External view-6

FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150206-00157-EF Page 1 of 1 LABEL PHOTOGRAPHS Label Location 30MM 50MM

FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.:CGZ3150206-00157-EF Page 1 of 5 1. Internal Photos of the EUT Internal view PCB 1 side 1 view FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.:CGZ3150206-00157-EF Page 2 of 5 PCB 1 side 2 view PCB 2 side 1 view FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.:CGZ3150206-00157-EF Page 3 of 5 PCB 2 side 2 view PCB 3 side 1 view FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.:CGZ3150206-00157-EF Page 4 of 5 PCB 3 side 2 view Oscillator 1 view FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.:CGZ3150206-00157-EF Page 5 of 5 Oscillator 2 view

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID TEST REPORT TEST REPORT NUMBER : CGZ3150206-00157-EF CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150206-00157-EF Page 1 of 29 TEST REPORT For FCC ID 47 CFR PART 15 OCT, 2014 Report Reference No. .................... CGZ3150206-00157-EF Date of issue..................................... 10 February 2015 Testing Laboratory Name .............. CENTRE OF TESTING SERVICE CO., LTD. Address............................................. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Testing location/ procedure .............. Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ............................ Sentry Industries limited Address............................................. 507 Houston Center, 63 Mody Road, Tst, Hong Kong Test specification ........................... Standard ........................................... 47 CFR PART 15 OCT, 2014 Test Report Form No. ....................CTSEMC-1.0 TRF Originator.................................. CENTRE OF TESTING SERVICE CO., LTD. Master TRF .......................................Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.....................: Bluetooth Speaker Trade Mark....................................... Sentry,XTRAEM Manufacturer.................................... Sentry Industries limited Model/Type reference...................... SPBT3 Ratings............................................. Battery 3.7V; DC 5V for Charging Operating Frequency ........................ 2402.0MHz ~2480.0MHz Result ............................................... Positive Compiled by: Supervised by: Approved by: Kate zhang / Fileadministrators Duke yang / Technique principal Vincent yao / Manager FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150206-00157-EF Page 2 of 29 FCC ID -- T E S T R E P O R T Test Report No. : CGZ3150206-00157-EF 09 February 2015 Date of issue Type / Model............................ SPBT3 EUT.......................................... Bluetooth Speaker Applicant........................... Sentry Industries limited Address.................................... 507 Houston Center, 63 Mody Road, Tst, Hong Kong Telephone................................ +852-23684777 Fax........................................... +852-23685777 Contact..................................... Peetu Melwani Manufacturer...................... Sentry Industries limited Address.................................... 507 Houston Center, 63 Mody Road, Tst, Hong Kong Telephone................................ +852-23684777 Fax........................................... +852-23685777 Contact..................................... Peetu Melwani Factory............................... Sentry Industries limited Address.................................... 507 Houston Center, 63 Mody Road, Tst, Hong Kong Telephone................................ +852-23684777 Fax........................................... +852-23685777 Contact..................................... Peetu Melwani Test Result according to the standards on page 1:PASSED The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID:2ACP4-SPBPT3 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150206-00157-EF Page 3 of 29 TABLE OF CONTENTS Description Page 1.TEST STANDARDS........................................................................................................................................5 2.SUMMARY......................................................................................................................................................5 2.1 GENERAL REMARKS .......................................................................................................................................5 2.2 FINAL ASSESSMENT........................................................................................................................................5 3.EQUIPMENT UNDER TEST ...........................................................................................................................5 3.1 P…
