2ACP4BT200Bluetooth Headset

N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device meets RF Exposure requirements without any restriction.

Sentry Industries limited 507 Houston Center, 63 Mody Road, Tst, Hong Kong TEL: +852-23684777 FAX: +852-23684777 May 27, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Subject: Explanation of differences between product types FCC ID : 2ACP4BT200 Model Number: BT200,BT100, BT150, BT250, BT300, BT350, BT400, BT450, BT500, BT550, BT600, BT650, BT700, BT750, BT800, BT850,BT900,BT950, BT201, BT202, BT203, BT204, BT205 To Whom It May Concern: We, Sentry Industries limited, hereby declare that the model : BT100, BT150, BT250, BT300, BT350, BT400, BT450, BT500, BT550, BT600, BT650, BT700, BT750, BT800, BT850,BT900,BT950, BT201, BT202, BT203, BT204, BT205 are identical with the model : BT200, except the model. Except for the different above, no other modification is performed. Sincerely, Sentry Industries limited Signature: Company Officer: Peetu Melwani Telephone Number: +852-23684777 Email: [email protected]

Sentry Industries limited 507 Houston Center, 63 Mody Road, Tst, Hong Kong TEL: +852-23684777 FAX: +852-23684777 Date (27/05/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ACP4BT200 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Sentry Industries limited hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Peetu Melwani Telephone Number: +852-23684777 Email: [email protected]

FCC ID Label Location Bluetooth Headset Brand: SENTRY Model:BT200 FCC ID: 2ACP4BT200

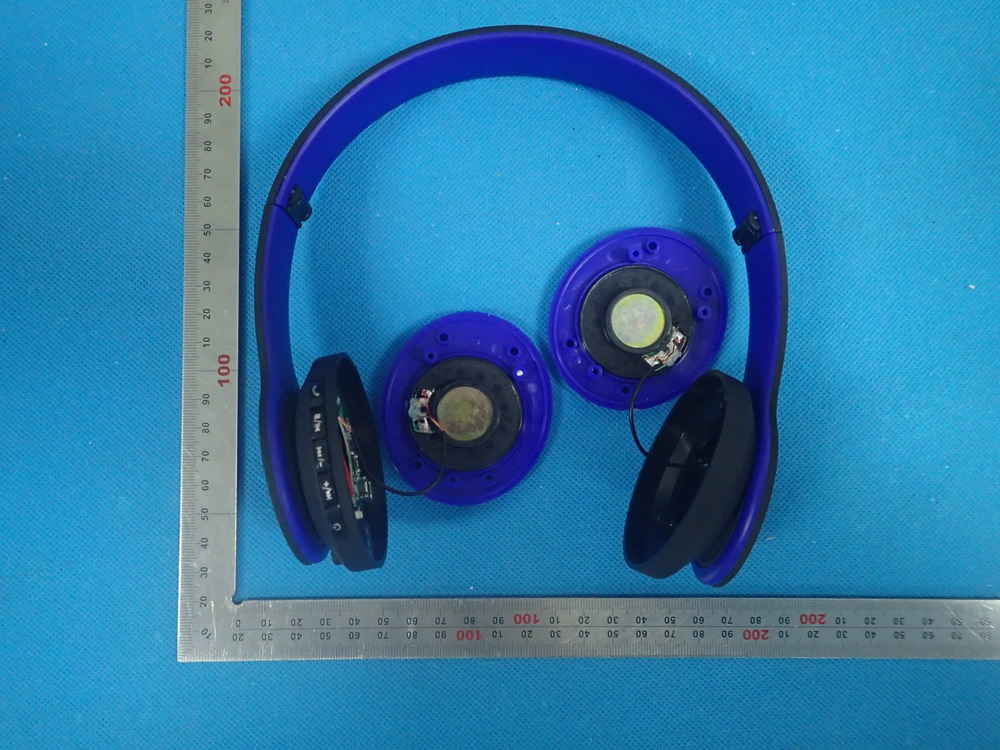

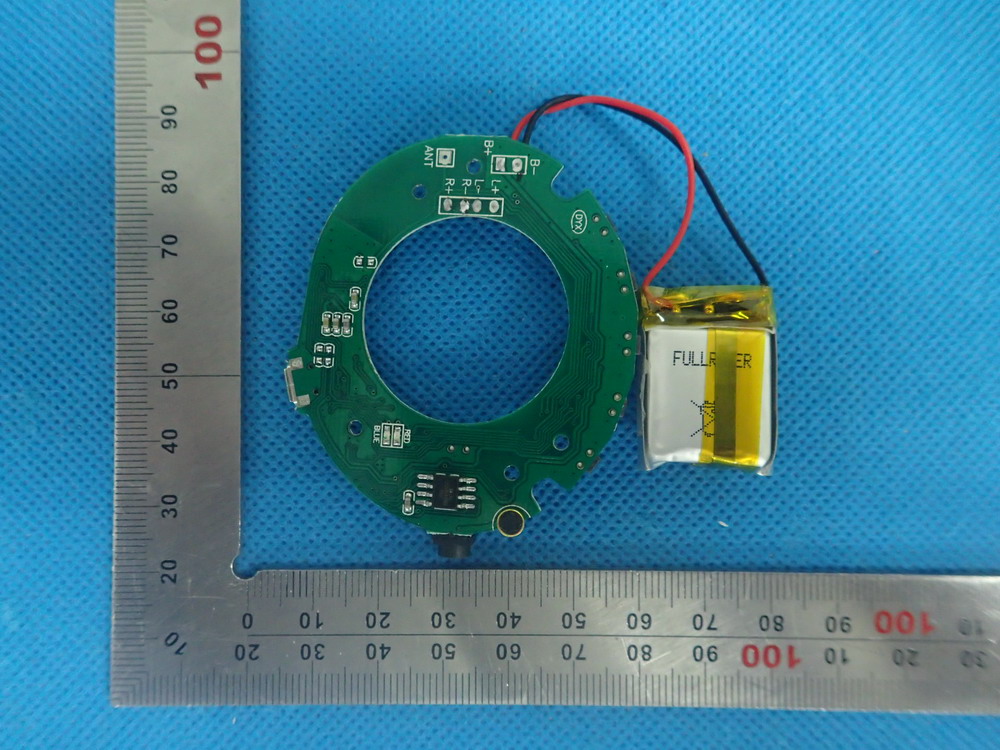

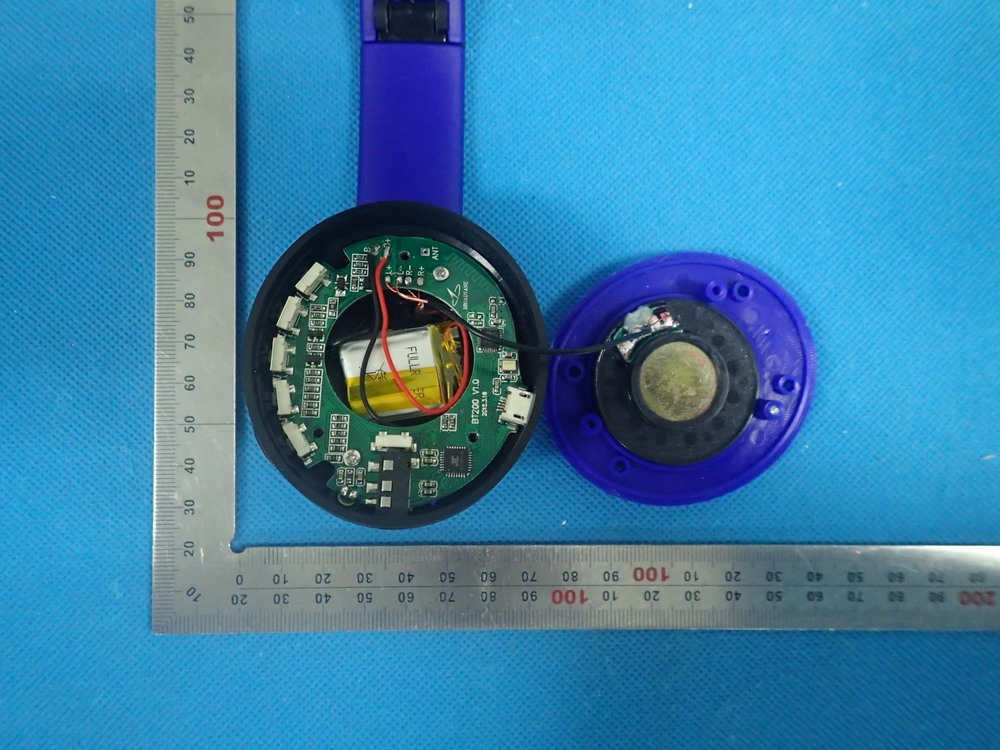

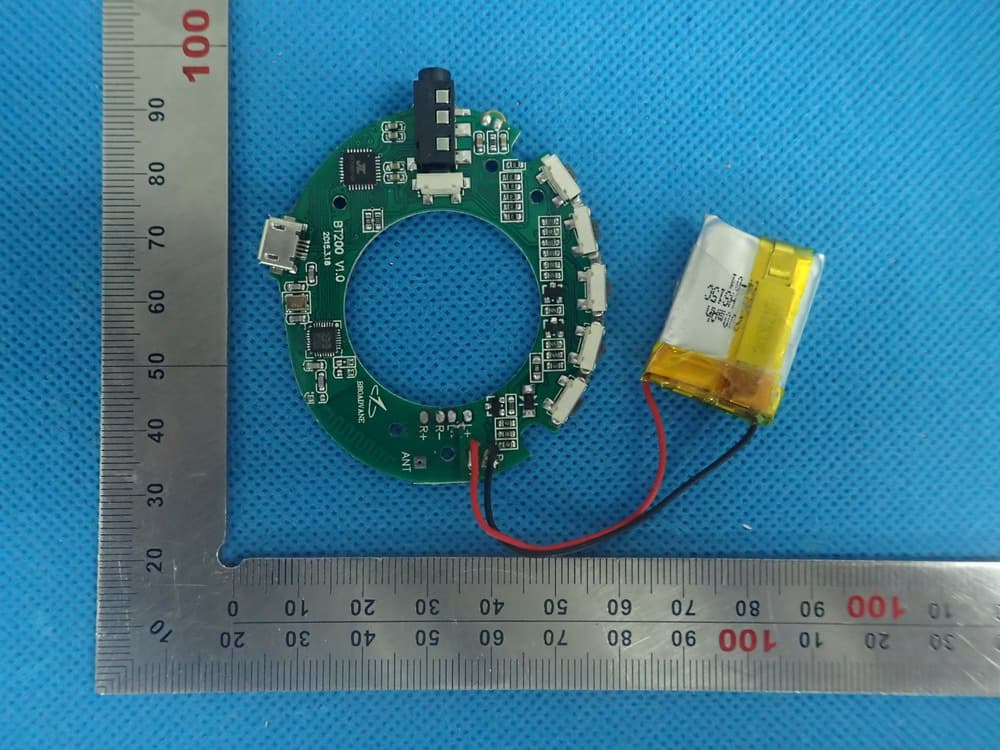

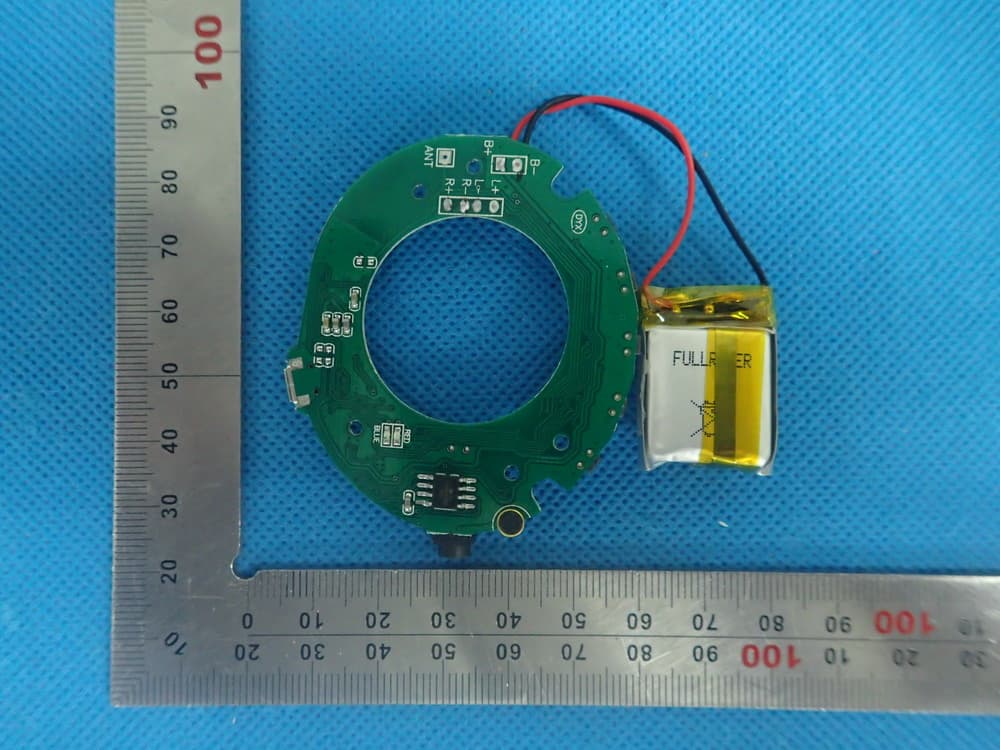

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

RF Exposure evaluation Product Description:Bluetooth Headset Model Number: BT200 FCC ID: 2ACP4BT200 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=96.78dBuv/m=0.069V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.069x3) 2 /(30x1)=0.001428W=1.43mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -1.4mW output power] (1.4mW /5mm) .[√2.480(GHz)]= 0.441<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 51 FCC Test Report Report No.: AGC04303150401FE03 FCC ID : 2ACP4BT200 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Headset BRAND NAME : SENTRY MODEL NAME : See page 4 CLIENT : Sentry Industries limited DATE OF ISSUE : May 05,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC04303150401FE03 Page 2 of 51 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / May 05,2015Valid Original Report Report No.: AGC04303150401FE03 Page 3 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 28 10. 20DB BANDWIDTH .......................................................................................................... 32 10.1. MEASUREMENT PROCEDURE .............................................................................................. 32 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 32 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 32 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 39 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 39 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 39 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 40 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 40 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 41 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 43 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 45 Report No.: AGC04303150401FE03 Page 4 of 51 1. VERIFICATION OF CONFORMITY Applicant Sentry Industries limited Address 507 Houston Centre,63 Mody Road,TST,HK Manufacturer Guangdong SAIYO Electronics Industry Co., Ltd. Address Xibian Industry Zone, Tongyu Town, Chaoyang District, Shantou City, Guangdong Province, China Product Designation Bluetooth Headset Brand Name SENTRY Test Model BT200 Series Model BT100, BT150, BT250, BT300, BT350, BT400, BT450, BT500, BT550, BT600, BT650, BT700, BT750, BT800, BT850,BT900,BT950, BT201, BT202, BT203, BT204, BT205 Different Description All the same except for the model name Date of test May 04,2015 to May 05,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Time Huang May 05,201…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
