2ACP4SPBT1Bluetooth Speaker

SPBT1 User Manual Please read the instruction carefully before using. You can enjoy your music everywhere with the speaker. This product is a portable digital speaker using 2.4G wireless bluetooth audio receiver. Bluetooth version is 3.0 . 1: Please fully charge the product for the first use. 2: Charge the speaker by connecting the 5V DC adapter with the USB DC5V on the back of the model. 3: It can play the music in MP3, WMA ,MAV format 4: Key functions: ① VOL+ :Volume+ ②:Play/stop, mode change, bluetooth phone function button. Long press to exchange the bluetooth function with audio input after AUX is inserted. Short press to answer the phone after bluetooth is connected successfully. ③ : Previous song ④ VOL-: Volume- ⑤ :Next song ⑥: OFF/ON button. Press the button once to turn on the speaker, twice to turn off it. ⑦ Mic: Speak through this mic when using the speaker to answer the phone. ⑧ LED indicator: It is blue light under bluetooth mode; Green light under AUX mode; Red light when it is charging the power. ⑨ AUX: Connect MP3,mobile,etc devices through 3.5mm audio cable. ⑩ Micro USB: Connect the DC 5V USB cable to charge the speaker Bluetooth connection guidance When turn on the speaker, it will go into bluetooth mode automatically, with music tips to connect the bluetooth. Please turn on the bluetooth function on your phone, search the bluetooth file named SPBT1, click to connect , you can play the music or use the bluetooth phone function after the successful connection. Limited 90-Day Warranty:Sentry warrants this product to be free from defects in materials and workmanship for 90days from the date of original purchase. This warranty does not pertain to damage resulting from accident, abnormal use, misuse or neglect, Any defective product will be replaced if returned to be an authorized Sentry dealer or to Sentry directly at :1 Bridge St,PO Box 885,Hillburn,NY 10931. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/31/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ACP4SPBT1 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Company Officer: Peetu Melwani Company address： 507 Houston Centre,63 Mody Road,TST,HK Email: [email protected]

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/31/2015 Request for Confidentiality Company name: Sentry Industries Limited FCC ID: 2ACP4SPBT1 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Sentry Industries Limited hereby requests confidentiality of following attachments: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation These documents contain detailed system and equipment description and related information about the product which Sentry Industries Limited considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Sentry Industries Limited considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Company Officer: Peetu Melwani Company address： 507 Houston Centre,63 Mody Road,TST,HK Email: [email protected]

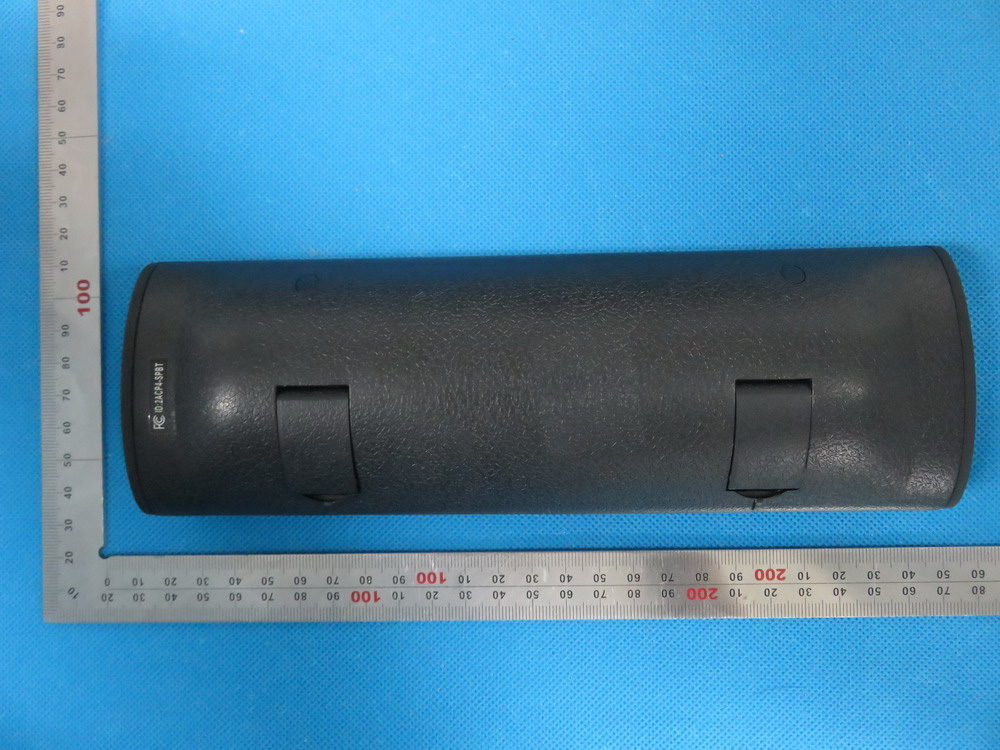

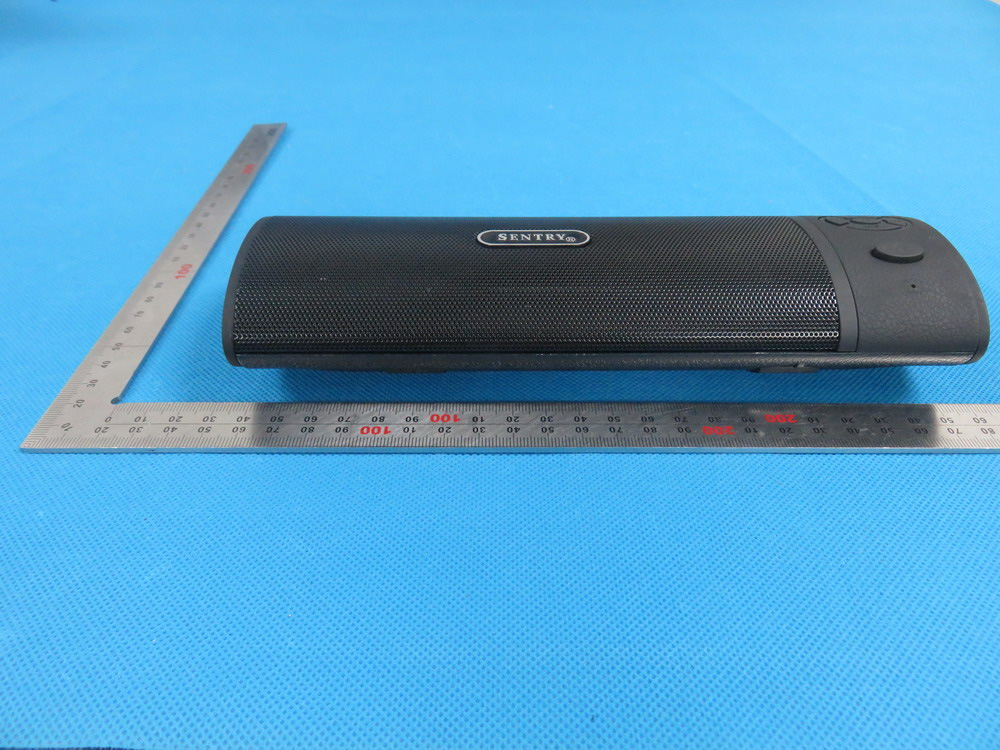

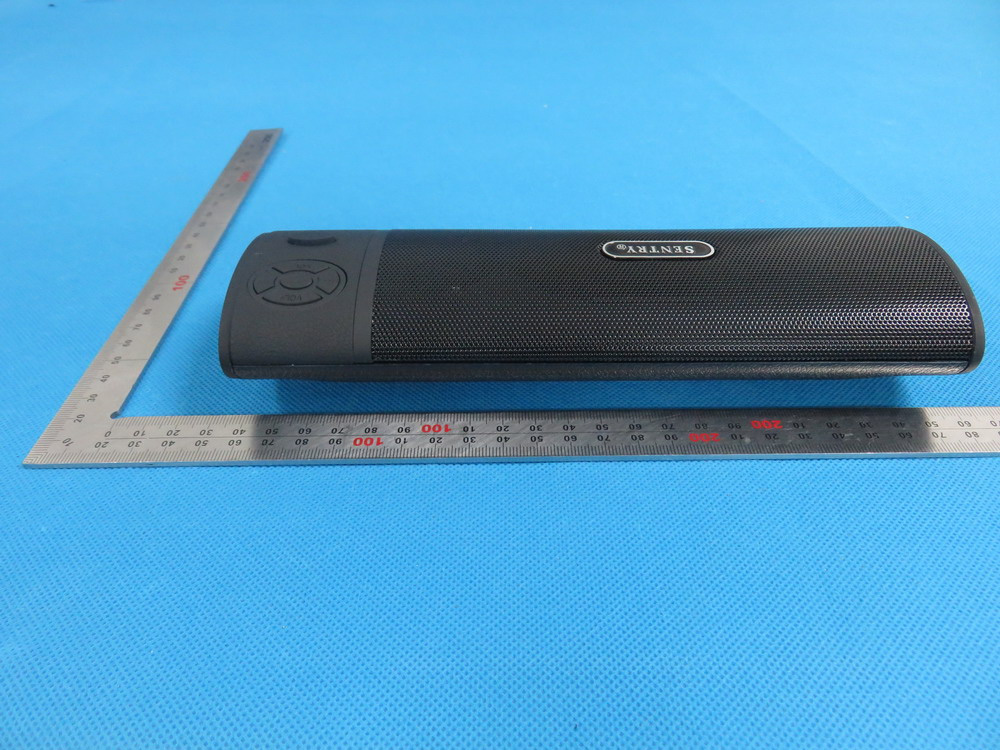

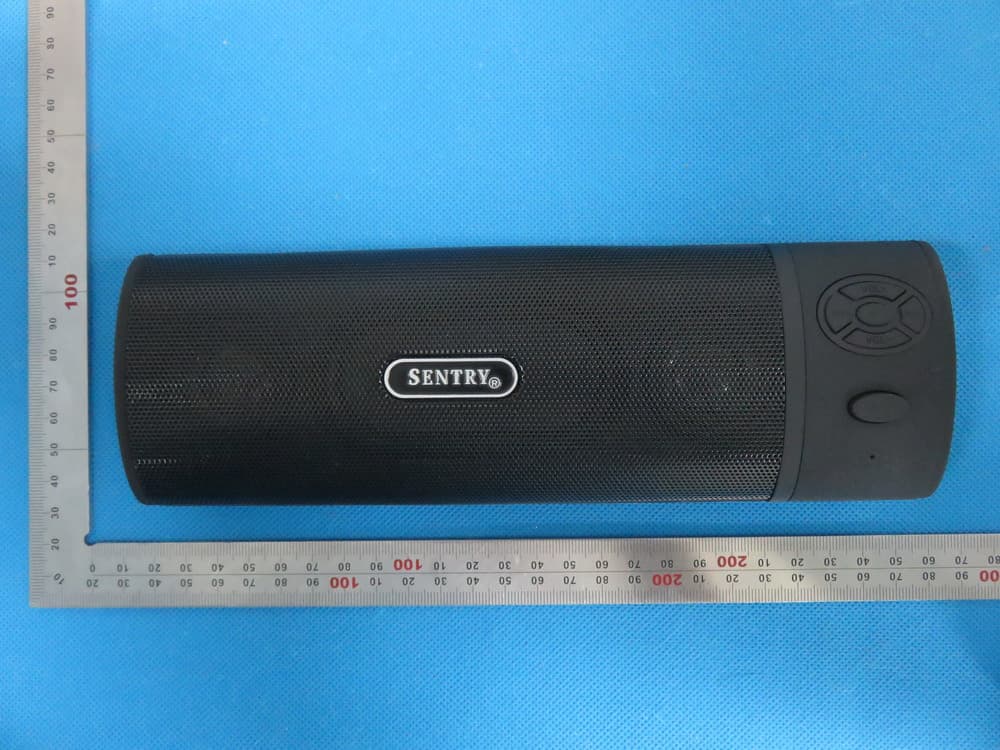

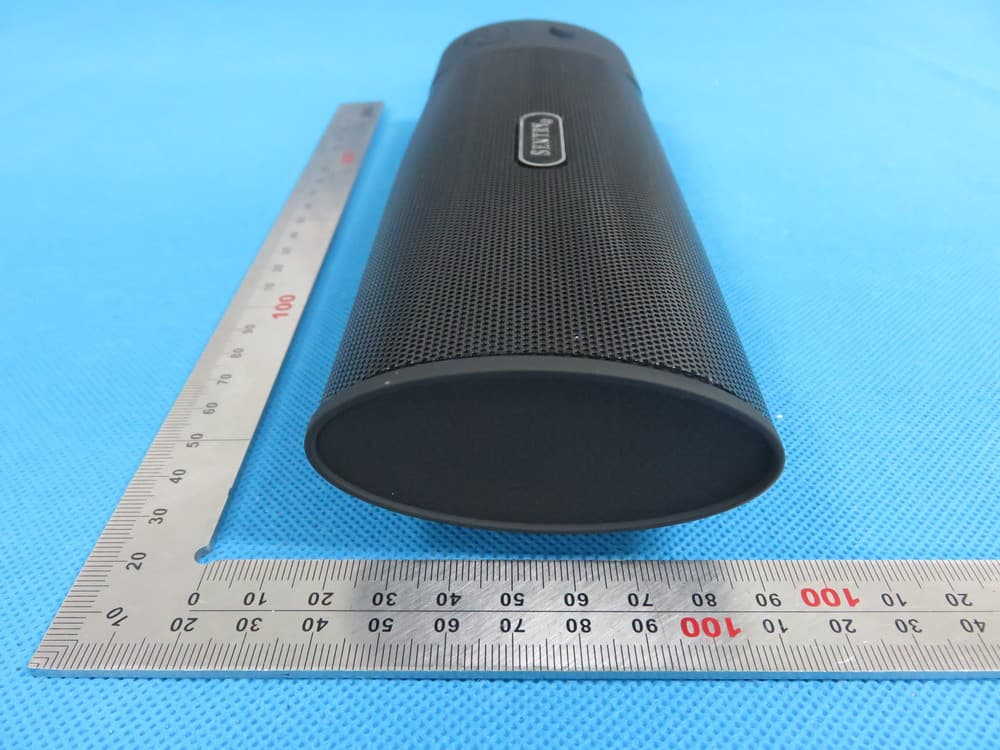

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2ACP4SPBT1 Model: SPBT1

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: SPBT1 FCC ID: 2ACP4SPBT1 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna (Permanent Antenna) Gain of the antenna: 0 dBi Frequency range: 2.402 GHz to 2.480GHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Sentry Industries Limited Address: 507 Houston Centre,63 Mody Road,TST City: HK ZIP / Postal code: 999077 Country: HK Place: HK Date: 2015-08-31 Signature:

RF Exposure evaluation Product Description:Bluetooth Speaker Model Number: SPBT1 FCC ID: 2ACP4SPBT1 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=94.86dBuv/m=0.055V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.055x3) 2 /(30x1)=0.000908W=0.91mW The result is rounded to one decimal place for comparison Worse case is as below: [2441MHz -0.91mW output power] (0.91mW /5mm) .[√2.441(GHz)]= 0.284<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.
