2ACP8-NICE2Bluetooth headset

FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving an tenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 (Shenzhen RDT Digital Technology Co., Ltd.) (2014-07-07) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACP8-NICE2 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jenny Zhou / Project Manager Company Name: Shenzhen RDT Digital Technology Co., Ltd. Address: 4/F, Building H, Design Industrial Park, No. 3838, Nanshan Road, Nanshan District, Shenzhen, P.R.C. Tel: 0755-86227860 Email: [email protected]

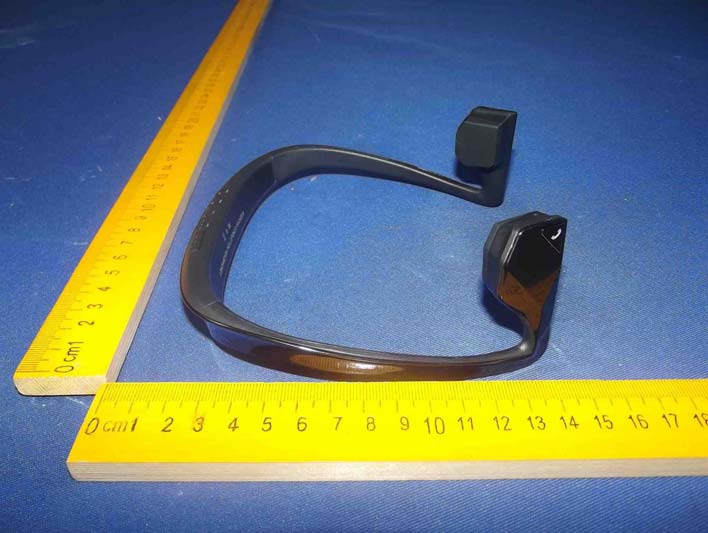

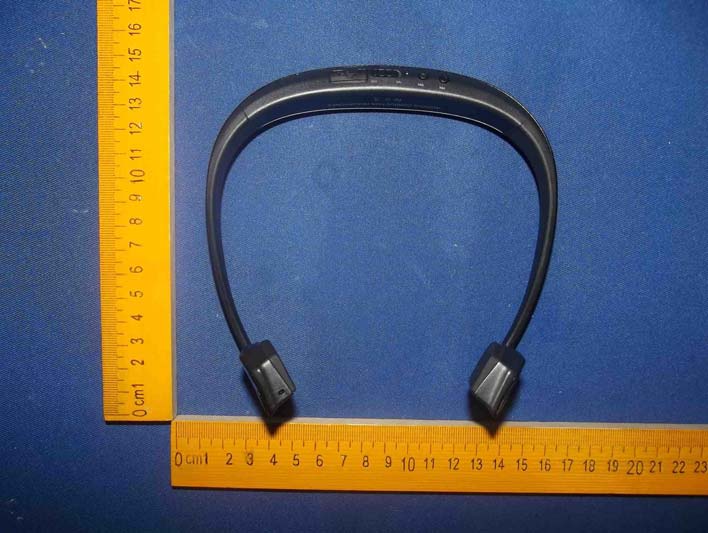

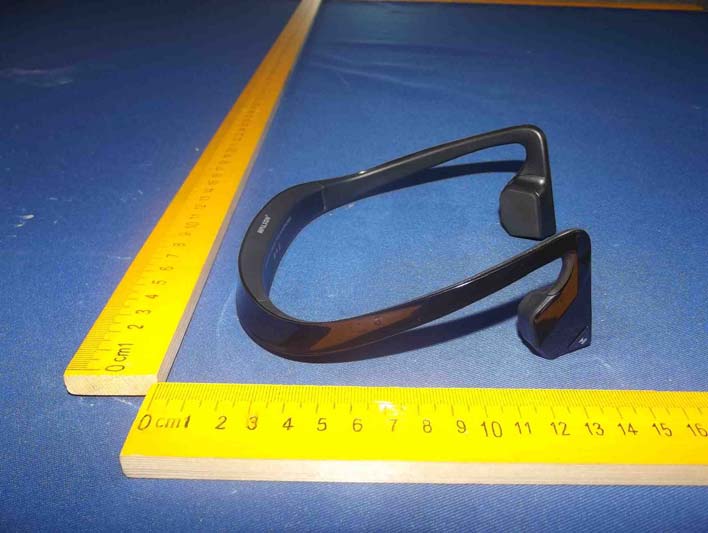

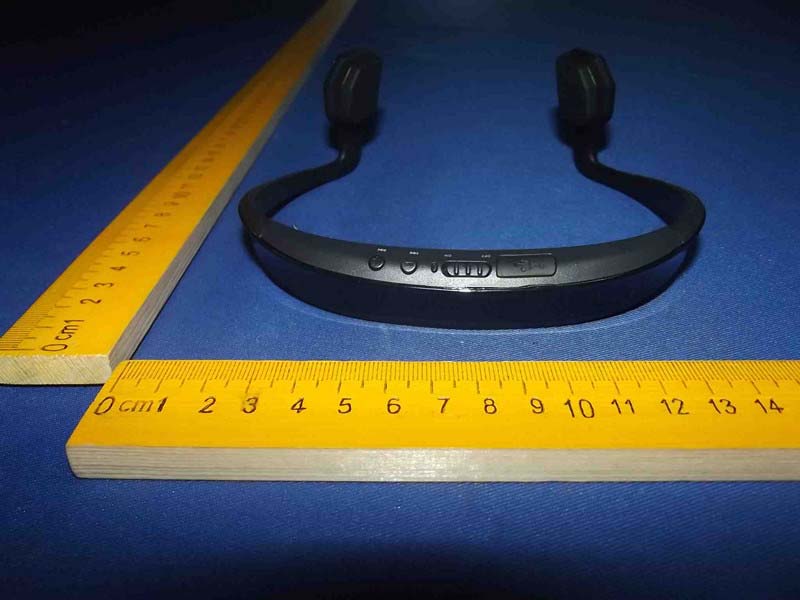

Figure 1 The EUT-Top View Figure 2 The EUT-Bottom View Figure 3 The EUT-Front View Figure 4 The EUT-Back View Figure 5 The EUT-Right View Figure 6 The EUT-Left View

Label Location On EUT

Figure 7 The EUT-Inside View Figure 8 PCB of the EUT-Front View Figure 9 PCB of the EUT-Back View Figure 10 PCB of the EUT-Front View Figure 11 PCB of the EUT-Back View Figure 12 The EUT-Battery View Figure 13 PCB of the Module View

RF EXPOSURE EVALUATION FCC ID：2ACP8-NICE2 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. The maximum output power for low channel is: 0.98dBm= 1.26mW The calculation results= 1.26/5*√2.402 =0.3906 ＜3 The maximum output power for middle channel is: 1.27dBm= 1.34mW The calculation results= 1.34/5*√2.441 =0.4186 ＜3 The maximum output power for high channel is: 1.62dBm= 1.45mW The calculation results= 1.45/5*√2.480 =0.4568 ＜3 Test Results: PASS.

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ACP8-NICE2 Page 1 of 57 Report No.: R011406365E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Shenzhen RDT Digital Technology Co., Ltd. Bluetooth headset Model No.: Nice2 Report Number : R011406365E Date of Test : Jun. 18~ Jul. 01, 2014 Date of Report : Jul. 02, 2014 Prepared for : Shenzhen RDT Digital Technology Co., Ltd. Address : 4/F, Building H, Design Industrial Park, No. 3838, Nanshan Road, Nanshan District, Shenzhen, P.R.C. Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ACP8-NICE2 Page 2 of 57 Report No.: R011406365E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION ..................................................................................................... 5 1.1 Description of Device (EUT) ................................................................................................................ 5 1.2 Auxiliary Equipment Used during Test ................................................................................................ 6 1.3 Description of Test Facility .................................................................................................................. 6 1.4 Measurement Uncertainty ..................................................................................................................... 6 2. TEST PROCEDURE ................................................................................................................... 7 3. CONDUCTED EMISSION ......................................................................................................... 8 3.1 Block Diagram of Test Setup ............................................................................................................... 8 3.2 Power Line Conducted Emission Measurement Limits (15.207) ......................................................... 8 3.3 Configuration of EUT on Measurement ............................................................................................... 8 3.4 Operating Condition of EUT ................................................................................................................ 8 3.5 Test Procedure ...................................................................................................................................... 9 3.6 Power Line Conducted Emission Measurement Results ...................................................................... 9 4. RADIATION INTERFERENCE ............................................................................................. 12 4.1 Requirements (15.247, 15.209): ......................................................................................................... 12 4.2 Test Procedure .................................................................................................................................... 12 4.3 Test Configuration .............................................................................................................................. 13 4.4 Test Results ......................................................................................................................................... 14 5. CHANNEL SEPARATION TEST ........................................................................................... 23 5.1 Measurement Procedure ..................................................................................................................... 23 5.2 Test SET-UP ....................................................................................................................................... 23 5.3 Test Equipment ................................................................................................................................... 23 5.4 Test Results ......................................................................................................................................... 24 6. 20DB BANDWIDTH TEST ...................................................................................................... 28 6.1 Measurement Procedure ..................................................................................................................... 28 6.2 Test SET-UP ....................................................................................................................................... 28 6.3 Test Equipment ................................................................................................................................... 28 6.4 Test Results ......................................................................................................................................... 28 7. QUANTITY OF HOPPING CHANNEL TEST...................................................................... 32 7.1 Measurement Procedure ..................................................................................................................... 32 7.2 Test SET-UP ....................................................................................................................................... 32 7.3 Test Equipment ................................................................................................................................... 32 7.4 Test Results ......................................................................................................................................... 32 8. DWELL TIME TEST ................................................................................................................ 34 8.1 Measurement Procedure ..........................................…

Text truncated - open the document above for the full version.

1. Photo of Power Line Conducted Emission Measurement 2. Photo of Radiation Emission Test
