2ACPMV340Remote Transmitter

V340 USER GUIDE These instructions should be read in conjunction with your System installation and Operating Instructions and be retained for future reference. Technical Specification Frequency:340MHZ (+/-1MHz) Button: 4 buttons Operating voltage:DC6V(CR2016*2 battery) Operating Current:15mA@6V active Transmitting power:10mw@6V Operation life: approximately 1 year *( according 20times per day operate) Material: PVC. Dimension:64.9*37.8*10.3*mm Weight: 30g Storage Temp:-10ºC to +55ºC Operating Temp: 0ºC to 40ºC Operating Humdity: <80% Modulation mode : ASK (AM). Encoding type:Learning. Transfers distance:100-150 meters(open space,up to 250m). Works with Fixed code or Learning code RT1530 Transmitter operation manual When remote control power-on , press any key the white led will flash. Press ‘LOCK’ key , system lock all doors and set the alarm of the vehicle or/and the aftermarket alarm. Press ‘UNLOCK’ key, system unlock all doors and disarm the alarm of the vehicle or/and the aftermarket alarm. Press ‘START’ key, system Start / Stop to remote start the engine of the vehicle and to Stop it. Press ‘AUX’key, system can be used to control various functions of the vehicle,like open car trunk. WHITE LED Change the battery When press any key without white led flash, it means remote control out of battery ,please change battery with two pcs CR2025. Unfasten the screw Find the finger point on the top left of the case Open the case from the finger point with 2 fingers After open the case the battery can be seen This remote use 2 CR2016 button battery The 2 CR2025 button battery are stacked up Remove the battery Put one new CR2025 in the battery socket The battery + face down to the case Another battery place on the first battery Also the battery + face down to the case Put the metal frame on the case Put the chain on the frame Close the case Fasten the screw FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DSE CANADA INC. Address: 3817 JEAN TALON WEST TOWN OF MOUNT ROYAL QUEBEC, Canada Tel: 001-514-7330110 Fax: 001-514-7339125 2014-07-07 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ACPMV340 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Tom Levan / General manager Contact information / address : 3817 JEAN TALON WEST TOWN OF MOUNT ROYAL QUEBEC, Canada Tel: 001-514-7330110 Fax: 001-514-7339125

DSE CANADA INC. FCC ID: 2ACPMV340 POWER OF ATTORNEY 2014-07-07 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen LCS Compliance Testing Laboratory Ltd. (MR. Gavin Liang, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen LCS Compliance Testing Laboratory Ltd. (MR. Gavin Liang, Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on (2015-07-07). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (DSE CANADA INC.), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ------------------------------- Client’s name / title : Tom Levan / General manager Contact information / address : 3817 JEAN TALON WEST TOWN OF MOUNT ROYAL QUEBEC, Canada Tel: 001-514-7330110 Fax: 001-514-7339125 Company Name: DSE CANADA INC.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID:2ACPMV340 Report No.:LCS1406230680E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size:L:2.5cm*W:1.0cm Label And Location

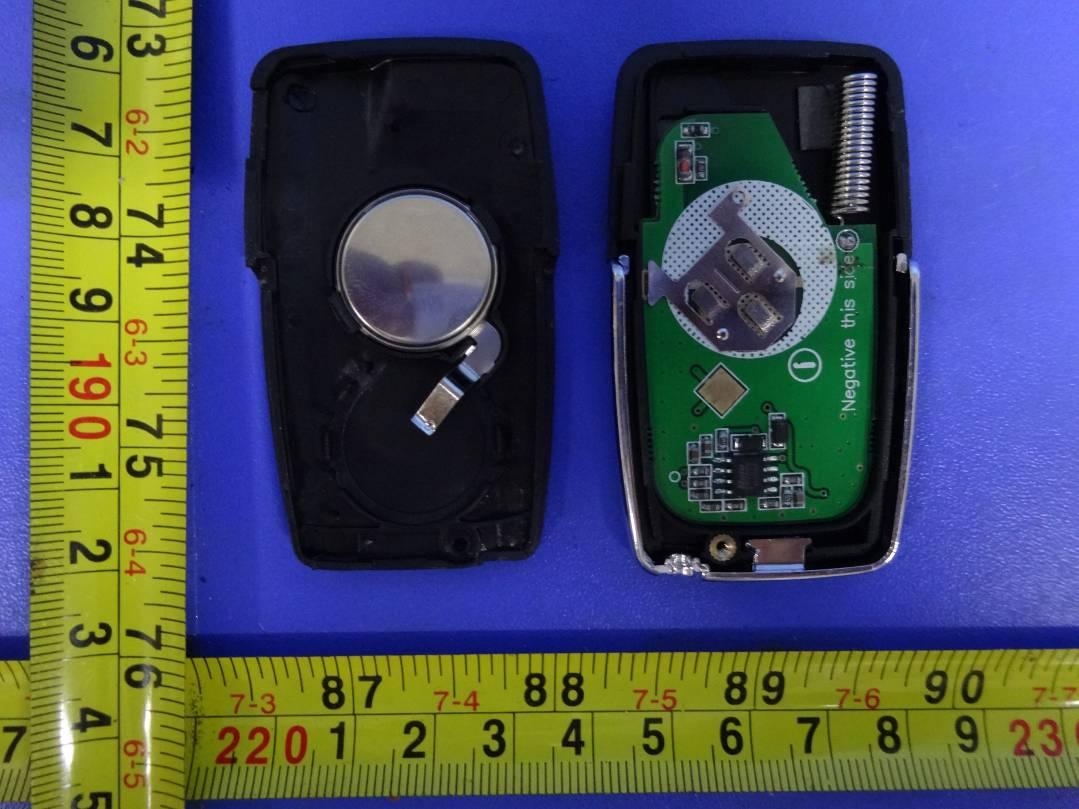

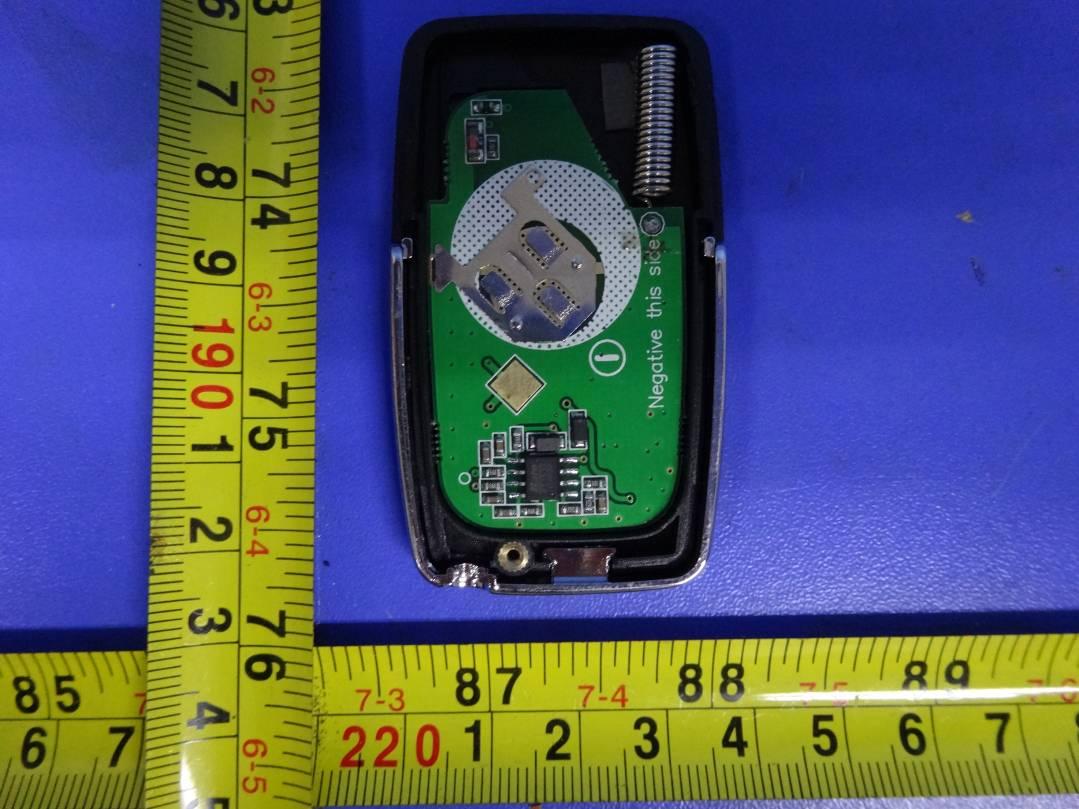

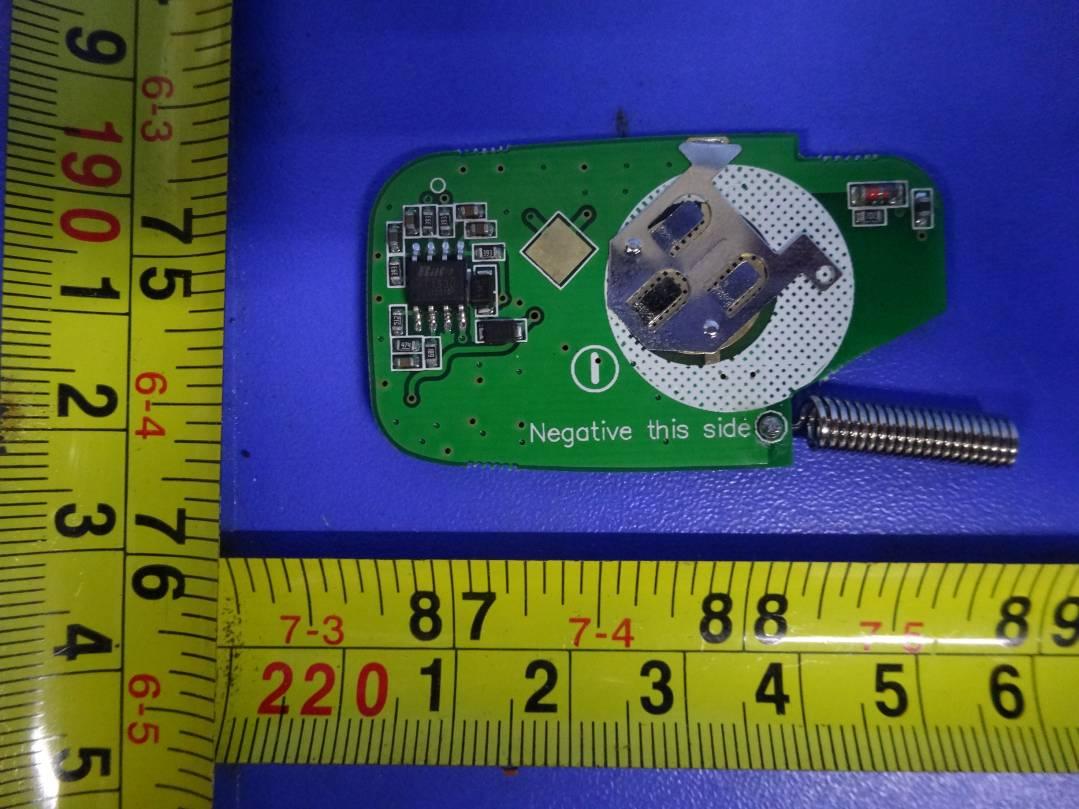

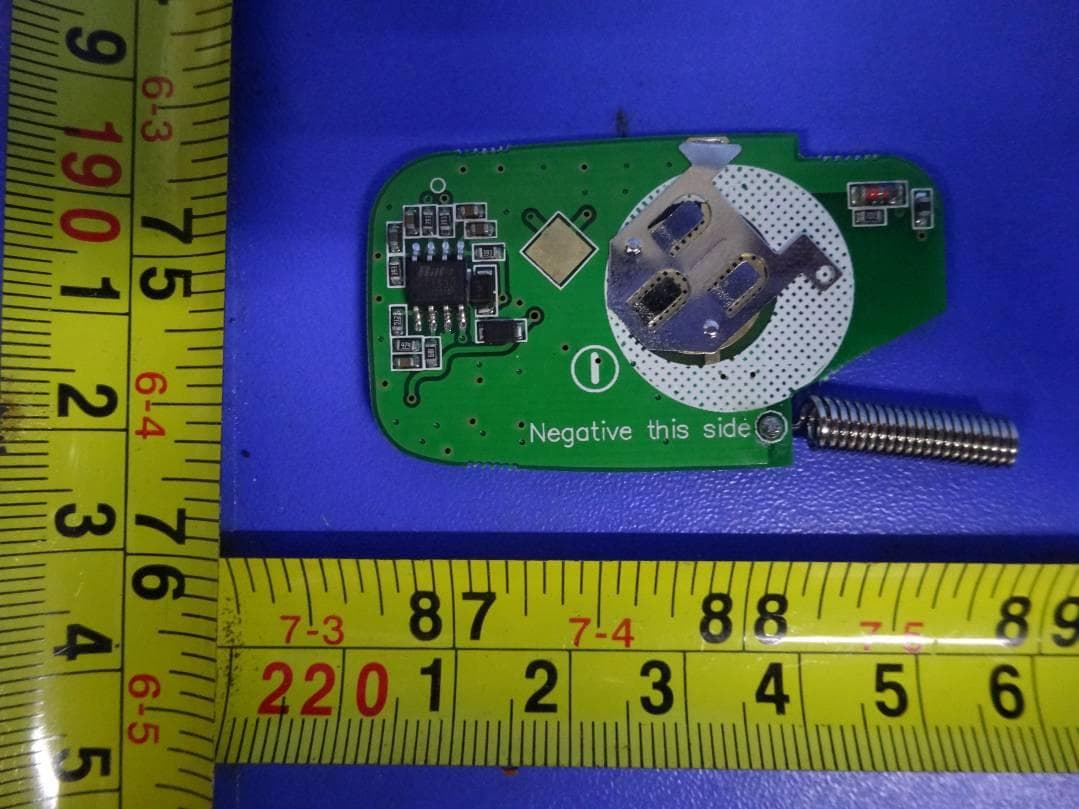

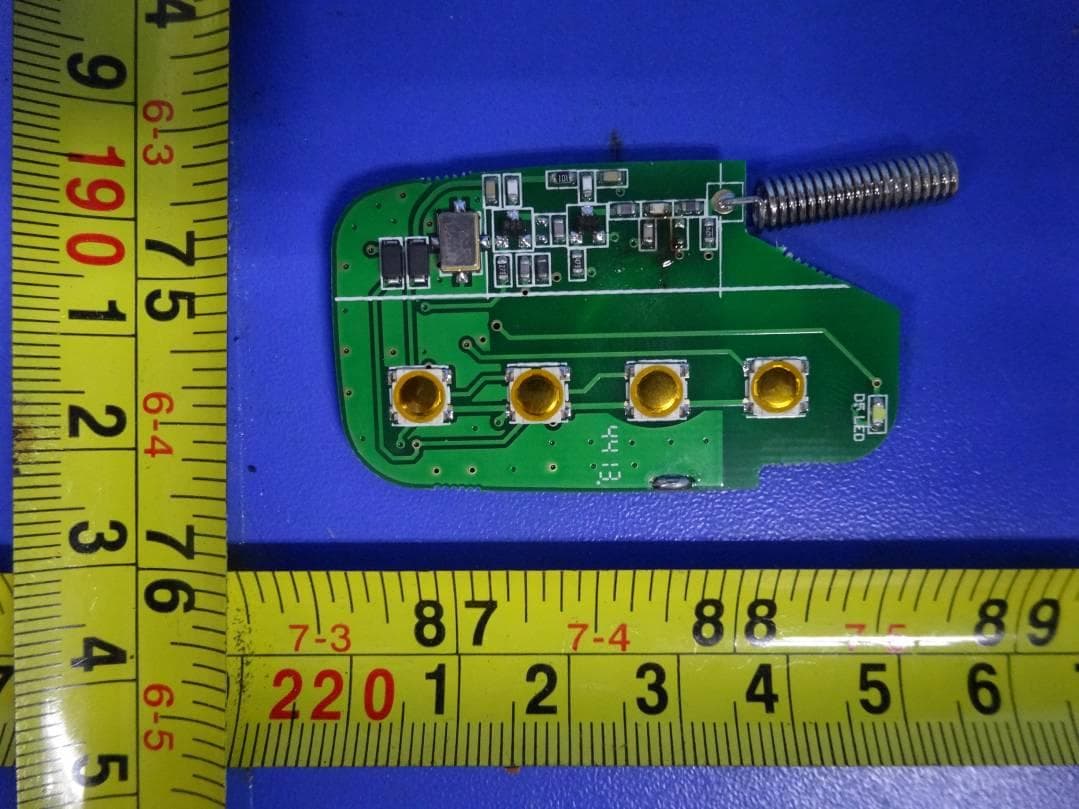

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACPMV340 Report No.:LCS1406230680E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACPMV340 Report No.:LCS1406230680E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACPMV340 Report No.: LCS1406230680E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 25 FCC TEST REPORT For DSE CANADA INC. Remote Transmitter Model No.: V340 Prepared for : DSE CANADA INC. Address : 3817 JEAN TALON WEST TOWN OF MOUNT ROYAL QUEBEC, Canada Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : June 23, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : June 23, 2014 – July 07, 2014 Date of Report : July 07, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACPMV340 Report No.: LCS1406230680E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 25 FCC TEST REPORT FCC CFR 47 PART 15 C(15.231): 2013 Report Reference No. .............. : LCS1406230680E Date of Issue ................................ : July 07, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : DSE CANADA INC. Address ........................................ : 3817 JEAN TALON WEST TOWN OF MOUNT ROYAL QUEBEC, Canada Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C : 2013, ANSI C63.4-2003 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Remote Transmitter Trade Mark .................................. : DSE Model/ Type reference ................. : V340 Ratings ......................................... : DC 6.0V by Battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACPMV340 Report No.: LCS1406230680E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 25 FCC--TEST REPORT Type / Model........................... : V340 EUT......................................... : Remote Transmitter Applicant............................... : DSE CANADA INC. Address.................................. : 3817 JEAN TALON WEST TOWN OF MOUNT ROYAL QUEBEC, Canada Telephone............................... : / Fax.......................................... : / Manufacturer........................ : DSE CANADA INC. Address................................... : 3817 JEAN TALON WEST TOWN OF MOUNT ROYAL QUEBEC, Canada Telephone............................... : / Fax.......................................... : / Factory................................... : DSE CANADA INC. Address................................... : 3817 JEAN TALON WEST TOWN OF MOUNT ROYAL QUEBEC, Canada Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1406230680E July 07, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACPMV340 Report No.: LCS1406230680E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 25 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. OBJECTIVE ............................................................................................................................................................ 5 1.3. ENVIRONMENTAL CONDITIONS............................................................................................................................. 5 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 6 1.5. EXTERNAL I/O PORT ............................................................................................................................................. 6 1.6. EUT OPERATION .................................................................................................................................................. 6 1.7. ANTENNA SYSTEM ................................................................................................................................................ 6 1.8. DESCRIPTION OF TEST FACILITY ...........................................................…
