2ACPR-GWTN156-1Notebook

Quick Guide Notebook Gateway GWTN156-1BK （Universal Edition） Contents Welcome to Windows 10 ................................................................................................................................................................................................... 3 Key innovations ...................................................................................................................................................................................................................... 3 Cortana ................................................................................................................................................................................................................................. 3 Microsoft Edge .................................................................................................................................................................................................................. 4 Gaming & Xbox ................................................................................................................................................................................................................ 5 Built-in apps ....................................................................................................................................................................................................................... 6 Enterprise-grade secure and fast .................................................................................................................................................................................... 7 Windows Defender .......................................................................................................................................................................................................... 7 Smart Screen ...................................................................................................................................................................................................................... 8 Windows Hello .................................................................................................................................................................................................................. 8 Hiberboot ............................................................................................................................................................................................................................ 8 InstantGo ............................................................................................................................................................................................................................. 8 Familiar and easy to use ..................................................................................................................................................................................................... 9 Start ....................................................................................................................................................................................................................................... 9 Compatible ....................................................................................................................................................................................................................... 10 Multi-tasking .................................................................................................................................................................................................................... 10 Continuum ........................................................................................................................................................................................................................ 12 Seamlessly stay up to date .............................................................................................................................................................................................. 13 Automatic updates ........................................................................................................................................................................................................ 14 OneDrive ............................................................................................................................................................................................................................ 14 Windows Store ................................................................................................................................................................................................................ 14 Welcome to Windows 10 Windows 10 is designed to be the best Windows ever. Tested by millions of users who provided input and ideas, Windows 10 combines familiarity, speed and innovative new features – including a digital assistant and a brand-new browser – with the bedrock strengths you expect from Windows, like superior security and compatibility. And for the first time ever, you get free, automatically-enabled updates that help keep your systems current. The result is a new Windows experience that‘s fresh yet familiar – and is great for helping you stay organized, have fun, and get things done. Key innovations Windows 10 introduces several innovations to help you get more done across your day and across your devices. From a digital assistant with an advanced learning ability to the arrival of Xbox on PCs to our first new browser in 20 years, the new Windows has great new features that we hope you will love exploring. Cortana Think of Cortana as your truly personal digital assistant who works across all your Windows 10 devices to help you get things done,By learning more about you over time, Cortana becomes more useful…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration(1) SHENZHEN BMORN TECHNOLOGY CO.,LTD. FCC Software Configuration Control Declaration Date: July 31, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number:Notebook / GWTN156-1BK, GWTN156-1BL, GWTN156-1GR, GWTN156-1RG, GWTN156-1,N15CS9 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Tang shaofeng Date: 2020/07/31 Title: Manager Signatureof applicant

SHENZHEN BMORN TECHNOLOGY CO.,LTD. Agent Authorization Company: SHENZHEN BMORN TECHNOLOGY CO.,LTD. Address: 6/F,Hengfang Verteran Industrial Park, Xingye Road, Xixiang, Bao'an, Shenzhen, China Product Name: Notebook Model Number(s): GWTN156-1BK, GWTN156-1BL, GWTN156-1GR, GWTN156-1RG, GWTN156-1,N15CS9 Product Description: Notebook We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/07/31 Name: Tang shaofeng Title: Manager Company: SHENZHEN BMORN TECHNOLOGY CO.,LTD.

SHENZHEN BMORN TECHNOLOGY CO.,LTD. Family models difference declaration Notebook Model: GWTN156-1BK, GWTN156-1BL, GWTN156-1GR, GWTN156-1RG, GWTN156-1,N15CS9 Difference declaration: All models are the same circuit and RF module, except the Model. Regards, Signature Name: Tang shaofeng Date: 2020-07-31

SHENZHEN BMORN TECHNOLOGY CO.,LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/07/31 Subject; Request for Confidentiality FCC ID: 2ACPR-GWTN156-1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Tang shaofeng Title: Manager Email: [email protected]

SHENZHEN BMORN TECHNOLOGY CO.,LTD. 6/F,Hengfang Verteran Industrial Park, Xingye Road, Xixiang, Bao'an, Shenzhen, China Date: Jul 31, 2020 FCC ID: 2ACPR-GWTN156-1 Model Number: GWTN156-1BK, GWTN156-1BL, GWTN156-1GR, GWTN156-1RG, GWTN156-1,N15CS9 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, SHENZHEN BMORN TECHNOLOGY CO.,LTD. declare that this EUT (FCC ID: 2ACPR-GWTN156-1) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Tang shaofeng / Manager Company: SHENZHEN BMORN TECHNOLOGY CO.,LTD. Address: 6/F,Hengfang Verteran Industrial Park, Xingye Road, Xixiang, Bao'an, Shenzhen, China Phone: 0755-85266966

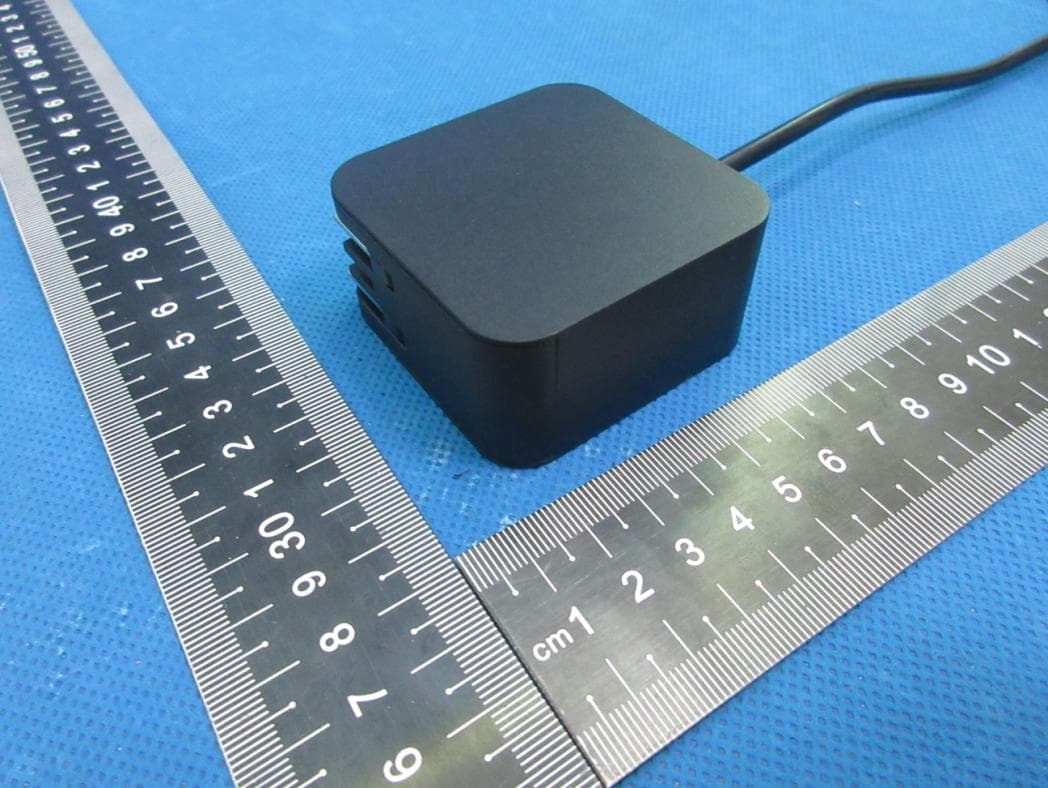

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 WIFI/BT Ant Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14

Page 1 of 84 Report No.: S20070804503001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Notebook Trademark： Gateway Model Name： GWTN156-1BK Family Model： GWTN156-1BL, GWTN156-1GR, GWTN156-1RG, GWTN156-1,N15CS9 Report No.： S20070804503001 FCC ID： 2ACPR-GWTN156-1 Prepared for SHENZHEN BMORN TECHNOLOGY CO.,LTD. 6/F,Hengfang Verteran Industrial Park, Xingye Road, Xixiang, Bao'an, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website: http://www.ntek.org.cn Page 2 of 84 Report No.: S20070804503001 TEST RESULT CERTIFICATION Applicant’s name .................. : SHENZHEN BMORN TECHNOLOGY CO.,LTD. Address .................................. : 6/F,Hengfang Verteran Industrial Park, Xingye Road, Xixiang, Bao'an, Shenzhen, China Manufacturer's Name ........... : SHENZHEN BMORN TECHNOLOGY CO.,LTD. Address .................................. : 6/F,Hengfang Verteran Industrial Park, Xingye Road, Xixiang, Bao'an, Shenzhen, China Product description Product name ......................... : Notebook Trademark ............................ : Gateway Model Name ......................... : GWTN156-1BK Family Model .......................... : GWTN156-1BL, GWTN156-1GR, GWTN156-1RG, GWTN156-1,N15CS9 Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Jul. 09, 2020 ~ Jul. 11, 2020 Date of Issue .......................................... : Jul. 25, 2020 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Cheng Jiawen) Approved By (Lab Manager) : (Sam Chen) Page 3 of 84 Report No.: S20070804503001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jul. 25, 2020 Cheng Jiawen Page 4 of 84 Report No.: S20070804503001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 17 3.1. Power Reference ................................................................................... 17 3.2. Area scan & Zoom scan .......................................................................... 17 3.3. Description of interpolation/extrapolation scheme .............................. 19 3.4. Volumetric Scan ..................................................................................... 19 3.5. Power Drift ............................................................................................ 19 4. System Verification Procedure .......................................................................... 20 4.1. Tissue Verification ................................................................................. 20 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 21 4.2. System Verification Procedure .............................................................. 22 4.2.1. System Verification Results .............................................................. 23 5. SAR Measurement variability and uncertainty .................................................. 24 5.1. SAR measurement variability ................................................................. 24 5.2. SAR measurement uncertainty ................................…

Text truncated - open the document above for the full version.

Report No.: S20070804502004 Version.1.2 Page 1 of 141 FCC RADIO TEST REPORT FCC ID: 2ACPR-GWTN156-1 Product： Notebook Trade Mark： Gateway Model Name： GWTN156-1BK Family Model： GWTN156-1BL, GWTN156-1GR, GWTN156-1RG, GWTN156-1,N15CS9 Report No.： S20070804502004 Prepared for SHENZHEN BMORN TECHNOLOGY CO.,LTD. 6/F,Hengfang Verteran Industrial Park, Xingye Road, Xixiang, Bao'an, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S20070804502004 Version.1.2 Page 2 of 141 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN BMORN TECHNOLOGY CO.,LTD. Address ................................. : 6/F,Hengfang Verteran Industrial Park, Xingye Road, Xixiang, Bao'an, Shenzhen, China Manufacturer's Name .......... : SHENZHEN BMORN TECHNOLOGY CO.,LTD. Address ................................. : 6/F,Hengfang Verteran Industrial Park, Xingye Road, Xixiang, Bao'an, Shenzhen, China Product description Product name ........................... : Notebook Model and/or type reference : GWTN156-1BK Family Model ............................. : GWTN156-1BL, GWTN156-1GR, GWTN156-1RG, GWTN156-1,N15CS9 Standards ............................. : FCC Part15.407 Test procedure ............................... : ANSI C63.10-2013 and KDB 789033 D02 General UNII Test Procedures New Rules v02r01 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements/ the Industry Canada requirements.. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 09 Jul. 2020 ~ 21 Jul, 2020 Date of Issue ........................................... : 23 Jul, 2020 Test Result ............................................... : Pass Testing Engineer : (Allen Liu) Technical Manager : (Jason Chen) Authorized Signatory : (Sam Chen) Report No.: S20070804502004 Version.1.2 Page 3 of 141 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 FACILITIES AND ACCREDITATIONS 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3 . TEST REQUIREMENTS 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 20 3.3 POWER SPECTRAL DENSITY TEST 35 3.4 26DB & 99% EMISSION BANDWIDTH 38 3.5 MINIMUM 6 DB BANDWIDTH 40 3.6 MAXIMUM CONDUCTED OUTPUT POWER 42 3.7 OUT OF BAND EMISSIONS 45 3.8 SPURIOUS RF CONDUCTED EMISSIONS 47 3.9 FREQUENCY STABILITY MEASUREMENT 48 4. ANTENNA REQUIREMENT 55 4.1 STANDARD REQUIREMENT 55 4.2 EUT ANTENNA 55 5. TEST RESULTS 56 5.2G: 56 5.1.1 DUTY CYCLE 56 5.1.2 MAXIMUM CONDUCTED OUTPUT POWER 64 5.1.3 OCCUPIED CHANNEL BANDWIDTH 65 5.1.4 MAXIMUM POWER SPECTRAL DENSITY LEVEL 73 5.1.5 BAND EDGE 81 5.1.6 CONDUCTED RF SPURIOUS EMISSION 87 5.8G: 95 5.2.1 DUTY CYCLE 95 5.2.2 MAXIMUM CONDUCTED OUTPUT POWER 103 5.2.3 -6DB BANDWIDTH 104 5.2.4 OCCUPIED CHANNEL BANDWIDTH 112 Report No.: S20070804502004 Version.1.2 Page 4 of 141 Table of Contents Page 5.2.5 MAXIMUM POWER SPECTRAL DENSITY LEVEL 120 5.2.6 BAND EDGE 128 5.2.7 CONDUCTED RF SPURIOUS EMISSION 134 Report No.: S20070804502004 Version.1.2 Page 5 of 141 Revision History Report No. Version Description Issued Date S20070804502004 Rev.01 Initial issue of report Jul 23, 2020 Report No.: S20070804502004 Version.1.2 Page 6 of 141 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.207 AC Power Line Conducted Emissions PASS 15.209(a), 15.407 (b)(1) 15.407 (b)(4) 15.407 (b)(6) Spurious Radiated Emissions PASS 15.407 (a)(1) 15.407 (a)(3) 26 dB and 99% Emission Bandwidth PASS 15.407(e) Minimum 6 dB bandwidth PASS 15.407 (a)(1) 15.407 (a)(3) Maximum Conducted Output Power PASS 15.407(b)(1) 15.407(b)(4) Band Edge PASS 15.407 (a)(1) 15.407 (a)(3) Power Spectral Density PASS 15.407(b) Spurious Emissions at Antenna Terminals PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.: S20070804502004 Version.1.2 Page 7 of 141 1.1 FACILITIES AND ACCREDITATIONS FACILITIES All measurement facilities used to collect the measurement data are located at 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR Publication 22. LABORATORY ACCREDITATIONS AND LISTINGS Site Description CNAS-Lab. : The Laboratory has been assessed and proved to be in compliance with CNAS-CL01:2006 (identical to ISO/IEC 17025:2005) The Certificate Registration Number is L5516. IC-Registration The Certificate Registration Number is 9270A. CAB identifier:CN0074 FCC- Accredited Test Firm Registration Number: 463705. Designation Number: CN1184 A2LA-Lab. The Certificate Registration Number is 4298.01 This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2005 General requirements for the competence of testing and calibration laboratories. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009). Name of Firm : Shenzhen NTEK Testing Technology Co., Ltd. …

Text truncated - open the document above for the full version.

Report No.: S20070804502004 Version.1.2 Page 101 of 141 Duty Cycle NVNT n20 5825MHz Ant1 Duty Cycle NVNT n40 5755MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 102 of 141 Duty Cycle NVNT n40 5795MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 103 of 141 5.2.2 MAXIMUM CONDUCTED OUTPUT POWER Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 8.98 30 Pass NVNT a 5785 Ant1 9.9 30 Pass NVNT a 5825 Ant1 9.15 30 Pass NVNT ac20 5745 Ant1 8.96 30 Pass NVNT ac20 5785 Ant1 9.75 30 Pass NVNT ac20 5825 Ant1 9.13 30 Pass NVNT ac40 5755 Ant1 9.78 30 Pass NVNT ac40 5795 Ant1 10 30 Pass NVNT ac80 5775 Ant1 9.43 30 Pass NVNT n20 5745 Ant1 8.93 30 Pass NVNT n20 5785 Ant1 9.8 30 Pass NVNT n20 5825 Ant1 9.12 30 Pass NVNT n40 5755 Ant1 9.44 30 Pass NVNT n40 5795 Ant1 10.00 30 Pass Report No.: S20070804502004 Version.1.2 Page 104 of 141 5.2.3 -6DB BANDWIDTH Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.600 0.5 Pass NVNT a 5785 Ant1 16.560 0.5 Pass NVNT a 5825 Ant1 16.595 0.5 Pass NVNT ac20 5745 Ant1 17.785 0.5 Pass NVNT ac20 5785 Ant1 17.740 0.5 Pass NVNT ac20 5825 Ant1 17.788 0.5 Pass NVNT ac40 5755 Ant1 36.305 0.5 Pass NVNT ac40 5795 Ant1 36.243 0.5 Pass NVNT ac80 5775 Ant1 74.836 0.5 Pass NVNT n20 5745 Ant1 17.786 0.5 Pass NVNT n20 5785 Ant1 17.735 0.5 Pass NVNT n20 5825 Ant1 17.771 0.5 Pass NVNT n40 5755 Ant1 36.316 0.5 Pass NVNT n40 5795 Ant1 36.205 0.5 Pass -6dB Bandwidth NVNT a 5745MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 105 of 141 -6dB Bandwidth NVNT a 5785MHz Ant1 -6dB Bandwidth NVNT a 5825MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 106 of 141 -6dB Bandwidth NVNT ac20 5745MHz Ant1 -6dB Bandwidth NVNT ac20 5785MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 107 of 141 -6dB Bandwidth NVNT ac20 5825MHz Ant1 -6dB Bandwidth NVNT ac40 5755MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 108 of 141 -6dB Bandwidth NVNT ac40 5795MHz Ant1 -6dB Bandwidth NVNT ac80 5775MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 109 of 141 -6dB Bandwidth NVNT n20 5745MHz Ant1 -6dB Bandwidth NVNT n20 5785MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 110 of 141 -6dB Bandwidth NVNT n20 5825MHz Ant1 -6dB Bandwidth NVNT n40 5755MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 111 of 141 -6dB Bandwidth NVNT n40 5795MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 112 of 141 5.2.4 OCCUPIED CHANNEL BANDWIDTH Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.977 NVNT a 5785 Ant1 16.907 NVNT a 5825 Ant1 16.945 NVNT ac20 5745 Ant1 18.070 NVNT ac20 5785 Ant1 17.999 NVNT ac20 5825 Ant1 18.091 NVNT ac40 5755 Ant1 36.555 NVNT ac40 5795 Ant1 36.352 NVNT ac80 5775 Ant1 74.675 NVNT n20 5745 Ant1 18.082 NVNT n20 5785 Ant1 17.990 NVNT n20 5825 Ant1 18.039 NVNT n40 5755 Ant1 36.657 NVNT n40 5795 Ant1 36.449 OBW NVNT a 5745MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 113 of 141 OBW NVNT a 5785MHz Ant1 OBW NVNT a 5825MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 114 of 141 OBW NVNT ac20 5745MHz Ant1 OBW NVNT ac20 5785MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 115 of 141 OBW NVNT ac20 5825MHz Ant1 OBW NVNT ac40 5755MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 116 of 141 OBW NVNT ac40 5795MHz Ant1 OBW NVNT ac80 5775MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 117 of 141 OBW NVNT n20 5745MHz Ant1 OBW NVNT n20 5785MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 118 of 141 OBW NVNT n20 5825MHz Ant1 OBW NVNT n40 5755MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 119 of 141 OBW NVNT n40 5795MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 120 of 141 5.2.5 MAXIMUM POWER SPECTRAL DENSITY LEVEL Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 4.176 30 Pass NVNT a 5785 Ant1 5.198 30 Pass NVNT a 5825 Ant1 4.331 30 Pass NVNT ac20 5745 Ant1 4.485 30 Pass NVNT ac20 5785 Ant1 4.433 30 Pass NVNT ac20 5825 Ant1 4.065 30 Pass NVNT ac40 5755 Ant1 1.95 30 Pass NVNT ac40 5795 Ant1 1.835 30 Pass NVNT ac80 5775 Ant1 -0.753 30 Pass NVNT n20 5745 Ant1 4.554 30 Pass NVNT n20 5785 Ant1 4.784 30 Pass NVNT n20 5825 Ant1 4.377 30 Pass NVNT n40 5755 Ant1 2.078 30 Pass NVNT n40 5795 Ant1 2.14 30 Pass PSD NVNT a 5745MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 121 of 141 PSD NVNT a 5785MHz Ant1 PSD NVNT a 5825MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 122 of 141 PSD NVNT ac20 5745MHz Ant1 PSD NVNT ac20 5785MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 123 of 141 PSD NVNT ac20 5825MHz Ant1 PSD NVNT ac40 5755MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 124 of 141 PSD NVNT ac40 5795MHz Ant1 PSD NVNT ac80 5775MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 125 of 141 PSD NVNT n20 5745MHz Ant1 PSD NVNT n20 5785MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 126 of 141 PSD NVNT n20 5825MHz Ant1 PSD NVNT n40 5755MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 127 of 141 PSD NVNT n40 5795MHz Ant1 Report No.: S20070804502004 Version.1.2 Page 128 of 141 5.2.6 BAND EDGE Condition Mode Frequency (MHz) Antenna Max Value (dBm) Verdict NVNT a 5745 Ant1 -38.64 Pass NVNT a 5825 Ant1 -38.09 Pass NVNT ac20 5745 Ant1 -38.76 Pass NVNT ac20 5825 Ant1 -37.92 Pass NVNT ac40 5755 Ant1 -38.48 Pass NVNT ac40 5795 Ant1 -38.21 Pass NVNT ac80 5775 Ant1 -37.07 Pass NVNT n20 5745 Ant1 -38.13 Pass NVNT n20 5825 Ant1 -37.53 Pass NVNT n40 5755 Ant1 -38.25 Pass NVNT n40 5795 Ant1 -37.73 Pass Band Edge NVNT a 5745MHz Low Ant1 Report No.: S20070804502004 Version.1.2 Page 129 of 141 Band Edge NVNT a 5825MHz High Ant1 Band Edge NVNT ac20 5745MHz Low Ant1 Report No.: S20070804502004 Version.1.2 Page 130 of 141 Band Edge NVNT ac20 5825MHz High Ant1 Band Edge NVNT ac40 5755MHz Low Ant1 Report No.: S20070804502004 Version.1.2 Page 131 of 141 Band Edge NVNT ac40 5795MHz High Ant1 Band Edge NVNT ac80 5775MHz High Ant1 Report No.: S20070804502004 Version.1.2 Pag…

Text truncated - open the document above for the full version.

Radiated Measurement Photos(30MHz~1GHz ) (1GHz~18GHz) (18GHz ~40GHz) AC Conducted Measurement Photos

Test Positions Bottom surface of the keyboard (Separation distance of 0mm) N/A END
