www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 7 of 23 1.6 User Manual www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 8 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 9 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 10 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 11 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 12 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 13 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 14 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 15 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 16 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 17 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 18 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 19 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 20 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 21 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 22 of 23 www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 23 of 23

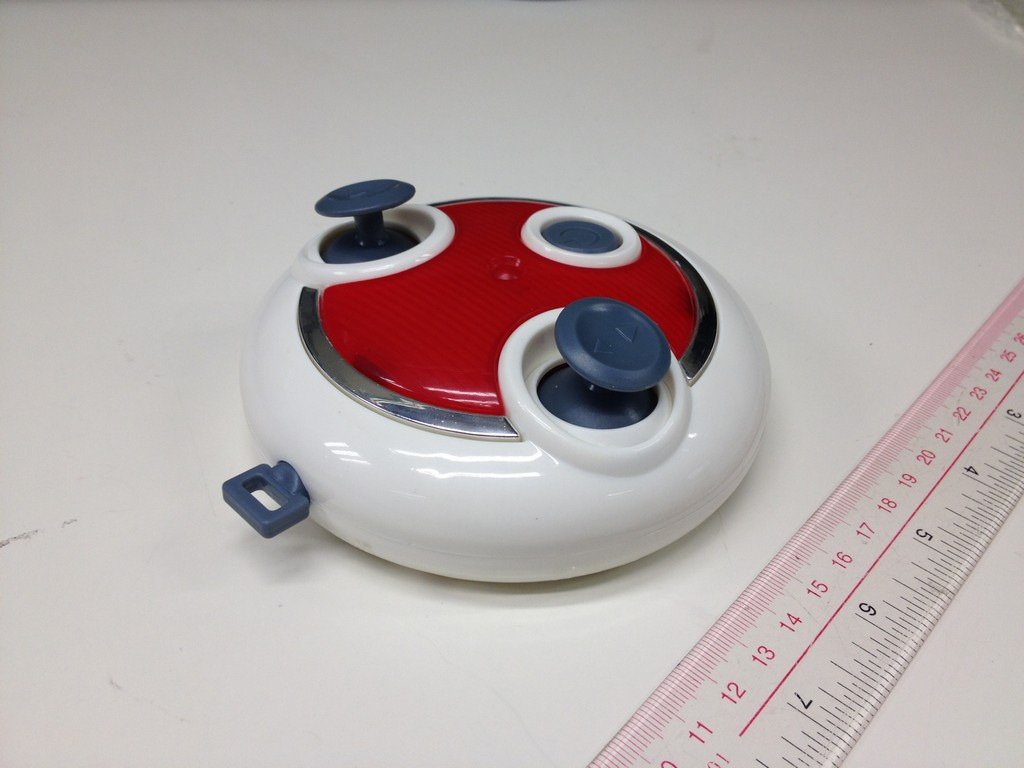

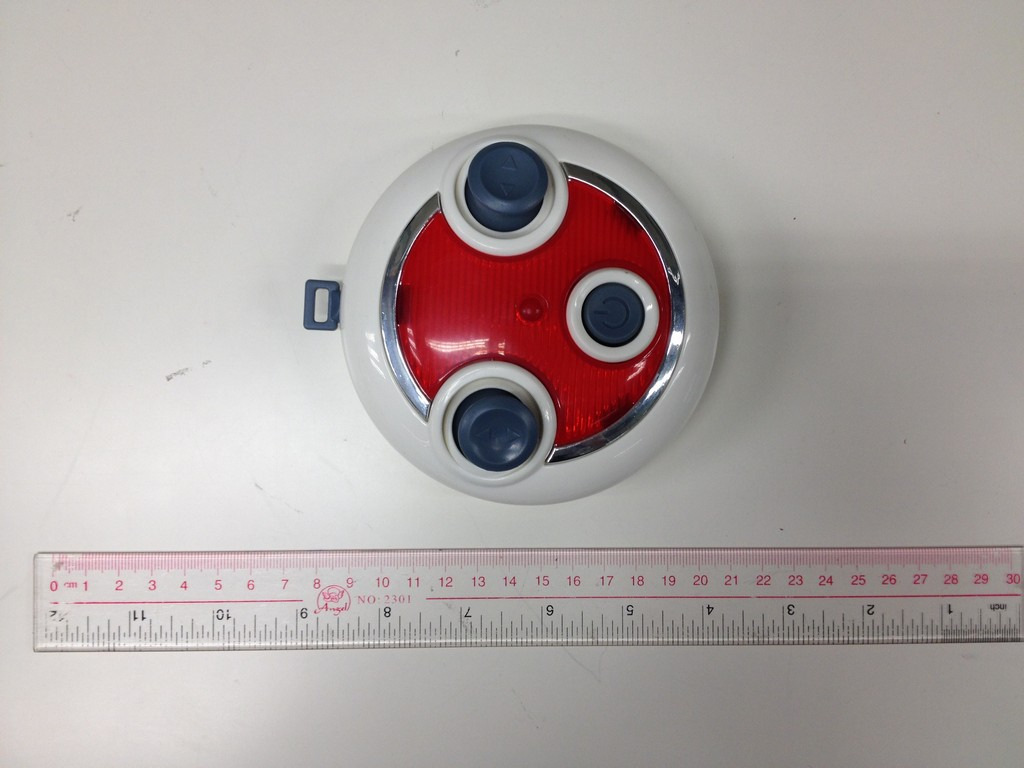

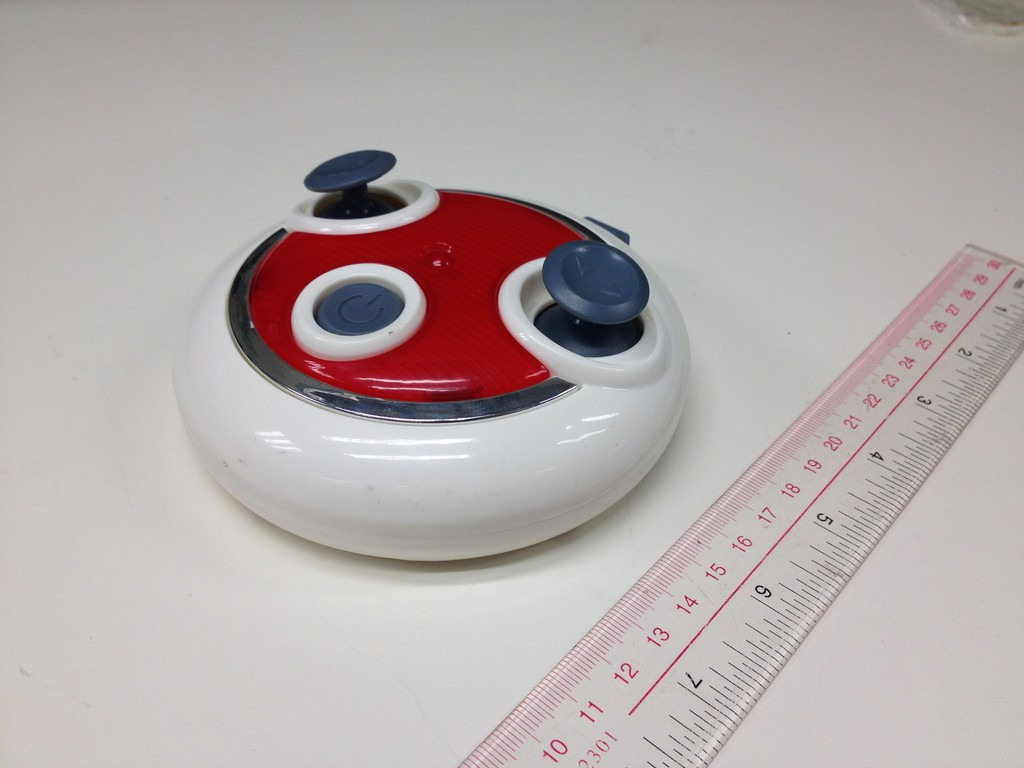

www.tuv.com Test Report No.: 14036336 001 Appendix 3 page 2 of 7 External View External View www.tuv.com Test Report No.: 14036336 001 Appendix 3 page 3 of 7 External View External View
www.tuv.com Test Report No.: 14036336 001 Appendix 4 page 2 of 22 1.1 FCCID Label Artwork
www.tuv.com Test Report No.: 14036336 001 Appendix 3 page 4 of 7 External View Internal View www.tuv.com Test Report No.: 14036336 001 Appendix 3 page 5 of 7 Internal View Internal View www.tuv.com Test Report No.: 14036336 001 Appendix 3 page 6 of 7 Internal View Internal View www.tuv.com Test Report No.: 14036336 001 Appendix 3 page 7 of 7 Internal View Internal View
www.tuv.com Test Report No.: 14036336 001 Date: 25.11.2014 page 2 of 9 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 β Subpart C ................................................................................. 6 Subclause 15.207 β Disturbance Voltage on AC Mains ................................................... N/A ................. 6 Subclause 15.205 β Band edge compliance of radiated emissions ............................ Pass ................. 6 Subclause 15.215 (c) β 20 dB Bandwidth ........................................................................ Pass ................. 6 Subclause 15.249 (a) β Radiated Emission (Fundamental and Harmonics) ................ Pass ................. 7 Subclause 15.249 (d) β Spurious Radiated Emissions .................................................. Pass ................. 9 Appendix 1 β Test Results 7 pages Appendix 2 β Test Setup Photos 3 pages Appendix 3 β Photo documentation 7 pages Appendix 4 β Product documentation 23 pages Appendix 5 β RF Exposure Information 2 pages www.tuv.com Test Report No.: 14036336 001 Date: 25.11.2014 page 3 of 9 Product information Manufacturers declarations Transmitter Operating frequency range 2405 - 2478 MHz Type of modulation GFSK Number of channels 26 Type of antenna Wired Antenna Power level fix Connection to public utility power line No Nominal voltage V nor : 4.5 V Product function and intended use The equipment under test (EUT) is a radio control toy transmitter operating at 2.4GHz. It is powered by batteries only. FCCID: 2ACQLHD520522 Models Product description HD-FJ520, HD-FJ522 BABY CARRIER Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: Nil www.tuv.com Test Report No.: 14036336 001 Date: 25.11.2014 page 4 of 9 Independent Operation Modes The basic operation modes are: - Transmitting control signal for the RC toy. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14036336 001 Date: 25.11.2014 page 5 of 9 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Equipment Manufacturer Type S/N Cal. Due date 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) --- 05 Apr 2015 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) --- N/A ESU EMI Test Receiver R&S ESU26 --- 27 Jun 2015 Loop Antenna Zhinan ZN30900A --- 27 Jun 2015 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 --- 08 Mar 2015 Double-ridged horn antenna SCHWARZBECK 9120D --- 08 Mar 2015 RF Amplifier HP 8347A --- 27 Jun 2015 RF Amplifier HP 8349B --- 27 Jun 2015 EMI Test Software AUDIX E3 --- N/A Coaxial cable GTS N/A --- 27 Jun 2015 Coaxial Cable GTS N/A --- 27 Jun 2015 Thermo meter N/A N/A --- 27 Jun 2015 Spectrum Analyzer Rohde & Schwarz FSP30 100007 03 Dec 2014 www.tuv.com Test Report No.: 14036336 001 Date: 25.11.2014 page 6 of 9 Results FCC Part 15 β Subpart C Subclause 15.207 β Disturbance Voltage on AC Mains N/A There is no AC power input or output ports on the EUT. Subclause 15.205 β Band edge compliance of radiated emissions Pass Test Specification : ANSI C63.4 β 2003 Mode of operation : Tx mode Port of testing : Enclosure Detector : Peak RBW/VBW : 100 kHz / 300 kHz for f < 1 GHz 1 MHz / 3 MHz for f > 1 GHz Supply voltage : 4.5VDC, 3 x 1.5V AAA size new battery Temperature : 23ΒΊC Humidity : 50% Requirement: Radiated emissions which fall in the restricted bands, as defined in 15.205 (a), must also comply with the radiated emission limits specified in 15.209(a). Results: The radiated emission which fall in the restricted bands complies with the radiated emission limits specified in 15.209(a). For test protocols refer to Appendix 1, page 4-7. Subclause 15.215 (c) β 20 dB Bandwidth Pass Test Specification : ANSI C63.4 β 2003 Mode of operation : Tx mode Port of testing : Enclosure RBW/VBW : 100 kHz / 300 kHz Supply voltage : 4.5VDC, 3 x 1.5V AAA size new battery Temperature : 23ΒΊC Humidity : 50% Requirement: The intentional radiators must be designed to ensure that the 20dB bandwidth of the emission, is contained within the frequency band designated in the rule section under which the equipment is operated. Results: For test protocols refer to Appendix 1, page 2-3. Frequency (MHz) 20 dB left (MHz) Limit (MHz) 20 dB right (MHz) Limit (MHz) 2405 2403.524 > 2400 2407.620 < 2483.5 2448 2446.116 > 2400 2451.940 < 2483.5 2478 2474.864 > 2400 2479.504 < 2483.5 wβ¦
Text truncated - open the document above for the full version.
www.tuv.com Test Report No.: 14036336 001 Appendix 1 page 1 of 7 Appendix 1 Test Results www.tuv.com Test Report No.: 14036336 001 Appendix 1 page 2 of 7 20dB Bandwidth Tx frequency: 2405MHz Att 20 dB 2.405004 GHz A 2.405004 GHz * 2.405004 GHz Ref 0 dBm 2.405004 GHz 1 PK 2.405004 GHz MAXH 2.405004 GHz Center 2.406 GHz 2.405004 GHz Span 6 MHz 2.405004 GHz 600 kHz/ 2.405004 GHz * 2.405004 GHz RBW 100 kHz 2.405004 GHzVBW 300 kHz 2.405004 GHz SWT 5 s 2.405004 GHz * 2.405004 GHz 2.405004 GHz 2.405004 GHz 2.405004 GHz 2.405004 GHz 2.405004 GHz 2.405004 GHz 2.405004 GHz 2.405004 GHz 2.405004 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.405004 GHz 1 Marker 1 [T1 ] -13.69 dBm 2.405004000 GHz 2 Delta 2 [T1 ] -21.16 dB -1.488000000 MHz 3 Delta 3 [T1 ] -20.02 dB 2.616000000 MHz MARKER 1 2.405004 GHz Comment: test print Date: 5.NOV.2014 13:51:57 Tx frequency: 2448MHz Att 20 dB 2.4471 GHz A 2.4471 GHz 2.4471 GHz 2.4471 GHz 2.4471 GHz 2.4471 GHz 2.4471 GHz 2.4471 GHz 2.4471 GHz 2.4471 GHz 2.4471 GHz * 2.4471 GHz Ref 0 dBm 2.4471 GHz 1 PK 2.4471 GHz MAXH 2.4471 GHz Center 2.449 GHz 2.4471 GHz Span 10 MHz 2.4471 GHz 1 MHz/ 2.4471 GHz * 2.4471 GHz RBW 100 kHz 2.4471 GHzVBW 300 kHz 2.4471 GHz SWT 5 s 2.4471 GHz * 2.4471 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.4471 GHz 1 Marker 1 [T1 ] -10.00 dBm 2.447100000 GHz 2 Delta 2 [T1 ] -20.20 dB -984.000000000 kHz 3 Delta 3 [T1 ] -20.18 dB 4.840000000 MHz MARKER 1 2.4471 GHz Comment: test print Date: 5.NOV.2014 13:41:47 www.tuv.com Test Report No.: 14036336 001 Appendix 1 page 3 of 7 Tx frequency: 2478MHz Att 20 dB 2.477952 GHz A 2.477952 GHz * 2.477952 GHz Ref 0 dBm 2.477952 GHz Center 2.478 GHz 2.477952 GHz Span 8 MHz 2.477952 GHz 800 kHz/ 2.477952 GHz * 2.477952 GHz RBW 100 kHz 2.477952 GHzVBW 300 kHz 2.477952 GHz SWT 5 s 2.477952 GHz 1 PK 2.477952 GHz MAXH 2.477952 GHz * 2.477952 GHz 2.477952 GHz 2.477952 GHz 2.477952 GHz 2.477952 GHz 2.477952 GHz 2.477952 GHz 2.477952 GHz 2.477952 GHz 2.477952 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.477952 GHz 1 Marker 1 [T1 ] -15.77 dBm 2.477952000 GHz 2 Delta 2 [T1 ] -20.13 dB -3.088000000 MHz 3 Delta 3 [T1 ] -20.45 dB 1.552000000 MHz MARKER 1 2.477952 GHz Comment: test print Date: 5.NOV.2014 14:08:30 www.tuv.com Test Report No.: 14036336 001 Appendix 1 page 4 of 7 Band Edge Compliance Tx frequency: 2405MHz (radiated measurement) Vertical polarization www.tuv.com Test Report No.: 14036336 001 Appendix 1 page 5 of 7 Horizontal polarization www.tuv.com Test Report No.: 14036336 001 Appendix 1 page 6 of 7 Tx frequency: 2478MHz (radiated measurement) Vertical polarization www.tuv.com Test Report No.: 14036336 001 Appendix 1 page 7 of 7 Horizontal polarization
www.tuv.com Test Report No.: 14036336 001 Appendix 5 page 1 of 2 Appendix 5 RF Exposure Information www.tuv.com Test Report No.: 14036336 001 Appendix 5 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBuV/m) Output power (mW) 2405 81.98 0.0473 2448 81.55 0.0429 2478 76.27 0.0127 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances β€50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] Β· [ βf(GHz)] β€3.0 for 1-g SAR and β€7.5 for 10-g extremity SAR,24 where β’ f(GHz) is the RF channel transmit frequency in GHz β’ Power and distance are rounded to the nearest mW and mm before calculation25 β’ The result is rounded to one decimal place for comparison β’ 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.0473/5)*β2.405 = 0.0147 <3.0 (0.0429/5)*β2.448 = 0.0134 <3.0 (0.0127/5)* β2.47 8 = 0.0040 <3.0 Conclusion: No SAR is required.
www.tuv.com Test Report No.: 14036336 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14036336 001 Appendix 2 page 3 of 3 Setup for radiated emission
