2ACRI-PLI0020Product Name - Dot, Tradename - YanaRBT

User Guide play-i_user_en.indd 18/27/14 3:14 PM IMPORTANT SAFETY AND HANDLING INFORMATION Read the following warnings before you or your child play with DASH and DOT. Failing to do so may cause injury. DASH and DOT are not suitable for use by children under the age of 5. WARNING: To reduce the risk of personal injury or property damage, do not attempt to remove your robot’s shell. No us- er-serviceable parts are contained inside. The lithium battery cannot be replaced. Read all safety information and operating instructions before using your robot to avoid personal injury or damage to property. WARNING: CHOKING HAZARD - Small parts. Not for children under 3 years. play-i_user_en.indd 28/27/14 3:14 PM Small Part Warning • Your robot and accessories have small parts contained within them that may present a choking hazard to small children and pets. Keep your robots and accessories away from them. • If your robot is broken, gather all parts immediately and store them in a safe place away from small children. Flashing Light warning - Seizures, Blackouts and Eyestrain Some people may be susceptible to blackouts or seizures (even if they have never had one before) when exposed to flashing lights or light patterns (e.g., playing games or watching video). If you have experienced seizures or blackouts or have a family history of such occurrences, consult a physician before playing with your robots. Discontinue use of your robots and consult a physician if you experience headaches, blackouts, seizures, convulsions, eye or muscle twitching, loss of awareness, involuntary movement, or disorientation. To reduce risk of headaches, blackouts, seizures, and eyestrain, avoid prolonged use. play-i_user_en.indd 38/27/14 3:14 PM Battery Warning • Your robot contains a lithium battery which is extremely hazardous and can cause serious injuries to persons or property if removed or improperly used or charged. • Lithium batteries can be lethal if ingested or can cause life-altering injuries. If you suspect a battery has been ingested, see a physician immediately. • In the event of battery leakage, avoid contact with skin and eyes. In case of contact with the eyes, rinse copiously with cold water and consult a physician. • If your robot is charging and you notice a suspicious smell or noise or observe smoke around the robot, disconnect it immediately and turn off all sources of heat or flame. Gas could be given off which could cause a fire or explosion. • You are solely liable for ensuring that the lithium battery is used correctly (charging, discharging, storage, etc.). The manufacturer and distributor shall have no liability for injury or damage to persons or property associated with lithium battery use. play-i_user_en.indd 48/27/14 3:14 PM General Safety and Storage Warnings • Operating temperature – 0 to 30° C (32 to 90° F). • Exceeding operating temperature may increase fire risk. • Do not use your robot if it has been broken and the battery is exposed or compromised in any way. Never touch or contact any liquid from the battery or cross wires from the battery to avoid burns, shocks or fire. • Do not attempt to dismantle, pierce, distort, or repair your robot. Doing so may expose batteries or wiring. • Do not place any heavy objects on your robot. Doing so may cause it to break and expose batteries or wiring. • Do not attempt to clean your robot with solvent, denatured alcohol, or flammable solvents. Doing so may damage the surface of your robot, make your robot inoperable, or cause a fire. • Do not immerse your robot in water. Doing so may cause your robot to become inoperable. • Do not put your robot in a microwave oven or pressurized container. Doing so may cause a fire or cause the batteries to explode. play-i_user_en.indd 58/27/14 3:14 PM Charging • Use the supplied USB cable to charge your robots by connecting to only UL and CSA certified power sources under adult supervision. • Power source should be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they must not be used until the damage has been repaired. • Do not charge near flammable materials or a flammable surface (wooden flooring, carpet, etc.) or conducting surfaces. • Do not leave your robot unattended while charging. • Disconnect the USB cable when the robot is finished charging. • Never charge the device while it is hot. • Do not cover your robot while it is charging. • Recharge the battery at a temperature between 0 and 30 degrees C (32 to 90 degrees F). play-i_user_en.indd 68/27/14 3:14 PM Copyrights, Registered Trademarks, and Licenses Copyright © 2014 Play-i, Inc. All Rights Reserved. Patents Pending. The total or partial reproduction or transmission of this guide in any form or by any process whatsoever is strictly prohibited without prior consent from Play-i, Inc. Play-i TM , the Play-i logo, Wonder Workshop TM , the Wonder logo and DASH TM and DOT TM are trademarks of Play-i, Inc. All other trademarks mentioned in this guide are the property of their respective owners. Certain portions of the firmware included or downloaded into the Products contains objects and/or executables derived from copyrighted sources and licensed under the terms available at www.makewonder.com/opensource. Play-i, Inc. grants you a nonexclusive, nontransferable license to use its proprietary firmware included in the Products (the “Firmware”), in executable form, solely as embedded in the Products, and solely for your non-commercial use. You may play-i_user_en.indd 78/27/14 3:14 PM not copy or modify the Firmware. You acknowledge that the Firmware contains trade secrets of Play-i, Inc., and, in order to protect such trade secrets, you agree not to disassemble, decompile or reverse engineer the Firmware nor permit any third party to do so, except to the extent such restrictions are prohibited by law. Play-i, Inc. reserves all rights and licenses in and to the Firmware not expressly granted to you hereund…

Text truncated - open the document above for the full version.

QUICK START DOWNLOAD makewonder.com/start 1 CONNECT 2 3 CHARGE Find more fun at makewonder.com! Cr ea te music with Dash’s Xylophone ! Transform Dash and Dot with Building Brick Connectors! Play, push, pret end with the Accessory Pack! War ning Aver tissement Copyright © 2014 Play-i, Inc. All Rights Reserved. Patents Pending. The total or partial reproduction or transmission of this guide in any for m or by any pr ocess whatsoever is stric tly prohibited without prior consent from Pla y-i, Inc . Pla y-iTM, the Pla y-i logo, Wonder Wor kshopTM, the Wonder logo and DASH TM and DOT TM are trademarks of Pla y-i, Inc . All other trademarks mentioned are the property of their respective owners. Support contacts: Website URL: www.makewonder.c om/support/ E-mail: [email protected] om Utilisez le câble USB fourni pour charger vos robots en se connectant à seulement des sources d’électricité UL et certifiés CSA sous la surveillance d'un adulte. Suivez toujours les consignes d’utilisation et de chargement afin d’éviter les risques d’incendie, ou de blessures potentiels. Ne jamais utilisez une prise électrique endommagée. Use the supplied USB cable to charge your robots by connecting to only UL and CSA certified power sources under adult supervision. Always follow use and charging instructions to avoid injury, fire risk or damage. Never use a power source that is damaged.

!A,' \N o n d e r rryorkshop Letter of Agency "1, an officer of Wonder Workshop, Inc. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai lp / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in 51.2002(b) of cFR 47, 2OO4) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 7 tE;' day Oor";6,4 of 20! By \JJ*/ Signature Vikas Gupta Printed Name cEo RanQy Buswell Printed Name ,). Canplr4l Le rutvftfu( a) Grantee Contact of Record Title 21215. ElCamino Real, 11"th Floor, San Mateo, CA 94403 Title Signature \.'

,,"'r../ i,"...,r l'i 1." ) ii:i I ','/i'r't:".,i.' Attention: Application Examiner Re: Request for confidentiality Applicant: Wonder Workshop, Inc. FCC lD: 2ACRI To whom it may concern, P e rms n e nt C o nJi de nt i a I ity Request is hereby submitted by Wonder Workshop, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: o Schenratics o Detailed Block diagrams o Detailed Operational,IFunctional Description Short-term Confi dentiality Request is hereby submitted by Wonder Workshop, Inc, to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 ofthe FCC Rules. In particular, the following sections ofthe application are to be kept confidential for a period of 45 days from the date of Authorization: o Test setup photos o External photos Q.{OTE: External photos can only be held for short-term confidentiality) o Internal photos o User manual Rationale for request for confidentiality: Wonder Workshop, Inc. has invested considerable time and materials in research and development to produce the referenced product. lPermanent confidentiality: Disclosure ofthe permanently conhdential portions ofthis application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.llShort term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, Randy Buswell Compliance Manager Wonder Workshop, Inc. r'f tz / 14 \ '' t 12l S. El Camino Real. I ltr' Floor. San Mareo. CA 94403 \ .'

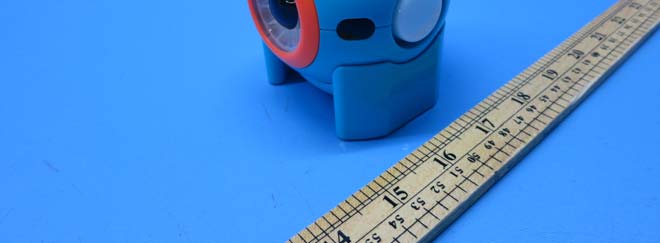

INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (External)

Model: DO01 FCC ID: 2ACRI-PLI0020 IC: 12275A-PLI0020 DOT by Wonder Workshop/Play-i Inc. Made in China R-NZ SN: DO1014123JT14567 Print Laser engrave 1.5mm

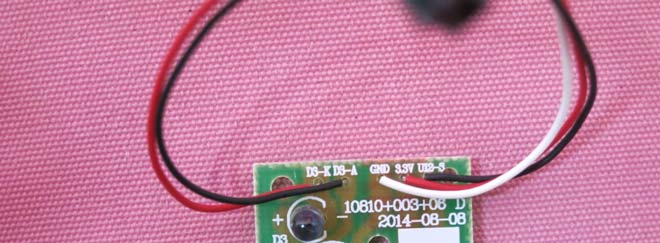

INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal) INTERTEK TESTING SERVICE Report No.: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Equipment Photographs Model : DO01 (Internal)

Analysis Report The Equipment under test (EUT) is a 2.4GHz Bluetooth 4.0 transceiver for a RC Robot (Yana) which is powered by a 3.7V internal rechargeable battery pack. After pairing with iPad/Android device, the Robot can be controlled to generate sound effect, and the LEDs can be light up. Also, the EUT can be communicated with Bo via infra red for game playing. The internal rechargeable battery shall be charged via mini USB port. Antenna Type: Internal antenna Antenna Gain: 2.2dBi Maximum production tolerance: -20 to +4dBm. According to the KDB 447498: Based on the Maximum allowed radiated power of production tolerance was +6.2dBm (i.e. 4dBm + Ant. Gain) in frequency 2.4GHz, thus; Maximum radiated power (EIRP) is 4.14mW (i.e. +6.2dBm), thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 2.5mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14071232HKG-002 Wonder Workshop, Inc. Application For Certification (Original Grant) (FCC ID: 2ACRI-PLI0020) Transceiver Prepared and Checked by: Approved by: Signed On File Leung Sung Tak, Andy Assistant Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: November 11, 2014 INTERTEK TESTING SERVICES Report No.: 14071232HKG-002 i FCC ID: 2ACRI-PLI0020 GENERAL INFORMATION Grantee: Wonder Workshop, Inc. Grantee Address: 2121 S. El Camino Real, 11th Floor, San Mateo, CA 94403, United States Contact Person: Randy Buswell Tel: (650) 395-8175 Fax: (650) 395-8175 e-mail: [email protected] Manufacturer: Jetta (Guangzhou) Industries Co., Ltd. Manufacturer Address: 163 Cheng Ao Da Dao Dong Lu, Cheng Jiao Jie, Cong Hua Shi, Guangzhou Shi, Guangdong Province, China Supplier: Jetta Brand Name: N/A Model: DO01 Type of EUT: Transceiver Description of EUT: Product Name: Dot Tradename: YanaRBT Serial Number: N/A FCC ID: 2ACRI-PLI0020 Date of Sample Submitted: July 29, 2014 Date of Test: July 29, 2014 to September 29, 2014 Report No.: 14071232HKG-002 Report Date: November 11, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14071232HKG-002 ii FCC ID: 2ACRI-PLI0020 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14071232HKG-002 iii FCC ID: 2ACRI-PLI0020 Table of Contents 1.0 General Description.............................................................................................. 1 1.1 Product Description ............................................................................................. 1 1.2 Related Submittal(s) Grants................................................................................. 1 1.3 Test Methodology ................................................................................................ 1 1.4 Test Facility ......................................................................................................... 1 2.0 System Test Configuration ................................................................................... 2 2.1 Justification.......................................................................................................... 2 2.2 EUT Exercising Software..................................................................................... 2 2.3 Special Accessories ............................................................................................ 2 2.4 Measurement Uncertainty.................................................................................... 2 2.5 Support Equipment List and Description.............................................................. 2 3.0 Emission Results .................................................................................................. 3 3.1 Field Strength Calculation.................................................................................... 3 3.2 Radiated Emission Configuration Photograph ..................................................... 4 3.3 Radiated Emission Data ...................................................................................... 4 4.0 Equipment Photographs ....................................................................................... 8 5.0 Product Labelling .................................................................................................. 8 6.0 Technical Specifications...................................................................................... 8 7.0 Instruction Manual ................................................................................................ 8 8.0 Miscellaneous Information ................................................................................... 9 8.1 Radiated Emission on the Bandedge................................................................... 9 8.2 Discussion of Pulse Desen…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : DO01 Radiated Emission Model: DO01 Job: 14071232HKG-002 A INTERTEK TESTING SERVICE Report No: 14071232HKG-002 FCC ID: 2ACRI-PLI0020 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : DO01 Radiated Emission Model: DO01 Job: 14071232HKG-002 B
