2ACRJ-ZT-28EEnvironmental variable collector for logistics

Fast Guide ZillionTrace-28E Item List User Manual×1 Product IntroductionFunction Introduction Signal Light 01. Activation ZT-28E needs to be activated. How: Pull out the activation tag on the back of the device. The signal light in the front of the device will flash after activation to indicate the first data report, and then turn off. 02. Charging ZT28-E uses a Type-C USB charging cable to charge. How: Connect the device and a 5V charger using a Type-C charging cable . The Charging Indicator will light up during the process, and turn off upon charging completion. Charging Cable ×1 AttentionSpecificationsServiceHow to Use Place the device inside the container or asset to be monitored. Device will collect data according to business rules configured on the management portal. 1. Device uses 2G and LTE-M communication; in areas without 2G/LTE-M, device will cache data. 2. Please do not place device below -30 or above 60 for extended period of time. 3. Please charge the device in an environment where temperature is within 5 - 30 . 4. Information on sensor accuracy is from sensor manufacturers; accuracy on site may vary. 5. Device needs to be charged using proper power source. 6. Do not submerge the device in water. Size: L*W*H 92*79*12(mm) Weight: 105g Dust and water protection: IP67 Standard Report Interval: 5min-24h Active Report Interval: 5min-24h Temperature: -35 -+75 (±0.5 ) Location Method: Advanced + GSM Door Monitoring: Add-on door module Communication: 2G and LTE-M (Supports all 5G Cellular Communication Frequency bands) Battery: 3000mAh lithium polymer Battery Charging: 5V(DC 1.6A) Contact us: ZillionSource Technologies Co., Ltd. Service Hotline: +86-21-61212023 Email: [email protected] For More Information, please go to www.zillionsource.com *The specifications are just for your reference. Products shall be subject to changes without notice. ZillionTrace×1 Charging Port Activation Tag FCC RF Exposure Information and Statement This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. The SAR limit of USA (FCC) is 1.6 W/kg averaged. Device types: Environmental variable collector for logistics (FCC ID: 2ACRJ-ZT-28E) has also been tested against this SAR limit. SAR information on this and other pad can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for search. This device was tested simulation typical 10mm to body. To maintain compliance with FCC RF exposure requirements, use accessories should maintain a separation distance between the user's bodies mentioned above, the use of holsters and similar accessories should not contain metallic components in its assembly, the use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

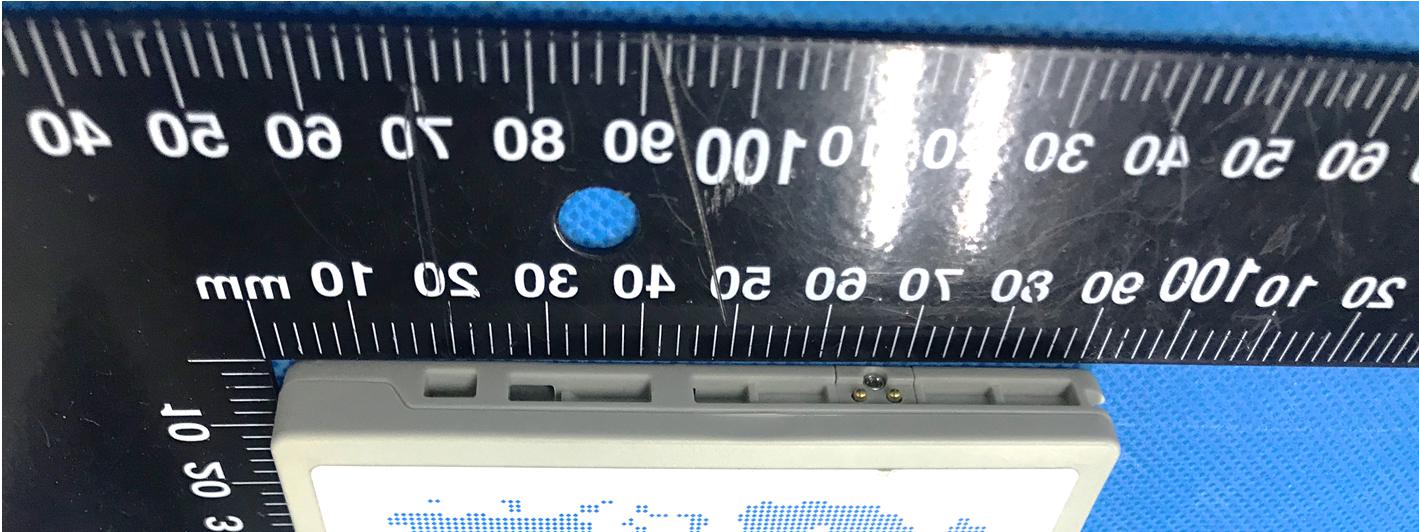

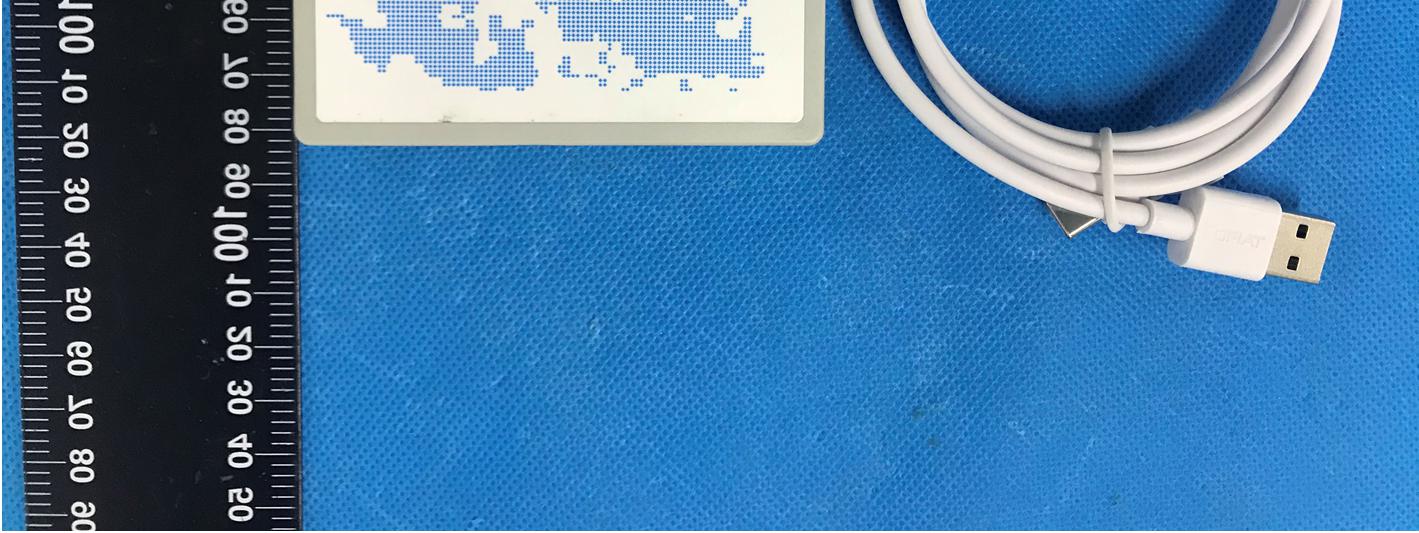

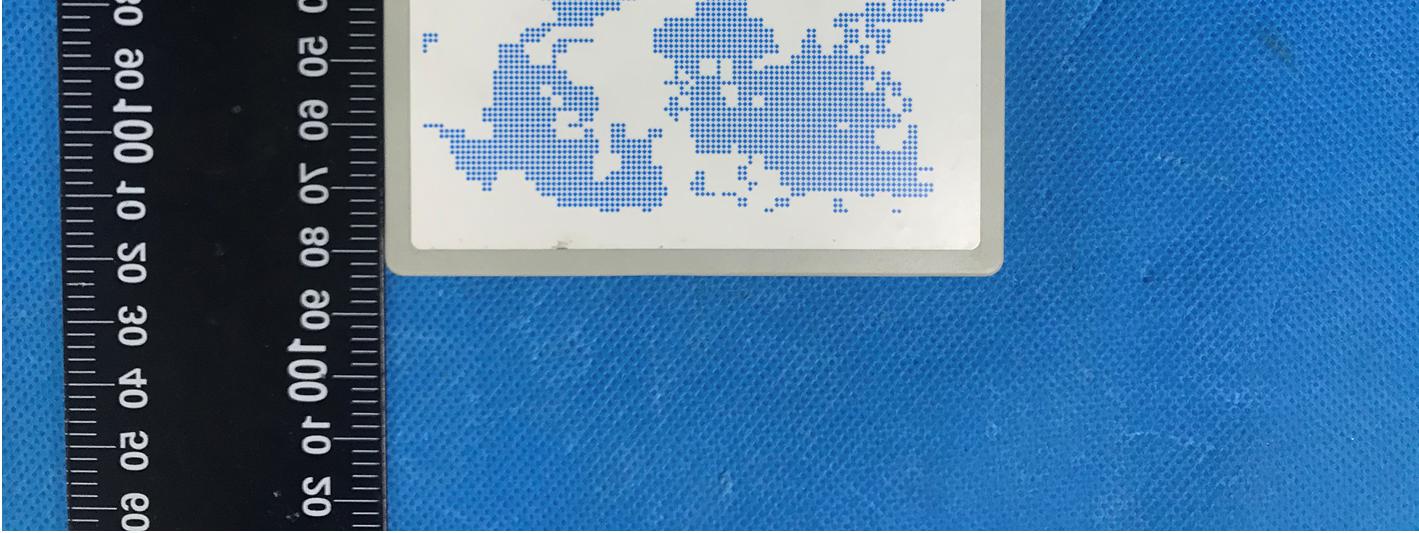

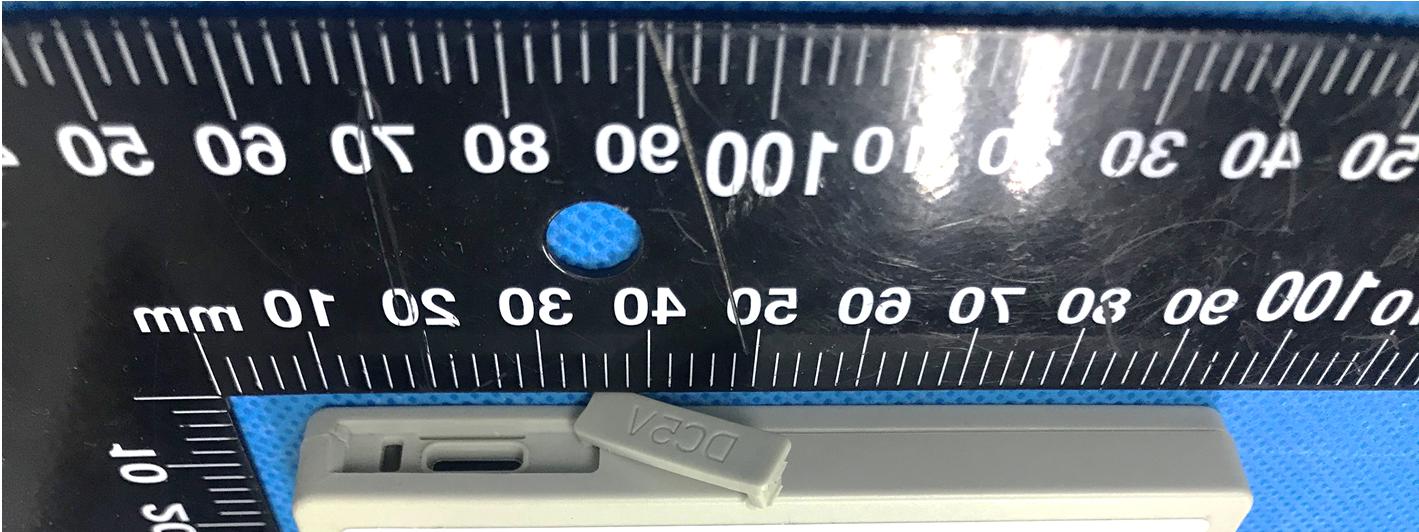

Reference No.: WTX21X03024173W-1/2 Page 2 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX21X03024173W-1/2 Page 3 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 3 EUT View 4 Reference No.: WTX21X03024173W-1/2 Page 4 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 5 EUT View 6 Reference No.: WTX21X03024173W-1/2 Page 5 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 7

Reference No.: WTX21X03024173W-1/2 Page 1 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ACRJ-ZT-28E Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX21X03024173W-1/2 Page 6 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX21X03024173W-1/2 Page 7 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX21X03024173W-1/2 Page 8 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX21X03024173W-1/2 Page 9 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 5 Solder Board-Component View 6 Reference No.: WTX21X03024173W-1/2 Page 10 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 7 Solder Board-Component View 8 Reference No.: WTX21X03024173W-1/2 Page 11 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 9 Antenna View

Ref : ACR.154.4.15.SATU.A WALTEK TESTING GROUP (SHENZHEN) CO., LTD. 1/F, BUILDING A, HONGWEI INDUSTRIAL PARK, LIUXIAN 2ND ROAD BAO'AN DISTRICT SHENZHEN (518101), CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 09/13 EP168 Calibrated at MVG US 2105 Barrett Park Dr. - Kennesaw, GA 30144 05/22/2020 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in MVG USA using the CALISAR / CALIBAIR test bench, for use with a COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.154.4.15.SATU.A Page: 2/9 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. NameFunction DateSignature Prepared by : Jérôme LUC Product Manager 5/22/2020 Checked by : Jérôme LUC Product Manager 5/22/2020 Approved by : Kim RUTKOWSKI Quality Manager 5/22/2020 Customer Name Distribution : Waltek Testing Group (Shenzhen) Co., Ltd. IssueDateModifications A 5/22/2020 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.154.4.15.SATU.A Page: 3/9 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ...................................................................................................... 9 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.154.4.15.SATU.A Page: 4/9 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE ManufacturerMVG ModelSSE5 Serial Number SN 09/13 EP168 Product Condition (new / used) Used Frequency Range of Probe 0.7 GHz-3GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.224 M: Dipole 2: R2=0.234 M: Dipole 3: R3=0.229 M: A yearly calibration interval is recommended. 2PRODUCT DESCRIPTION 2.1GENERAL INFORMATION MVG¶V&2026$5(ILHOG3UREHVDUHEXLOWLQDFFRUGDQFHWRWKH,(((OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1±MVG COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.154.4.15.SATU.A Page: 5/9 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with the plastic box illuminated with the fields …

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 50 TEST REPORT Reference No. .................... : WTX21X03024173W FCC ID ................................ : 2ACRJ-ZT-28E Applicant ........................... : ZillionSource Technologies (Shanghai) Co., Ltd. Address.............................. : Suit 2D-18,1building,HuaShen RoadNO.198, Shanghai Free Trade Zone, Shanghai, China Product Name ................... : Environmental variable collector for logistics Test Model. ........................ : ZT-28E Standards .......................... : FCC Part 2.1093 ANSI / IEEE C95.1 : 2005+A1:2010 ANSI / IEEE C95.3 : 2002(R2008) IEEE 1528 :2013 Date of Receipt sample .... : Mar.24, 2021 Date of Test........................ : Mar.24, 2021 to Apr.15, 2021 Date of Issue ..................... : Apr.16, 2021 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Hubrey Cai / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X03024173W Page 2 of 50 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn TABLE OF CONTENTS 1. General Information ...................................................................................................................................................3 1.1 Product Description for Equipment Under Test (EUT) .........................................................................................3 1.2 Test Standards ....................................................................................................................................................5 1.3 Test Methodology ................................................................................................................................................5 1.4 Test Facility .........................................................................................................................................................5 2. Summary of Test Results ..........................................................................................................................................6 3. Specific Absorption Rate (SAR) ................................................................................................................................7 3.1 Introduction ..........................................................................................................................................................7 3.2 SAR Definition .....................................................................................................................................................7 4. SAR Measurement System ........................................................................................................................................8 4.1 The Measurement System ..................................................................................................................................8 4.2 Probe ...................................................................................................................................................................8 4.3 Probe Calibration Process ................................................................................................................................. 10 4.4 Phantom ............................................................................................................................................................ 11 4.5 Device Holder .................................................................................................................................................... 11 4.6 Test Equipment List ........................................................................................................................................... 12 5. Tissue Simulating Liquids ....................................................................................................................................... 13 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 13 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 14 5.3 Tissue Calibration Result ................................................................................................................................... 15 6. SAR Measurement Evaluation ................................................................................................................................ 16 6.1 Purpose of System Performance Check ............................................................................................................ 16 6.2 System Setup .................................................................................................................................................... 16 6.3 Validation Results .............................................................................................................................................. 18 7. EUT Testing Position ............................................................................................................................................... 19 7.1 Body Position .................................................................................................................................................... 19 7.2 EUT Antenna Position ...........…

Text truncated - open the document above for the full version.

Reference No.: WTX21X03024173W-2 Page 1 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Appendix for Band 4 Product Name: Environmental variable collector for logistics Model No: ZT-28E Reference No.: WTX21X03024173W-2 Page 2 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Appendix A: Average Power Output Data Test Result Band Bandwidth Modulation Channel RB Size RB Start Result(dBm) Verdict Band4 1.4MHz 19957 QPSK 1 0 19.82 PASS Band4 1.4MHz 19957 QPSK 1 5 19.54 PASS Band4 1.4MHz 19957 QPSK 6 0 17.69 PASS Band4 1.4MHz 20175 QPSK 1 0 19.57 PASS Band4 1.4MHz 20175 QPSK 1 5 19.46 PASS Band4 1.4MHz 20175 QPSK 6 0 17.53 PASS Band4 1.4MHz 20393 QPSK 1 0 19.88 PASS Band4 1.4MHz 20393 QPSK 1 5 19.66 PASS Band4 1.4MHz 20393 QPSK 6 0 17.80 PASS Band4 1.4MHz 19957 16QAM 1 0 18.61 PASS Band4 1.4MHz 19957 16QAM 1 5 18.56 PASS Band4 1.4MHz 19957 16QAM 6 0 17.59 PASS Band4 1.4MHz 20175 16QAM 1 0 18.66 PASS Band4 1.4MHz 20175 16QAM 1 5 18.56 PASS Band4 1.4MHz 20175 16QAM 6 0 17.54 PASS Band4 1.4MHz 20393 16QAM 1 0 18.81 PASS Band4 1.4MHz 20393 16QAM 1 5 18.74 PASS Band4 1.4MHz 20393 16QAM 6 0 17.79 PASS Band4 3MHz 19965 QPSK 1 0 19.70 PASS Band4 3MHz 19965 QPSK 1 14 19.52 PASS Band4 3MHz 19965 QPSK 15 0 17.52 PASS Band4 3MHz 20175 QPSK 1 0 19.50 PASS Band4 3MHz 20175 QPSK 1 14 19.41 PASS Band4 3MHz 20175 QPSK 15 0 17.39 PASS Band4 3MHz 20385 QPSK 1 0 20.04 PASS Band4 3MHz 20385 QPSK 1 14 19.76 PASS Band4 3MHz 20385 QPSK 15 0 17.97 PASS Band4 3MHz 19965 16QAM 1 0 18.67 PASS Band4 3MHz 19965 16QAM 1 14 18.37 PASS Band4 3MHz 19965 16QAM 15 0 17.58 PASS Band4 3MHz 20175 16QAM 1 0 18.43 PASS Band4 3MHz 20175 16QAM 1 14 18.23 PASS Band4 3MHz 20175 16QAM 15 0 17.40 PASS Band4 3MHz 20385 16QAM 1 0 19.05 PASS Band4 3MHz 20385 16QAM 1 14 18.75 PASS Reference No.: WTX21X03024173W-2 Page 3 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4 3MHz 20385 16QAM 15 0 17.88 PASS Band4 5MHz 19975 QPSK 1 0 19.87 PASS Band4 5MHz 19975 QPSK 1 24 19.72 PASS Band4 5MHz 19975 QPSK 25 0 18.58 PASS Band4 5MHz 20175 QPSK 1 0 19.62 PASS Band4 5MHz 20175 QPSK 1 24 19.48 PASS Band4 5MHz 20175 QPSK 25 0 18.54 PASS Band4 5MHz 20375 QPSK 1 0 19.97 PASS Band4 5MHz 20375 QPSK 1 24 19.83 PASS Band4 5MHz 20375 QPSK 25 0 18.79 PASS Band4 5MHz 19975 16QAM 1 0 19.82 PASS Band4 5MHz 19975 16QAM 1 24 19.74 PASS Band4 5MHz 19975 16QAM 25 0 18.58 PASS Band4 5MHz 20175 16QAM 1 0 19.73 PASS Band4 5MHz 20175 16QAM 1 24 19.51 PASS Band4 5MHz 20175 16QAM 25 0 18.39 PASS Band4 5MHz 20375 16QAM 1 0 19.89 PASS Band4 5MHz 20375 16QAM 1 24 19.70 PASS Band4 5MHz 20375 16QAM 25 0 18.79 PASS Band4 10MHz 20000 QPSK 1 0 19.82 PASS Band4 10MHz 20000 QPSK 1 49 19.62 PASS Band4 10MHz 20000 QPSK 50 0 18.55 PASS Band4 10MHz 20175 QPSK 1 0 19.60 PASS Band4 10MHz 20175 QPSK 1 49 19.43 PASS Band4 10MHz 20175 QPSK 50 0 18.49 PASS Band4 10MHz 20350 QPSK 1 0 19.88 PASS Band4 10MHz 20350 QPSK 1 49 19.80 PASS Band4 10MHz 20350 QPSK 50 0 18.79 PASS Band4 10MHz 20000 16QAM 1 0 19.91 PASS Band4 10MHz 20000 16QAM 1 49 19.68 PASS Band4 10MHz 20000 16QAM 50 0 18.55 PASS Band4 10MHz 20175 16QAM 1 0 19.69 PASS Band4 10MHz 20175 16QAM 1 49 19.44 PASS Band4 10MHz 20175 16QAM 50 0 18.42 PASS Band4 10MHz 20350 16QAM 1 0 19.86 PASS Band4 10MHz 20350 16QAM 1 49 19.68 PASS Band4 10MHz 20350 16QAM 50 0 18.78 PASS Band4 15MHz 20025 QPSK 1 0 19.74 PASS Band4 15MHz 20025 QPSK 1 74 19.59 PASS Band4 15MHz 20025 QPSK 75 0 19.62 PASS Band4 15MHz 20175 QPSK 1 0 19.54 PASS Band4 15MHz 20175 QPSK 1 74 19.32 PASS Reference No.: WTX21X03024173W-2 Page 4 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4 15MHz 20175 QPSK 75 0 19.45 PASS Band4 15MHz 20325 QPSK 1 0 19.90 PASS Band4 15MHz 20325 QPSK 1 74 19.79 PASS Band4 15MHz 20325 QPSK 75 0 19.73 PASS Band4 15MHz 20025 16QAM 1 0 19.81 PASS Band4 15MHz 20025 16QAM 1 74 19.60 PASS Band4 15MHz 20025 16QAM 75 0 19.67 PASS Band4 15MHz 20175 16QAM 1 0 19.63 PASS Band4 15MHz 20175 16QAM 1 74 19.45 PASS Band4 15MHz 20175 16QAM 75 0 19.49 PASS Band4 15MHz 20325 16QAM 1 0 19.88 PASS Band4 15MHz 20325 16QAM 1 74 19.58 PASS Band4 15MHz 20325 16QAM 75 0 19.79 PASS Band4 20MHz 20050 QPSK 1 0 20.06 PASS Band4 20MHz 20050 QPSK 1 99 19.67 PASS Band4 20MHz 20050 QPSK 100 0 19.65 PASS Band4 20MHz 20175 QPSK 1 0 19.56 PASS Band4 20MHz 20175 QPSK 1 99 19.38 PASS Band4 20MHz 20175 QPSK 100 0 19.42 PASS Band4 20MHz 20300 QPSK 1 0 19.85 PASS Band4 20MHz 20300 QPSK 1 99 19.71 PASS Band4 20MHz 20300 QPSK 100 0 19.79 PASS Band4 20MHz 20050 16QAM 1 0 19.81 PASS Band4 20MHz 20050 16QAM 1 99 19.64 PASS Band4 20MHz 20050 16QAM 100 0 19.64 PASS Band4 20MHz 20175 16QAM 1 0 19.74 PASS Band4 20MHz 20175 16QAM 1 99 19.38 PASS Band4 20MHz 20175 16QAM 100 0 19.49 PASS Band4 20MHz 20300 16QAM 1 0 19.80 PASS Band4 20MHz 20300 16QAM 1 99 19.71 PASS Band4 20MHz 20300 16QAM 100 0 19.79 PASS Reference No.: WTX21X03024173W-2 Page 5 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Appendix B: Peak-to-Average Ratio Test Result Band Bandwidth Modulation Channel RB Size RB Start Result(dB) Limit(dB) Verdict Band4 1.4MHz 19957 QPSK 1 0 5.61 <=13 PASS Band4 1.4MHz 19957 QPSK 6 0 8.35 <=13 PASS Band4 1.4MHz 20175 QPSK 1 0 7.81 <=13 PASS Band4 1.4MHz 20175 QPSK 6 0 9.53 <=13 PASS Band4 1.4MHz 20393 QPSK 1 0 10.08 <=13 PASS Band4 1.4MHz 20393 QPSK 6 0 8.60 <=13 PASS Band4 1.4MHz 19957 16QAM 1 0 7.81 <=13 PASS Band4 1.4MHz 19957 16QAM 6 0 9.82 <=13 PASS Band4 1.4MHz 20175 16QAM 1 0 10.60 <=13 PASS Band4 1.4MHz 20175 16QAM 6 0 8.59 <=13 PASS Band4 1.4MHz 20393 16QAM 1 0 10.47 <=13 PASS Band4 1.4MHz 20393 16QAM 6 0 5.23 <=13 PASS Band4 3MHz 19965 QPSK 1 0 7.81 <=13 PASS Band4 3MHz 19965 QPSK 15 0 8.98 <=13 PASS Band4 3MHz 20175 QPSK 1 0 6.16 <=13 PASS Band4 3MHz 20175 QPSK 15 0 8.10 <=13 PASS Band4 3MHz 20385 QPSK 1 0 9.86 <=13 PASS Band4 3MHz 20385 QPSK 15 0 10.71 <=13 PASS Band4 3MHz 19965 16QAM 1 0 8.41 <=13 PASS Band4 3MHz 19965 16QAM 15 0 10.67 <=13 PASS Band4 3MHz 20…

Text truncated - open the document above for the full version.

Reference No.: WTX21X03024173W-2 Page 24 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4-15MHz-QPSK-20175-1-0-Low Band4-15MHz-QPSK-20175-75-0 Band4-15MHz-QPSK-20325-1-0 Reference No.: WTX21X03024173W-2 Page 25 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4-15MHz-QPSK-20325-75-0 Band4-15MHz-16QAM-20025-1-0 Band4-15MHz-16QAM-20025-75-0 Reference No.: WTX21X03024173W-2 Page 26 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4-15MHz-16QAM-20175-1-0 Band4-15MHz-16QAM-20175-75-0 Band4-15MHz-16QAM-20325-1-0 Reference No.: WTX21X03024173W-2 Page 27 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4-15MHz-16QAM-20325-75-0 Band4-20MHz-QPSK-20050-1-0 Band4-20MHz-QPSK-20050-100-0 Reference No.: WTX21X03024173W-2 Page 28 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4-20MHz-QPSK-20175-1-0 Band4-20MHz-QPSK-20175-100-0 Band4-20MHz-QPSK-20300-1-0 Reference No.: WTX21X03024173W-2 Page 29 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4-20MHz-QPSK-20300-100-0 Band4-20MHz-16QAM-20050-1-0 Band4-20MHz-16QAM-20050-100-0 Reference No.: WTX21X03024173W-2 Page 30 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4-20MHz-16QAM-20175-1-0 Band4-20MHz-16QAM-20175-100-0 Band4-20MHz-16QAM-20300-1-0 Reference No.: WTX21X03024173W-2 Page 31 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Band4-20MHz-16QAM-20300-100-0 Reference No.: WTX21X03024173W-2 Page 32 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Channel Bandwidth: 1.4 MHz Channel Bandwidth: 1.4 MHz Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Size Offset QPSK LCH 6 0 1.0736 1.233 PASS MCH 6 0 1.0741 1.216 PASS HCH 6 0 1.0777 1.215 PASS 16QAM LCH 6 0 1.0815 1.240 PASS MCH 6 0 1.0775 1.226 PASS HCH 6 0 1.0769 1.215 PASS Channel Bandwidth: 3 MHz Channel Bandwidth: 3 MHz Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Size Offset QPSK LCH 15 0 2.6784 2.820 PASS MCH 15 0 2.6783 2.839 PASS HCH 15 0 2.6769 2.812 PASS 16QAM LCH 15 0 2.6811 2.832 PASS MCH 15 0 2.6803 2.842 PASS HCH 15 0 2.6734 2.815 PASS Channel Bandwidth: 5 MHz Channel Bandwidth: 5 MHz Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Size Offset QPSK LCH 25 0 4.4782 4.753 PASS MCH 25 0 4.4708 4.736 PASS HCH 25 0 4.4757 4.719 PASS 16QAM LCH 25 0 4.4786 4.721 PASS MCH 25 0 4.4786 4.742 PASS HCH 25 0 4.4720 4.744 PASS Reference No.: WTX21X03024173W-2 Page 33 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Size Offset QPSK LCH 50 0 8.9533 9.375 PASS MCH 50 0 8.9439 9.375 PASS HCH 50 0 8.9389 9.379 PASS 16QAM LCH 50 0 8.9370 9.378 PASS MCH 50 0 8.9350 9.409 PASS HCH 50 0 8.9324 9.342 PASS Channel Bandwidth: 15 MHz Channel Bandwidth: 15 MHz Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Size Offset QPSK LCH 75 0 13.408 14.00 PASS MCH 75 0 13.392 13.93 PASS HCH 75 0 13.407 13.94 PASS 16QAM LCH 75 0 13.414 13.98 PASS MCH 75 0 13.393 14.00 PASS HCH 75 0 13.407 14.03 PASS Channel Bandwidth: 20 MHz Channel Bandwidth: 20 MHz Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Size Offset QPSK LCH 100 0 17.883 18.58 PASS MCH 100 0 17.851 18.57 PASS HCH 100 0 17.851 18.60 PASS 16QAM LCH 100 0 17.869 18.59 PASS MCH 100 0 17.834 18.53 PASS HCH 100 0 17.853 18.56 PASS Reference No.: WTX21X03024173W-2 Page 34 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Test Graphs Channel Bandwidth: 1.4 MHz (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_6RB#0 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_6RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_6RB#0 Reference No.: WTX21X03024173W-2 Page 35 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_6RB#0 (Channel Bandwidth: 1.4 MHz)_MCH_16QAM_6RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_6RB#0 Reference No.: WTX21X03024173W-2 Page 36 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 3 MHz (Channel Bandwidth: 3 MHz)_LCH_QPSK_15RB#0 (Channel Bandwidth: 3 MHz)_MCH_QPSK_15RB#0 (Channel Bandwidth: 3 MHz)_HCH_QPSK_15RB#0 Reference No.: WTX21X03024173W-2 Page 37 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn (Channel Bandwidth: 3 MHz)_LCH_16QAM_15RB#0 (Channel Bandwidth: 3 MHz)_MCH_16QAM_15RB#0 (Channel Bandwidth: 3 MHz)_HCH_16QAM_15RB#0 Reference No.: WTX21X03024173W-2 Page 38 of 191 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Channel Bandwidth: 5 MHz (Channel Bandwidth: 5 MHz)_LCH_QPSK_25RB#0 (Channel Bandwidth: 5 MHz)_MCH_QPSK_25…
