User Manual Welcome to join MiiLink family. MiiLink GPS locator is one for the pet positioning and tracking system, using GPS and wireless transmission technology, can let you whenever and wherever possible to find your pet. MiiLink is not just a positioning system, it is more about a life circle pet loving, when you have any questions about the beloved its topic or question, can share in the circle. Start your MiiLink line, in the convenience of their own at the same time, will find more like-minded people around you, to love their own that it. MiiLink LLC Accessories description Accessories description A、MiiLink locator Pet positioning equipment, when wear on their pets, can try transfer corresponding location information on your mobile phone. B、data line Charging equipment line C、Velcro straps Used in and tied the device on your pet strap The MiiLink locator Function description Switch and power  Switches for appliances  According to click on the button, equipment with different colors to indicate the current electricity equipment: red, blue represents the middle power needs to be charged, green represents a full power Charging mouth Insert the cable can be charged SIM bayonet inserted SIM card Use the steps 1、For the charging equipment Charging data line is inserted into the MiiLink port, and the data line USB port into the computer USB port, can be charged, the indicator light shows green wait for equipment, said equipment has been full of. 2、Insert the SIM card The equipment will be randomly inserted SIM card device with SIM card slot, if the device indicator with 3 blue lights flashing, said equipment has been properly connected to the network. 3、Download MiiLink Apps Two dimensional Code corresponding to the Apps scan on the package, Apps software can automatically download; or in Apple Apps Store and Google play search MiiLink, you can download the corresponding Apps. 4、MiiLink registered account Use the mailbox account registered in MiiLink Apps, you can 5、Binding equipment and account By adding device functions inside the Apps, scanning the packaging equipment marked two-dimensional code, and set the nickname and the description to bind. 6、Give your pet belt MiiLink So you can start your trip to the MiiLink, in MiiLink, you can view the pet history can also see real-time position pet, can also see other favorite pet topic of concern. Tips and techniques Switch show: 1、Switch machine: press a switch for more than 5 seconds, if the device lights show red said equipment is shut down, if blue, said device is turned. 2、Display power: press the switch, if the device lights did not show, said equipment has been turned off, if the display of red, indicating that the equipment power is low, if blue, said equipment for electrical medium, if shown in green, said equipment full power. Waterproof description: The MiiLink locator has passed the waterproof and dustproof standard IP64 test, when the interface plug is plugged in the normal condition, the liquid from any direction on the device shell, the equipment will not be harmed. But do not support the time under water immersion, may cause equipment damage. Customer service supports. Federal Communications Commission (FCC) Interference Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This mobile device meets guidelines for exposure to radio waves. Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. The SAR limit adopted by USA and Canada is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The highest SAR value reported to the Federal Communications Commission (FCC) and the Industry Canada (IC) for this device type when it is properly worn on the body is 0.889 W/kg. The device complies with the RF specifications when the device is at a minimum distance of 0.5 cm from your body which was declared by the supplier. Ensure that the device accessories such as a device case and a device holster are not composed of metal components. Keep your device 0.5 cm away from your body to meet the requirement earlier mentioned.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 MiiTech LLC D ate : July-19-2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, MiiTech LLC_ hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product Name: MiiLink Model name: M1 FCC ID: 2ACS2-M1 Brand: N/A Sincerely, Client’s signature: Client’s name / title : Yu Yi/Manager Contact information / address: MiiTech LLC 46616 Pinehurst Cir. Northville MI.48168, USA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 MiiTech LLC Date: July-19-2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACS2-M1 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title : Yu Yi/Manager Contact information / address: MiiTech LLC 46616 Pinehurst Cir. Northville MI.48168, USA

MiiTech LLC 46616 Pinehurst Cir. Northville MI.48168, USA ----------------------------------------------------------------------------------------------------------------------------------- Declaration of Authorization We Name: MiiTech LLC Address: 46616 Pinehurst Cir. Northville MI.48168, USA Declare that: Name Representative of agent: Wu Jian Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description:MiiLink FCC ID:2ACS2-M1 Model:M1 Brand:N/A on our behalf. --------------------------------------------------- Signature: Yu Yi / Manager Date: 2014-07-19

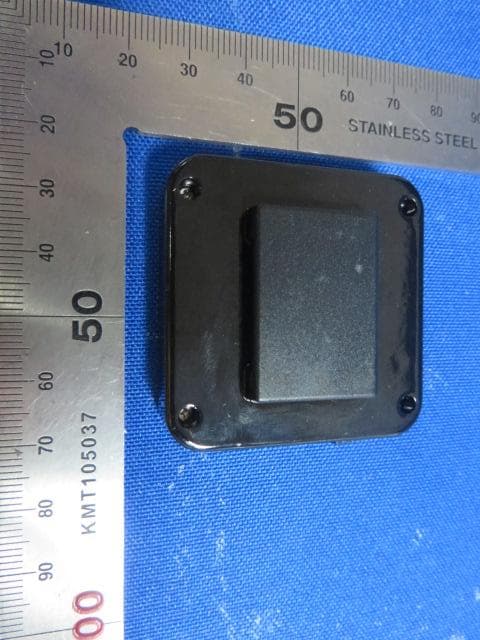

1 of 4 External Photograph (1) EUT Photo (2) EUT Photo 2 of 4 (3) EUT Photo (4) EUT Photo 3 of 4 (5) EUT Photo (6) EUT Photo 4 of 4 (7) EUT Photo

FCC ID Label FCC ID Label Location FCC ID: 2ACS2-M1

1 of 5 Internal Photograph (1) EUT Photo (2) EUT Photo 2 of 5 (3) EUT Photo (4) EUT Photo 3 of 5 (5) EUT Photo (6) EUT Photo 4 of 5 (7) EUT Photo (8) EUT Photo 5 of 5 (9) EUT Photo

SAR Test Report Product Name : MiiLink Model No. : M1 Applicant : MiiTech LLC Address : 46616 Pinehurst Cir. Northville MI Date of Receipt : Jul. 14, 2014 Date of Test : Jul. 14, 2014 Issued Date : Aug. 11, 2014 Report No. : 1470336R-HP-US-P03V01 Report Version : V5.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 1470336R-HP-US-P03V01 Page: 2 of 89 Test Report Certification Issued Date: Aug. 11, 2014 Report No.: 1470336R-HP-US-P03V01 Product Name : MiiLink Applicant : MiiTech LLC Address : 46616 Pinehurst Cir. Northville MI Manufacturer : MiiTech LLC Address : 46616 Pinehurst Cir. Northville MI Model No. : M1 EUT Voltage : 5V Applicable Standard : FCC KDB Publication 447498 D01v05r02 FCC KDB Publication 648474 D04v01r02 FCC KDB Publication 865664 D01v01r03 FCC KDB Publication 941225 D01~D06 Test Result : Max. SAR Measurement (1g) Body-worn: 1.16 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-TechDevelopment Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : Reviewed By : Approved By : Report No.: 1470336R-HP-US-P03V01 Page: 3 of 89 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC Japan : VCCI China : CNAS Report No.: 1470336R-HP-US-P03V01 Page: 4 of 89 TABLE OF CONTENTS Description Page History of This Test Report ............................................................................................. 6 1. General Information ................................................................................................. 7 1.1. EUT Description .................................................................................................. 7 1.2. Test Environment ................................................................................................. 8 1.3. EUT Antenna Locations ....................................................................................... 8 1.4. Power Reduction for SAR .................................................................................... 9 1.5. Guidance Documents .......................................................................................... 9 2. SAR Measurement System .................................................................................... 10 2.1. DASY5 System Description ............................................................................... 10 1.1.1. Applications ................................................................................................... 11 1.1.2. Area Scans .................................................................................................... 11 1.1.3. Zoom Scan (Cube Scan Averaging) .............................................................. 11 1.1.4. Uncertainty of Inter-/Extrapolation and Averaging ......................................... 11 2.2. DASY5 E-Field Probe ........................................................................................ 12 1.1.5. Isotropic E-Field Probe Specification ............................................................. 12 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 13 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 13 2.5. Robot ................................................................................................................. 14 2.6. Light Beam Unit ................................................................................................. 14 2.7. Device Holder .................................................................................................... 15 2.8. SAM Twin Phantom ........................................................................................... 15 3. Tissue Simulating Liquid ....................................................................................... 16 3.1. The composition of the tissue simulating liquid ................................................. 16 3.2. Tissue Calibration Result ................................................................................... 17 3.3. Tissue Dielectric Parameters for Head and Body Phantoms ............................. 18 4. SAR Measurement Procedure ............................................................................... 19 4.1. SAR System Validation ...................................................................................... 19 1.1.6. Validation Dipoles ....................................................................................…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 1407RSU01604 Phone: +86-512-66308358 Report Version: V05 Fax: +86-512-66308368 Issue Date: 08-11-2014 Web: www.mrt-cert.com FCC ID: 2ACS2-M1 Page Number: 1 of 51 FCC ID: 2ACS2-M1 APPLICANT: MiiTech LLC Application Type: Certification Product: MiiLink Model No.: M1 FCC Classification: PCS Licensed Transmitter Worn to Body (PCT) FCC Rule Part(s): Part2, Part22 Subpart H, Part24 Subpart E Test Procedure(s): ANSI/TIA-603-D-2010, KDB 971168 D01v02r01 Test Date: July 10 ~ July 26, 2014 MEASUREMENT REPORT FCC PART 22&24 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1407RSU01604 FCC ID: 2ACS2-M1 Page Number: 2 of 51 Revision History Report No. Version Description Issue Date 1407RSU01604 Rev. 01 Initial report 07-27-2014 1407RSU01604 Rev. 02 Modify the FCC Classification 07-31-2014 1407RSU01604 Rev. 03 Modify the test procedure rule and some output power 08-01-2014 1407RSU01604 Rev. 04 Modify the power of EDGE1900 mode 08-04-2014 1407RSU01604 Rev. 05 Modify the test procedure rule and added some descriptions for band-edge test. 08-11-2014 Report No.: 1407RSU01604 FCC ID: 2ACS2-M1 Page Number: 3 of 51 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Device Capabilities ....................................................................................................... 7 2.3. Test Configuration ........................................................................................................ 7 2.4. EMI Suppression Device(s)/Modifications ..................................................................... 7 3. DESCRIPTION OF TEST ........................................................................................................ 8 3.1. Evaluation Procedure ................................................................................................... 8 3.2. Cellular – Base Frequency Blocks ................................................................................ 8 3.3. Cellular – Mobile Frequency Blocks .............................................................................. 8 3.4. PCS – Base Frequency Blocks ..................................................................................... 8 3.5. PCS – Mobile Frequency Blocks ................................................................................... 9 3.6. Occupied Bandwidth ..................................................................................................... 9 3.7. Spurious and Harmonic Emissions at Antenna Terminal ............................................... 9 3.8. Radiated Power and Radiated Spurious Emissions .................................................... 10 3.9. Peak-Average Ratio .................................................................................................... 12 3.10. Frequency Stability / Temperature Variation ............................................................... 12 4. TEST EQUIPMENT CALIBRATION DATA ............................................................................ 13 5. SAMPLE CALCULATIONS ................................................................................................... 14 6. MEASUREMENT UNCERTAINTY ......................................................................................... 15 7. TEST RESULT ...................................................................................................................... 16 7.1. Summary .................................................................................................................... 16 7.2. Occupied Bandwidth ................................................................................................... 17 7.2.1. Test Limit .................................................................................................................... 17 7.2.2. Test Procedure used ................................................................................................... 17 7.2.3. Test Setting ................................................................................................................. 17 7.2.4. Test Setup................................................................................................................... 17 7.2.5. Test Result .................................................................................................................. 18 7.3. Spurious and Harmonic Emissions at Antenna Terminal ............................................. 22 7.3.1. Test Limit .................................................................................................................... 22 Report No.: 1407RSU01604 FCC ID: 2ACS2-M1 Page Number: 4 of 51 7.3.2. Test Procedure Used .....................................................................…

Text truncated - open the document above for the full version.

FCC Part22&24 - Test Setup Photo Description: Front view of Conducted Emission Test Setup Description: Back view of Conducted Emission Test Setup Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for Above 1GHz SAR Test Setup Photographs & EUT Photographs Test Setup Photographs Body SAR Bottom Body SAR Front Body SAR Primary landscape Body SAR Secondary landscape Body SAR Primary portrait Body SAR Secondary portrait
