  3. 2ACS9-FT95

2ACS9-FT955.8GHz Wireless AV Transmitter

CHINA-ONG Technology Development Co., Limited
5.8GHz Wireless AV Transmitter - FCC ID 2ACS9-FT95 - CHINA-ONG Technology Development Co., Limited
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Jul 29, 2014
Application Purpose
Original Equipment
Date of Application
Jul 28, 2014
Equipment Note
5.8GHz Wireless AV Transmitter
Frequency Range
5733.00000000 - 5866.00000000
Company
CHINA-ONG Technology Development Co., Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MINI Transmitter FT951 1 5.8GHz Wireless AV Transmitter FT951 5.8GHz 22CH 25mW MINI Transmitter 1. Specification: 1 Transmitting Frequency: 5.733GHz-5.866GHz 22 CH 2 Operating Voltage : +6.0V~+30.0V 3 Supply current : 50mA±10mA/12V 4 Video Input Level: 1V±0.2Vp-p/75Ω 5 Audio Input Level: 0.5~2.0Vp-p/10KΩ 6 TV System: PAL/NTSC/SECAM (AUTO) 7 RF Output Power: 25mW(14dBm±0.5dBm) 8 Antenna Connector: SMA Connector 9 Weight: 9.9g 10 Dimensions (L x W x H): 30x20x8mm 11 Operating Temperature: -10°C~+85 °C Operating Frequency Table CH GROUP CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 A 5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz b 5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz d 5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 2. Features: ≤ 22 Channel ; ≤ 25mW RF Power output ; ≤ Large input voltage range ; ≤ Not affect by 2.4GHz R/C Radios ; ≤ Mini size, light weight, easy to carry ; ≤ Size: 30*20*8mm. User Manual MINI Transmitter FT951 2 5.8GHz Wireless AV Transmitter 3. Operation and Figures ≤ Group and Channel Select ≤ Interface 4PIN Cable: 1:Red:VCC(+6V~+30V) 2:Black:GND 3:White:Audio In/AAT IN 4:Yellow:Video In Power indicator: 5:Power LED: Red work . This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, User Manual MINI Transmitter FT951 3 5.8GHz Wireless AV Transmitter pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. User Manual The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012

External Photos

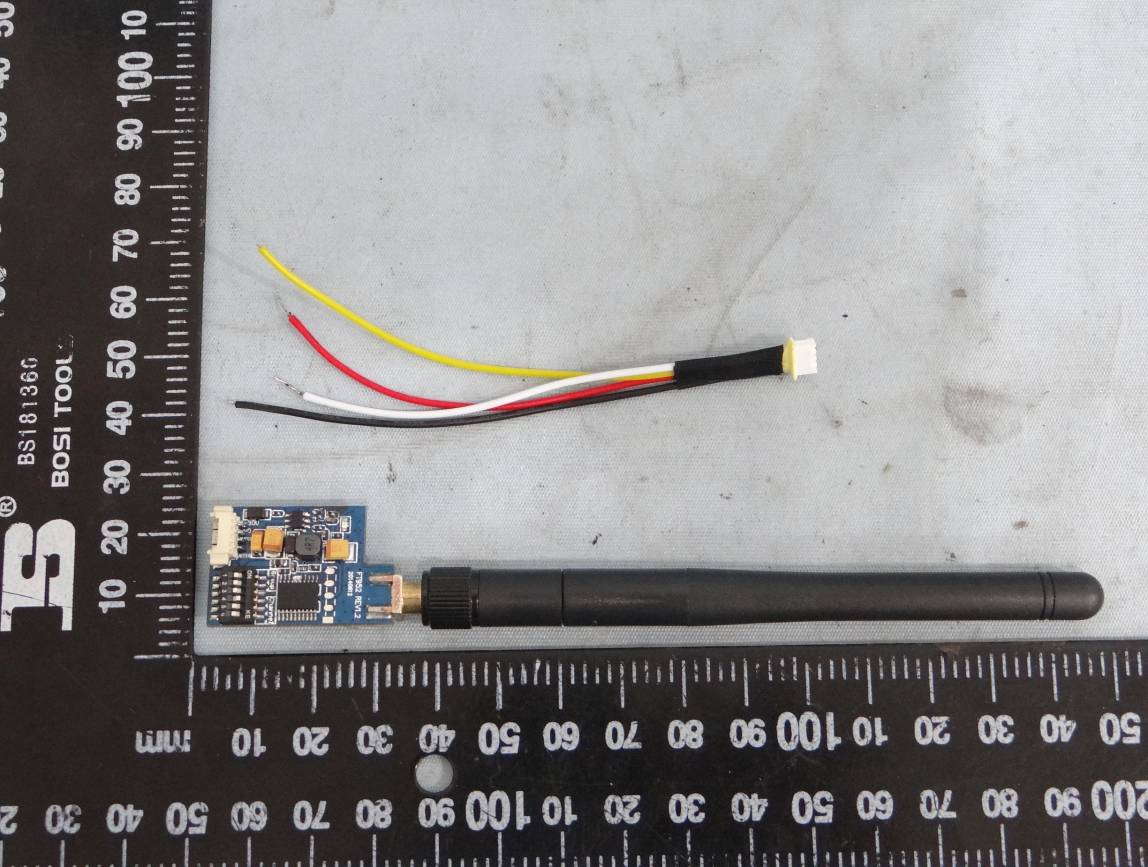

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1407910F FCC ID: 2ACS9-FT95 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1407910F FCC ID: 2ACS9-FT95

ID Label/Location Info

Location

Internal Photos

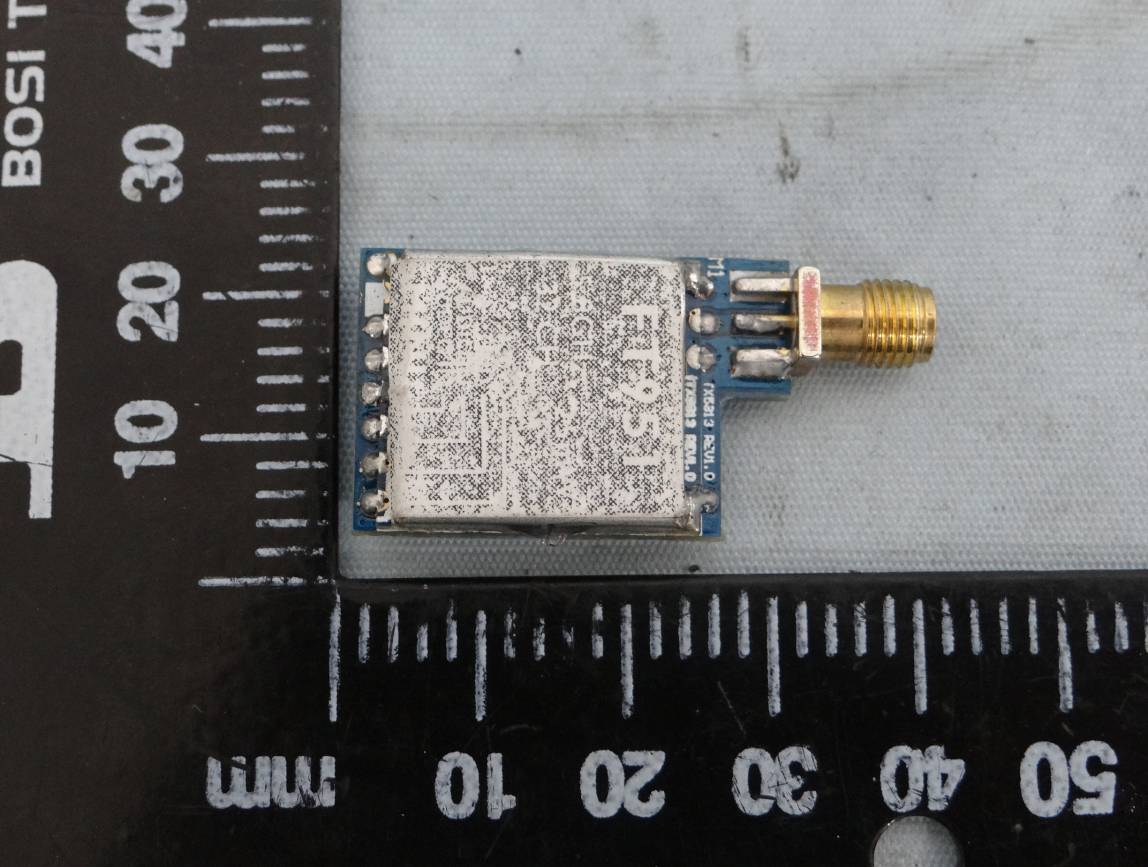

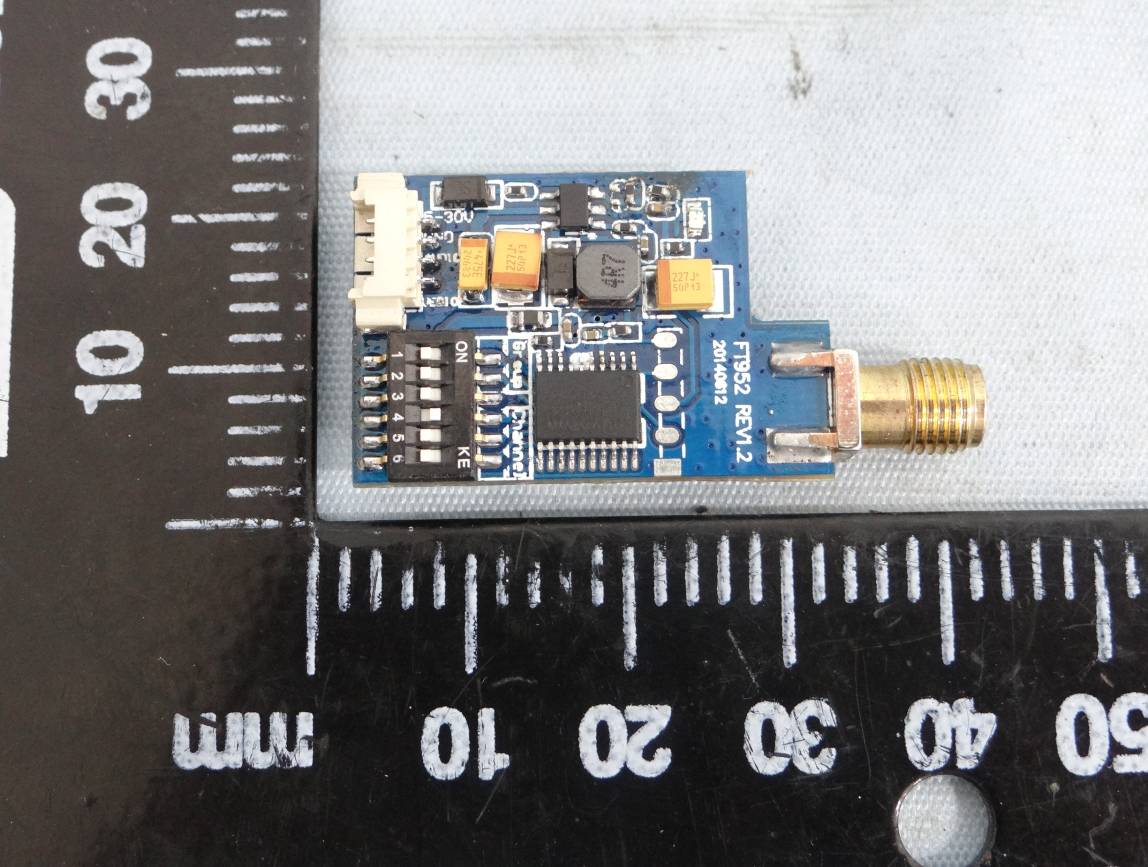

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1407910F FCC ID: 2ACS9-FT95 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1407910F FCC ID: 2ACS9-FT95 RF Chip RF Antenna

Test Report

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1407910F FCC ID: 2ACS9-FT95 Page 2 of 20 Table of Contents 1. GENERAL INFORMATION ................................................................................................ 3 1.1 P RODUCT D ESCRIPTION FOR E QUIPMENT UNDER T EST .................................................................... 3 1.2 R ELATED S UBMITTAL ( S ) / G RANT ( S )................................................................................................ 4 1.3 T EST M ETHODOLOGY ...................................................................................................................... 4 1.4 E QUIPMENT M ODIFICATIONS ............................................................................................................ 4 1.5 S UPPORT D EVICE ............................................................................................................................ 4 1.6 T EST F ACILITY AND L OCATION .......................................................................................................... 4 1.7 S UMMARY OF T EST R ESULTS ........................................................................................................... 5 2. SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 EUT C ONFIGURATION ...................................................................................................................... 6 2.2 S PECIAL A CCESSORIES .................................................................................................................... 6 2.3 D ESCRIPTION OF TEST MODES ......................................................................................................... 6 2.4 EUT E XERCISE ................................................................................................................................6 3. RADIATED EMISSION TEST............................................................................................. 7 3.1 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION )..................................................................... 7 3.2 M EASUREMENT P ROCEDURE ........................................................................................................... 8 3.3 L IMIT ................................................................................................................................................ 9 3.4 M EASUREMENT R ESULTS ..................................................................................................... 10 4. 20DB BANDWIDTH.......................................................................................................... 14 4.1 M EASUREMENT P ROCEDURE ......................................................................................................... 14 4.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION )................................................................... 14 4.3 M EASUREMENT R ESULTS ............................................................................................................... 14 5. BAND EDGE ....................................................................................................................17 5.1 M EASUREMENT P ROCEDURE ......................................................................................................... 17 5.2 L IMIT .............................................................................................................................................. 17 5.3 M EASUREMENT R ESULTS ............................................................................................................... 18 6. ANTENNA APPLICATION ............................................................................................... 19 6.1 A NTENNA REQUIREMENT ................................................................................................................ 19 6.2 M EASUREMENT R ESULTS ............................................................................................................... 19 7. TEST EQUIPMENT LIST.................................................................................................. 20 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1407910F FCC ID: 2ACS9-FT95 Page 3 of 20 1. GENERAL INFORMATION 1.1 Product Description for Equipment under Test This device is a 5.8G transmitter. It’s powered by DC 6V~30V. For more details features, please refer to User’s Manual. Manufacturer : CHINA-ONG Technology Development Co., Limited Address : 1#, 4F, 2 Building, Liutang Road Eastern, Xixiang, Baoan District, Shenzhen, Guangdong, China Power Supply : DC 6V~30V Model name : FT951, FT956 Note: : Both of models have the same circuitry, electrical mechanical and physical construction. Their differences in model name for trading purpose. Technical Specification Frequency range : 5733-5866MHz Modulation Type : FM Number of channel : 22 Antenna Type : Dipole Antenna Gain : 1dBi (declaration by manufacturer) Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1407910F FCC ID: 2ACS9-FT95 Page 4 of 20 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: 2ACS9-FT95 filing to comply with Section 15.249 of the FCC Part 15 (2013), Subpart C Rule. 1.3 Test Methodology The radiated emission measurements were performed according to the procedures in ANSI C63.4 (2009). Radiated emission measurement was performed in semi-anechoic chamber and conducted emission measurement was performed in shield room. For radiated emission measurement, preliminary scans were performed in the semi-anechoic chamber only to determine the worst case modes. All radiated tests were performed at an antenna to EUT distance of 3 meters. 1.4 Equipment Modifications Not available for this EUT intended for grant. 1.5 Support Device None 1.6 Test Facility and Location Listed by FCC, August 02, 2011 The Certificate Registration Number is 665078. Listed by In…

Text truncated - open the document above for the full version.

Test Setup Photos

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1407910F FCC ID: 2ACS9-FT95

Contact Information

Applicant

PENG ROGER(General Manager)
[email protected]0755-27937674Fax: 0755-33370164

Test Firm

Dongguan NTC Co.,Ltd.,sunm lv sunm lv
[email protected]86-769-22022444

Technical Specifications

#Rule PartsFrequency RangePower Output
115C5.73 GHz - 5.87 GHz-
Confidentiality
Long Term
