2ACSK-SC397GP3G3G WCDMA Fixed Wireless Phone

SunComm Technology Co.,Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Oct 21, 2015
Application Purpose: Original Equipment
Date of Application: Oct 21, 2015
Equipment Note: 3G WCDMA Fixed Wireless Phone
Frequency Range: 1852.40000000 - 1907.60000000
Company: SunComm Technology Co.,Ltd
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual 3G WCDMA Fixed Wireless Phone Model: SC‐397GP‐3G Trade Mark: MOVISTAR Manufacturer: Shenzhen Lanshuo Communication Equipment Co., Ltd. 1. Brief introduction Thanks for purchasing and using our 3G WCDMA Fixed Wireless Phone. This phone adopted many years production experience of our company, based on market requirements, service you lasted style desktop wireless telecommunication products. It can send wireless sms and voice at anytime, anywhere, suitable remote countries or mountains. Please take care below instructions before using this phone: Please charge the battery continuous more than 12 hours for first time using; Do not clean the phone while in operation. Before attempting to clean the Phone, turn the Phone off, disconnect the external power adapter and take out the battery or disconnect the external power supply if used. Before moving the Phone, disconnect the external power adapter or power supply in use. Use a Damp cloth for cleaning. Do not use liquid or aerosol cleaners; Do not hold the antenna. This may affect call quality and cause telephone to operate at unintended power levels; Keep the antenna free from obstructions and position the antenna straight up. This will ensure best call quality; Do not use a damaged antenna. Have this replaced through a qualified technician. Use only antenna approved by the manufacturer. Unapproved antenna may impair the call quality as well as cause damage to the phone; Only use the battery and the power adapter or the Power Supply provided with the Instrument. The instrument might get damaged if any other accessories are used. This will also void the warranty; It is highly recommended to charge the battery before initial use. The battery might have been discharged during storage and delivery; Do not use with car battery. It may lead to electric shock or breakdown. Do not throw battery. Batteries are not to be disposed off by putting them in fire. It may explode or catch fire; Do not attempt to change the security codes or components. User is responsible for any consequences arising out of such attempt; Avoid Shock or Impact. Rough handling can cause damage to the body as well as internal circuits; Do not paint; During lightening, do not touch power plug or phone line. This can cause electric shock or death. Do not touch the external antenna; Use DC 5V/1A adapter for charging. Check the voltage before connecting; Do not plug many power cords in the outlet; Do not touch the plug with wet hands. Always grasp and pull the plug, not the cord; Do not put heavy things on the power cord or bend it too much; Do not take out the backup battery without the guide of qualified service personnel; If the unit is not working for any reason, do not attempt to repair the instrument. Only qualified service personnel been permitted to service the instrument; Place the Instrument and the power supply in a properly ventilated place. Do not place the Instrument near high temperature objects, under direct sunlight, near source of water, near fire or near inflammable and explosive materials; Do not place any articles over the instrument; Place the Instrument in a dry place and do not expose to moisture; Place the Instrument away from other electronic devices like TV and Radio to avoid interference; For a better reception, do not place the Instrument in a building with iron or metal roof. Hospitals or health care facilities may be using equipment sensitive to Radio Frequencies. Please ensure that your phone is turned off while in the vicinity of such facilities; Do not use the unit in designated “No Service” area; 2. Main features Suitable for 3G WCDMA 850/1900 MHz and GSM 850/900/1800/1900MHz network; Redial function; Phonebook function; Handsfree function; Handsfree and ringer volume adjustable; Different ring tones and alarm ringers; Backlight LCD with date, time, signal strength and battery volume status icons; Can save, check, delete and call back incoming, outgoing and missed calls; 3. Technology requirements Standby time: 48 hours; Idle current: <30mA; Working current: <400mA; Sensitivity: -105dB; Working temperature: -10 degree - +40 degree; Working humidity: 45% - 90%; Atmosphere pressure: 86 - 106Kpa; Humidity: 0-95%; Environment noise: <60dB; Antenna amplifying: 3.5-12dB; Max power: Max. 2.5W For GSM 850/900; Max. 1.26W For GSM 1800/1900; Max. 0.20W For WCDMA Band II/V 4. Phone description 1. Handset; 2. DC plug socket: connect with AC power; 3. LCD display; 4. OK key: confirm your selection in main menu operation; 5. ▲: press this key to increase the volume during conversation; press this key to turn to up page during main menu operating; press this key to set alarm during standby state; 6. Menu: press this key to check the menu during standby state; 7. : press this key to edit sms in standby state, press to turn left during sms input state; 8. ▼: press this key to decrease the volume during conversation; press this key to turn to down page during main menu operating; 9. Number keys; 10. : in standby state, press and hold this key for 3 seconds to turn on the phone, press and hold this key for another 3 seconds to turn off the phone, 11. Exit: in menu operation state, press this key to exit operation; when new call come, press this key one time to come into “MUTE” state, press this key twice to refuse incoming call; 12. ：in standby state, press this key to review incoming, outgoing and missed call records; press this key to turn right during sms input state; 13. Audio: in standby state, press this key to select ring tones; 14. Delete: delete what you input during input state; 15. Redial: in standby state, press this key to dial last dialed number out; 16. Send: press this key to dial the number out without any waiting; in standby state, press this key to review outgoing numbers list; 17. Handsfree key 5. Installment 5.1. Open battery door, put the SIM card i…

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 SunComm Technology Co., Ltd. Address: 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Tel: +886-2-32341496 #112 Fax.: +886-2-32341393 2015-10-10 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: 2ACSK-SC397GP3G Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, SunComm Technology Co., Ltd., hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): 3G WCDMA Fixed Wireless Phone / SC-363GP-3G, SC-393GP-3G, SC-396GP-3G Sincerely, Client’s name / title : Gary Tseng / general manager Contact information / address : 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Tel: +886-2-32341496 #112 Fax: +886-2-32341393 Email: [email protected]

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 SunComm Technology Co., Ltd. 2015-10-10 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACSK-SC397GP3G We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Part List - Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Gary Tseng / general manager Contact information / address : 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Tel: +886-2-32341496 #112 Fax: +886-2-32341393 Email: [email protected]

Cover Letter(s)

SunComm Technology Co., Ltd. Address: 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Tel: +886-2-32341496 #112 Fax.: +886-2-32341393 Date: 2015-10-10 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: 2ACSK-SC397GP3G To Whom It May Concern: This letter is to ascertain that SunComm Technology Co., Ltd. has been the units used for conducting FCC compliance testing, the DOC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s name / title : Gary Tseng / general manager Contact information / address : 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Tel: +886-2-32341496 #112 Fax: +886-2-32341393 Email: [email protected]

Cover Letter(s)

SunComm Technology Co., Ltd. Address: 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Tel: +886-2-32341496 #112 Fax.: +886-2-32341393 Date: 2015-10-10 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA FCC ID: 2ACSK-SC397GP3G Dear Sir/Madam, We, SunComm Technology Co., Ltd. Hereby declares the following statement for SIEMIC, INC, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: 3G WCDMA Fixed Wireless Phone Model No.: SC-363GP-3G, SC-393GP-3G, SC-396GP-3G Sincerely, Client’s name / title : Gary Tseng / general manager Contact information / address : 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Tel: +886-2-32341496 #112 Fax: +886-2-32341393 Email: [email protected]

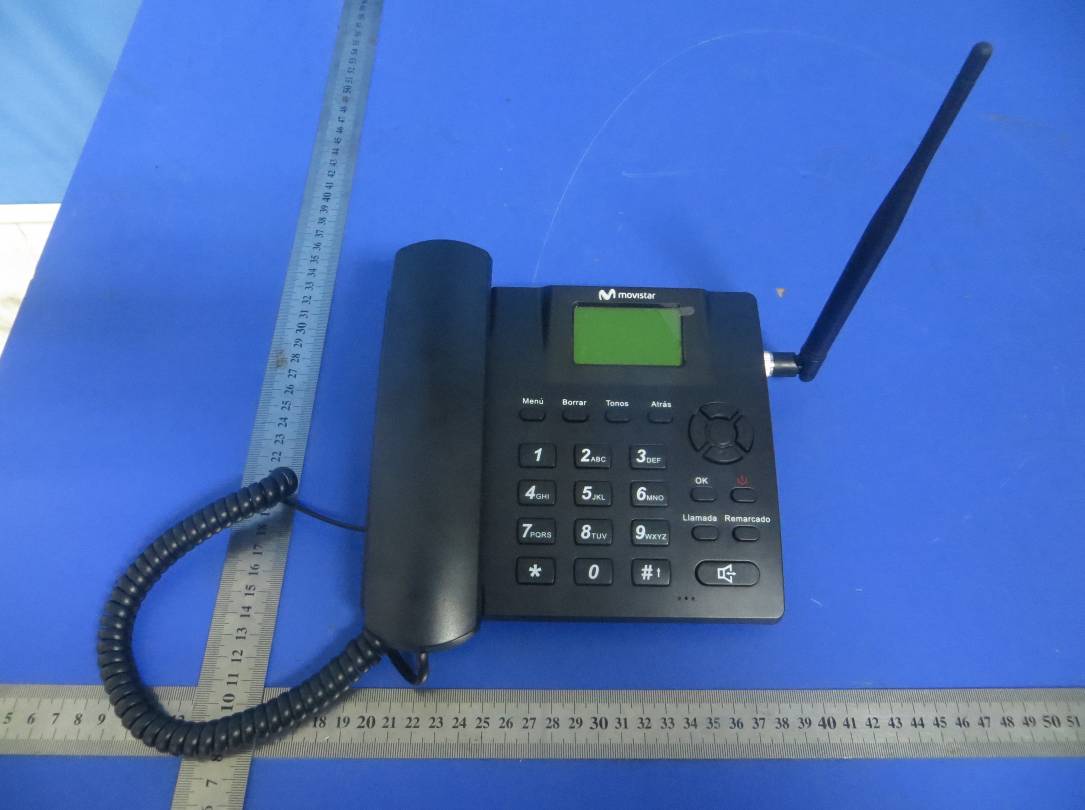

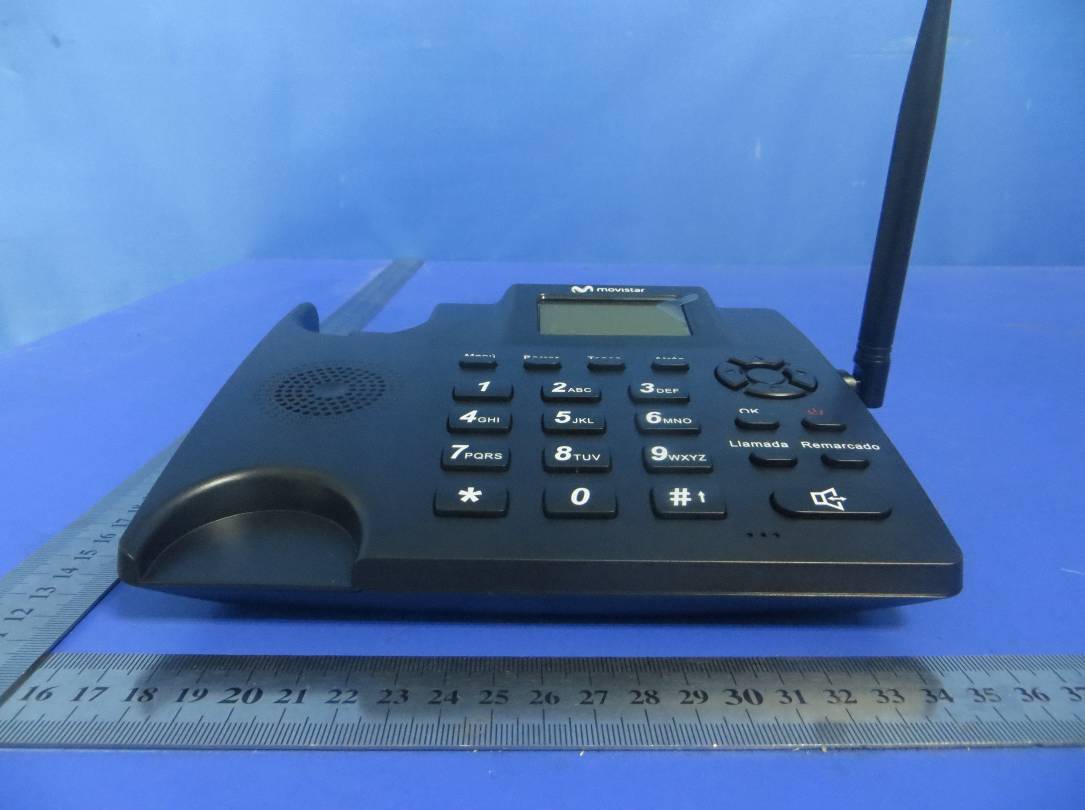

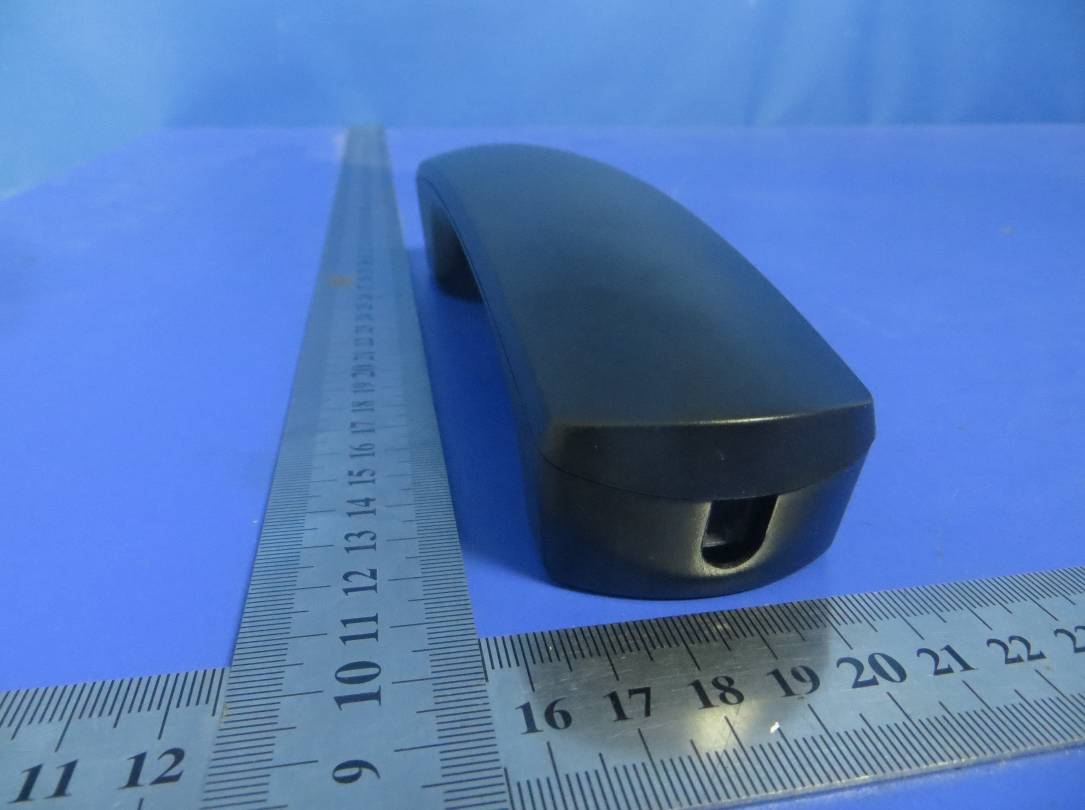

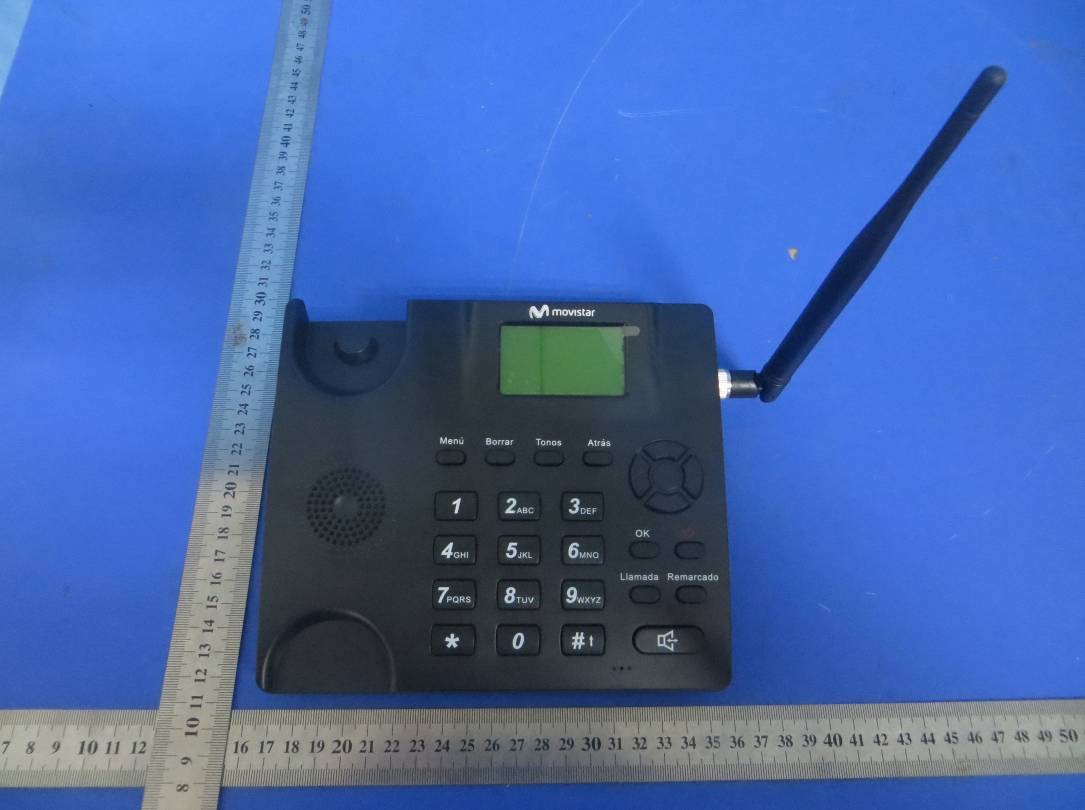

External Photos

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9 Fig.10

ID Label/Location Info

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: 5.0cm(L) x 3.5cm(W) Label Location Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White SunComm Technology Co., Ltd. 3G WCDMA Fixed Wireless Phone Trade Mark: MOVISTAR M/N: SC-397GP-3G FCC ID: 2ACSK-SC397GP3G Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9

RF Exposure Info

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 7. RADIO FREQUENCY EXPOSURE 7.1. Limit According to §1.1310 and §2.1091 RF exposure is calculated. Table: Limits for General Population/Uncontrolled Exposure F = frequency in MHz * = Plane-wave equivalent power density Maximum Permissible Exposure The MPE was calculated at 20cm to show compliance with the power density limit. S = PG/4πR 2 S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna. Note: 1. Manufacturer declared the maximum antenna gain (0.53dBi(max.) for GSM 850; 0.58dBi(max.) for PCS 1900; 0.53dBi(max.) for WCDMA Band V; 0.0dBi(max.) for WCDMA Band II) 2. Manufacturer declared that the nearest distance between human and the EUT is 20cm. 3. Only record worst case data. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 7.2. Test Results Test Mode Max. Tune Up Power (dBm, Average) Max. Tune Up Power (mW) MPE (mW/cm 2 ) Limit (mW/cm 2 ) GSM 850 33.0±1.0 2511.89 0.5647 1.0 GPRS 850 33.0±1.0 2511.89 0.5647 1.0 PCS 1900 30.0±1.0 1258.93 0.2863 1.0 GPRS 1900 30.0±1.0 1258.93 0.2863 1.0 WCDMA Band V RMC 12.2K 23.0±1.0 251.19 0.0565 1.0 HSDPA Band V 23.0±1.0 251.19 0.0565 1.0 WCDMA Band II RMC 12.2K 23.0±1.0 251.19 0.0500 1.0 HSDPA Band II 23.0±1.0 251.19 0.0565 1.0 Antenna Gain (typical): 0.53dBi / 1.130(numeric) For GSM 850; 0.58dBi / 1.143(numeric) For PCS 1900; 0.53dBi / 1.130(numeric) For WCDMA Band V; 0.0dBi / 1.0(numeric) For WCDMA Band II. Prediction distance: >=20cm The power density level worst case at 20 cm is below the uncontrolled exposure limit.

Test Report

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 57 FCC TEST REPORT For SunComm Technology Co., Ltd. 3G WCDMA Fixed Wireless Phone Test Model: SC-397GP-3G Additional Model No.: SC-393GP-3G, SC-396GP-3G Prepared for : SunComm Technology Co., Ltd. Address : 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 09, 2015 Number of tested samples : 1 Sample number : 15090612 Date of Test : September 09, 2015 – September 23, 2015 Date of Report : September 23, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 57 FCC TEST REPORT FCC CFR 47 PART 22 SUBPART H AND PART 24 SUBPART E Report Reference No. .............. : LCS1509090431E Date of Issue ................................ : September 23, 2015 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : SunComm Technology Co., Ltd. Address ........................................ : 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Test Specification Standard ....................................... : FCC CFR 47 PART 2, FCC CFR 47 PART 22 SUBPART H AND PART 24 SUBPART E Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : 3G WCDMA Fixed Wireless Phone Trade Mark .................................. : MOVISTAR Test Model ................................... : SC-397GP-3G Ratings ......................................... : DC 3.7V by Li-ion Battery(1000mAh) Recharged Voltage: DC 5V/1A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Leo Lee/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 57 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1509090431E September 23, 2015 Date of issue Test Model.............................. : SC-397GP-3G EUT......................................... : 3G WCDMA Fixed Wireless Phone Applicant............................... : SunComm Technology Co., Ltd. Address.................................. : 7FL., No.53, Jian Kang Road, Chung Ho City, Taipei Hsien, Taiwan 235, taipei, Taiwan Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Lanshuo Communication Equipment Co., Ltd. Address................................... : No. 12, Yumin Road, Shatou Industrial Zone, Shajing Town, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Lanshuo Communication Equipment Co., Ltd. Address................................... : No. 12, Yumin Road, Shatou Industrial Zone, Shajing Town, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 57 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. SUPPORT EQUIPMENT LIST .................................................................................................................................... 7 1.3. EXTERNAL I/O ...................................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY ..................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ACSK-SC397GP3G Report No.: LCS1509090431E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Line Conducted Emissions Measurement

Contact Information

Applicant

Gary Tseng(general manager)

[email protected]+886-2-3234-1496Fax: +886-2-3234-1393

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]86-0755-82591330Fax: 86-0755-82591332

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	129.42 mW	4M11F9W	0.01383 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for Part 22 and EIRP for Part 24.
