2ACTGGRX1BLUETOOTH TRANSMITTER

User Guide TABLE OF CONTENTS Equipment List 4 Assembly 5 Controls 6 How To Pair 7 Specs 8 Legal 9 Contact Info 10 EQUIPMENT LIST (1) Steel Horn (1) Wood Base (1) 4’ 3.5mm Audio Cable (1) USB adapter (1) 6’ microUSB cable 43 At Gramovox we’re dedicated towards reimagining vintage A/V equipment into functional contemporary art. Our flagship product is the Gramovox Bluetooth Gramophone. Its bold design and vintage sound are inspired by the 1920s Magnavox R3 Horn Speaker. Its form and function are a marriage of vintage and modern aesthetics—producing a timeless piece that allows you to stream nostalgia. Thank You for purchasing a Gramovox Bluetooth Gramophone. Cheers, The Gramovox Team CONTACT INFO Gramovox LLC 222 W Merchandise Mart Plaza 12th Floor @ 1871, Chicago, IL 60654 ASSEMBLY 1. Insert horn tip into wood base bushing. Match horn tip with bushing. 2. Stream nostalgia. CONTROLS At the back of the base, the Gramovox Bluetooth Gramophone has a 3.5mm stereo input, On/Off power button, and a MicroUSB port. 3.5mm stereo input On/Off power button MicroUSB Port 65 HOW TO PAIR 1. Power on the Gramovox Bluetooth Gramophone. 2. Turn on bluetooth on your bluetooth-enabled device. HOW TO TRANSFER PAIRING TO ANOTHER DEVICE 1. Toggle off bluetooth on the paired bluetooth-enabled device. 2. Power off the Gramovox Bluetooth Gramophone. 3. Toggle on bluetooth on the new bluetooth-enabled device. 4. 4. Follow instructions for “How to Pair” shown above. 3. When prompted, select “Gramovox” to pair. It may take up to a minute to pair. 4. You’re ready to stream nostalgia. 87 WHEN USING THE AUX INPUT: 1. First verify that the Gramovox is in the OFF state. 2. Next, connect the 3.5mm cable between your source device and the Gramovox input, using the provided cable. 3. Then, begin playback of the audio on your source device. 4. Press the power button on the back of the Gramovox unit to turn it to the ON state. 5. You should now hear audio playing through the Gramovox unit. FCC Part 15 Warning THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. IC RSS-GEN, Sec 7.1.2 Warning Statement Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée quivalente (p.i.r.e.) ne dépassepas l’intensité nécessaire à l’établissement d’une communication satisfaisante. 109 GRAMOVOX DETAILED SPECIFICATIONS LOUDSPEAKER DRIVER: 1.5” (38mm) Horn Loaded Full Range MAGNET: Neodymium (Magnetically Shielded) Impedance: 8 ohm CONE TYPE: Paper (w/ Mylar dust cap) BLUETOOTH VERSION: 4.0 (backwards compatible with Bluetooth 3.0, 2.1, 2.0) FREQUENCY: 2.4GHz PROFILE: A2DP RANGE: 30ft (~10m) ANTENNA: Internal POWER BATTERY: Built in 3.7V Li-Ion battery (3300mAh) PLAYBACK TIME: 12 to 18 hours CHARGING TIME: 3 to 4 hours CHARGER TYPE: Micro USB B Off- line USB charger (1A) PHYSICAL PROPERTIES HORN DIAMETER: 10.64 in. HORN HEIGHT: 17.99 in. WOOD: 8.50in. x 4.00in. x. 2.75in. WEIGHT: 5lbs AUDIO STEREO: Yes (L+R Combined) AMPLIFIER: 2W AMPLIFIER TYPE: Class D w/ Boost FREQUENCY RESPONSE: 200Hz - 15kHz SIGNAL TO NOISE RATIO: > 100dB MAXIMUM SPL: 101dB (1m) CONNECTIVITY WIRELESS: Bluetooth WIRED: AUX port (3.5mm) PACKAGE CONTENTS USB charger 6’ MicroUSB Cable 4’ Stereo Auxiliary Cable User Manual EN LEGAL FR Stream Nostalgia GRAMOVOX.COM

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (2ACGGRX1). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematic Bill of material Gramovox Block diagram Schematic Design)1000854_REV_C BOM-1000854_REV_C The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (signature) (printed name) Pavan Bapu

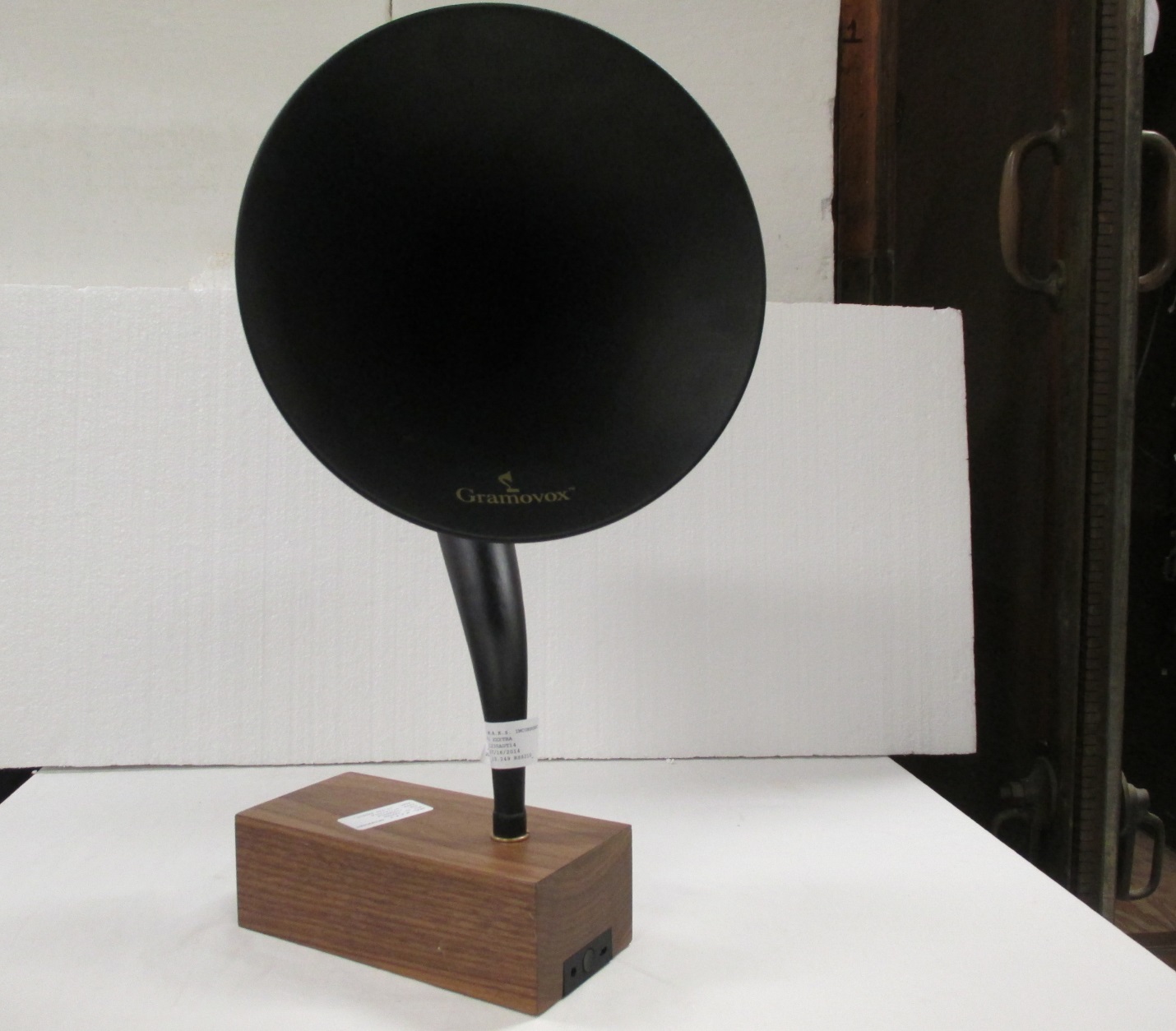

APPLICANT: GRAMOVOX LLC. FCC ID: 2ACGGRX1 IC: 12193A-GRX1 MODEL: GVX1801 EXTERNAL PHOTOS

1.625in GOLD FOIL +BLACK 4 COLOR: PANTONE 871C +BLACK PLACEMENT 1.5in FCC ID : 2ACGGRX1 IC : 12193AGRX1 S/N : XXXXXXXXXX MODEL : GVX1801 GRAMOVOX .COM

APPLICANT: GRAMOVOX LLC. FCC ID: 2ACGGRX1 IC: 12193A-GRX1 MODEL: GVX1801 INTERNAL PHOTOS

http://www.buddies-tech.com BTM8645 DATASHEET 1 BTM8645 Bluetooth Module Data Sheet Document Type: Bluetooth Module Datasheet Document Version: V1.01 Release Date: June 26, 2012 Reproduction of this document, in part of in whole, by any means is prohibited without written Permissions from Buddies Technology Limited. The information contained herein is believed to be accurate as of the date of publication. However, Buddies Technology is not liable for any damages, including indirect or consequential from the use of software this document represents, or any reliance of the accuracy of this document. Buddies Technology reserves the right to change the contents of this document at any time without notice. This document contains proprietary confidential trade secrets and may be subject to additional restrictions contained in the licensing agreement under which this document was obtained. http://www.buddies-tech.com BTM8645 DATASHEET 2 Revision History Date Version Description Author 2012-05-11 V1.0
First Release 2012-06-26 V1.01
Add UART Port Application Notes http://www.buddies-tech.com BTM8645 DATASHEET 3 CONTENT 1. INTRODUCTION................................................................................................................................. 4 1.1 BLOCK DIAGRAM ................................................................................................................................. 4 1.2 F EATURES ............................................................................................................................................ 5 1.3 APPLICATIONS ..................................................................................................................................... 6 2. GENERAL SPECIFICATION ............................................................................................................ 7 3. PHYSICAL CHARACTERISTIC....................................................................................................... 8 3.1 Pin Description.................................................................................................................................... 9 4. REFERENCE SCHEMATIC ............................................................................................................ 12 5. PHYSICAL INTERFACE......................................................................................13 5.1 POWER SUPPLY ................................................................................................................................... .13 5.2 AUDIO INTERFACES.......................................................................................... ... ......... .............................................13 5.2.1 ADC ........................................................................................................................................... 13 5.2.2 ADC Sample Rate Selection and Warping ................................................................................ 14 5.2.3 ADC Gain................................................................................................................................... 14 5.2.4 DAC ........................................................................................................................................... 14 5.2.5 DAC Sample Rate Selection and Warping ................................................................................ 14 5.2.6 DAC Gain................................................................................................................................... 14 5.2.7 Mono Operation ......................................................................................................................... 14 5.2.8 Audio Input Stage....................................................................................................................... 15 5.2.9 Microphone Input ...................................................................................................................... ..15 5.2.10 Audio Output Stage .................................................................................................................... 15 5.3 RF I NTERFACE .................................................................................................................................... 15 5.4 GENERAL PURPOSE ANALOG IO ......................................................................................................... 15 5.5 GENERAL PURPOSE DIGITAL IO .......................................................................................................... 15 5.6 SERIAL INTERFACES ............................................................................................................................ 16 5.6.1 UART ......................................................................................................................................... 16 5.6.2 SPI .............................................................................................................................................. 16 6. ELECTRICAL CHARACTERISTIC ............................................................................................... 17 6.1 A BSOLUTE MAXIMUM RATING ........................................................................................................... 17 6.2 RECOMMENDED OPERATING CONDITIONS .......................................................................................... 17 6.3 INPUT/OUTPUT TERMINAL CHARACTERISTICS .................................................................................... 17 6.3.1 Digital Terminals........................................................................................................................ 17 6.3.2 Internal CODEC - Analogue to Digital Converter .....................................................................18 6.3.3 Internal CODEC - Digital to Analogue Converter .....................................................................18 6.3.4…

Text truncated - open the document above for the full version.

FCC PART 15.249 & IC RSS-210 (i8) ANNEX A2.9 UNLICENSED INTENTIONAL RADIATOR COMBINED TEST REPORT Applicant GRAMOVOX LLC Address 222 W. MERCHANDISE MART CHICAGO, IL 60654 FCC ID 2ACTGGRX1 IC Certification Number 12193A-GRX1 Model Number GVX1801 Product Description BT Tranasmitter FCC Standard Applied 47 CFR §15.249 Industry Canada Standard Applied RSS-210 Issue 8 Annex A2.9 Date Sample Received 7/16/2014 Date Tested 8/6/2014 Tested By Cory Leverett Approved By Sid Sanders Report Number 1235AUT14TestReport.docx Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com APPLICANT: GRAMOVOX LLC IC: 12193A-GRX1 FCC ID: 2ACTGGRX1 REPORT #: V:\G\GRAMOVOX\1235AUT14\1235AUT14TESTREPORTREV1.DOCX Page 2 of 17 Table of Contents GENERAL REMARKS ............................................................................................................ 3 GENERAL INFORMATION ..................................................................................................... 4 TEST RESULTS SUMMARY .................................................................................................... 5 EMC EQUIPMENT LIST ........................................................................................................ 5 TEST PROCEDURES ............................................................................................................ 6 RADIATION INTERFERENCE ................................................................................................. 7 20 dB OCCUPIED BANDWIDTH ............................................................................................. 8 99% POWER OCCUPIED BANDWIDTH ................................................................................. 10 BAND EDGE COMPLIANCE ................................................................................................. 12 DUTY CYCLE .................................................................................................................... 14 POWER LINE CONDUCTED INTERFERENCE .......................................................................... 15 APPLICANT: GRAMOVOX LLC IC: 12193A-GRX1 FCC ID: 2ACTGGRX1 REPORT #: V:\G\GRAMOVOX\1235AUT14\1235AUT14TESTREPORTREV1.DOCX Page 3 of 17 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Cory Leverett Project Manager Date: 8/12/14 APPLICANT: GRAMOVOX LLC IC: 12193A-GRX1 FCC ID: 2ACTGGRX1 REPORT #: V:\G\GRAMOVOX\1235AUT14\1235AUT14TESTREPORTREV1.DOCX Page 4 of 17 GENERAL INFORMATION EUT Specification The test results relate only to the items tested. Applicable Standards FCC Part 15.249 & IC RSS-210 (i8), RSS-GEN (i3) EUT Description GRAMOVOX - TX FCC ID 2ACTGGRX1 IC Certification Number 12193A-GRX1 Model Number GVX1801 Operating Frequency TX: 2402-2481 MHz RX: Same No. of Channels 79 Modulations GFSK & Pi/4 QPSK EUT Power Source 110–120Vac/50– 60Hz when Charging DC Power Battery Operated Exclusively Test Item Prototype Pre- Production Production Type of Equipment Fixed Mobile Portable Antenna Connector FCC Rules require that the antenna connector be unique. There is no antenna connector, it has an integrated PCB antenna Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Conditions in the Test laboratory Temperature: 26ºC Relative humidity: 50% Test Exercise The EUT was controlled by test software provided by the applicant. Revision History of EUT None Test Supporting Equipment Description Type Connector Length USB A/B 2.0 Cable Hi-Speed USB Cable USA Type A and Type B 1 meter 350MHZ Patch cord Network cable Ethernet connector 2 meter Bluetooth Transceiver Test Software CSR Blue Suite 2.5.0 Blue Test 3 N/A AC Outlet USB Charging adapter 110v USB NA USB to SPI Programmer USB/Ethernet USB 2.0, RJ-45, 8- PIN Molex NA APPLICANT: GRAMOVOX LLC IC: 12193A-GRX1 FCC ID: 2ACTGGRX1 REPORT #: V:\G\GRAMOVOX\1235AUT14\1235AUT14TESTREPORTREV1.DOCX Page 5 of 17 TEST RESULTS SUMMARY FCC Rules Part No. Industry Canada Rules RESULTS – Pass/Fail/NA 15.249 Fundamental Emission RSS-210 (i8) ANNEX A2.9, RSS-GEN (i3) Pass 15.249 & 15.209 Harmonics & Spurious RSS-210 (i8) ANNEX A2.9, RSS-GEN (i3) Pass 15.205 & 2.202 Occupied Bandwidth RSS-GEN (i3), 4.6 Pass 15.249 & 15.205 Bandedge Compliance RSS-GEN (i3), 4.6 Pass 15.207 Power Line Emissions RSS-GEN (i3), 7.2.4 Pass EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 12/31/13 12/31/15 Coaxial Cable - Chamber 3 cable set SemiFlex NA Chamber 3PC Set 1/13/14 1/13/16 Antenna- Active Loop ETS-Lindgren 6502 00062529 10/09/2013 10/09/2015 Antenna: Biconnical Eaton 94455-1 1057 06/14/13 06/14/15 Antenna: Log-Periodic Eaton 96005 1243 05/31/13 05/31/15 Antenna: Double- Ridged Horn/ETS Horn 2 ETS-Lindgren 3117 00041534 10/05/2012 10/05/2014 EMI Test *Receiver* Rhode & Schwarz ESU 40 100320 03/21/15 03/21/17 Coaxial Cable #65 General Cable Co. E9917 RG233/U Timco…

Text truncated - open the document above for the full version.

APPLICANT: GRAMOVOX LLC. FCC ID: 2ACGGRX1 IC: 12193A-GRX1 MODEL: GVX1801 TEST SET UP PHOTOS
