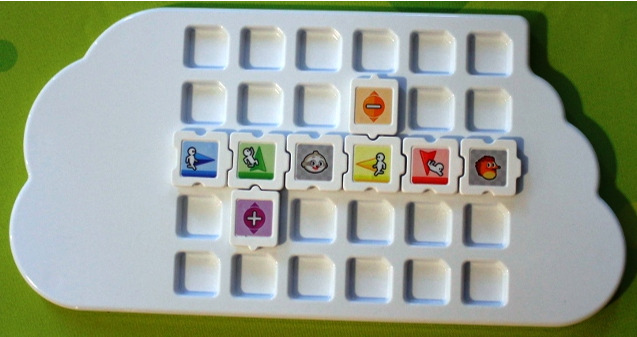

2ACUO-LCB001ludos cloudBoard

ludos Instruction Manual V1.0 7/23/2014 Instruction Manual 1 ludos Instruction Manual V1.0 7/23/2014 Introduction Included in This Bundle Supported Devices Product Features Getting Started Charging the ludos cloudBoard LED Status Lights Resetting the cloudBoard How to Play Placing Single Tiles Combining Tiles Installation Instructions Mac & PC iOS Android Troubleshooting Regulatory Information 2 ludos Instruction Manual V1.0 7/23/2014 Introduction Thank you for purchasing the ludos starter bundle! Included in This Bundle Supported Devices The ludos cloudBoard supports two different connection types. The first is a wired connection using a USB cable for using your cloudBoard with a laptop or a desktop computer. The second is a wireless connection using Bluetooth 4.0, which allows you to connect to many different smart phones and tablets. The following is not a complete list, and will be updated regularly to include new devices: ● iPad 3, iPad 4, iPad Air ● iPad mini ● iPhone 4s, iPhone 5, iPhone 5C, iPhone 5s ● iMac, MacBook Air, MacBook Pro ● Android tablets/phones with Bluetooth 4.0 ● Windows XP or above desktop/laptop 3 ludos Instruction Manual V1.0 7/23/2014 Product Features 4 ludos Instruction Manual V1.0 7/23/2014 Getting Started Charging the ludos cloudBoard The ludos system contains a rechargeable battery that can be charged by plugging it into a computer, or a standard USB wall charger. LED Status Lights The cloudBoard is equipped with a red and blue LED. These are used to indicate what mode the device is in, and the different modes can be found in the figure below Light Color Indication Blinking Red Low Battery Solid Red Battery Charging Solid Purple Battery Fully Charged Blinking Blue Device is not connected, and searching for a wireless connection Solid Blue Wireless connection established Solid Blue and Blinking Red Wireless connection established, but low battery Resetting the cloudBoard The cloudBoard has a small pinhole switch that will allow you to reset the device in the case that it is not responding or functioning as expected. This can be done in two different ways: 1. A momentary press will perform a soft reset, and you should see a purple light for 2 seconds, followed by the lights turning off. 2. If the first method does not work, press the button in for a solid 10 seconds. While doing this, any lights that were on should turn off. 5 ludos Instruction Manual V1.0 7/23/2014 How to Play ludos enrichment games are played by using the ludos tiles and the cloudBoard. Each game has it’s own unique set of tiles, and kids will need to learn how to use and combine the tiles to progress through the game. The physical shapes of the tile will help determine how they fit into the cloudBoard, and the game will help show you what they do, and some possible combinations. Placing Single Tiles Tiles can be placed in any cavity of the cloudBoard. The game will show you how each of the tiles are used during the tutorial, and then you are given the freedom to choose how you want to place the tiles. Combining Tiles The bigger part of the experience in playing with ludos is understanding how to combine them. Combining tiles in new ways will allow you to progress even further in the game. The tutorial will show you some of the possible combinations, and then leave it to you to explore all the possibilities. 6 ludos Instruction Manual V1.0 7/23/2014 Installation Instructions Mac & PC Please visit our website to download the software for your computer, which will include the installation instructions for your chosen operating sytem iOS Please visit the App Store from your device and search for Cork the Volcano Android Please visit the Google Play Store from your device and search for Cork the Volcano 7 ludos Instruction Manual V1.0 7/23/2014 Troubleshooting The ludos system maintains its own device state based on the connections made with different devices, and relays it’s device state through LED indicator lights. If the LED indicator light does not match up with what it is supposed to be doing, then there is a problem. The first course of action is to use the momentary reset switch. If the lights did not turn purple, then go off, then start to blink blue (indicating it is awaiting a new connection), use the 10 second reset switch method. You should also close any open Cork the Volcano software. If you cannot get the device to reset and start blinking blue, please submit a claim through our support system on our website. 8 ludos Instruction Manual V1.0 7/23/2014 Regulatory Information FCC 15.21: Any changes or modifications to the cloudBoard not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC 15.105: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference…

Text truncated - open the document above for the full version.

Test Report Number: 3543693EMC02 Rev: 1 Digital Dream Labs, LLC / cloudBoard Page: 1 of 13 Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or Testing done by SGS International Electrical Approvals in connection with distribution or use of the product described in this report must be approved by SGS international Electrical Approvals in writing. EMC Test Report Project Number: 3543693 Report Number: 3543693EMC01 Revision Level: 1 Client: Digital Dream Labs, LLC, Inc. Equipment Under Test: Ludos Gameboard Model: cloudBoard Applicable Standards: FCC Part 15 Subpart C, § 15.209 RSS-GEN, Issue 3, December 2010 ANSI C63.10: 2009 Report issued on: 25 August 2014 Test Result: Compliant Tested by: Jeremy O. Pickens, Senior EMC Engineer Reviewed by: David Schramm, EMC Manager Test Report Number: 3543693EMC02 Rev: 1 Digital Dream Labs, LLC / cloudBoard Page: 2 of 13 SGS North America Inc. Consumer Testing Services 620 Old Peachtree Road NW, Suite 100, Suwanee, GA 30024 t (770) 570-1800 www.us.sgs.com/cts Member of the SGS Group (SGS SA TABLE OF CONTENTS 1 SUMMARY OF TEST RESULTS ..................................................................................................................................... 3 1.1 MODIFICATIONS REQUIRED TO COMPLIANCE ................................................................................................................ 3 2 GENERAL INFORMATION ............................................................................................................................................. 4 2.1 CLIENT INFORMATION ................................................................................................................................................... 4 2.2 TEST LABORATORY ....................................................................................................................................................... 4 2.3 GENERAL INFORMATION OF EUT .................................................................................................................................. 4 2.4 OPERATING MODES AND CONDITIONS .......................................................................................................................... 4 2.5 EUT CONNECTION BLOCK DIAGRAM ............................................................................................................................ 5 2.6 SYSTEM CONFIGURATIONS ............................................................................................................................................ 5 3 OCCUPIED BANDWIDTH ............................................................................................................................................... 6 3.1 TEST RESULT ................................................................................................................................................................. 6 3.2 TEST METHOD ............................................................................................................................................................... 6 3.3 TEST SITE ...................................................................................................................................................................... 6 3.4 TEST EQUIPMENT .......................................................................................................................................................... 6 3.5 TEST DATA .................................................................................................................................................................... 7 4 RADIATED EMISSIONS ................................................................................................................................................... 8 4.1 TEST RESULT ................................................................................................................................................................. 8 4.2 TEST METHOD ............................................................................................................................................................... 8 4.3 TEST SITE ...................................................................................................................................................................... 9 4.4 TEST EQUIPMENT .......................................................................................................................................................... 9 4.5 TEST DATA .................................................................................................................................................................. 10 5 REVISION HISTORY ...................................................................................................................................................... 13 Test Report Number: 3543693EMC02 Rev: 1 Digital Dream Labs, LLC / cloudBoard Page: 3 of 13 SGS North America Inc. Consumer Testing Services 620 Old Peachtree Road NW, Suite 100, Suwanee, GA 30024 t (770) 570-1800 www.us.sgs.com/cts Member of the SGS Group (SGS SA 1 Summary of Test Results Basic Standards Test Result Emissions Testing FCC Part 15, Subpart C, 15.209 / RSS-Gen S7.2.5 - Radiated Emissions Compliant FCC Part 15, Subpart C, 15.207 / RSS-Gen S7.2.4 - Conducted Emissions NA(1) (1) The device does not connect to the AC mains 1.1 Modifications Required to Compliance None Test …

Text truncated - open the document above for the full version.

Test Report Number: 3543693EMC02_SD Rev: 1 Digital Dream Labs, LLC / cloudBoard Page: 1 of 3 Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or Testing done by SGS International Electrical Approvals in connection with distribution or use of the product described in this report must be approved by SGS international Electrical Approvals in writing. Supplementary Data Project Number: 3543693 Report Number: 3543693EMC02_SD Revision Level: 1 Client: Digital Dream Labs, LLC, Inc. Equipment Under Test: Ludos Gameboard Model: cloudBoard Applicable Standards: FCC Part 15 Subpart C, § 15.209 RSS-GEN, Issue 3, December 2010 ANSI C63.10: 2009 Test Report Number: 3543693EMC02_SD Rev: 1 Digital Dream Labs, LLC / cloudBoard Page: 2 of 3 SGS North America Inc. Consumer Testing Services 620 Old Peachtree Road NW, Suite 100, Suwanee, GA 30024 t (770) 570-1800 www.us.sgs.com/cts Member of the SGS Group (SGS SA 1 Summary The cloudBoard’s 13.56MHz RFID signaling is intended to operate most efficiently in the extreme near field of its antennas. For this reason, comparing the amplitude of the harmonics to that of the fundamental at a measuring distance of 3 meters is misleading. Therefore, in order to demonstrate compliance with the requirements in clause 15.209(c) of the FCC rules, conducted measurements are presented in this document. 2 Test Data Analyzer settings: 1MHz-30MHz RBW: 10kHz VBW: 30kHz 30MHz-1GHz RBW: 100kHz VBW: 300kHz Conducted Spurious Emissions 10M100M1G Frequency -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 Amplitude dBm Info:: Digital Dream Labs / cloudBoard 13.56MHz RFID Signal - Max Power Harmonic Frequency (MHz) Peak Amplitude (dBm) 1 (Fundamental) 13.56 16.0 2 27.12 -26.5 3 40.68 -27.4 4 54.24 -62.3 5 67.8 -69.5 6 81.36 -63.7 7 94.92 -66.4 8 108.48 -72.4 9 122.04 -70.5 10 135.6 -74.8 Test Report Number: 3543693EMC02_SD Rev: 1 Digital Dream Labs, LLC / cloudBoard Page: 3 of 3 SGS North America Inc. Consumer Testing Services 620 Old Peachtree Road NW, Suite 100, Suwanee, GA 30024 t (770) 570-1800 www.us.sgs.com/cts Member of the SGS Group (SGS SA 2.1 Test Equipment Test Date: 4-Sep-2014 Tester:JOP EquipmentModelManufacturerAsset NumberCal Due Date SIGNAL ANALYZERFSV30ROHDE & SCHWARZB08574928-Aug-2015 MULTIFLEX COAXIAL CABLE141HUBER&SUHNERB0955875-Aug-2015
