2ACUS-IT200Bluetooth Speaker

Manual for Bluetooth speaker This mini audio box can be deemed as perfect combination of classic and modern performance, New aluminum vibration film loud speaker, which has clear alt and pure woof. that you can take with your enjoy anywhere. FEATURES: 1. Portable speaker for your smartphone, tablet, laptop, or MP3 Player. 2. Lightweight, small in size, but incredible sound. 3. Metal housing provides protection and great sound. 4. Up to 3-5 hours playback time, once a full charge. COMPONENTS INCLUDED 1.Mini speaker 2.3.5mm Audio + Micro USB charging combination cable 3.User Manual 4.lanyard SPECIFICATIONS: Power supply: DC5V Output power: 3W Frequency: 200Hz——20KHz Signal&noise ratio ≥75dB Impedance: 4 OHM(Ω) Output: 3.7V~4.2V+0.05V Input: 5V battery capacity: 500mah Speaker Unit: 45mm Bluetooth version V2.1+EDR Transmission Distance 10 meters Case Material: Aluminum case Dimensions: 5cm x 5cm x 5.3cm Weight: 110g USER GUIDE: Button decription: 1, “VOL+” press for volume increase 2, “VOL-” press for volume decrease 3. press for next song. 4. press for last song .5. short press for pause or answer / off the phone; Long press for change model. The interface description: 1, The charging and line in combination port 2. The microphone site. 3, on /off switch Under BT Model: Put switch to “on” position, the blue light quickly flashes. Bluetooth pairing with your device. After a successful connection, the blue light slowly flashes, sound will be issued” dong” a tone. When your device is playing, the speaker will immediately sound of music. Long press disconnect bluetooth to “line in” mode Under Line-in Model: AUX audio playback: appendix provides the 3.5mm Audio + Micro USB charging combination cable. Can play music by link to mobile phone、MP3、MP4、PC、IPOD and other audio devices. Long press disconnect “line in” to bluetooth mode. Reminder: In the AUX state, " VOL-, VOL+, " 2 key is valid, But the last and next song is controlled by the connected device. SAFETY CAUTIONS: 1. Please read the instructions carefully before using. 2. Avoid contact with liquids; keep away from water and high moisture conditions. 3. Do not locate the speaker or cord near heat sources such as radiators, heaters, air ducts. or direct sunlight. 4. Do not place a naked flame source such as candles on the Mini Speaker. 5. Recharge the battery with suitable voltage output(5V/500mA) 6. Do not hit the product severely, or insert any conductive objects into the speaker, or charging jack. 7. Do not block the speaker grill when the speaker is running. 8. Stop using at once if high temperature, smoke, burning smell, nor-normal noise, or fire are noticed coming from product. 9. Do not repair on your own, seek the help of a professional. 10. To avoid getting shocked, do not touch product with wet hands. 11. Keep out of reach of children. TROUBLESHOOTING No Sound: 1. Audio cable is not fully plugged into the 3.5mm audio port on device. 2. Audio cable is damaged. 3. Source of audio is not working. 4. No LED indication when audio cable is plugged-in. 5. Mini speaker is out power. Not charging: 1. Input power source is not normal(5V/500mA) 2. Combination cable is not fully plugged into the charging port. 3. Combination cable is damaged. 4. Battery failure. No LED indication: 1. LED indication failure. 2. No battery power left. 3. Combination cable is not fully plugged into the socket. FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try correct the interference by one or more of the receiving measures: Reorient or replace relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 Shenzhen ShengHeDa Electronic Technology Co., Ltd 2014-08-07 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____Shenzhen ShengHeDa Electronic Technology Co., Ltd _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Bluetooth Speaker, IT200) Sincerely, Client’s signature Client’s name / title Vincent Chen / Sales Manager Contact information / address 2nd Floor, Bada Industrial, Heping, Fuyong, Baoan District, Shenzhen , Guangdong , China SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 Shenzhen ShengHeDa Electronic Technology Co., Ltd 2014-08-07 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Shenzhen ShengHeDa Electronic Technology Co., Ltd ____hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): (Bluetooth Speaker, IT200) We affirm that between SIEMIC, Inc. and ____ Shenzhen ShengHeDa Electronic Technology Co., Lt___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title Vincent Chen / Sales Manager Contact information / address 2nd Floor, Bada Industrial, Heping, Fuyong, Baoan District, Shenzhen , Guangdong , China

Shenzhen ShengHeDa Electronic Technology Co., Ltd SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Shenzhen ShengHeDa Electronic Technology Co., Ltd SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2014-08-07 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACUS- IT200 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Vincent Chen / Sales Manager Contact information / address 2nd Floor, Bada Industrial, Heping, Fuyong, Baoan District, Shenzhen , Guangdong , China

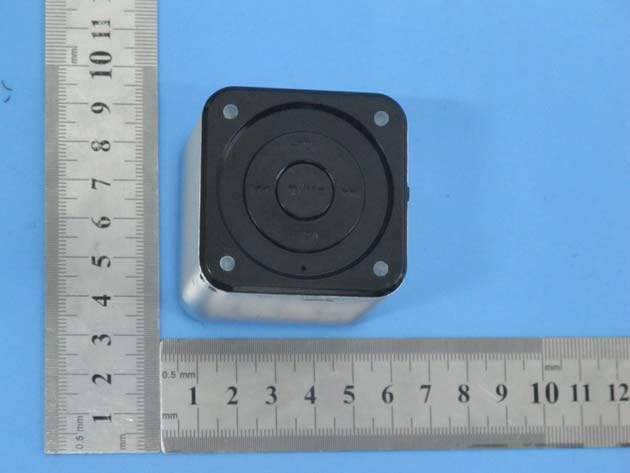

Report No.: TB-FCC141393 Page: 3 of 9 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC141393 Page: 4 of 9 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC141393 Page: 1 of 9 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2ACUS-IT200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Shenzhen ShengHeDa Electronic Technology Co., Ltd Model: IT200 Made in China

Report No.: TB-FCC141393 Page: 2 of 9 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC141393 Page: 5 of 9 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT Report No.: TB-FCC141393 Page: 6 of 9 TB-RF-075-1.0 Photo 7 Internal of EUT Photo 8 Appearance of PCB BT(2.4G) Antenna Report No.: TB-FCC141393 Page: 7 of 9 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE141394 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ACUS-IT200 1. Client Information Applicant : Shenzhen ShengHeDa Electronic Technology Co., Ltd Address : 2nd Floor, Bada Industrial, Heping, Fuyong, Baoan District, Shenzhen, Guangdong , China Manufacturer : Heritek Electronic Manufactory Co., Limited Address : 2nd Floor, 11th Building, Huafeng Industrial Zone, Xiaweiyuan, Gushu Village, Xixiang Town, Bao'an District, Shenzhen City, China 2. General Description of EUT EUT Name : Bluetooth Speaker Models No. : IT200 Model Difference : N/A Product Description : Operation Frequency: Bluetooth:2402~2480MHz Number of Channel: Bluetooth:79 Channels Max Peak Output Power:GFSK:-2.043 dBm Antenna Gain: 0 dBi PIFA Antenna Modulation Type: GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) Power Supply : DC Voltage supplied from Host System by USB cable DC power by Li-ion Battery Power Rating : DC 5.0V by USB cable. DC 3.7V Li-ion Battery Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE141394 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE141394 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -2.043 0 0.625 5 0.194 3.0 2.441 -2.275 0 0.592 5 0.185 3.0 2.480 -2.971 0 0.505 5 0.159 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -2.064 0 0.622 5 0.193 3.0 2.441 -2.275 0 0.592 5 0.185 3.0 2.480 -3.049 0 0.496 5 0.156 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC141393 Page: 1 of 75 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ACUS-IT200 Original Grant Report No. : TB-FCC141393 Applicant : Shenzhen ShengHeDa Electronic Technology Co., Ltd Equipment Under Test (EUT) EUT Name : Bluetooth Speaker Model No. : IT200 Series Model No. : N/A Brand Name : N/A Receipt Date : 2014-07-28 Test Date : 2014-07-28 to 2014-08-05 Issue Date : 2014-08-06 Standards : FCC Part 15, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC141393 Page: 2 of 75 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. CONDUCTED EMISSION TEST ........................................................................................... 10 3.1 Test Standard and Limit .................................................................................................... 10 3.2 Test Setup ........................................................................................................................... 10 3.3 Test Procedure ................................................................................................................... 10 3.4 Test Equipment Used ........................................................................................................ 11 3.5 EUT Operating Mode ........................................................................................................ 11 3.6 Test Data ............................................................................................................................. 11 4. RADIATED EMISSION TEST ................................................................................................ 14 4.1 Test Standard and Limit .................................................................................................... 14 4.2 Test Setup ........................................................................................................................... 15 4.3 Test Procedure ................................................................................................................... 16 4.4 EUT Operating Condition ................................................................................................. 16 4.5 Test Equipment .................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 32 5.1 Test Standard and Limit .................................................................................................... 32 5.2 Test Setup ........................................................................................................................... 32 5.3 Test Procedure ................................................................................................................... 32 5.4 EUT Operating Condition ................................................................................................. 33 5.5 Test Equipment .................................................................................................................. 33 6. NUMBER OF HOPPING CHANNEL .................................................................................... 46 6.1 Test Standard and Limit .................................................................................................... 46 6.2 Test Setup ........................................................................................................................... 46 6.3 Test Procedure ................................................................................................................... 46 6.4 EUT Operating Condition ................................................................................................. 46 6.5 Test Equipment .................................................................................................................. 46 6.6 Test Data ............................................................................................................................. 46 7. AVER…

Text truncated - open the document above for the full version.

Report No.: TB-FCC141393 Page: 8 of 9 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC141393 Page: 9 of 9 TB-RF-075-1.0 Photo of Setup for Conducted Emission
