2ACVLJ4ICPSignal Booster

Signalwing Corporation

Click to zoom

Application Details

Equipment Class: B2I - Part 20 Industrial Booster (CMRS)
Date of Grant: Sep 09, 2014
Application Purpose: Original Equipment
Date of Application: Sep 09, 2014
Equipment Note: Signal Booster
Frequency Range: 1930.00000000 - 1990.00000000
Company: Signalwing Corporation
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

J J 4 4 I I - - C C P P S S e e r r i i e e s s I I n n d d u u s s t t r r i i a a l l S S i i g g n n a a l l B B o o o o s s t t e e r r U U s s e e r r ’ ’ s s M M a a n n u u a a l l Content 1. General ...................................................................................................... 3 1.1 Warranty ............................................................................................ 3 1.2 Safety Information ............................................................................. 3 1.3 Other Precautions ............................................................................. 4 2. Introduction to Boosters ............................................................................. 5 2.1 System Introduction .......................................................................... 5 2.2 General Installation Layout................................................................ 5 2.3 Basic Booster System Components .................................................. 6 2.4 Advantages of Booster ...................................................................... 7 2.5 Block Diagram ................................................................................... 8 2.6 Outline of Available Functions ........................................................... 9 3. Installation ............................................................................................... 10 3.1 Preparation...................................................................................... 10 3.2 Antenna Installation ......................................................................... 10 3.2.1 Donor Antenna ....................................................................... 11 3.2.2 Service Antenna ..................................................................... 12 3.2.3 Isolation ................................................................................. 14 3.3 Booster .............................................................................................. 16 3.3.1 Installing the Booster ............................................................. 16 4. Commissioning ........................................................................................ 18 4.1 Commissioning Principle ................................................................. 18 4.1.1 Downlink Output Power ......................................................... 18 4.1.2 Isolation ................................................................................. 20 5. Maintenance ............................................................................................ 20 5.1 Alarms and Solutions ...................................................................... 20 5.2 Troubleshooting .............................................................................. 22 5.3 Booster Replacement ...................................................................... 24 6. FCC Statement and Warning ................................................................... 25 7. Appendix .................................................................................................. 26 7.1 Abbreviations .................................................................................. 26 1. General This user’s manual provides information that includes installation, configuration, operation and maintenance of the booster. Specifications are also provided in details in order to help users better understand the booster. Please read this user’s manual carefully and follow the instructions outlined to ensure long life span and trouble free operation of the unit. 1.1 Warranty All outdoor antennas must be installed with lightning protection. Damage of power modules due to the lightning will not be covered by this warranty. Switching on the AC or DC power prior to connection of antenna cables is considered as an incorrect installation process and therefore faults arising, thereafter are also not covered under the warranty. This entire manual should be read and understood before operating or maintaining the booster system. Manufacturer assumes no liability for customer's failure to comply with the precautions mentioned. This warranty will not cover such failures. 1.2 Safety Information  Personnel Safety Before installing or replacing any of the boosters, the entire manual should be read and understood. Operators need to supply appropriate AC or DC power to the booster. Incorrect power settings can damage the booster and may cause electrical related injury to the user. It is recommended that gloves are worn at ALL times when handling the product. DO NOT operates equipment in an explosive environment. DO NOT work on live circuits: Cell site technician and operating person are not authorized to remove equipment covers. Only personnel authorized by manufacturer may remove equipment covers to replace components or perform internal repairs.  Equipment Safety The staff must follow all safety precautions during operation. Failure to comply with the following general safety precautions and with specific precautions described elsewhere in this manual violates the safety standards of the design, manufacture, and intended use of this product. The aluminum alloy enclosure is an excellent heat conductor, so during normal operation the unit may feel slightly warm. If it becomes too hot, please call maintenance immediately.  Electrostatic Sensitivity ESD: Electrostatic Sensitive Devices Semiconductor used in this product may be damaged by electrostatic discharge. When unpacking or handling the booster, follow precautionary procedures including use of grounded wrist straps, grounded workbench surfaces, and grounded floor mats.  Grounding Electrical Instruments and Components To avoid power supply spark, please perform the grounding connection of the equipment racks, equipment chassis, and appropriate tools. And make sure insert the equipment’s power cable into appropriate mains sockets (three p…

Text truncated - open the document above for the full version.

Attestation Statements

Attestation letter We, Signalwing Corporation(Block B, 8th Floor, Yongde Industrial Center, Fuyong Town, Bao'an District, Shenzhen, China) hereby, declare that our Signal Booster (J4I-CP-37, J4I-CP-33,J4I-CP-30) pass the FCC certification, which is tested by Shenzhen Zhongjian Nanfang Testing Co., Ltd.; ( No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China). The related FCC warning label messages will be also shown in online and point-of-sale marketing materials and on outside packaging of device. Authorized Signature from Signalwing: DATE:

Cover Letter(s)

Signalwing Corporation DATE : 2014-08-01 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:2ACVLJ4ICP Product Name: Signal Booster Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation Description  BOM  Tune up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2014-08-01 By: Jack Lee Signature Printed Title: Project Manager On behalf of : Signalwing Corporation Telephone: 0755-33233600

Cover Letter(s)

- 1 - Product Similarity Declaration To Whom It May Concern, We, Signalwing Corporation, hereby declare that our Signal Booster, Model Number: J4I-CP-33, and J4I-CP-30 are electrically identical with the Model J4I-CP-37 series that was certified by GTS-CCISL. They named differently just due to different output power levels and gains achieved by adjusting the potentiometers inside, or assembled with different cases. However they have the same design, PCB board and work diagrams. For the cases, we have made 3 options for users; each model could use the cases as per customer’s requirements. For example, J4I-CP-37 could use the cases with below sizes: 440*500*235mm or 440*500*187mm. The J4I-CP-37 booster has a factory preset maximum output power of UL 26dBm/ DL 38dBm and maximum gain of UL 85dB/ DL 90dB. However, some users maybe want to use lower power due to different coverage. The 30~33dBm power booster is used in some smaller place. When the output power is preset at UL 25dBm / DL 30dBm and maximum gain of UL 80dB/ DL 80dB, then the model should be J4I-CP-30; When the output power is preset at UL 25dBm / DL 33dBm and maximum gain of UL 80dB/ DL 85dB, then the model should be J4I-CP-33. We have summarized the differences in below table for your better understanding: Please contact me if there is any question. Signature: Print Name: Jack Lee Title: Project Manager Date: 2014-08-01 Item Model Number Max. Power UL/DL Max. Gain UL/DL Size(mm) 1 J4I-CP-37 26dBm/38dBm 85dB/90dB 440*500*235mm or 440*500*187mm 2 J4I-CP-33 25dBm/33dBm 80dB/85dB 440*500*235mm or 440*500*187mm or 453*358*160mm 3 J4I-CP-30 25dBm/30dBm 80dB/80dB

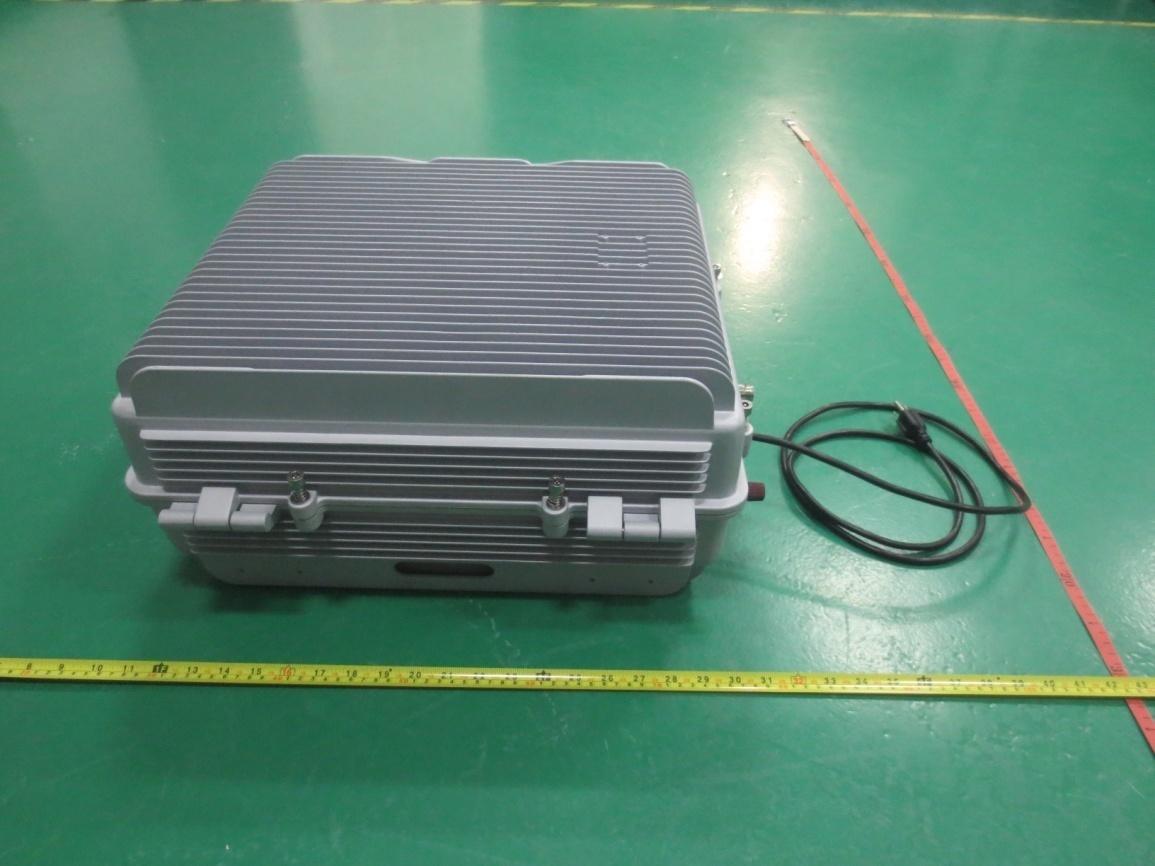

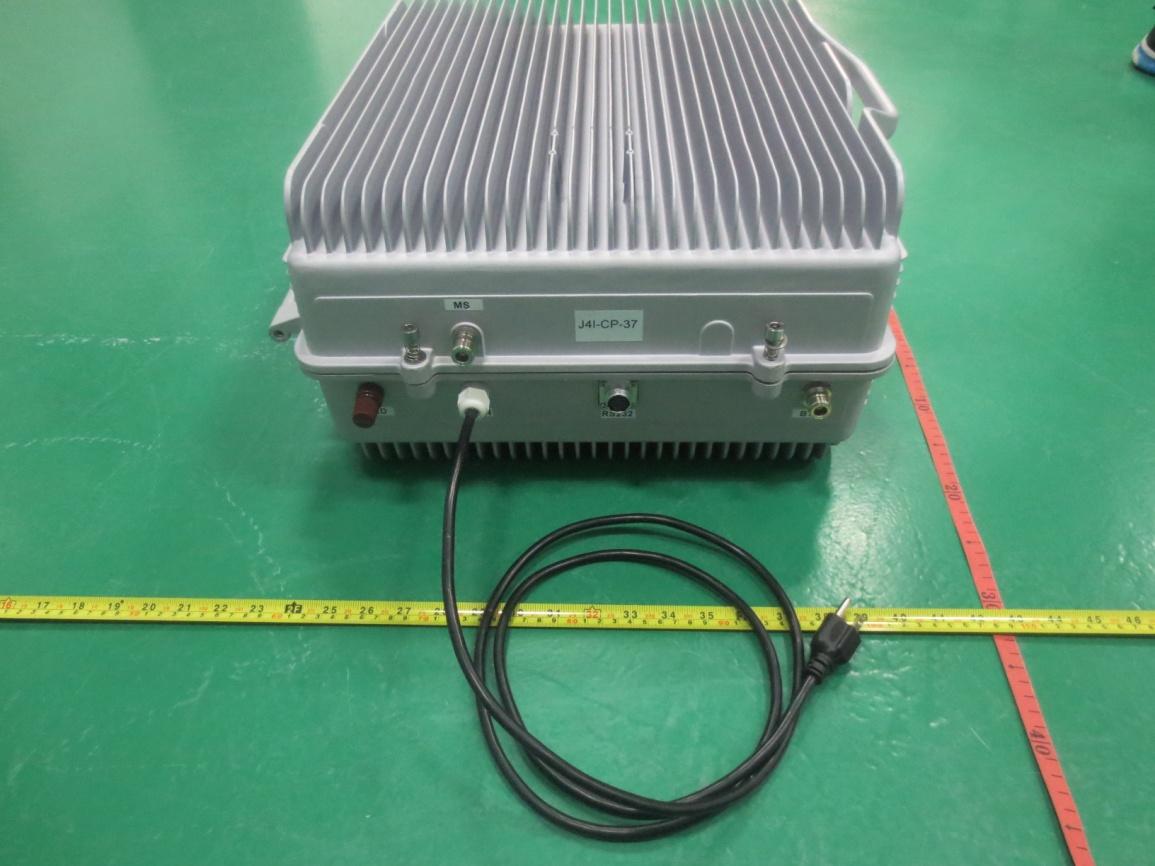

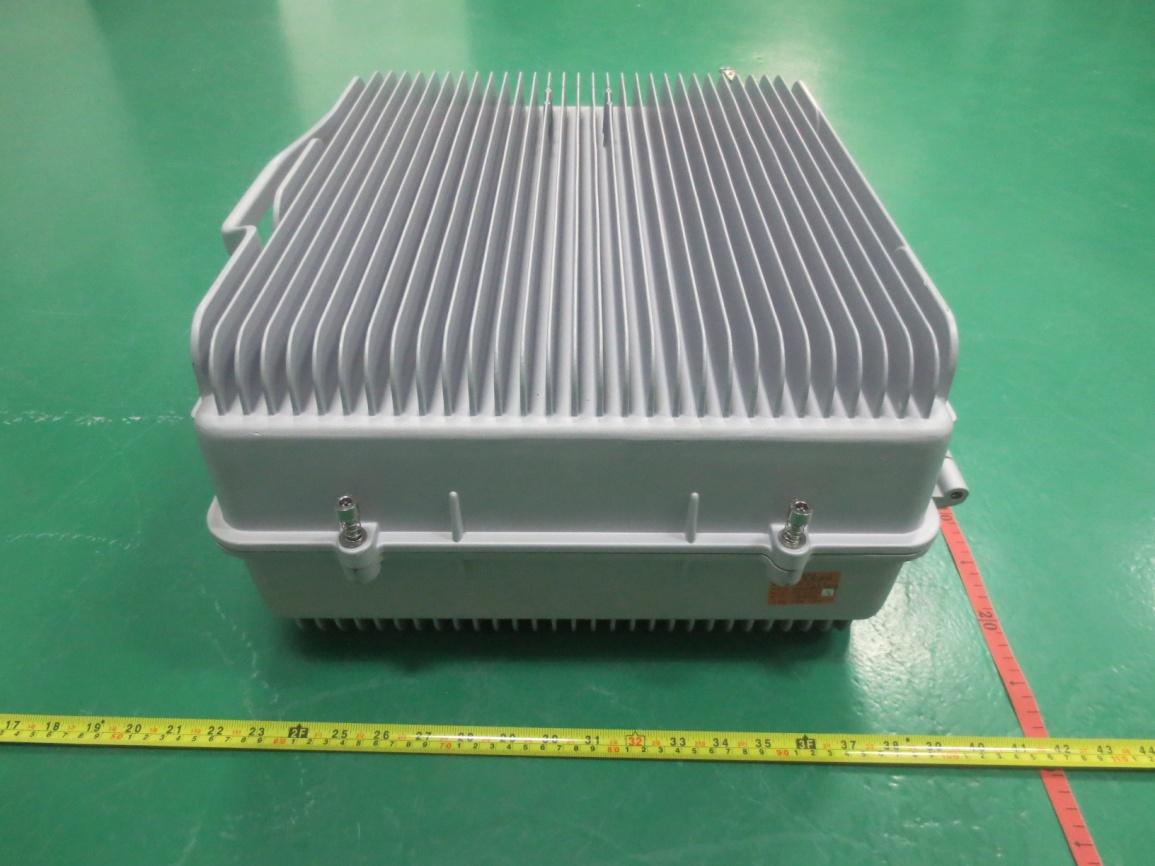

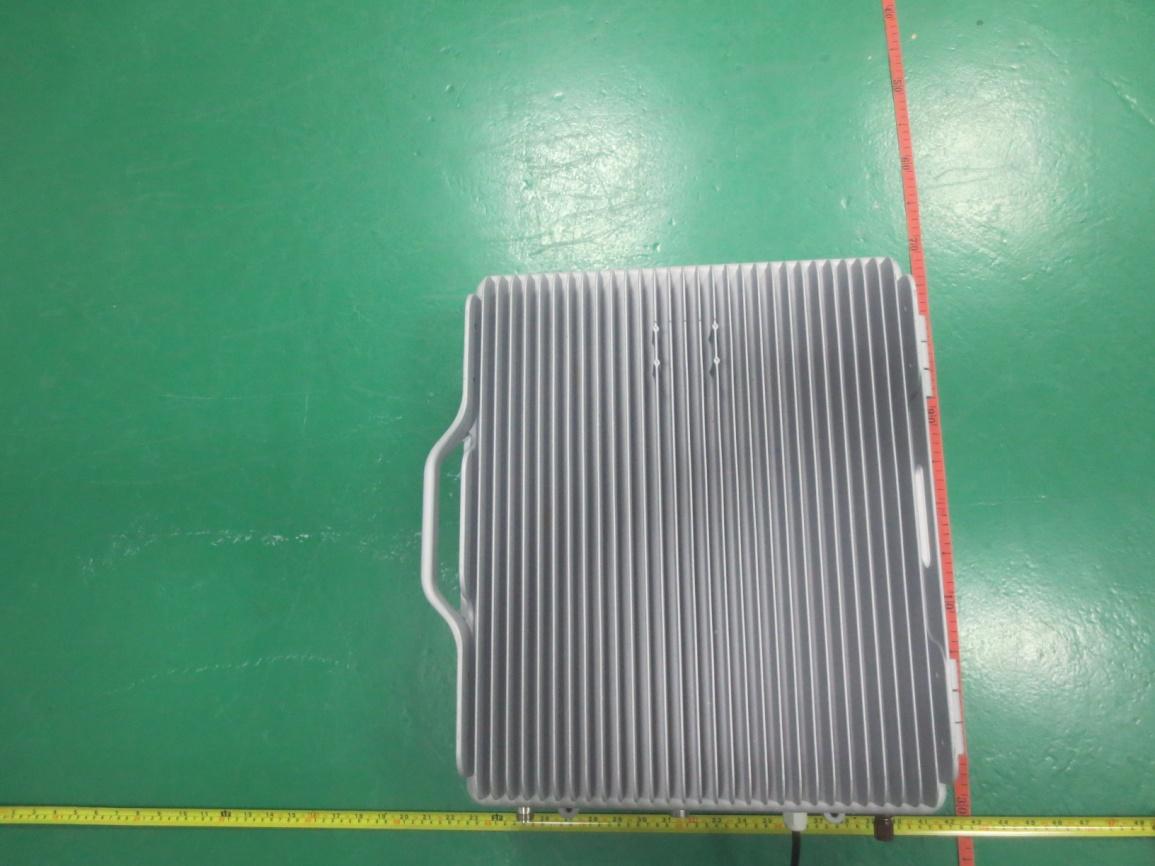

External Photos

ID Label/Location Info

label尺寸为： 24*38mm Label location

Internal Photos

Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 50 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 51 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 52 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 53 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 54 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 55 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 56 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 57 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 58 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 59 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 60 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 61 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 62 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 63 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 64 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 65 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 66 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 67 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 68 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 69 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 70 of 75 Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Ro…

Text truncated - open the document above for the full version.

RF Exposure Info

Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Frequency range (MHz) Electric field strength (V/m rms) Magnetic field strength (A/m rms) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1.0 6 300-1500 f/300 6 1500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3 –1.34 614 1.63 *(100) 30 1.34 –30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1 30 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna 3. Result CDMA2000 BC0 Uplink (Worst case) MODE Frequency (MHz) power (dBm) Ant Gain (dBi) EIRP (dBm) EIRP (mW) CDMA2000 BC0 836.52 26 20 46 39810 Limit for controlled (mW/cm 2 ) Limit for uncontrolled (mW/cm 2 ) Safety Distance for controlled exposure (cm) Safety Distance for uncontrolled exposure (cm) 2.79 0.56 34 76 CDMA2000 BC0 Downlink (Worst case) MODE Frequency (MHz) power (dBm) Ant Gain (dBi) EIRP (dBm) EIRP (mW) CDMA2000 BC0 878.49 38 8 46 39810 Limit for controlled (mW/cm 2 ) Limit for uncontrolled (mW/cm 2 ) Safety Distance for controlled exposure (cm) Safety Distance for uncontrolled exposure (cm) 2.93 0.59 33 74 CDMA2000 BC1 Uplink (Worst case) MODE Frequency (MHz) power (dBm) Ant Gain (dBi) EIRP (dBm) EIRP (mW) CDMA2000 BC1 1851.25 26 20 46 39810 Limit for controlled (mW/cm 2 ) Limit for uncontrolled (mW/cm 2 ) Safety Distance for controlled exposure (cm) Safety Distance for uncontrolled exposure (cm) 5 1 25 57 CDMA2000 BC1 Downlink (Worst case) MODE Frequency (MHz) power(dBm) Ant Gain (dBi) EIRP (dBm) EIRP (mW) CDMA2000 BC1 1988.75 38 8 46 39810 Limit for controlled (mW/cm 2 ) Limit for uncontrolled (mW/cm 2 ) Safety Distance for controlled exposure (cm) Safety Distance for uncontrolled exposure (cm) 5 1 25 57

Test Report

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS14080063401 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT Applicant: Signalwing Corporation Address of Applicant: Block B, 8th Floor, Yongde Industrial Center, Fuyong Town, Bao'an District, Shenzhen, China Equipment Under Test (EUT) Product Name: Signal Booster Model No.: J4I-CP-37, J4I-CP-33, J4I-CP-30 Trade mark: Signalwing FCC ID: 2ACVLJ4ICP Applicable standards: FCC CFR Title 47 Part 24 FCC CFR Title 47 Part 22 FCC CFR Title 47 Part 2 Date of sample receipt: 01 Aug., 2014 Date of Test: 02 Aug., 2014 to 25 Aug., 2014 Date of report issued: 26 Aug., 2014 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 2 of 77 2 Version Version No. Date Description 00 26 Aug., 2014 Original Prepared By: Date: 26 Aug., 2014 Report Clerk Check By: Date: 26 Aug., 2014 Project Engineer Report No: CCIS14080063401 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140800634RF No. B-C, 1/F, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2311 8282 Fax: +86 (0) 755 2311 6366 Page 3 of 77 3 Contents Page 1 COVER PAGE ................................................................................................................................................... 1 2 VERSION ........................................................................................................................................................... 2 3 CONTENTS ....................................................................................................................................................... 3 4 TEST SUMMARY .............................................................................................................................................. 5 5 GENERAL INFORMATION .............................................................................................................................. 6 5.1 CLIENT INFORMATION ............................................................................................................................................ 6 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 6 5.3 RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................................... 7 5.4 TEST METHODOLOGY ............................................................................................................................................ 7 5.5 LABORATORY FACILITY.......................................................................................................................................... 7 5.6 LABORATORY LOCATION ....................................................................................................................................... 7 5.7 TEST INSTRUMENTS LIST ....................................................................................................................................... 8 6 TEST CONFIGURATION AND CONDITIONS ................................................................................................ 9 6.1 EUT CONFIGURATION ........................................................................................................................................... 9 6.2 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 10 6.3 TEST ENVIRONMENTS ......................................................................................................................................... 11 6.4 TEST CONFIGURATIONS ...................................................................................................................................... 12 6.5 DESCRIPTION OF TEST MODES ............................................................................................................................ 12 6.6 TEST CONDITIONS ............................................................................................................................................... 12 7 RF OUTPUT POWER ..................................................................................................................................... 13 7.1 STANDARD APPLICABLE ...................................................................................................................................... 13 7.2 TEST SETUP ............................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Jack Lee(Project Manager)

[email protected]0755-33233600Fax: 0755-33233511

Test Firm

Shenzhen Zhongjian Nanfang Testing Co.,LtdBruce Zhang

[email protected]86-755-23118282Fax: 86-755-23116366

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.93 GHz - 1.99 GHz	5.794 W	F9W	Amp

Confidentiality

Long Term

Grant Notes

Power output is conducted per carrier. The antenna used for this transmitter is to be fixed-mounted on indoor / outdoor permanent structures, and must provide a minimum 80 cm separation distance from all persons as described in this filing. Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
