2ACW6CD1011BTBluetooth CD Boombox

Cheng Yang

重庆康鼎电子有限公司 CHONGQING WEALTHY MERIT ELECTRONICS CO.,LTD. 10TH GROUP OF MIN'AN COMMUNITY,WUQIAO STREET, WANZHOU,CHONGQING,CHINA Tel : +86-023-588850006 Fax : +86-023-58850026 Attention: Application Examiner Re: Request for confidentiality Applicant: [ CHONGQING WEALTHY MERIT ELECTRONICS CO.,LTD.] FCC ID: [ 2ACW6CD1011BT ] To whom it may concern, Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by { CHONGQING WEALTHY MERIT ELECTRONICS CO.,LTD} to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: [ CHONGQING WEALTHY MERIT ELECTRONICS CO.,LTD] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. ] [For FCC certification; delete for TCB certification: The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, Signature: Title: Manager / Cheng Yang Company name: CHONGQING WEALTHY MERIT ELECTRONICS CO.,LTD

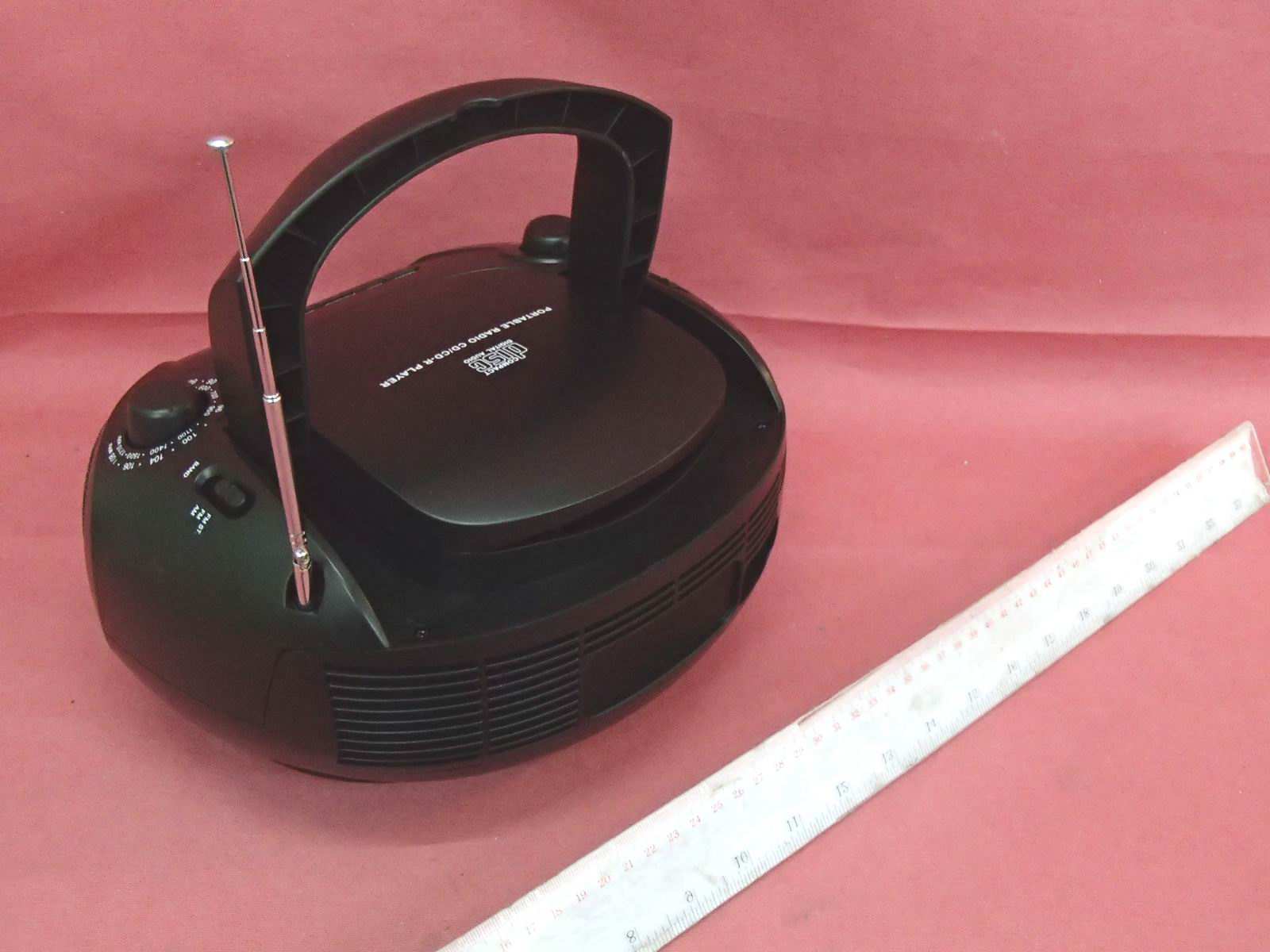

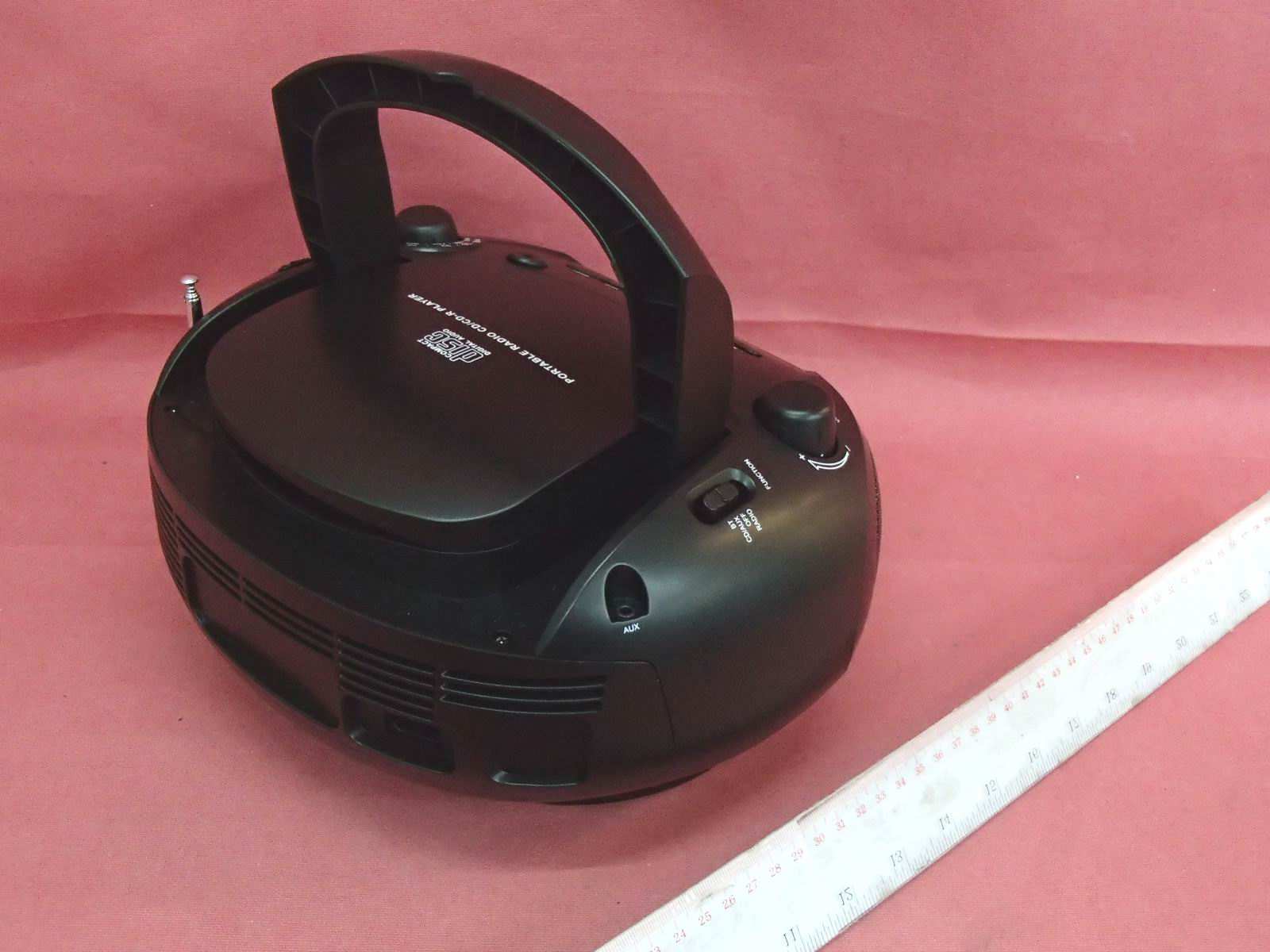

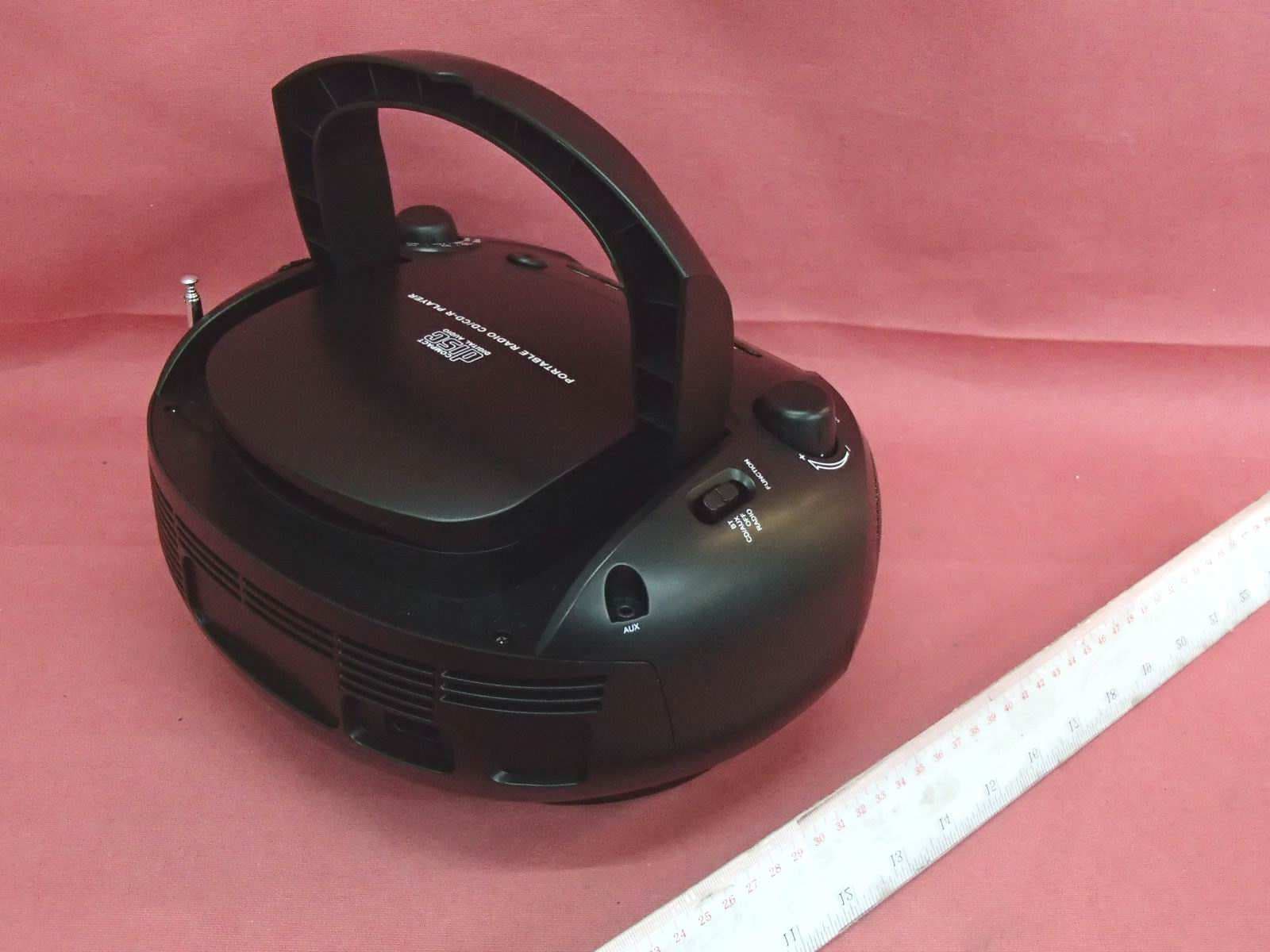

INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (External) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (External)

CD-1011BT 2 015.01.14 Engraved: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation MODÈLE : Bluetooth CD Boombox MODEL: Boombox avec CD Bluetooth CD-1011BT AC120V~ 60Hz 12 W Battery:12V (8x 'C'(UM-2)) Made in china/ Fabriqué en Chine FCC ID : 2ACW6CD1011BT IC : 12254A-CD1011BT Th is d ev ic e co mp li es w it h Pa rt 1 5 of t he F CC R ul es . Op er at io n is s ub je ct t o th e fo ll ow in g tw o co nd it io ns : (1 ) th is d ev ic e ma y no t ca us e ha rm fu l in te rf er en ce , an d (2 ) th is d ev ic e mu st a cc ep t an y in te rf er en ce r ec ei ve d, in cl ud in g in te rf er en ce t ha t ma y ca us e un de si re d op er at io n MO DÈ LE : Bl ue to ot h CD B oo mb ox MO DE L: Bo om bo x av ec C D Bl ue to ot h CD -1 011 BT AC 12 0V ~ 60 Hz 1 2 W Ba tt er y: 12 V (8 x 'C '( UM -2 )) Ma de i n ch in a/ Fa br iq ué e n Ch in e FC C ID : 2 AC W6 CD 10 11B T IC I D : 12 25 4A -C D1 011 BT Engraved: WARNING : SHOCKHAZARD. DO NOT OPEN AVIS : RISQUE DE CHOCELECTRIQUE, NE PAS OUVRIR Intertek D Intertek EP XXXXXXX CONFORMS TO ANSI/ UL STD. 60065 CERTIFIED TO CAN/CSA STD. C22.2 No.60065 K-1011BT CD-1011BT CD-1011BT 23X45.5mm CD-1011BT2015-01-27 Intertek D Intertek EP5000621 CONFORMS TO ANSI/ UL STD. 60065 CERTIFIED TO CAN/CSA STD. C22.2 No.60065 66.4x4mm Manufactured: Mar 2015 S/N 20150310001 Manufactured: Mar 2015 S/N 20150310001 FCC ID : XXXABCDEFG This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation MODÈLE : Bluetooth CD Boombox MODEL: Boombox avec CD Bluetooth CD-1011BT AC120V~ 60Hz 12 W Battery:12V (8x 'C'(UM-2)) Made in china/ Fabriqué en Chine FCC ID : 2ACW6CD1011BT IC :12254A-CD1011BT 25mm 35.8mm 25x35.8mm Intertek D Intertek EP 5000621 CONFORMS TO ANSI/ UL STD. 60065 CERTIFIED TO CAN/CSA STD. C22.2 No.60065 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation MODÈLE : Bluetooth CD Boombox MODEL: Boombox avec CD Bluetooth CD-1011BT AC120V~ 60Hz 12 W Battery:12V (8x 'C'(UM-2)) Made in china/ Fabriqué en Chine FCC ID : 2ACW6CD1011BT IC : 12254A-CD1011BT FCC ID 1.12mm IC ID 1.12mm FCC ID 1.12mm IC ID 1.12mm 白底黑字

INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal) INTERTEK TESTING SERVICE Report No.: 14120807HKG-001 FCC ID: 2ACW6CD1011BT IC: 12254A-CD1011BT Equipment Photographs Model: CD-1011BT (Internal)

Analysis Report Report No.: 14120807HKG-001 The Equipment Under Test (EUT) is a Bluetooth CD Boombox that can accept audio sources including CD, AM/FM Tuner, analog line-in and Bluetooth devices. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 120VAC and/or 12VDC (8 x size “C” batteries). 2.4GHz Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Nominal field strength is 100.8dBμV/m @ 3m Production Tolerance of field strength is +/- 3dB Antenna gain is 0dBi According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 103.8dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 7.196mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 7.196mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.
